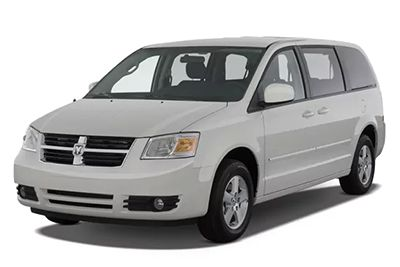

Explore Dodge Grand Caravan fuse box diagrams in this clear guide focused on the early years of the fifth-generation model. Here we look at the pre-facelift Dodge Grand Caravan (2007–2010) and provide fuse diagrams for 2008, 2009 and 2010 , along with the location of the fuse panels and the assignment of each fuse , giving you an easy way to track down electrical components on these earlier versions.

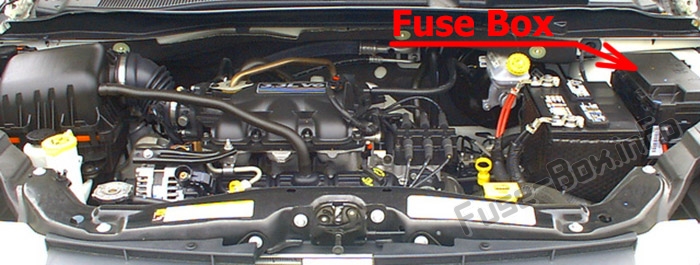

The integrated power module (IPM) is located in the engine compartment near the battery.

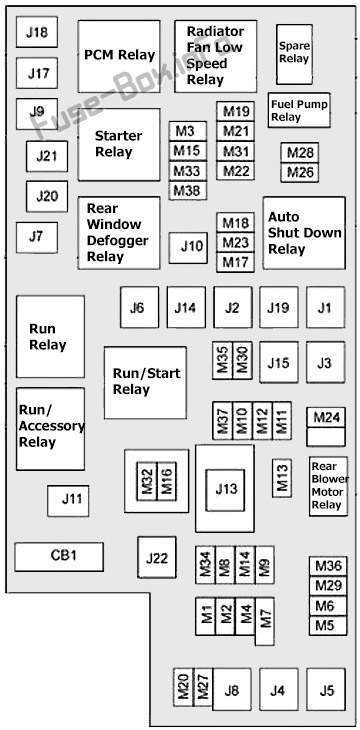

Assignment of Cartridge fuses in the IPM
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description J1 40A Power Folding Seat J2 30A Power Liftgate Module J3 40A / 30A Rear Door Module (40A in 2008 / 30A in 2009–2010) J4 25A Driver Door Node J5 25A Passenger Door Node J6 40A ABS Pump / ESP J7 30A ABS Valve / ESP J8 40A Power Memory Seat – If Equipped J9 40A PZEV / Flex Fuel J10 30A Headlamp Wash / Manifold Tuning Valve J11 30A Power Sliding Door Module (+ Thatcham Lock Feed in 2009 / + Anti-Theft Relay Lock Feed in 2010) J13 60A Ignition Off Draw (IOD) – Main J14 40A Rear Window Defogger J15 30A Rear Blower J17 40A Starter Solenoid J18 20A PCM Trans Range J19 60A Radiator Fan J20 30A Front Wiper LO/HI J21 20A Front/Rear Washer J22 25A Sunroof Module
This content requires JavaScript and a valid membership to view.
Assignment of Mini fuses in the IPM
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description M1 15A CHMSL / Brake Switch M2 20A / — Trailer Lighting (20A in 2008 / Not used 2009–2010) M3 20A Spare Fuse (2009–2010) (blank in 2008) M4 10A Trailer Tow M5 25A Inverter M6 20A Power Outlet #1 + Rain Sensor (defined 2009–2010) (Not Used in 2008) M7 20A Power Outlet #2 (BATT/ACC Select) M8 20A Front Heated Seat – If Equipped M9 20A Rear Heated Seat – If Equipped M10 20A / 15A IOD – Video/DVD/SDARS/UGDO (20A in 2008 / 15A in 2009–2010) M11 10A IOD – HVAC (+ Underhood Lamp in 2008 only) M12 30A Amplifier / Radio M13 20A IOD – Cluster, Siren, Clock, Multi-Function Switch M14 20A / Spare Trailer Tow (Export only 2008 / Spare in 2009–2010) M15 20A Rear View Mirror, TPMS, HVAC, etc. (+ Acoustic Noise Cancellation added 2009+) M16 10A ORC / OCM M17 15A Left Tail / License / Park / Running Lamps M18 15A Right Tail / Park / Run Lamps M19 25A Automatic Shutdown #1 & #2 M20 15A Interior Light, Switch Bank, Steering Module M21 20A Automatic Shutdown #3 M22 10A Right Horn M23 10A Left Horn M24 25A Rear Wiper M25 20A Fuel Pump (+ Diesel Lift Pump on Export models) M26 10A Power Mirror / Driver Window Switch M27 10A Ignition Switch / Window Module (+ PEM + Steering Lock added 2009+) M28 10A PCM / Transmission Feed (+ TCM added 2009+) M29 10A Occupant Classification Module M30 15A Rear Wiper Module, Power Folding Mirror (+ J1962 Diagnostic Feed added 2009+) M31 20A Back-Up Lamps M32 10A ORC / TT Europe M33 10A NGC / GPEC (+ TCM added 2009+) M34 10A Park Assist, HVAC, Headlamp Wash (+ IR Sensor + Rear Camera + Flashlight + Diesel Heater added 2009+) M35 10A Heated Mirrors M36 20A Power Outlet #3 M37 10A ABS / ESP / Stop Lamp / Fuel Pump Relay High M38 25A Door Lock Motors (+ Liftgate Locks added 2009+)
