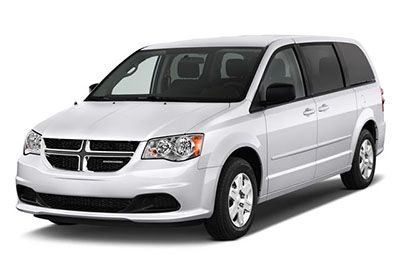

Explore Dodge Grand Caravan fuse box diagrams in this practical guide that makes the electrical layout of the updated fifth generation easy to understand. Here we cover the facelifted Dodge Grand Caravan (2011–2020) and provide fuse diagrams for 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 and 2020, along with the location of the fuse panels and the assignment of each fuse, giving you a clear reference for repairs and troubleshooting.

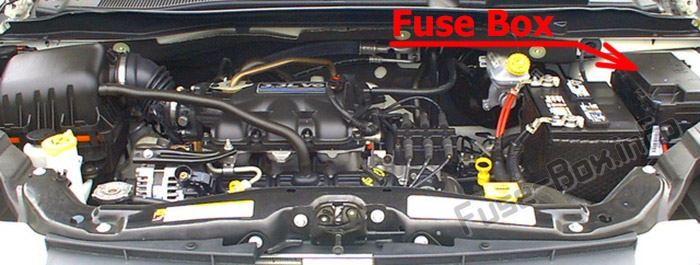

The integrated power module (IPM) is located in the engine compartment near the battery. A label that identifies each component may be printed or embossed on the inside of the cover.
Fuse box diagrams
2011
Cartridge fuses

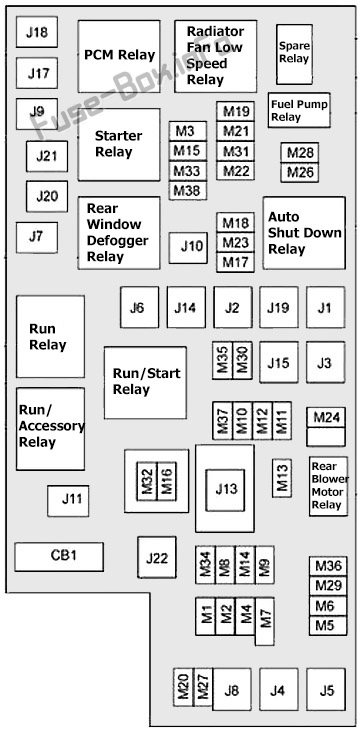

Assignment of cartridge fuses in the IPM (2011)
Fuse Data
Full access is available to registered users — log in or register.
Powertrain Control Module, Transmission Feed, Transmission Control Module
M29
10 Amp Red
Occupant Classification Module
M30
15 Amp Blue
Rear Wiper Module, Power Folding Mirror, J1962 Diagnostic Feed
M31
20 Amp Yellow
Back-Up Lamps
M32
10 Amp Red
Airbag Module, TT EUROPE
M33
10 Amp Red
Powertrain Control Module, Transmission Control Module
M34
10 Amp Red
Park Assist, Heater Climate Control System Module, Headlamp Wash, Compass, IR Sensor, Rear Camera, Lamp Door FT Drv/Pass, Lamp Flashlight, AHLM, Relay Diesel Cabin Heater, Rad Fan Diesel
M35
10 Amp Red
Heated Mirrors
M36
20 Amp Yellow
Power Outlet #3
M37
10 Amp Red
Antilock Brakes, Stability Control System, Stop Lamp Switch, Fuel Pump Rly Hi Control
M38
25 Amp Natural
Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors
2012
Cartridge fuses
Assignment of cartridge fuses in the IPM (2012)
Fuse Data
Full access is available to registered users — log in or register.
Trailer Lighting, Front Fog Lamps, Intelligent Batterv Sensor (IBS)
M3
20 Amp Yellow
Front/Rear Axle Locker, Vacuum Pump Motor
M4
10 Amp Red
Trailer Tow
M5
25 Amp Natural
Inverter
M6
20 Amp Yellow
Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear)
M7
20 Amp Yellow
Power Outlet #2 (BATT/ACC SELECT) – Center Seat or with Console Rear
M8
20 Amp Yellow
Front Heated Seat – If Equipped
M9
20 Amp Yellow
Rear Heated Seat – If Equipped
M10
15 Amp Blue
Ignition Off Draw — Video System, Satel lite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped
M11
10 Amp Red
Climate Control System
M12
30 Amp Green
Amplifier/Radio
M13
20 Amp Yellow
Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch – If Equipped
M14
20 Amp Yellow
Trailer Tow – If Equipped
M15
20 Amp Yellow
Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – If Equipped
Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater, Rad Fan Diesel – If Equipped
M35
10 Amp Red
Heated Mirrors
M36
20 Amp Yellow
Power Outlet #3 (Instrument Panel or with Console Center)
