Explore Dodge Hornet fuse box diagrams in this concise guide created to help you understand the electrical layout of this modern compact crossover. Here we cover the Dodge Hornet (2022–2025) and provide fuse diagrams for 2023, 2024 and 2025 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you a clear reference for electrical maintenance and troubleshooting.

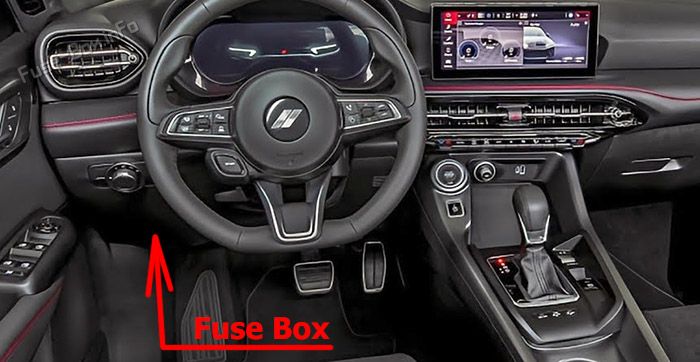

The interior fuse panel is located under the driver’s side lower instrument panel.

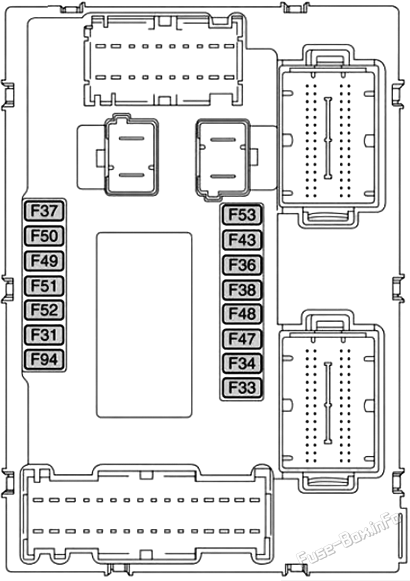

Assignment of the fuses in the instrument panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Amps Description F31 7.5A Brown HVAC Relay Coil & Power Outlet / Seat Relay Coil F33 20A Yellow Front Passenger Window Lifter F34 20A Yellow Front Driver Window Lifter F36 15A Blue HVAC / VTA / External Mirror / Ceiling Light / CVPM / Radio Mod / USB / AUX / DCSD / Electric Steering Lock F37 10A Red Brake Switch / DASM / IPC F38 20A Yellow Door Lock & Unlock / Liftgate Release F42 7.5A Brown Brake System Module, Electric Power Steering F43 20A Yellow Bi-Directional Washer Pump F47 20A Yellow Rear Left Window Lifter F48 20A Yellow Rear Right Window Lifter F49 7.5A Brown Park Assist, Blind Spot, Voltage Stabilizer, Humidity Sensor, Electronic Steering Lock, Temp Sense, Mirror, Heated Seats, Light And Rain Sensor, Start Stop Switch F50 7.5A Brown Occupant Restraint Controller F51 7.5A Brown Electronic Climate Control, Occupant Classification, RearView Camera, Climate Control, Headlamp Leveling, Terrain Select, Heated Rear Window, Trailer Tow, Haptic Lane Mod F53 7.5A Brown HCP / Reverse Gear / ISNSR / A/C Compressor / HVAC / Defrosting / Right & Left Headlamp Leveling / LDW / Alarm Mod / Psg Airbag / Trailer Tow Mod / AFLM / Air Quality Sensor / ASBM F94 15A Blue Power Outlet
This content requires JavaScript and a valid membership to view.

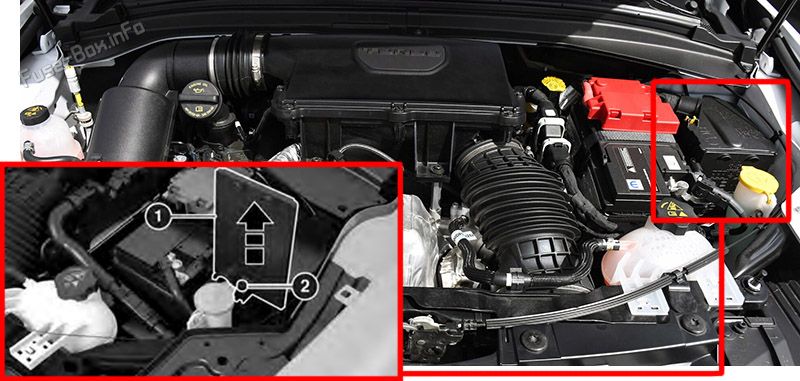

For fuse box access, proceed as follows:
Turn the locking screw counterclockwise.
Slowly release the screw.
Remove the fuse box cover by sliding it upward.
Reverse the procedure to reinstall.

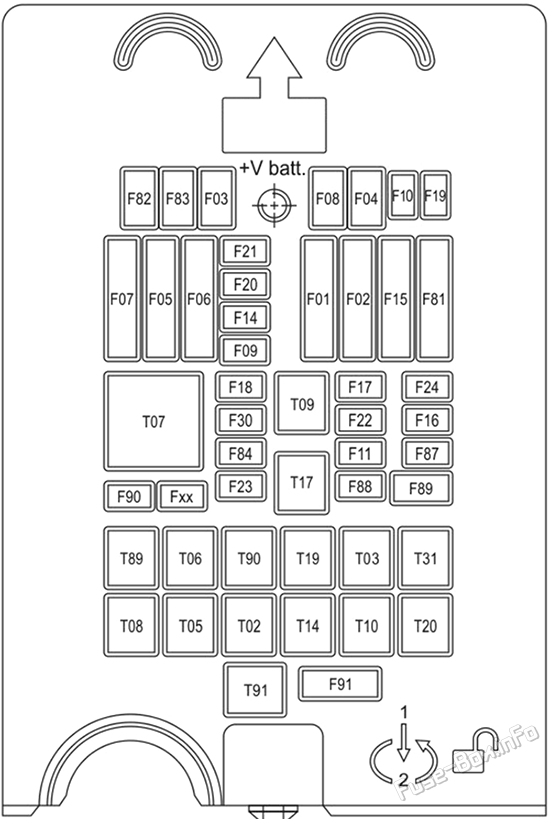

Assignment of the fuses in the engine compartment (Gasoline)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Amps Description F01 70A Tan BCM1 F02 70A Tan BCM2 / RDU F03 20A Blue BCM3 F04 40A Green BCM Valves F05 40A Orange PTC 1 F06 20A Yellow Front Wiper Motor F07 20A Yellow DTCM F08 30A Pink Power Supply F24 – F87 – Fxx F09 7.5A Brown ECM T09 F10 15A Blue Horn F11 5A Tan Engine Secondary Loads F14 7.5A Brown LTR F15 40A Orange BSM Pump F16 10A Red ECM / TCM / AGSM F17 10A Red Engine Primary Loads F18 5A Tan IGNM F19 7.5A Brown A/C Compressor F20 15A Blue Rear Cargo Outlet F21 20A Yellow Fuel Pump F22 15A Blue ECM F23 5A Tan USB / Aux Outlet F24 10A Red DTCM F30 5A Tan AWD DTCM F81 30A Green Brake Booster Vacuum Pump F82 40A Green 2024: External Oil Pump (if equipped) F83 40A Green HVAC Fan F84 7.5A Brown Rad Fan Enable F87 5A Tan AGSM F88 7.5A Brown Heated Mirrors & Washer Nozzle F89 30A Pink Rear Window Defrost F90 5A Tan Intelligent Battery Sensor T02 – Not Used T03 30A Horn Relay T05 30A A/C Compressor Relay T06 30A Rad Fan Enable Relay T07 50A Aux.1 / DTCM Relay T08 30A HVAC Fan Relay T09 30A Engine Main Relay T10 – Not Used T14 30A Rear Cargo Power Outlet Relay T17 30A Rear Window Defrost / Heated Mirrors Relay T19 – Not Used T20 30A Starter Relay R1 T31 30A Fuel Pump Relay T89 – Not Used T90 30A Brake Booster Vacuum Pump Relay
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment (Hybrid)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Amps Description F01 70A Tan BCM1 F02 70A Tan BCM2 / RDU F03 20A Blue BMC3 F04 40A Green BCM Valves F05 40A Orange PTC 1 F06 20A Yellow Front Wiper Motor F07 50A Red AUX 1 RDU F08 30A Pink Power Supply F24 – F87 – Fxx F09 7.5A Brown ECM T09 F10 15A Blue Horn F11 5A Tan Engine Secondary Loads F14 7.5A Brown LTR F15 70A Tan BSM Pump F16 10A Red ECM / TCM / AGSM F17 10A Red Engine Primary Loads F18 5A Tan IGNM (if equipped) F19 7.5A Brown A/C Compressor F20 15A Blue Rear Cargo Outlet F21 20A Yellow Fuel Pump F22 20A Yellow Engine Primary Loads F23 5A Tan USB / Aux Outlet F24 10A Red TCM F30 – Spare F81 40A Orange AUX 2 RDU F82 40A Green External Oil Pump (AT) (if equipped) F83 40A Green HVAC Fan F84 7.5A Brown Rad Fan Enable F87 5A Tan AGSM F88 7.5A Brown Heated Mirrors & Washer Nozzle F89 30A Pink Rear Window Defrost F90 5A Tan Intelligent Battery Sensor Fxx 25A Clear PIM T02 – Not Used T03 30A Horn Relay T05 30A A/C Compressor Relay T06 30A Rad Fan Enable Relay T07 50A Aux.1 Relay T08 30A HVAC Fan Relay T09 30A Engine Main Relay T10 – Not Used T14 30A Rear Cargo Power Outlet Relay T17 30A Rear Window Defrost / Heated Mirrors Relay T19 30A External Oil Pump Relay T20 30A Starter Relay R1 T31 30A Fuel Pump Relay T89 – Not Used T90 30A Brake Booster Vacuum Pump Relay
This content requires JavaScript and a valid membership to view.

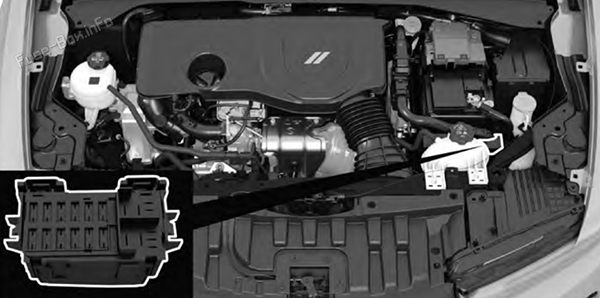

Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Amps Description F01 5A Tan Electric Air Heater (EAH) F02 7.5A Brown Electric Air Compressor (EAC) F03 5A Tan Integrated Dual Charge Module (IDCM) F04 5A Tan Charge Port Indicator Module (CPIM) F05 15A Blue Power Electronic Coolant Pump 2 (PECP2) F06 15A Blue Power Electronic Coolant Pump (PECP) F07 5A Tan Aux Heater Pump (AHP) F08 5A Tan PIM Feed 1 F09 10A Red BPCM Feed 1 F10 5A Tan PIM Feed 3 F11 10A Red BPCM Feed 2 F12 5A Tan Electronic Pedestrian Protection Module (EPPM)
This content requires JavaScript and a valid membership to view.

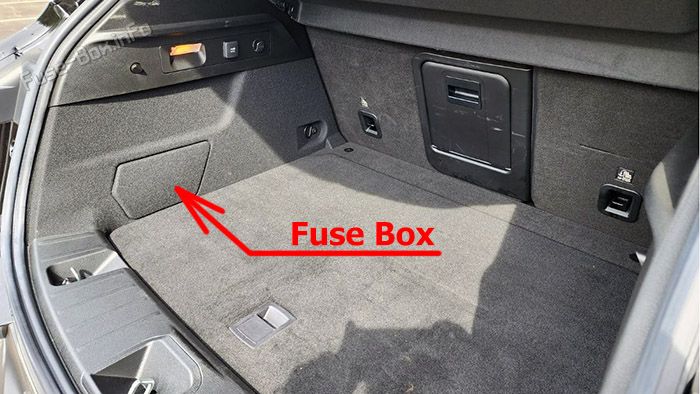

To access the fuses, remove the access door from the left rear panel in the rear cargo area. The fuses may be contained in two units. Fuse Holder №1 is located closest to the rear of the vehicle and Fuse Holder №2 (If equipped with trailer towing) is located closest to the front of the vehicle.

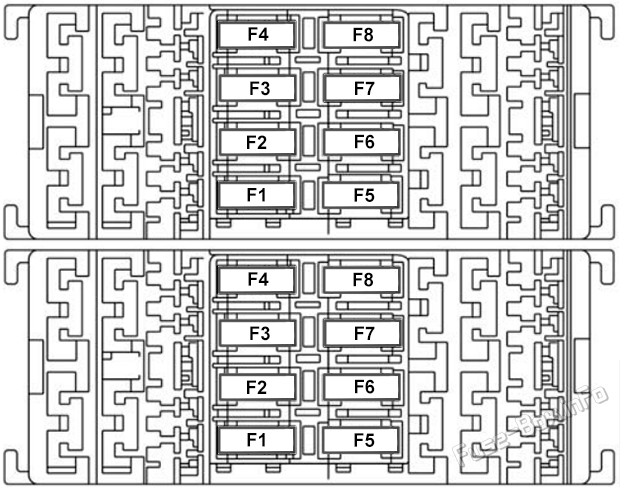

Assignment of the fuses in cargo compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Amps Description Fuse Holder №1 F1 20A Yellow Sunroof F2 – – F3 30A Green Power Liftgate Module (PLGM) F4 5A Tan Driver And Passenger Ventilated Seats (HMSM) F5 25A Clear Heating And Memory Drive Seat Module 1 F6 10A Red Heating And Memory Drive Seat Module 2 F7 7.5A Brown Driver And Passenger Lumbar Regulator (Without HMSM) F8 20A Yellow Passenger Seat SW (HMSM) Fuse Holder №2 F3 5A Tan Hands-Free Power Liftgate (HFRM) F4 7.5A Brown Damping Control Module F5 5A Tan Changeover Valve Feed (ELCM) F8 7.5A Brown Damping Control Module Maxi Fuse Holder F01 30A Green AmplifierOn the Rear Cargo Fuse/Relay Distribution Unit bracket, there is a Maxi Fuse holder for the Amplifier (if equipped).
This content requires JavaScript and a valid membership to view.
