Explore Dodge Intrepid fuse box diagrams in this brief guide that highlights the electrical layout of the later second-generation models. Here we focus on the second-generation Dodge Intrepid (1998–2004) and provide fuse information specifically for 1998, 1999, 2000, 2001, 2002, 2003 and 2004, along with the location of the fuse panels and the assignment of each fuse, giving you a quick reference for troubleshooting and electrical checks.

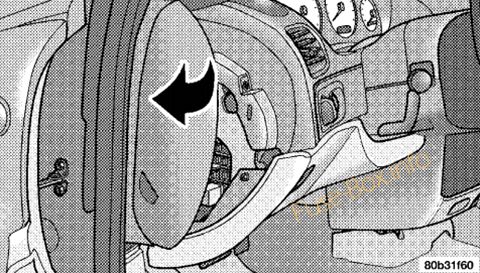

High Beam Relay, High Beam Indicator, High Beam Switch
12
15 Amp Lt. Blue
Left Low Beam Headlight
13
10 Amp Red
Fuel Pump Relay, Power Train Control Module
14
10 Amp Red
Cluster, Day/Night Mirror, Sunroof, Overhead Console, Garage Door Opener, Body Control Module
15
10 Amp Red
Daytime Running Light Module (Canada)
16
20 Amp Yellow
Fog Light Indicator
17
10 Amp Red
ABS Control, Back Up Lights, Daytime Running Lights, A/C Heater Control
18
20 Amp Yellow
Power Amplifier, Horn
19
15 Amp Lt. Blue
Overhead Console, Garage Door Opener, Trunk, Overhead, Rear Reading, and Visor Vanity Lights, Trunk Release Solenoid, Power Mirrors, Power Door Locks, Body Control Module, Aspirator Motor
20
20 Amp Yellow
Brake Lights
21
10 Amp Red
Leak Detection Pump, Low Rad Relay, High Rad Relay, A/C Clutch Relay
22
10 Amp Red
Airbag
23
30 Amp Green
Blower Motor, ATC Power Module
CB1
20 Amp C/BRKR
Power Window Motors
CB2
20 Amp C/BRKR
Power Door Lock Motors, Power Seats

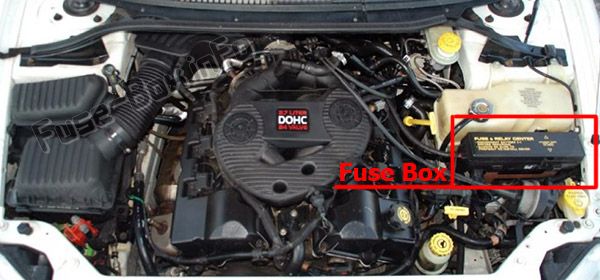

Engine compartment
Fuse box location

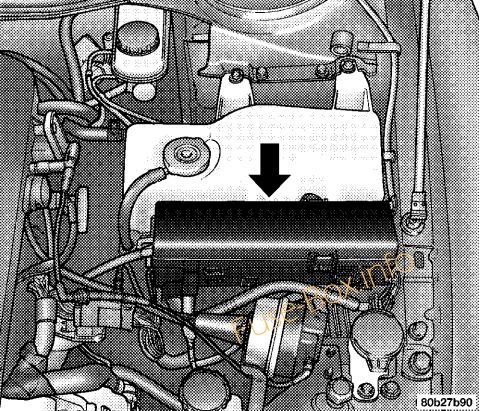

A Power Distribution Center is located in the engine compartment.
A label that identifies these components is located on the underside of the cover.
Fuse box diagram
Assignment of fuses in the engine compartment
