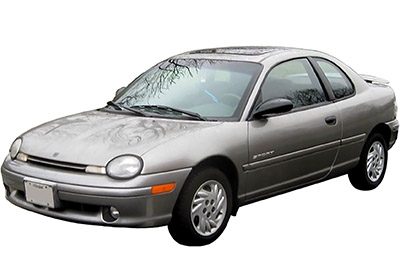

Explore Dodge Neon fuse box diagrams in this practical guide that lays out the electrical setup of the original compact sedan. Here we take a look at the first-generation Dodge Neon (1994–1999) and include fuse diagrams for 1994, 1995, 1996, 1997, 1998 and 1999 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you a clear breakdown of what powers each system on these early models.
The fuse panel is located behind the cover on the driver’s side of the dashboard.
Assignment of fuses in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amp Rating Description 1 15 Cigar Lighter / Power Outlet 2 15 Headlamp Switch (Park Lamp, Tail Lamp, License Lamp, Radio, Front Fog Lamp Switch, Remote Keyless Entry Module (1998-1999)) 3 20 Door Lock Switch, Remote Keyless Entry Module (1994-1997), Immobilizer (1998-1999) 4 10 Fog Lamp Switch 5 10 1994-1997: A/C Cycling Switch, Back-Up Lamp (Back-Up Lamp Switch M/T), Park/Neutral Position Switch (A/T), Rear Window Defogger Switch; 6 10 Turn Signal/Hazard 7 25 A/C Heater Blower Motor 8 10 1994-1997: Airbag Control Module; 9 10 1994-1997: Instrument Cluster, Radio, Ash Receiver Lamp, Rear Window Defogger Switch, “PRNDL” Lamp, Rear Fog Lamp Switch, A/C Heater Control Switch, Headlamp Leveling Switch; 10 15 Powertrain Control Module, Air Conditioner Compressor Clutch Relay, ABS, Vapor Canister Leak Detector, Torque Converter Clutch Solenooid (A/T), Duty Cycle EVAP/Purge Solenoid, ABS Relay Box, EGR Transducer Solenoid, ABS Warning Lamp Relay 11 5 Instrument Cluster, Daytime Running Lamp Module (1998-1999), Remote Keyless Entry Module (LHD;1998-1999), Immobilizer (RHD;1998-1999) 12 10 1994-1997: Airbag Control Module; 13 – Not Used 14 20 Sunroof 15 20 Wiper Motor, Wiper/Washer Switch, Intermittent Wiper/Washer Switch, Cigar Lighter Relay 16 10 Radio 17 10 Left Headlamp, Left/Right Headlamp Leveling Motor 18 10 Right Headlamp 19 – Not Used 20 – Not Used
This content requires JavaScript and a valid membership to view.
Assignment of Circuit Breakers in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amp rating Description CB1 30 Power Window, Power Window CB2 – Not Used
This content requires JavaScript and a valid membership to view.
Assignment of relays in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 1998-1999 (LHD): Time Delay R2 1994-1997: Cigar Lighter;1998-1999 (LHD): Combination Flasher;1998-1999 (RHD): Cigar Lighter R3 1994-1997: Combination Flasher;1998-1999 (LHD): Time Out;1998-1999 (RHD): Combination Flasher
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amp Rating Description 2 40 Ignition Switch (Passenger Compartment Fuses: “5”, “6”, “7”, “8”, “CB1”) 3 40 Headlamp Switch, Passenger Compartment Fuses: “1”, “3”, “4” 5 30 Solid State Fan Relay (Radiator Fan) 8 30 Rear Window Defogger 10 40 ABS Relay Box 11 30 Starter Relay, Ignition Switch (Clutch Pedal Position Switch (M/T), Passenger Compartment Fuses: “10”, “11”, “12”, “14”, “15”, “16”) 13 10 Dome Lamp, Trunk Lamp, Underhood Lamp, Instrument Cluster, Radio, Glove Box Lamp, Map/Reading Lamp, Visor/Vanity Lamp, Power Mirror Switch, High Speed Warning Module (1998-1999), Time Delay Relay (1998-1999), Time Out Relay (1998-1999) 16 20 Fog Lamp Relay, Rear Fog Lamp Switch 18 10 or 20 1994-1997 (10A): Air Conditioner Compressor Clutch Relay; 20 10 Turn Signal/Hazard 21 20 Fuel Pump Relay, Auto Shut Down Relay (Fuel Injectors, Ignition Coil Pack, Powertrain Control Module, Generator, Data Link Connector, Oxygen Sensors, Capacitor, Noise Suppressor) 25 15 Stop Lamp Switch
This content requires JavaScript and a valid membership to view.
Assignment of relays in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Not Used R2 Fuel Pump R3 Auto Shut Down R4 Horn R5 Fog Lamp R6 ABS Warning Lamp R7 Air Conditioner Compressor Clutch R8 Starter
This content requires JavaScript and a valid membership to view.
