Dodge Nitro (2007-2012)

Explore Dodge Nitro fuse box diagrams in this clear guide that helps you understand the electrical setup behind this compact SUV’s tough exterior. The Dodge Nitro (2007–2012) is covered here with fuse diagrams for 2007, 2008, 2009, 2010, 2011 and 2012, along with the location of the fuse panels and the assignment of each fuse, giving you a useful reference for tracking down electrical issues or performing maintenance.

Fuse box location

The Integrated Power Module (IPM) is located in the engine compartment near the battery.
This center contains cartridge fuses, mini fuses and relays. A label that identifies each component is printed on the inside of the cover.

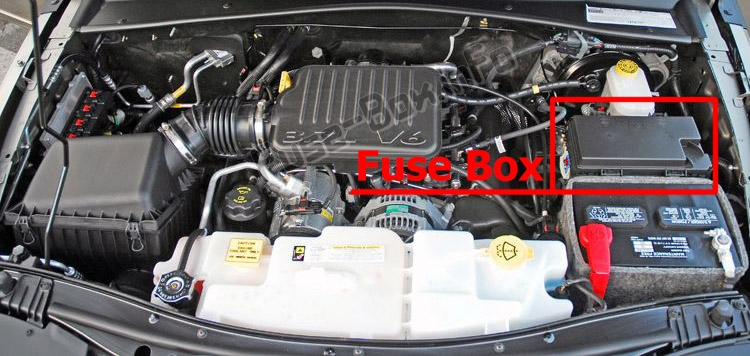

The location of the fuses in the engine compartment: Dodge Nitro (2007-2012)

Fuse box diagram

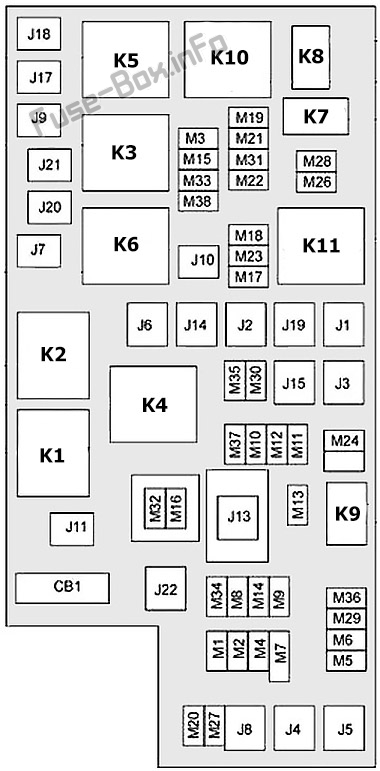

Under-hood fuse box diagram: Dodge Nitro (2007, 2008, 2009, 2010)

Cartridge Fuses

Assignment of cartridge fuses in the IPM

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

CavityAmpDescription
J140A2007–2010: Power Folding Seat · 2011–2012: Not used
J230ATransfer Case/Power Liftgate Module
J340A2007–2010: Rear Door Module · 2011–2012: Not used
J425ADriver Door Node
J525APassenger Door Node
J640AABS Pump / Stability Control
J730AABS Valve / Stability Control
J840APower Memory Seat
J940A2007–2010: PZEV/Flex Fuel · 2011–2012: Not used
J1030A2007–2010: Headlamp Wash/Manual Valve · 2011–2012: Not used
J1130A2007–2010: Sway Bar/Lock-Unlock/Power Sliding Door · 2011–2012: Anti-Theft Lock/Unlock
J12—Not used
J1360AIgnition Off Draw – Main
J1440ARear Window Defogger/Rear Defroster
J1530A / 40A2007–2010: Rear Blower (30A) · 2011–2012: Front Blower (40A)
J1740AStarter Solenoid
J1820A2007–2010: PCM Trans Range · 2011–2012: Powertrain Control Module
J1960ARadiator Fan
J2030AFront Wiper
J2120AFront/Rear Washer
J2225ASunroof Module (if equipped)

Mini Fuses

Assignment of mini fuses in the IPM

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

CavityAmpDescription
M120A / 15A2007–2010: CHMSL/Brake Switch (20A) · 2011–2012: Rear Center Brake Lamp/Brake Switch (15A)
M220ATrailer Lighting
M320AAxle Lockers
M410ATrailer Tow
M525AInverter (2007–2010) · 115V AC Inverter (2011–2012)
M620A2007–2010: Power Outlet #1/Rain Sensor · 2011–2012: Rain Sensor
M720A2007–2010: Power Outlet #2 (Batt/Acc) · 2011–2012: Cigar Lighter
M820AFront Heated Seat
M920A2007–2010: Rear Heated Seat · 2011–2012: Not used
M1020A / 15A2007–2010: IOD Radio/DVD/SDARS/HFM/UGDO/Vanity (20A) · 2011–2012: IOD Video/Sat Radio/Hands-Free/UGDO/Vanity (15A)
M1110AIOD HVAC/Underhood Lamp
M1230AAmp (2007–2010) · Radio & Amp (2011–2012)
M1320AIOD CCN/WCM/Siren/Clock/Switches
M1420ATrailer Tow (Export only)
M1520AHVAC/Modules (changes wording only between years)
M1610AAirbag/Occupant Classification
M1715ALeft Tail/License/Park
M1815ARight Tail/Park/Run
M1925AAutomatic Shutdown (ASD #1 & #2)
M2015AInterior Light/Switch Bank/Steering Control
M2120AAutomatic Shutdown (ASD #3)
M2210ARight Horn
M2310ALeft Horn
M2425ARear Wiper
M2520AFuel Pump/Diesel Lift Pump
M2610APower Mirror/Driver Window Switch
M2710A2007–2010: Ignition + Window Module · 2011–2012: Ignition/WCM/Steering Lock
M2810APCM/Transmission Feed
M2910AOccupant Classification Module
M3015ARear Wiper/Power Fold Mirror; 2011–2012 adds Diagnostic Link
M3120ABackup Lamps
M3210AORC/OCM (2007–2010 EU) · 2011–2012: Airbag
M3310APowertrain Control Module
M3410APark Assist/Climate/Headlamp Wash/Compass
M3510AHeated Mirrors
M3620A2007–2010: Power Outlet #3 · 2011–2012: Not used
M3710AABS/ESP/Stop Lamp/Fuel Pump Relay
M3825A2007–2010: Lock Motors · 2011–2012: Door & Liftgate Lock Motors
