Explore Dodge Sprinter fuse box diagrams in this straightforward guide designed to help you locate and understand the electrical components on early models. Here we look at the first-generation Dodge Sprinter (2002–2006) and provide fuse diagrams for 2002, 2003, 2004, 2005 and 2006 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you a practical reference for maintaining this workhorse van.

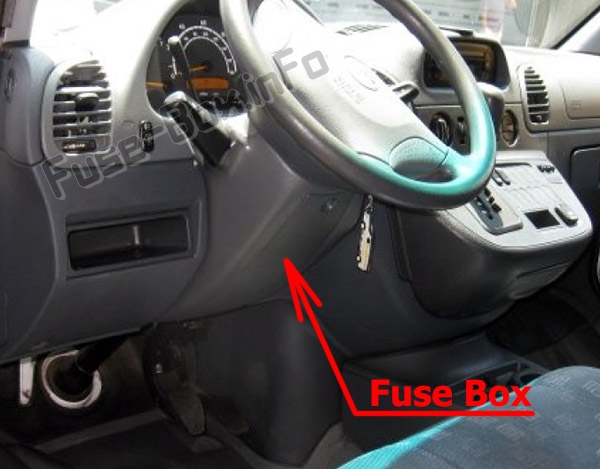

It is located in the instrument panel below the steering wheel, behind the cover.

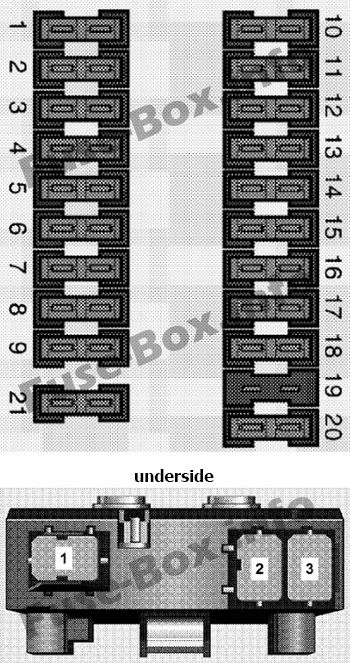

Assignment of the fuses in the Instrument Panel Fuse Box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Circuit A 1 Parking lamp right, taillamp right 10 2 High beam head lamp, right 10 3 High beam head lamp, left, high beam indicator lamp 10 4 Backup lamp 10 5 Brake lamp 10 6 Windshield wiper motor 20 7 Horn, heated rear window,air recirculation switch,optional equipment relay (terminal 15) 15 8 Interior lighting, cigarette lighter,radio (terminal 30) 20 9 Clock, hazard warning lamps,parking lamps 15 10 Instrument lighting, license plate lampdaytime driving lamps 10 11 Side lamp, left; taillamp, left 10 12 Low beam headlamp, right 10 13 Low beam headlamp, left 10 14 Fog lamp 15 15 Radio (terminal 15) 10 16 Engine control unit 25 17 Engine control unit 15 18 Ignition (terminal 15) 15 19 Not in use 15 20 Heater controls (terminal 30) 15 21 Heater blower (terminal 30) 30
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Instrument Panel Fuse Box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Windshield wiper motor (W) 2 Diesel engine control unit (M) 3 Turn signals (B)
This content requires JavaScript and a valid membership to view.

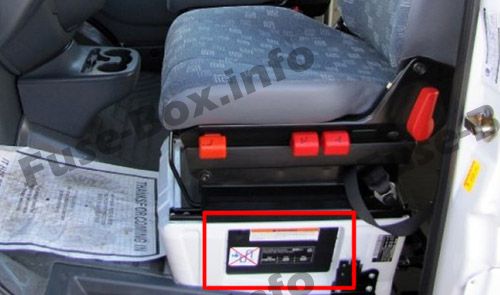

Assignment of the diodes in the Fuse Box under driver’s seat
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Circuit A Diodes 1 Not in use 2 Not in use 3 Not in use 4 Not in use
This content requires JavaScript and a valid membership to view.

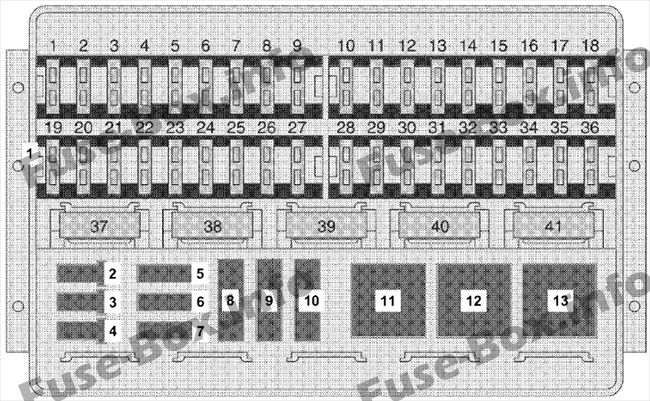

Assignment of the fuses in the Fuse Box under driver’s seat
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description Amp rating 5 Immobilizer 10 6 Anti-lock brake system (ABS) 7.5 7 Anti-lock brake system (ABS) 25 8 Not in use 40 9 Anti-lock brake system (ABS) 40 10 Not in use –
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Fuse Box under driver’s seat
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 11 Not in use 12 Starter relay 13 Not in use
