Explore Dodge Stratus fuse box diagrams in this easy-to-use guide that helps you quickly understand how the second generation is wired. Here we cover the second-generation Dodge Stratus (2000–2006) and provide fuse diagrams for 2001, 2002, 2003, 2004, 2005 and 2006, along with the location of the fuse panels and the assignment of each fuse and relay, offering a clear breakdown of the car’s electrical components without the guesswork.

What’s Included

Engine compartment

Fuse box location

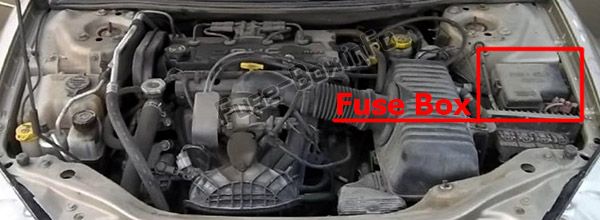

A Power Distribution Center is located in the engine compartment, near the air cleaner.

The location of the fuses in the engine compartment: Dodge Stratus (2001, 2002, 2003, 2004, 2005, 2006)

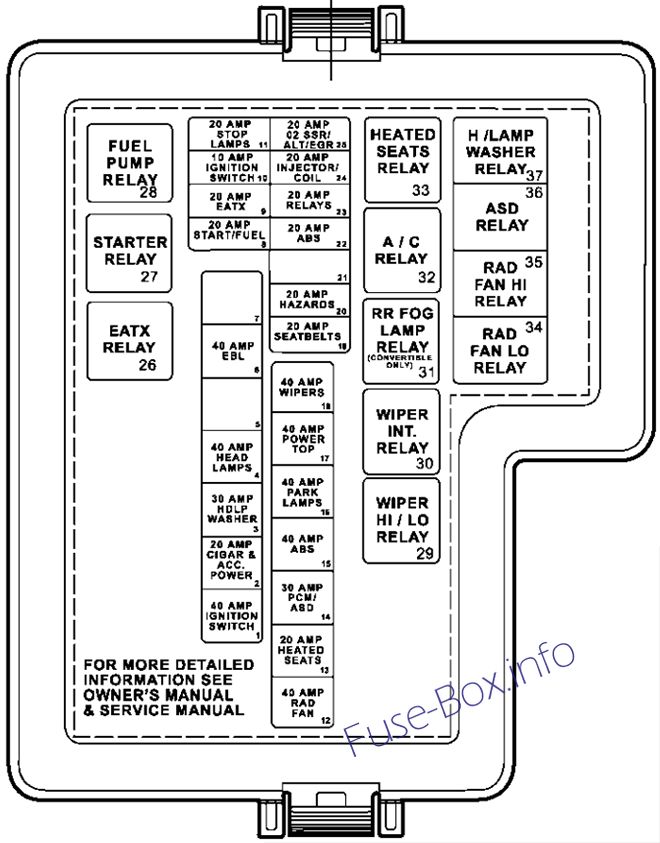

Fuse box diagram

This information applies to vehicles built without the fuse and relay numbering embossed on the Power Distribution Center Top Cover.

Fuse Data

Full access is available to registered users — log in or register.

Assignment of fuses in the engine compartment

Fuse Data

Full access is available to registered users — log in or register.

№	Amp Rating	Description
1	40	Ignition Switch (Fuse (Passenger Compartment): “1”, “4”, “16”, “19”)
2	20	Cigar Lighter/Power Outlet
3	30	Headlamp Washer Relay (Export)
4	40	Headlamp Delay Relay, Multi-Function Switch, Fuse (Passenger Compartment): “9”, “10”, “18”
5	–	Not Used
6	40	Rear Window Defogger Relay
7	40	Air Pump Motor Relay (2.4L PZEV)
8	20	Starter Relay, Fuel Pump Relay, Ignition Switch (Clutch Interlock/Upstop Switch (M/T), Transmission Control Module (A/T), Body Control Module, Fuse (Passenger Compartment): “14”, “15”, “17”, Fuse (Engine Compartment): “23”)
9	20	Transmission Control Relay, Transmission Control Module, Transmission Solenoid/Pressure Switch Assembly
10	10	Ignition Switch (Fuse (Passenger Compartment): “11”), Sentry Key Immobilizer Module
11	20	Stop Lamp Switch, Fuse (Passenger Compartment): “5”, Rear Fog Lamp Relay
12	40	Air Conditioner Compressor Clutch Relay, Radiator Fan (Low Speed) Relay, Radiator Fan (High Speed) Relay
13	20	Heated Seat Relay (Driver/Passenger Heated Seat Module)
14	30	Automatic Shut Down Relay (Fuse: “24”, “25”), Powertrain Control Module
15	40	ABS
16	40	Fuse (Passenger Compartment): “7”, “8”
17	40	Power Top Up/Down Relays (Convertible)
18	40	Front Wiper (On/Off) Relay (Front Wiper (High/Low) Relay)
19	20	Seat Belt Control Module (Convertible)
20	20	Multi-Function Switch
21	–	Not Used
22	20	ABS
23	10 or 20	Sentry Key Immobilizer Module, Leak Detection Pump (USA), Powertrain Control Module, Fuel Pump Relay, Air Conditioner Compressor Clutch Relay, Radiator Fan (Low Speed) Relay, Radiator Fan (High Speed) Relay
24	20	Fuel Injector, Ignition Coil, Noise Suppressor, Manifold Tuning Valve (2.7L)
25	20	Generator, EGR Solenoid, Oxygen Sensor, PCV Heater (2.7L)

Passenger compartment

Fuse box location

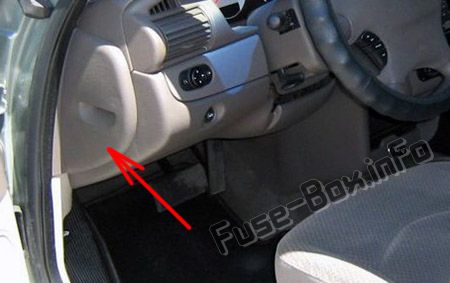

The fuse access panel is behind the end cover on the left side of the instrument panel.

The location of the fuses in the passenger compartment: Dodge Stratus (2001, 2002, 2003, 2004, 2005, 2006)

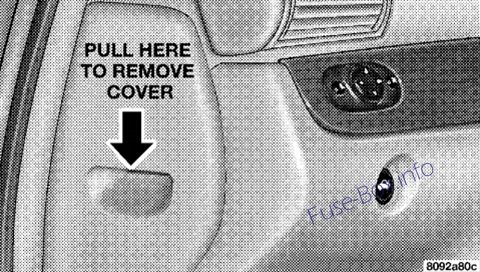

To remove the panel, pull it out, as shown. The identity of each fuse is indicated on the backside of the cover.

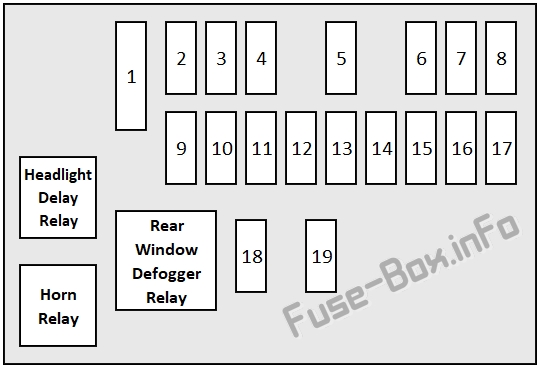

Fuse box diagram

Assignment of the interior fuses

Fuse Data

Full access is available to registered users — log in or register.

Cavity	Amp	Circuit
1	30 Amp Green	Blower Motor
2	10 Amp Red	Right High Beam Headlight, High Beam Indicator
3	10 Amp Red	Left High Beam Headlight
4	15 Amp Blue	Power Door Lock Switch Illumination, Transmission Range Switch. Daytime Running Light Module (Canada), Power Windows, Anti-lock Brake System Module
5	10 Amp Red	Power Door Lock and Door Lock Arm/Disarm Switches, Vanity, Reading, Map, Rear Seating, Ignition, and Trunk Lights, Illuminated Entry. Radio, Power Antenna. Data Link Connector, Body Control Module, Power Amplifier
6	10 Amp Red	Heated Rear Window Indicator
7	20 Amp Yellow	Instrument cluster illumination, Park and tail Lights
8	20 Amp Yellow	Power Receptacle, Horns, Ignition, Fuel, Start
9	15 Amp Blue	Power Door Lock Motors (Body Control Module)
10	20 Amp Yellow	Daytime Running Light Module (Canada)
11	10 Amp Red	Instrument Cluster, Transmission Control, Park/Neutral Switch, Body Control Module
12	10 Amp Red	Left Low beam Headlight
13	20 Amp Yellow	Right Low Beam Headlight, Fog Light Switch
14	10 Amp Red	Radio
15	10 Amp Red	Turn Signal and Hazard Flashers, Wiper Switch, Seat Belt Control Module, Wiper Relays, Rear Window Defroster Relay
16	10 Amp Red	Airbag Control Module
17	10 Amp	Airbag Control Module
18	20 Amp C/BRKR	Power Seat Switch. Remote Trunk Release
19	30 Amp C/BRKR	Power Windows

FAQ

Which fuse is for the cigar lighter/power outlet in a Dodge Stratus?

On the Dodge Stratus, the cigar lighter (power outlet) is protected by Fuse #2 in the engine compartment fuse box.
