Explore Dodge Viper fuse box diagrams in this focused guide that helps you get a handle on the VX generation’s electrical setup—because even a supercar needs good wiring. Here we cover the third-generation Dodge Viper (2013–2017) (Model Code: VX ) and provide fuse diagrams for 2013, 2014, 2015, 2016 and 2017 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you a clear view of how this snake is powered behind the scenes.
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

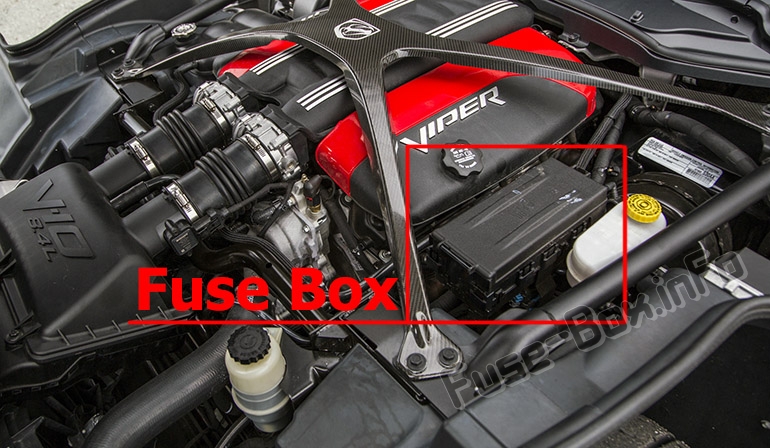

Power Distribution Center is located in the engine compartment on the driver’s side.
Assignment of fuses and relays in the Power Distribution Center
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Relay Cartridge Fuse Mini-Fuse Protected component 3 — 40 Amp Green — Rad Fan 4 — 40 Amp Green — Rad Fan Rly High 5 — 40 Amp Green — ABS/ESP Pump Feed 6 — 40 Amp Green — Starter 7 — 40 Amp Green — CBC (Ext. Lighting #1) 8 — 40 Amp Green — CBC (Ext. Lighting #2) 9 — 30 Amp Pink — 2014-2015: Washer Pump 10 — 30 Amp Pink — CBC (Power Lock) 11 — Jumper Black — B+ Jumper 12 — 25 Amp Clear — ABS/ESP Valve Feed 13 — — 20 Amp Yellow Horn 14 — — 10 Amp Red A/C Clutch 15 — — 10 Amp Red Diagnostic, Fuel Door, Stop Switch 16 — — 15 Amp Blue KIN, RF Hub 17 — — 25 Amp circuit breaker Power Seats 18 — 30 Amp Pink — Driver Door Mod 19 — 30 Amp Pink — Passenger Door Mod 20 — 30 Amp Pink — Rear Window Defroster 21 — 20 Amp Blue — Wiper 22 — — — B+ Jumper 23 — — 15 Amp Blue HVAC MOD, Cluster, ICS-Switch Bank 24 — — 25 Amp Clear PCM-Powertrain Control Module 25 — — 25 Amp Clear Fuel Pump 26 — — 20 Amp Yellow ASD #1 27 — — 20 Amp Yellow ASD #2 28 — — — Spare (Not Used) 29 — 40 Amp Green — HVAC Blower 30 — 20 Amp Yellow — RR Power Outlet, Adj. Pedals, UCI 31 — — — B+ Jumper 32 — Jumper Black — 2014-2015: B+ Jumper 33 — 20 Amp Yellow — Run Acc relay 34 — — — B+ Jumper 35 — — — Spare (Not Used) 36 — — 10 Amp Red ORC Mod Run 37 — — 15 Amp Blue Cluster, Camera 38 — — 20 Amp Yellow Active Damping Suspension 39 — — 10 Amp Red HVAC Module, In Car Temp, Blower Relay 40 — — — Spare (Not Used) 41 G8VA — — Run/Start 42 G8VA — — Fuel Door 43AC — — 2 Amp Grey SCCM 43BE — — 10 Amp Red 2014-2015: Corax 44AC — — 10 Amp Red Rear View Mirror, Aux Port Jumper. 44BE — — 10 Amp Red IBS (Intelligent Battery Sensor) 45 — — 10 Amp Red PCM-Powertrain Control Module, Fuel Pump Relay. 46 — — 10 Amp Red ESC Module, Stop Lamp Switch 47 — — 10 Amp Red ORC Module, Passenger Seat OCM 48 — — 10 Amp Red SCCM 49 — — 25 Amp Clear Amplifier 50 HC Micro — — Rad Fan 51 HC Micro — — Rad Fan Relay SER/PAR 52 HC Micro — — Starter Relay 53 HC Micro — — Rear Window Defroster Relay 54 HC Relay — — Rad Fan Relay High 55 HC Micro — — Wiper ON/OFF 56 HC Micro — — Wiper LO/HI 57 G8VA — — Horn Relay 58 G8VA — — A/C Clutch Relay 59 HC Micro — — HVAC Blower 60 HC Micro — — Fuel Pump 61 G8VA — — Run Relay #1 62 G8VA — — Run Relay #2 63 HC Micro — — ASD #1 64 HC Micro — — ASD #2 65 G8VA — — Run Accy #1, Pop Up, Driver Door Window Switch 66 — — — Not Used
