Looking for Ford Escape fuse box diagrams ? This article covers the facelifted fourth-generation Ford Escape , available from 2023 , and includes fuse box diagrams for Ford Escape 2023, 2024, 2025 and 2026 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

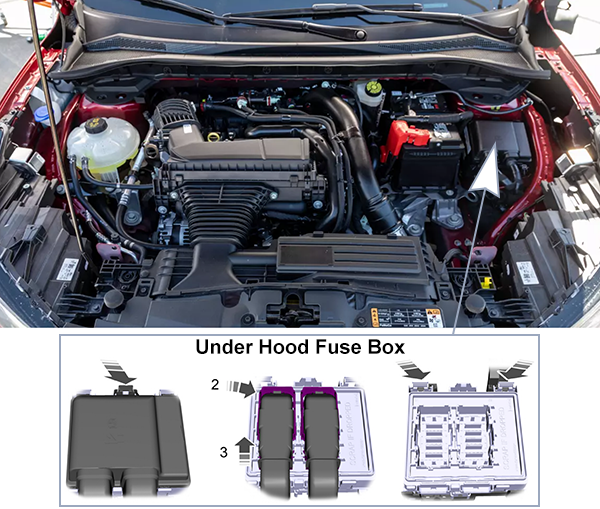

Fuse box is located on the driver side in the under hood compartment.
Pull the latch toward you and remove the top cover.
Pull the connector lever upward.
Pull the connector upward to remove it.
Pull both latches toward you and remove the fuse box.
Turn the fuse box over and open the lid.

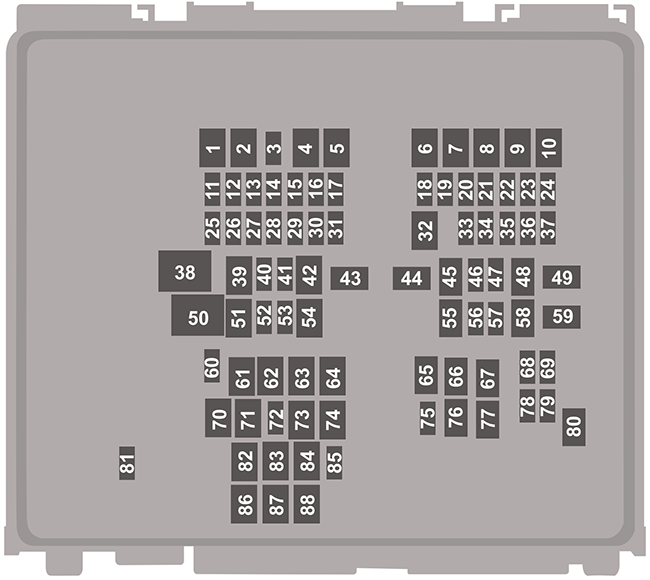

Assignment of the fuses in the engine compartment (2023-2024)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 – 3 – Not used 4 60A Supplemental heater (gas) 5 – 6 40A Supplemental heater (gas) 7 – 9 – Not used 10 30A Starter motor 11 – 14 15A Powertrain control module 15 – 17 – Not used 18 10A Powertrain control module 19 10A Anti-lock brake system module 20 – Not used 21 5A Not used (spare) 22 5A Battery electronic control module (hybrid) 23 5A Charge port light ring (plug-in hybrid) 24 20A Amplifier 25 – 27 – Not used 28 10A Brake on-off switch 29 5A Powertrain control module (hybrid) 30 10A Electronic stability control (gas), Transmission oil pump (hybrid) 31 5A Electronic power assist steering 32 30A Body control module 33 20A Front parking aid camera, Rear view camera, Blind spot information system, Adaptive cruise control 34 10A Not used (spare) 35 15A Heated steering wheel 36 10A Powertrain control module (hybrid) 37 20A Horn 38 40A Blower motor 39 – 40 – Not used 41 20A Amplifier 42 30A Driver power seat 43 50A Electric water pump (hybrid) 44 40A Trailer tow module 45 30A Passenger power seat 46 20A Not used (spare) 47 20A Heated seats 48 40A Anti-lock brake control valves 49 60A Anti-lock brake control pump 50 60A Cooling fan 51 30A Moonroof 52 5A DC/DC converter (hybrid) 53 10A Battery charge control module (hybrid) 54 – 56 – Not used 57 10A Data link connector 58 40A Auxiliary power distribution box (hybrid) 59 40A Body control module 60 5A USB smart charger 61 20A Rear cargo power point 62 – Not used 63 30A Not used (spare) 64 30A Power liftgate 65 – 67 – Not used 68 5A Mass air flow and intake air temperature sensor (gas) 69 15A Port fuel injectors 70 20A Rear console power point 71 20A Media bin power point 72 20A Rear window wiper2024: Rear window washer pump 73 – Not used 74 30A Windshield wiper motor 75 10A Heated exterior mirrors 76 30A Heated backlight 77 – Not used 78 10A Air conditioning clutch 79 – Not used 80 20A Fuel pump 81 20A 2023: – 2024: 82 40A Power inverter 83 – Not used 84 40A Driveline control module 85 5A Rain sensor 86 – 88 – Not used
This content requires JavaScript and a valid membership to view.

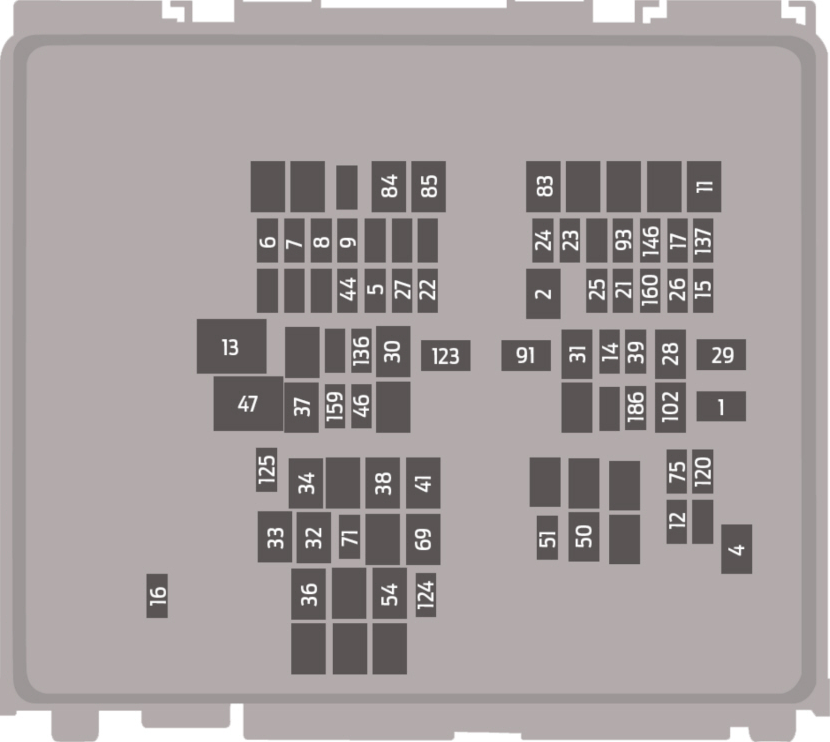

Assignment of the fuses in the engine compartment (2025-2026)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 40A Body control module 2 30A Body control module 4 20A Fuel pump 5 5A Powertrain control module (hybrid) 6 – 9 15A Powertrain control module 11 30A Starter motor 12 10A Air conditioning clutch 13 40A Blower motor 14 20A Transmission oil temperature sensor 15 20A Horn 16 10A Rear window wiper, Rear window washer pump 17 5A Charge port (hybrid) 21 10A Headlamp leveling 22 5A Electronic power assist steering 23 10A Anti-lock brake system module 24 10A Powertrain control module 25 20A Front parking aid camera, Rear view camera, Blind spot information system, Adaptive cruise control 26 10A Powertrain control module (hybrid) 27 10A Electronic stability control (gas), Transmission oil pump (hybrid) 28 40A Anti-lock brake control valves 29 60A Anti-lock brake control pump 30 30A Driver power seat 31 30A Passenger power seat 32 20A Media bin power point 33 20A Rear console power point 34 20A Trunk power port 36 40A Power inverter 37 30A Glassroof 38 30A Climate control 39 20A Heated seats 41 30A Power liftgate 44 10A Brake on-off switch 46 10A Battery charge control module (hybrid) 47 60A Cooling fan 50 30A Rear window defroster 51 10A Heated exterior mirrors 54 40A Driveline control module 69 30A Windshield wiper motor 71 20A Rear window wiper, Rear window washer pump 75 5A Port fuel injectors (gas) 83 40A Supplemental heater (gas) 84 60A Supplemental heater (gas) 85 40A Supplemental heater (gas) 91 40A Trailer tow module 93 5A Adaptive cruise control 102 40A Auxiliary power distribution box (hybrid) 120 15A Port fuel injectors 123 50A Electric water pump (hybrid) 124 5A Rain sensor 125 5A USB smart charger 136 – 137 20A Amplifier 146 5A Battery electronic control module (hybrid) 159 5A DC/DC converter (hybrid) 160 15A Heated steering wheel 186 10A Data link connector
This content requires JavaScript and a valid membership to view.

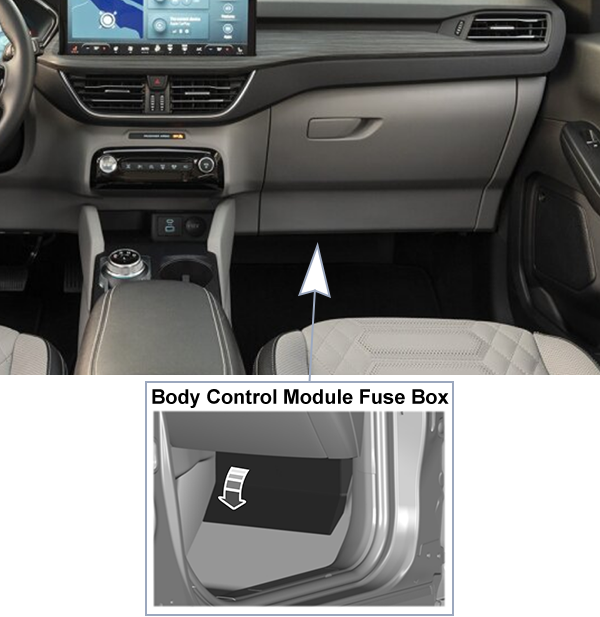

The fuse box is below the glove compartment.

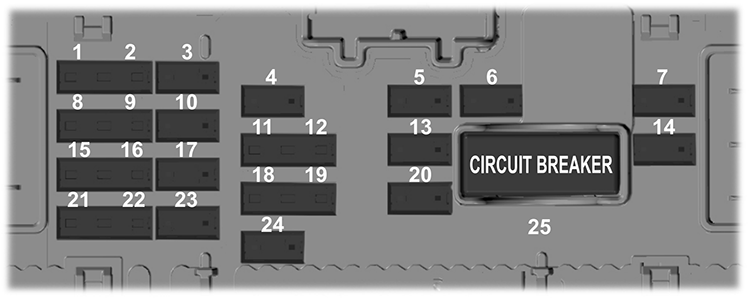

Assignment of the fuses in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 – 2 5A Not used (spare) 3 10A Not used (spare) 4 10A Integrated control panel, Gateway module 5 20A Lock, Unlock 6 10A Moonroof 7 30A Passenger door module 8 5A All-Wheel Drive module 9 5A Electrochromatic mirror 10 10A Extended power module 11 5A Power liftgate, Telematics control unit module 12 5A Keyless keypad switch 13 15A Driver door unlock 14 30A Driver door module 15 15A Extended power module 16 15A Not used (spare) 17 15A SYNC, Radio transceiver module 18 7.5A Wireless accessory charging module 19 7.5A Headlamp switch pack 20 10A Not used (spare) 21 7.5A Climate control, E-shifter module, Ignition switch 22 7.5A Instrument cluster, Steering column control module 23 20A Audio unit 24 20A Not used (spare)
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breaker in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 25 30A Power windows, Exterior mirrors
This content requires JavaScript and a valid membership to view.

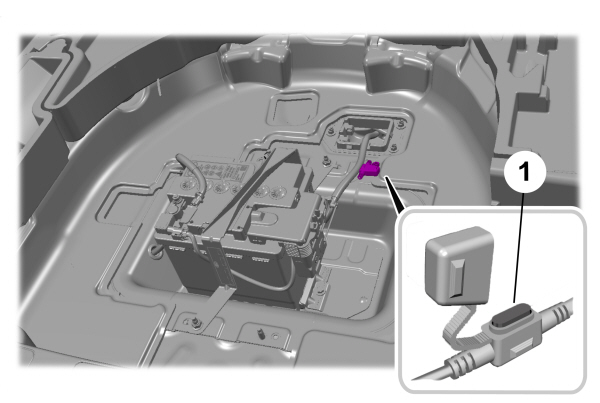

If Battery in Luggage Compartment

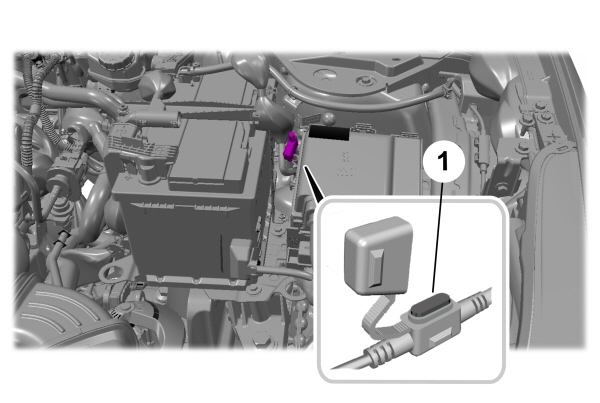

If Battery in Engine Compartment
Assignment of the battery fuse
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 5 A Battery monitoring system.
