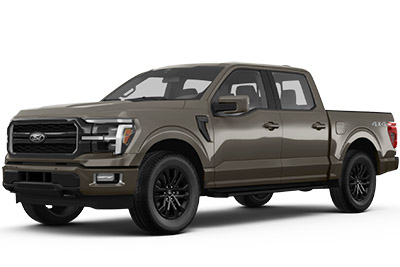

Looking for Ford F-150 fuse box diagrams ? This article covers the fourteenth-generation Ford F-150 after the 2024 refresh , available from 2024 , and includes fuse box diagrams for Ford F-150 2024, 2025 and 2026 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

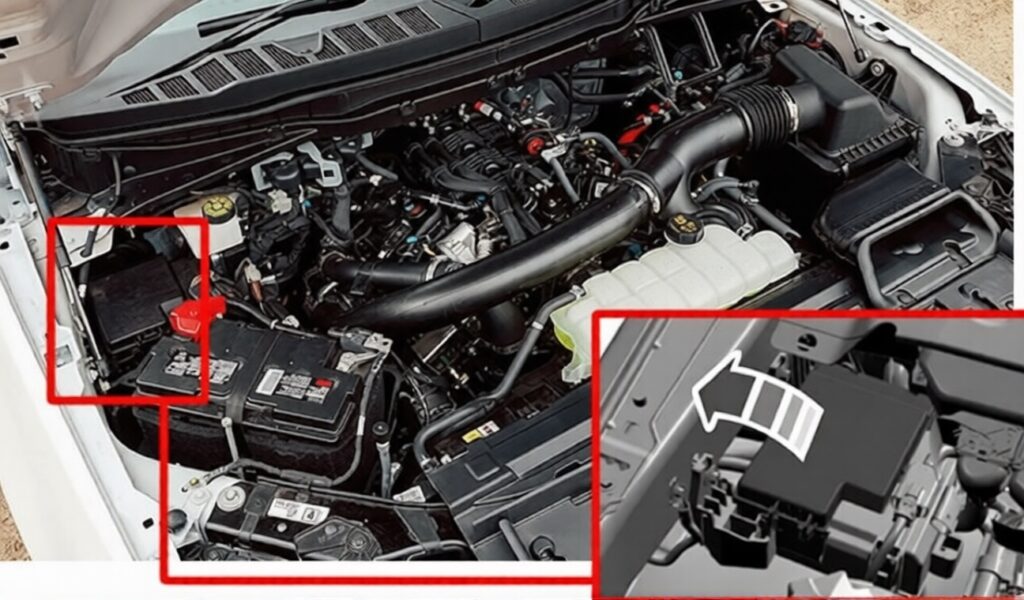

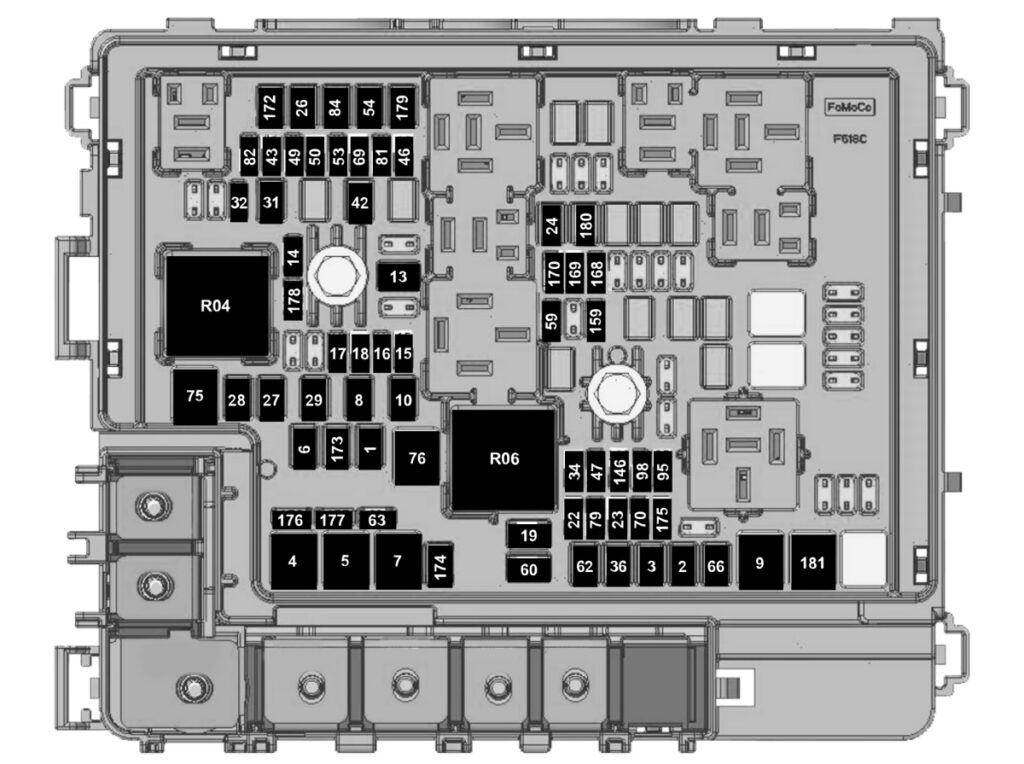

Assignment of the fuses in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 30 A Body control module – battery power in feed 1 2 30 A Body control module – battery power in feed 2 3 30 A Body control module – power feed 3 4 50 A Electric brake booster 5 50 A Customer interface module 1 6 40 A Climate control module 7 50 A Electric brake booster 8 30 A Trailer tow 1 9 50 A Customer interface module 2 10 30 A Trailer tow braking 13 40 A AWD – Four wheel drive module 14 10 A Hybrid powertrain control module / Powertrain control module 15 25 A Powertrain control module 16 20 A Vehicle power 2 17 10 A Vehicle power 3 18 20 A Vehicle power 4 19 20 A Transmission 22 15 A Right headlamp 23 15 A Left headlamp 24 30 A Starter 26 30 A Fuel pump 27 20 A Power outlet 1 28 20 A Power outlet 2 29 20 A Power outlet 3 31 30 A Front wiper motor 32 5 A Rain switch 34 15 A Multi-access tailgate switch 36 30 A Body control module – power feed 4 42 20 A Trailer brake control module 43 30 A Interior power distribution box – run/start power 46 20 A 2024: Rear seat climate control2025-2026: Rear seat module – power feed47 15 A Spotlight 49 5 A Electric brake booster 50 5 A Powertrain control module 53 10 A Air quality/Oxides of nitrogen sensor 54 40 A Rear defrost/heated windshield 59 25 A Horn 60 30 A Trailer tow park lamps 62 40 A Blower motor 63 10 A 2024: Trailer tow connector2025-2026: Trailer tow backup lamps66 25 A Rear sliding window 69 5 A Power steering module 70 10 A Diagnostic connector 75 50 A Electric fan 1 76 50 A Electric fan 2 79 5 A Adaptive front light 81 10 A 2024: N/A2025-2026: Trailer tow connector82 5 A Hybrid powertrain control module 84 15 A Fuel injectors 95 15 A Hybrid powertrain control module 98 10 A Engine cooling valve 146 10 A Traction battery control module 159 5 A DC/DC power 168 15 A Traction battery control 169 10 A Motor electric coolant pump 170 10 A Auxiliary water pump 172 30 A Fuel pump 2 173 15 A Upfitter 1 174 15 A Upfitter 2 175 10 A Upfitter 3 176 10 A Upfitter 4 177 5 A Upfitter 5 178 5 A Upfitter 6 179 15 A Charge air pump 181 40 A Intercooler fan
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R04 Electronic fan relay 1. R06 Electronic fan relay 2. R35 Not used. R36 Not used.
This content requires JavaScript and a valid membership to view.

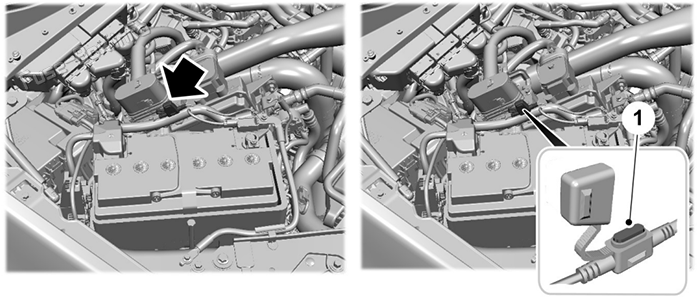

Battery monitoring system fuse (3A).

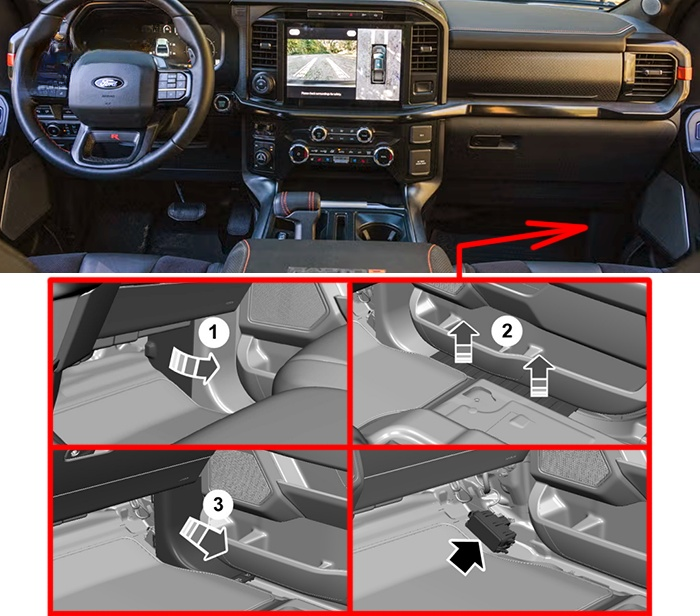

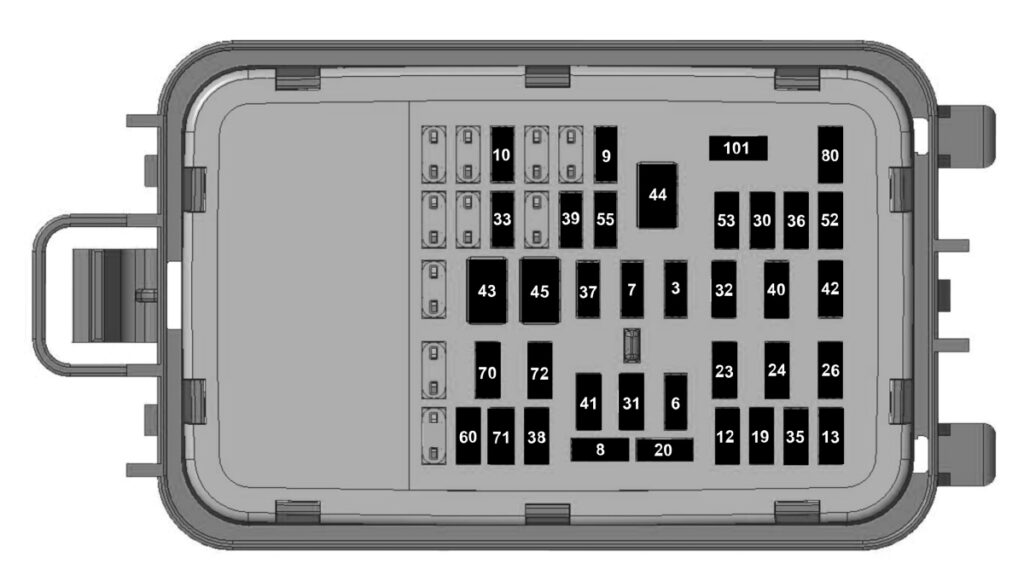

Assignment of the fuses in the interior fuse panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 3 7.5 A Wireless charger 6 10 A Driver power window switch 7 10 A Gear shift module 8 7.5 A Cell phone passport module 9 5 A Overhead console combined sensing module 10 25 A Multi-contour seat module 12 5 A Climate control 13 7.5 A Steering column control module 19 5 A Head up display 20 5 A Ignition switch 23 30 A Driver door control module 24 30 A Sunroof 26 30 A Passenger door control module 30 10 A USB charging port 1 31 10 A Terrain management switch 32 20 A Audio control module 33 5 A Instrument cluster display 35 5 A Electronic toll collection 36 5 A 2024: Interior temperature sensor2025-2026: Air particulate matter sensor / Electronic toll collection37 15 A Adjustable pedals 38 5 A Spare 39 5 A Driver monitor 40 30 A Amplifier 41 10 A Navigation 42 15 A Voice control module 43 30 A Tailgate 44 40 A Driver seat 45 30 A Passenger seat 52 5 A Trailer brake switch 53 5 A 2024: Climate controlled rear seats2025-2026: Rear seat module – run feed55 5 A Electrochromatic rear view mirror 60 10 A Rear sliding window / sunroof / Driver power window 61 30 A Rear power window switch 70 20 A Advanced driver assistance systems 71 5 A High mounted camera 72 15 A Towing trailer connector 80 15 A Steering column control module / Heated steering wheel 101 10 A USB charge port 3
This content requires JavaScript and a valid membership to view.
