Looking for Ford Ranger fuse box diagrams ? This article covers the second-generation Ford Ranger (Model Codes: P703, RA, T6.2) , produced from 2022 , and includes fuse box diagrams for Ford Ranger (T6.2) 2024, 2025 and 2026 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

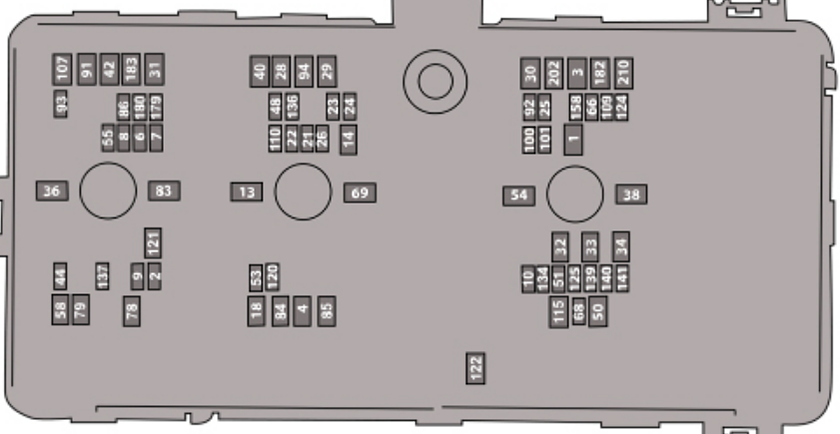

Assignment of the fuses in the engine compartment main fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 30A Body control module 1 2 20A Crankcase ventilation heater (2.0L, 3.0L diesel) 3 30A Body control module 2 4 30A Fuel pump 5 – Not used 6 25A Powertrain control module power 7 30A Exhaust gas recirculation bypass valve (3.0L diesel) , Vacuum solenoid valve (2.0L) 8 20A Heater positive crankcase ventilation valve (3.0L diesel) , Variable oil pump (3.0L diesel) , Active grille shutter motor, Cooling fan relays, A/C clutch solenoid, Auxiliary water pump, Aspirate valve control 9 20A Glow plug control module (diesel) , Particulate matter sensor (diesel) , Nitrogen oxide sensor (diesel) , 4×4 relay coil 10 20A Fuel volume control valve (3.0L diesel) , Transmission control module 11 – Not used 12 – Not used 13 40A Front blower motor 14 20A Automatic transmission fluid pump (diesel) 15 – Not used 16 – Not used 17 – Not used 18 30A Starter motor 19 – Not used 20 – Not used 21 10A Automatic headlamp leveling 22 – Not used 23 10A Anti-lock brake system module 24 10A Powertrain control module, Glow plug control module (2.0L , 3.0L diesel) , Electronic power assist steering 25 20A Driveline control module 26 15A Transmission control module, Transmission oil pump, Automatic transmission fluid pump (diesel) 27 – Not used 28 60A Anti-lock brake system valves 29 60A Anti-lock brake system pump 30 40A Left-hand power seat 31 40A Right-hand power seat 32 20A Power point – first row 33 20A Power point – rear console 34 20A Rear cargo power outlet – bedliner power point 35 – Not used 36 60A Inverter 37 – Not used 38 40A Heated seats control module 39 – Not used 40 30A Not used (spare) 41 – Not used 42 30A Not used (spare) 43 – Not used 44 10A Brake switch 45 – Not used 46 – Not used 47 – Not used 48 30A Not used (spare) 49 – Not used 50 40A Heated backlite 51 15A Not used (spare) 52 – Not used 53 15A Rear electronic differential lock 54 40A Driveline control module 55 30A Trailer tow park lamp 56 – Not used 57 – Not used 58 15A Trailer tow backup lamp 59 – Not used 60 – Not used 61 – Not used 62 – Not used 63 – Not used 64 – Not used 65 – Not used 66 10A Not used (spare) 67 – Not used 68 20A Not used (spare) 69 30A Wiper motor 70 – Not used 71 – Not used 72 – Not used 73 – Not used 74 – Not used 75 – Not used 76 – Not used 77 – Not used 78 – Not used 79 – Not used 80 – Not used 81 – Not used 82 – Not used 83 50A Not used (spare) 84 50A Not used (spare) 85 50A Not used (spare) 86 15A Selective catalytic reduction system heater 2 (2.0L, 3.0L diesel) 87 – Not used 88 – Not used 89 – Not used 90 – Not used 91 40A Trailer tow module 92 10A Accessory 93 5A Not used (spare) 94 20A Not used (spare) 95 – Not used 96 – Not used 97 – Not used 98 – Not used 99 – Not used 100 20A Left-hand headlamps 101 20A Right-hand headlamps 102 – Not used 103 – Not used 104 – Not used 105 – Not used 106 – Not used 107 30A Trailer tow module – battery charger 108 – Not used 109 20A Not used (spare) 110 30A Trailer tow auxiliary 111 – Not used 112 – Not used 113 – Not used 114 – Not used 115 30A Power roller shutter 116 – Not used 117 – Not used 118 – Not used 119 – Not used 120 10A Fuel injectors (2.7L) 121 40A Water in fuel heater (diesel) 122 30A Transfer case control module 123 – Not used 124 5A Rain sensor 125 10A Not used (spare) 126 – Not used 127 – Not used 128 – Not used 129 – Not used 130 – Not used 131 – Not used 132 – Not used 133 – Not used 134 25A Not used (spare) 135 – Not used 136 – Not used 137 20A Advanced driver assistance system 138 – Not used 139 5A Not used (spare) 140 5A USB smart charge port – rear console 141 5A USB smart charge port – top 142 – Not used 143 – Not used 145 – Not used 146 – Not used 147 – Not used 148 – Not used 149 – Not used 150 – Not used 151 – Not used 152 – Not used 153 – Not used 154 – Not used 155 – Not used 156 – Not used 157 – Not used 158 10A Not used (spare) 159 – Not used 160 – Not used 161 – Not used 162 – Not used 163 – Not used 164 – Not used 165 – Not used 166 – Not used 167 – Not used 168 – Not used 169 – Not used 170 – Not used 171 – Not used 172 – Not used 173 – Not used 174 – Not used 175 – Not used 176 – Not used 177 – Not used 178 – Not used 179 15A Selective catalytic reduction system heater 1 (diesel) 180 10A Selective catalytic reduction system heater 3 (diesel) 181 – Not used 182 60A Drive door module 183 60A Passenger door module 192 – Not used 202 60A Body control module B + 210 30A Body control module start-stop
This content requires JavaScript and a valid membership to view.

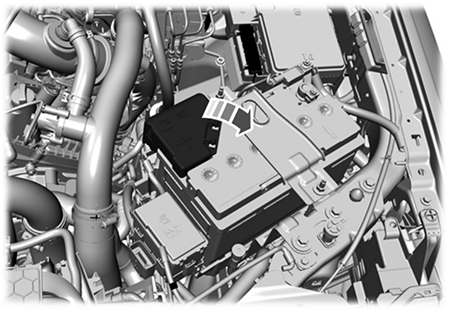

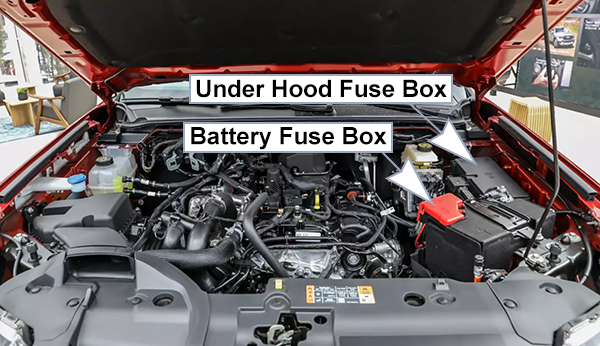

Location and how to open. Assignment of the fuses in the engine compartment on battery fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 3A Battery Monitoring System.
This content requires JavaScript and a valid membership to view.

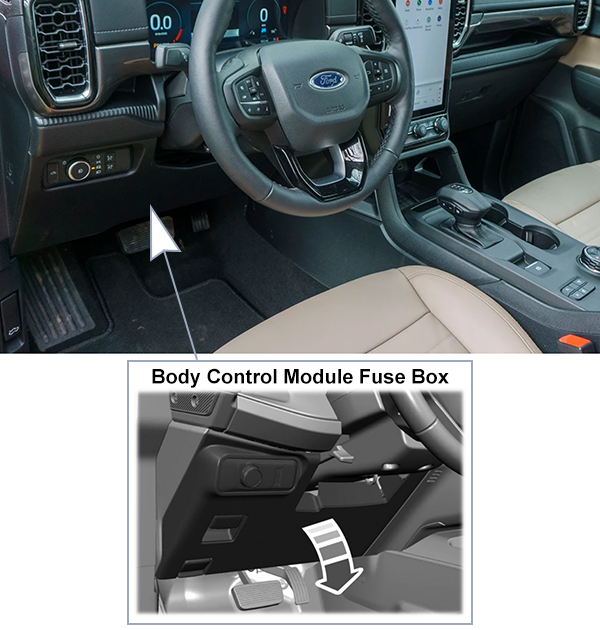

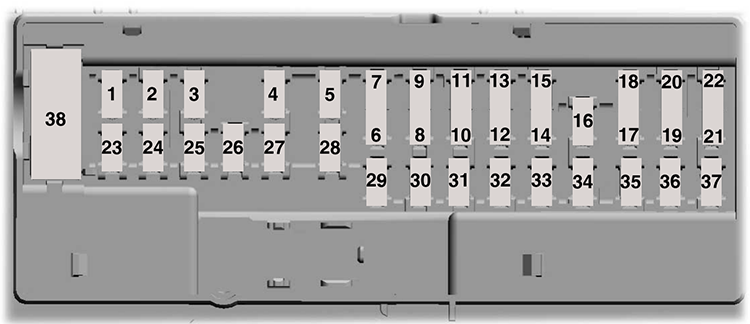

Body Control Module Fuse Box Assignment of the fuses in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 – Not used 2 10A Inverter, Door lock switch, Power window switch 3 7.5A Wireless accessory charging module 4 – Not used 5 – Not used 6 10A Alarm horn, Battery backup sounder 7 10A Not used (spare) 8 5A Telematics modem 9 – Not used 10 – Not used 11 – Not used 12 7.5A Climate control module, Gear shift module, Enhanced central gateway module 13 7.5A Steering column control module, Instrument panel 14 – Not used 15 15A On board diagnostic connector, SYNC 16 – Not used 17 7.5A Adaptive front lighting module 18 7.5A Auxiliary switch 19 5A Headlamp switch pack 20 5A Ignition switch, Push button switch 21 5A Not used (spare) 22 5A Not used (spare) 23 30A Not used (spare) 24 30A Moonroof 25 20A Not used (spare) 26 30A Not used (spare) 27 30A Not used (spare) 28 30A Not used (spare) 29 15A Display 30 – Not used 31 10A Terrain management switch, Integrated control module, Radio frequency receiver module 32 20A Audio control module 33 – Not used 34 – Not used 35 – Not used 36 15A Parking aid module 37 20A Electrochromatic mirror, Steering wheel control module 38 – Not used
This content requires JavaScript and a valid membership to view.
