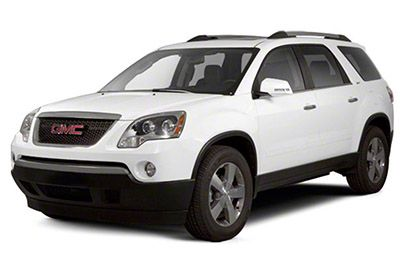

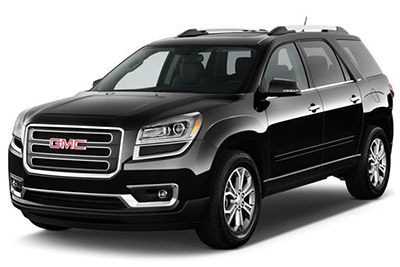

Pre-Facelift Facelift Looking for GMC Acadia fuse box information ? This guide focuses on the first-generation GMC Acadia , available from 2007 to 2016 , and includes fuse box diagrams for GMC Acadia 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 and 2016 , plus clear details on fuse panel locations and the assignment of each fuse and relay (fuse layout) to make troubleshooting less mysterious and a lot more straightforward.

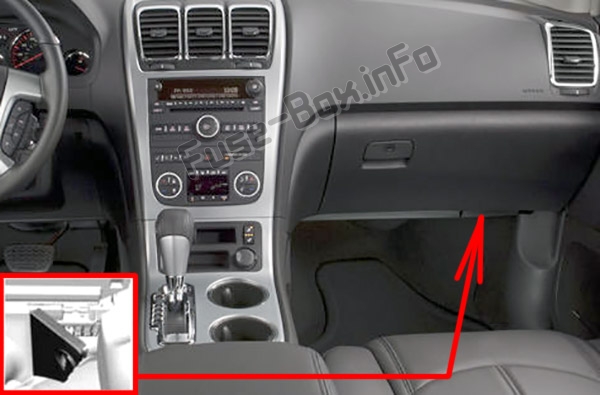

The instrument panel fuse block is located under the instrument panel on the passenger side of the vehicle.

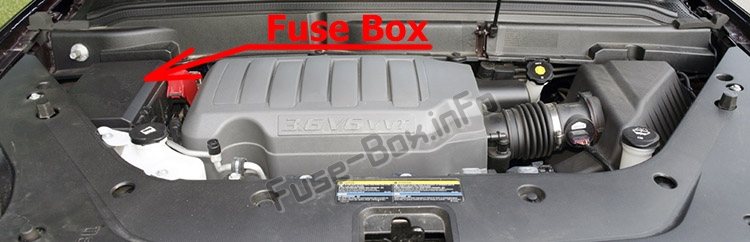

The under-hood fuse block is located in the engine compartment, on the passenger side of the vehicle.

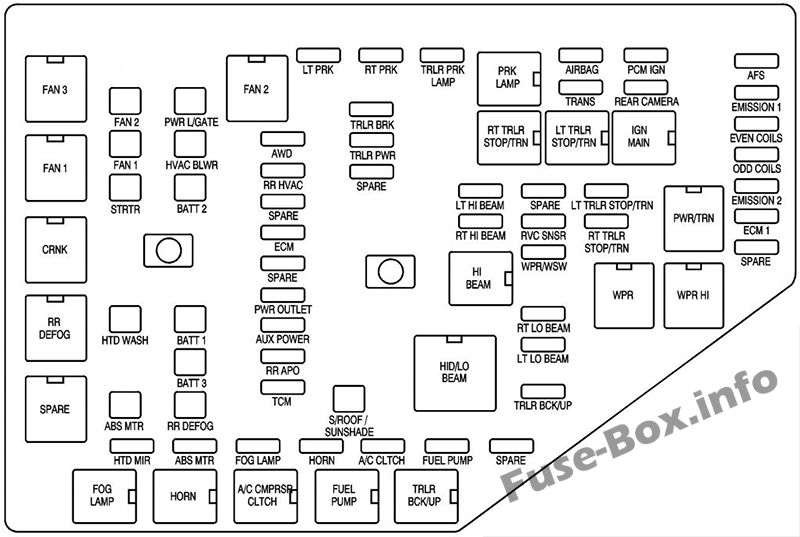

Assignment of the fuses in the engine compartment (2007, 2008)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description Fuse Type LT PRK Left Parking Lamp Mini RT PRK Right Parking Lamp Mini TRLR PRK LAMP Trailer Parking Lamps Mini AIRBAG Airbag System Mini PCM IGN Powertrain Control Module Ignition Mini AFS Adaptive Forward Lighting System Mini TRANS Transmission Mini REAR CAMERA Rear Camera Mini EMISSION 1 Antilock Brakes System 2 Mini TRLR BRK Trailer Brake Mini AWD All-Wheel-Drive System Mini TRLR PWR Trailer Power Mini EVEN COILS Even Injector Coils Mini RR HVAC Rear Climate Control System Mini SPARE Spare Mini ODD COILS Odd Injector Coils Mini SPARE Spare Mini LT HI BEAM Left High-Beam Headlamp Mini SPARE Spare Mini LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal Mini EMISSION 2 Emission 2 Mini ECM Engine Control Module Mini RT HI BEAM Right High-Beam Headlamp Mini RVC SNSR Regulated Voltage Control Sensor Mini RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal Mini ECM 1 Engine Control Module 1 Mini SPARE Spare Mini WPR/WSW Windshield Wiper/Washer Mini SPARE Spare Mini PWR OUTLET Power Outlet Mini AUX POWER Auxiliary Power Mini RT LO BEAM Right Low-Beam Headlamp Mini RR APO Rear Accessory Power Outlet Mini LT LO BEAM Left Low-Beam Headlamp Mini TCM Transmission Control Module Mini TRLR BCK/UP Trailer Back-up Lamps Mini HTD MIR Heated Outside Rearview Mirror Mini ABS MTR Antilock Brake System Motor Mini FOG LAMP Fog Lamps Mini HORN Horn Mini A/C CLTCH Air Conditioning Clutch Mini FUEL PUMP Fuel Pump Mini SPARE Spare Mini FAN 2 Cooling Fan 2 J-Case PWR L/GATE Power Liftgate J-Case FAN 1 Cooling Fan 1 J-Case HVAC BLWR Climate Control System Blower J-Case STRTR Starter J-Case BATT2 Battery 2 J-Case HTDWASH Heated Windshield Washer System J-Case BATT1 Battery 1 J-Case BATT3 Battery 3 J-Case ABS MTR Antilock Brake System Motor J-Case RR DEFOG Rear Defogger J-Case S/ROOF/SUNSHADE Sunroof, Sunshade J-Case
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2007, 2008)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description FAN 3 Cooling Fan 3 FAN 2 Cooling Fan 2 PRK LAMP Park Lamp FAN 1 Cooling Fan 1 RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal IGN Ignition Main CRNK Switched Power PWR/TRN Powertrain HI BEAM High-Beam Headlamps WPR Windshield Wiper WPRHI Windshield Wiper High Speed RR DEFOG Rear Window Defogger HID/LO BEAM High Intensity Discharge (HID) Low-Beam Headlamps SPARE Spare FOG LAMP Fog Lamps HORN Horn A/C CMPRSR CLTCH Air Conditioning Compressor Clutch FUEL PUMP Fuel Pump TRLR BCK/UP Trailer Back-up Lamps
This content requires JavaScript and a valid membership to view.

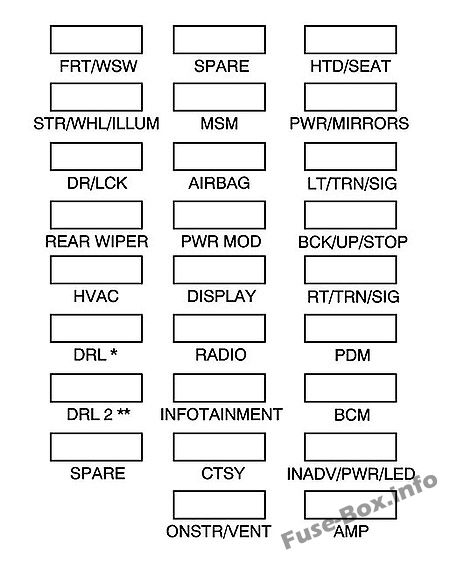

Assignment of the fuses in the Instrument panel (2007, 2008)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description FRT/WSW Front Windshield Wipe SPARE Spare HTD/SEAT Front Heated Seats STR/WHL/ILLUM Steering Wheel Illumination MSM Memory Seat Module PWR/MIRRORS Power Mirrors DR/LCK Door Locks AIRBAG Airbag System LT/TRN/SIG Driver’s Side Turn Signal REAR WIPER Rear Window Wiper PWR MOD PassKey Module, Body Control Module BCK/UP/STOP Back-up Lamps, Stoplamps HVAC Climate Control System DISPLAY Display RT/TRN/SIG Passenger’s Side Turn Signal DRL Daytime Running Lamps RADIO Radio PDM Power Mirrors, Liftgate Release DRL 2 Infotainment System INFOTAINMENT Infotainment System BCM Body Control Module SPARE Spare CTSY Dome Lamps INADV/PWR/LED Interior Lamps ONSTR/VENT Emissions AMP Audio Amplifier
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Instrument panel (2007, 2008)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT/PWR/SEAT Driver’s Side Power Seat Relay RT/PWR/SEAT Passenger’s Side Power Seat Relay PWR/WNDW Power Windows Relay PWR/COLUMN Power Steering Column Relay L/GATE Liftgate Relay LCK Power Lock Relay REAR/WSW Rear Window Washer Relay UN LCK Power Unlock Relay DRL2 Daytime Running Lamps 2 Relay LT/UNLCK Driver’s Side Unlock Relay DRL Daytime Running Lamps Relay SPARE Spare FRT/WSW Front Windshield Washer Relay
This content requires JavaScript and a valid membership to view.

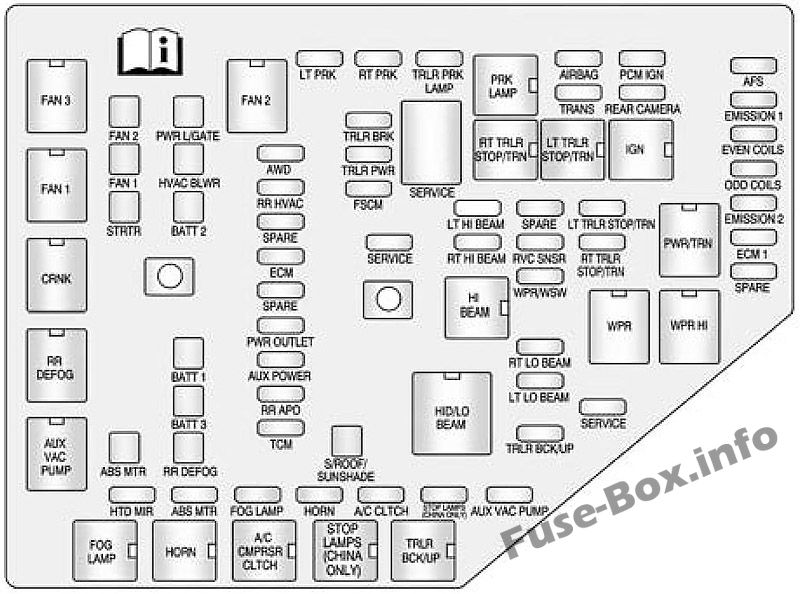

Assignment of the fuses in the engine compartment (2009, 2010)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CLUTCH Air Conditioning Clutch ABS MTR Antilock Braking System (ABS) Motor AFS Adaptive Forward Lighting System AIRBAG Airbag System AUX POWER Auxiliary Power AUX VAC PUMP Auxiliary Vacuum Pump AWD All-Wheel-Drive System BATT1 Battery 1 BATT2 Battery 2 BATT3 Battery 3 ECM Engine Control Module ECM 1 Engine Control Module 1 EMISSION 1 Emission 1 EMISSION 2 Emission 2 EVEN COILS Even Injector Coils FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FOG LAMP Fog Lamps FSCM Fuel System Control Module HORN Horn HTD WASH Heated Windshield Washer Fluid HTD MIR Heated Outside Rearview Mirror HVAC BLWR Heating, Ventilation and Air Conditioning Blower LT HI BEAM Left High-Beam Headlamp LT LO BEAM Left Low-Beam Headlamp LTPRK Left Parking Lamp LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal ODD COILS Odd Injector Coils PCM IGN Powertrain Control Module Ignition PWR L/GATE Power Liftgate PWR OUTLET Power Outlet REAR CAMERA Rear Camera RR APO Rear Accessory Power Outlet RR DEFOG Rear Defogger RR HVAC Rear Climate Control System RT HI BEAM Right High-Beam Headlamp RT LO BEAM Right Low-Beam Headlamp RTPRK Right Parking Lamp RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal RVC SNSR Regulated Voltage Control Sensor S/ROOF/SUNSHADE Sunroof SPARE Spare Stop Lamps (China Only) Stop Lamps (China Only) STRTR Starter TCM Transmission Control Module TRANS Transmission TRLR BCKAJP Trailer Back-up Lamps TRLR BRK Trailer Brake TRLR PRKLAMP Trailer Parking Lamps TRLR PWR Trailer Power WPR/WSW Windshield Wiper/Washer
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2009, 2010)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CMPRSR CLTCH Air Conditioning Compressor Clutch AUX VAC PUMP Auxiliary Vacuum Pump CRNK Switched Power FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FAN 3 Cooling Fan 3 FOG LAMP Fog Lamps HI BEAM High-Beam Headlamps HID/LO BEAM High Intensity Discharge (HID) Low-Beam Headlamps HORN Horn IGN Ignition Main LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal Lamp PRK LAMP Park Lamp PWR/TRN Powertrain RR DEFOG Rear Window Defogger RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal Lamp Stop Lamps (China Only) Stop Lamps (China Only) TRLR BCK/UP Trailer Back-up Lamps WPR Windshield Wiper WPRHI Windshield Wiper High Speed
This content requires JavaScript and a valid membership to view.

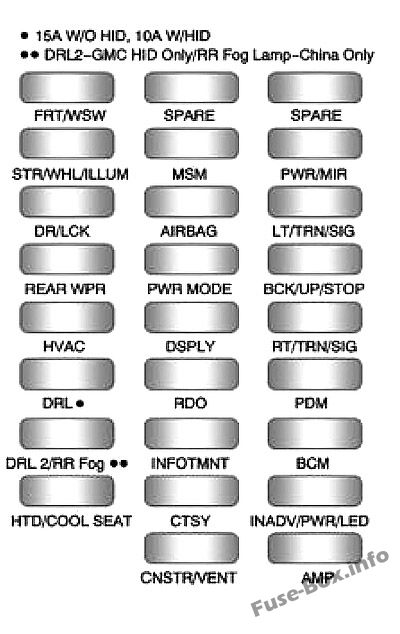

Assignment of the fuses in the Instrument panel (2009, 2010)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description AIRBAG Airbag AMP Amplifier BCK/UP/STOP Back-up Lamp/Stoplamp BCM Body Control Module CNSTR/VENT Canister Vent CTSY Courtesy DR/LCK Door Locks DRL Daytime Running Lamps DRL 2 GMC HID Only/Rear Fog Lamps-China Only DSPLY Display FRT/WSW Front Windshield Washer HTD/COOL SEAT Heated/Cooling Seats HVAC Heating, Ventilation and Air Conditioning IADV/PWR/LED Inadvertent Power LED INFOTMNT Infotainment LT/TRN/SIG Driver Side Turn Signal MSM Memory Seat Module PDM Power Mirrors, Liftgate Release PWR MODE Power Mode PWR/MIR Power Mirrors RDO Radio REAR WPR Rear Wiper RT/TRN/SIG Passenger Side Turn Signal SPARE Spare SPARE Spare STR/WHL/ILLUM Steering Wheel Illumination
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Instrument panel (2009, 2010)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT/PWR/SEAT Driver’s Side Power Seat Relay RT/PWR/SEAT Passenger’s Side Power Seat Relay PWR/WNDW Power Windows Relay PWR/COLUMN Power Steering Column Relay L/GATE Liftgate Relay LCK Power Lock Relay REAR/WSW Rear Window Washer Relay UN LCK Power Unlock Relay DRL2 Daytime Running Lamps 2 Relay LT/UNLCK Driver’s Side Unlock Relay DRL Daytime Running Lamps Relay SPARE Spare FRT/WSW Front Windshield Washer Relay
This content requires JavaScript and a valid membership to view.

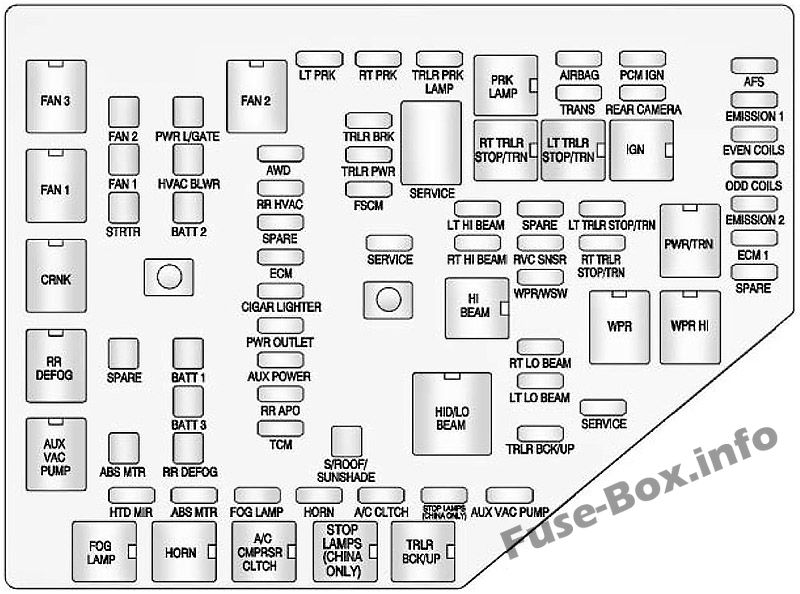

Assignment of the fuses in the engine compartment (2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CLUTCH Air Conditioning Clutch ABS MTR Antilock Braking System (ABS) Motor AFS Adaptive Forward Lighting System AIRBAG Airbag System AUX POWER Auxiliary Power AUX VAC PUMP Auxiliary Vacuum Pump AWD All-Wheel-Drive System BATT1 Battery 1 BATT2 Battery 2 BATT3 Battery 3 CIGAR LIGHTER Cigar Lighter ECM Engine Control Module ECM 1 Engine Control Module 1 EMISSION 1 Emission 1 EMISSION 2 Emission 2 EVEN COILS Even Injector Coils FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FOG LAMP Fog Lamps FSCM Fuel System Control Module HORN Horn HTD MIR Heated Outside Rearview Mirror HVAC BLWR Heating, Ventilation and Air Conditioning Blower LT HI BEAM Left High-Beam Headlamp LT LO BEAM Left Low-Beam Headlamp LTPRK Left Parking Lamp LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal ODD COILS Odd Injector Coils PCM IGN Powertrain Control Module Ignition PWR L/GATE Power Liftgate PWR OUTLET Power Outlet REAR CAMERA Rear Camera RR APO Rear Accessory Power Outlet RR DEFOG Rear Defogger RR HVAC Rear Climate Control System RT HI BEAM Right High-Beam Headlamp RT LO BEAM Right Low-Beam Headlamp RTPRK Right Parking Lamp RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal RVC SNSR Regulated Voltage Control Sensor S/ROOF/SUNSHADE Sunroof SPARE Spare Stop Lamps (China Only) Stop Lamps (China Only) STRTR Starter TCM Transmission Control Module TRANS Transmission TRLR BCK/UP Trailer Back-up Lamps TRLR BRK Trailer Brake TRLR PRK LAMP Trailer Parking Lamps TRLR PWR Trailer Power WPR/WSW Windshield Wiper/Washer
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CMPRSR CLTCH Air Conditioning Compressor Clutch AUX VAC PUMP Auxiliary Vacuum Pump CRNK Switched Power FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FAN 3 Cooling Fan 3 FOG LAMP Fog Lamps HI BEAM High-Beam Headlamps HID/LO BEAM High Intensity Discharge (HID) Low-Beam Headlamps HORN Horn IGN Ignition Main LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal Lamp PRK LAMP Park Lamp PWR/TRN Powertrain RR DEFOG Rear Window Defogger RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal Lamp Stop Lamps (China Only) Stop Lamps (China Only) TRLR BCK/UP Trailer Back-up Lamps WPR Windshield Wiper WPRHI Windshield Wiper High Speed
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Instrument panel (2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description AIRBAG Airbag AMP Amplifier BCK/UP/STOP Back-up Lamp/Stoplamp BCM Body Control Module CNSTR/VENT Canister Vent CTSY Courtesy DR/LCK Door Locks DRL Daytime Running Lamps DRL 2 GMC HID Only/Rear Fog Lamps-China Only DSPLY Display FRT/WSW Front Windshield Washer HTD/COOL SEAT Heated/Cooling Seats HVAC Heating, Ventilation and Air Conditioning IADV/PWR/LED Inadvertent Power LED INFOTMNT Infotainment LT/TRN/SIG Driver Side Turn Signal MSM Memory Seat Module PDM Power Mirrors, Liftgate Release PWR MODE Power Mode PWR/MIR Power Mirrors RDO Radio REAR WPR Rear Wiper RT/TRN/SIG Passenger Side Turn Signal SPARE Spare STR/WHL/ILLUM Steering Wheel Illumination
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Instrument panel (2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT/PWR/SEAT Driver’s Side Power Seat Relay RT/PWR/SEAT Passenger’s Side Power Seat Relay PWR/WNDW Power Windows Relay PWR/COLUMN Power Steering Column Relay L/GATE Liftgate Relay LCK Power Lock Relay REAR/WSW Rear Window Washer Relay UN LCK Power Unlock Relay DRL2 Daytime Running Lamps 2 Relay LT/UNLCK Driver’s Side Unlock Relay DRL Daytime Running Lamps Relay SPARE Spare FRT/WSW Front Windshield Washer Relay
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine compartment (HID Lighting) (2013-2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CLUTCH Air Conditioning Clutch ABS MTR Antilock Braking System (ABS) Motor AFS Adaptive Forward Lighting System AIRBAG Airtoag System AUX POWER Auxiliary Power AUX VAC PUMP Auxiliary Vacuum Pump AWD All-Wheel-Drive System BATT1 Battery 1 BATT2 Battery 2 BATT3 Battery 3 CIGAR LIGHTER Cigar Lighter ECM 1 Engine Control Module 1 EMISSION 1 Emission 1 EMISSION 2 Emission 2 EVEN COILS Even Injector Coils FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 * Headlamp Washer (China)/Fog Lamps (GMC) FSCM Fuel System Control Module HORN Horn HTD MIR Heated Outside Rearview Mirror HUMIDITY/MAF Humidity Sensor/MAF Sensor HVAC BLWR Heating, Ventilation and Air Conditioning Blower LT HI BEAM Left High-Beam Headlamp LT LO BEAM Left Low-Beam Headlamp LT PRK Left Parlcing Lamp LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal ODD COILS Odd Injector Coils PCM IGN Powertrain Control Module Ignition PWR L/GATE Power Liftgate PWR OUTLET Power Outlet RR APO Rear Accessory Power Outlet RR DEFOG Rear Defogger RR HVAC Rear Climate Control System RT HI BEAM Right High-Beam Headlamp RT LO BEAM Right Low-Beam Headlamp RT PRK Right Parking Lamp RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal RVC SNSR Regulated Voltage Control Sensor S/ROOF/SUNSHADE Sunroof SPARE Spare Stop Lamps (China Only) Stop Lamps (China Only) STRTR Starter TCM Transmission Control Module TRANS Transmission TRLR BCK/UP Trailer Back-up Lamps TRLR BRK Trailer Brake TRLR PRKLAMP Trailer Parking Lamps TRLR PWR Trailer Power WPR/WSW Windshield Wiper/Washer
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine compartment (HID Lighting) (2013-2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CMPRSR CLTCH Air Conditioning Compressor Clutch AUX VAC PUMP Auxiliary Vacuum Pump CRNK Switched Power FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FAN 3 Cooling Fan 3 HDLP WASH (CHINA) FOG LAMP (GMC) Headlamp Washer (ChinayFog Lamps (GMC) HI BEAM High-Beam Headlamps HID/LO BEAM High Intensity Discharge (HID) Low-Beam Headlamps HORN Horn IGN Ignition Main LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal Lamp PRK LAMP Park Lamp PWR/TRN Powertrain RR DEFOG Rear Window Defogger RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal Lamp Stop Lamps (China Only) Stop Lamps (China Only) TRLR BCK/UP Trailer Back-up Lamps WPR Windshield Wiper WPR HI Windshield Wiper High Speed
This content requires JavaScript and a valid membership to view.

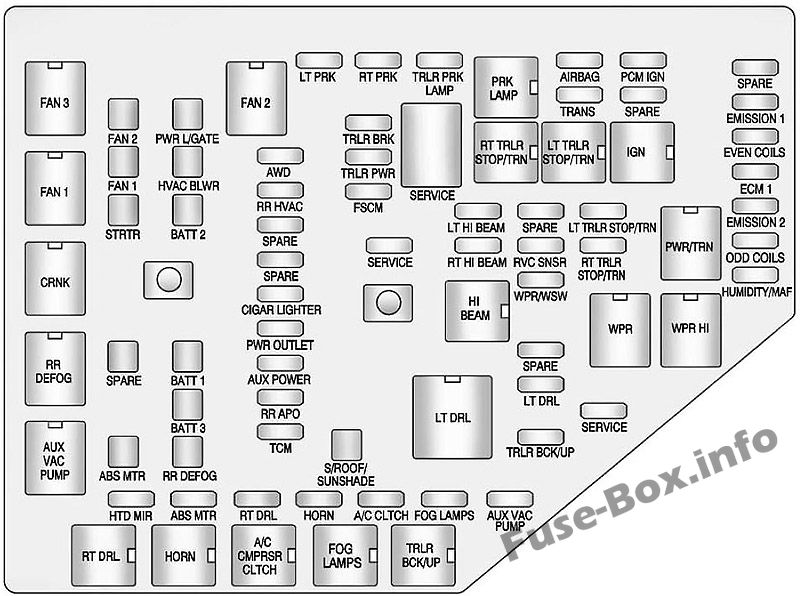

Assignment of the fuses in the engine compartment (Halogen Lighting) (2013-2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CLUTCH Air Conditioning Clutch ABS MTR Antilock Braking System (ABS) Motor AIRBAG Airbag System AUX POWER Auxiliary Power AUX VAC PUMP Auxiliary Vacuum Pump AWD All-Wheel-Drive System BATT1 Battery 1 BATT2 Battery 2 BATT3 Battery 3 CIGAR LIGHTER Cigar Lighter ECM 1 Engine Control Module 1 EMISSION 1 Emission 1 EMISSION 2 Emission 2 EVEN COILS Even Injector Coils FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 RTDRL Right Daytime Running Lamp FSCM Fuel System Control Module HORN Horn HTD MIR Heated Outside Rearview Mirror HUMIDITY/MAF Humidity Sensor/MAF Sensor HVAC BLWR Heating, Ventilation and Air Conditioning Blower LT HI BEAM Left High-Beam Headlamp LT DRL Left Daytime Running Lamp LT PRK Left Parldng Lamp LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal ODD COILS Odd Injector Coils PCM IGN Powertrain Control Module Ignition PWR L/GATE Power Liftgate PWR OUTLET Power Outlet RR APO Rear Accessory Power Outlet RR DEFOG Rear Defogger RR HVAC Rear Climate Control System RT HI BEAM Right High-Beam Headlamp RT LO BEAM Right Low-Beam Headlamp RT PRK Right Parking Lamp RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal RVC SNSR Regulated Voltage Control Sensor S/ROOF/SUNSHADE Sunroof SERVICE Service Repair SPARE Spare FOG LAMPS LAMPS Fog Lamps STRTR Starter TCM Transmission Control Module TRANS Transmission TRLR BCK/UP Trailer Back-up Lamps TRLR BRK Trailer Brake TRLR PRK LAMP Trailer Parking Lamps TRLR PWR Trailer Power WPR/WSW Windshield Wiper/Washer
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (Halogen Lighting) (2013-2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CMPRSR CLTCH Air Conditioning Compressor Clutch AUX VAC PUMP Auxiliary Vacuum Pump CRNK Switched Power FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FAN 3 Cooling Fan 3 RTDRL Right Daytime Running Lamp HI BEAM High-Beam Headlamps LT DRL Left Daytime Running Lamp HORN Horn IGN Ignition Main LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal Lamp PRK LAMP Park Lamp PWR/TRN Powertrain RR DEFOG Rear Window Defogger RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal Lamp FOG LAMPS Fog Lamps TRLR BCK/UP Trailer Back-up Lamps WPR Windshield Wiper WPR HI Windshield Wiper High Speed
This content requires JavaScript and a valid membership to view.

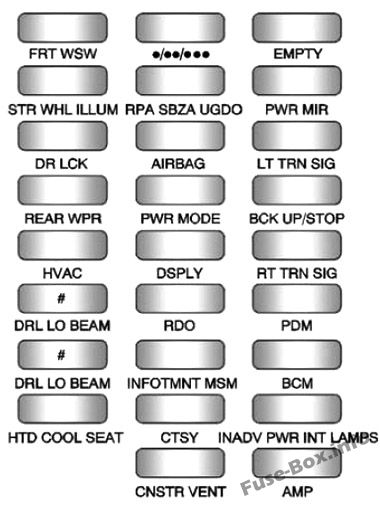

Assignment of the fuses in the Instrument panel (2013-2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description AIRBAG Airhag AMP Amplifier BCM/UP/STOP Back-up Lamp/Stoplamp BCM Body Control Module CNSTR/VENT Canister Vent CTSY Courtesy DR LCK Door Locks DRL7LO BEAM Daytime Running Lamps Relay/Low Beam Headlamps Relay DSPLY Display EMPTY Empty FRTWSW Front Windshield Washer HTD/COOL SEAT Heated/Cooling Seats HVAC Heating, Ventilation and Air Conditioning INADV PWR INT LAMP Inadvertent Power/lnterior Light Pipe Lamps INFOTMNT/MSM Infotainment/Memory Seat Module LT TRN SIG Driver Side Turn Signal PDM Power Mirrors, Liftgate Release PWR MODE Power Mode PWRMIR Power Mirrors RDO Radio REAR WPR Rear Wiper RPA/SBZA/UGDO Rear Parle Assist/Side Blind Zone Alert/Universal Garage Door Opener RT TRN SIG Passenger Side Turn Signal STR WHL ILLUM Steering Wheel Illumination # GMC NON HID = Lo Beam * GMC NON HID = High Shutter ** Chevy = Fog Lamps *** Buick China = Rear Fog Lamp
This content requires JavaScript and a valid membership to view.

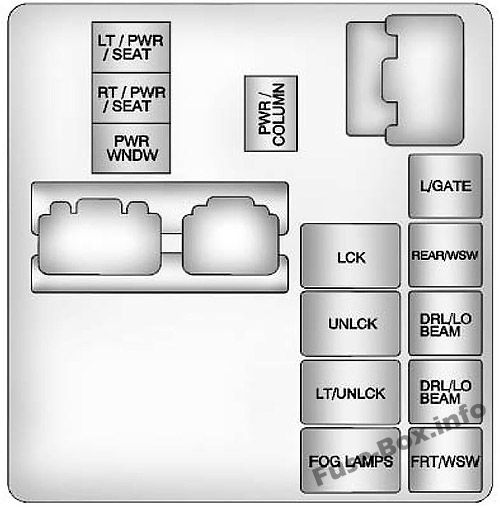

Assignment of the relays in the Instrument panel (2013-2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT/PWR/SEAT Driver’s Side Power Seat RT/PWR/SEAT Passenger’s Side Power Seat PWR/WNDW Power Windows PWR/COLUMN Power Steering Column L/GATE Liftgate LCK Power Lock REAR/WSW Rear Window Washer UN LCK Power Unlock DRL/LO BEAM Daytime Running Lamps/Low Beam Headlamps LT/UNLCK Driver’s Side Unlock DRL/LO BEAM Daytime Running Lamps (If Equipped) FOG LAMPS Fog Lamps (Chevy) FRT/WSW Front Windshield Washer
