GMC Canyon 2015-2022

Looking for GMC Canyon fuse box diagrams for the modern midsize pickup? This article focuses on the second-generation GMC Canyon, available from 2015, and includes detailed diagrams for GMC Canyon 2015, 2016, 2017, 2018, 2019, 2020, 2021 and 2022, along with clear information on fuse panel locations and a complete overview of fuse and relay assignments (fuse layout) to help you diagnose and handle electrical issues with confidence.

Fuse Box Locations

Passenger Compartment

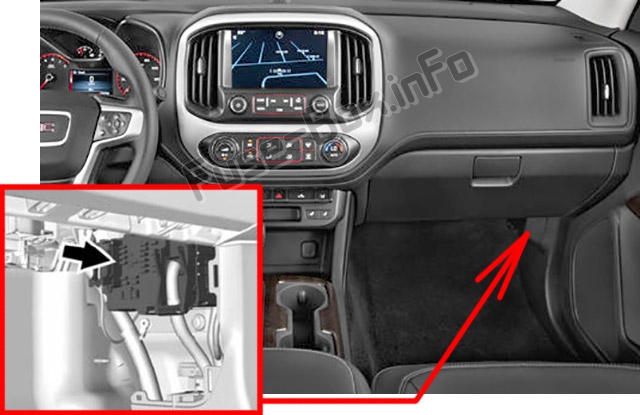

The instrument panel fuse block is located behind the passenger side cowl side trim panel.

The location of the fuses in the passenger compartment: GMC Canyon (2015-2019..)

Engine Compartment

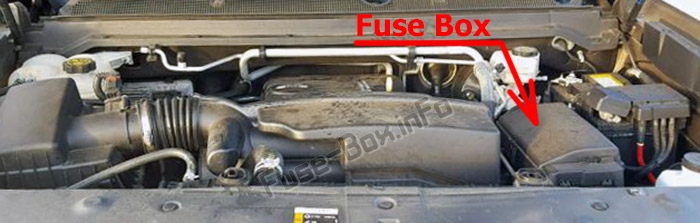

The engine compartment fuse box is located on the driver side of the engine compartment.

The location of the fuses in the engine compartment: GMC Canyon (2015-2019..)

Fuse Box Diagrams

2015, 2016, 2017, 2018

Engine compartment

Under-hood fuse box diagram: GMC Canyon (2015, 2016, 2017, 2018)
Fuses

Assignment of the fuses in the engine compartment (2015-2018)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

TypeNo.Description
Mini Fuse (2 pin)F01Traction Control Module Power
Mini Fuse (2 pin)F02Engine Control Module Power
Mini Fuse (2 pin)F03Air Conditioning Compressor Clutch
Mini Fuse (2 pin)F04Not Used
Mini Fuse (2 pin)F05Fuel Module Ignition
Mini Fuse (2 pin)F07Cargo Lamp
Mini Fuse (2 pin)F08Fuel Injectors – Even
Mini Fuse (2 pin)F09Fuel Injectors – Odd
Mini Fuse (2 pin)F10Engine Control Module
Mini Fuse (2 pin)F11Miscellaneous 1 Ignition
Mini Fuse (2 pin)F13Traction Control Module
Mini Fuse (2 pin)F14Not Used
Mini Fuse (2 pin)F15Not Used
Mini Fuse (2 pin)F16Not Used
Mini Fuse (2 pin)F17Front Axle Actuator
Mini Fuse (2 pin)F18Not Used
Mini Fuse (2 pin)F19Aeroshutters
Mini Fuse (2 pin)F20Not Used
Mini Fuse (2 pin)F23Not Used
Mini Fuse (2 pin)F29Not Used
Mini Fuse (2 pin)F30Heated Seat Power 1
Mini Fuse (2 pin)F31Not Used
Mini Fuse (2 pin)F32Heated Seat Power 2
Mini Fuse (2 pin)F33Body Control Module 3
Mini Fuse (2 pin)F34Fuel System Control Module
Mini Fuse (2 pin)F35Not Used
Mini Fuse (2 pin)F36Center High Mounted Stop Lamp
Mini Fuse (2 pin)F37Right High-Beam Headlamp
Mini Fuse (2 pin)F38Left High-Beam Headlamp
Mini Fuse (2 pin)F39Not Used
Mini Fuse (2 pin)F40Not Used
Mini Fuse (2 pin)F46Not Used
Mini Fuse (2 pin)F47Miscellaneous 2 Ignition
Mini Fuse (2 pin)F48Fog Lamps (If Equipped)
Mini Fuse (2 pin)F49Not Used
Mini Fuse (2 pin)F50Trailer Park Lamps
Mini Fuse (2 pin)F51Horn
Mini Fuse (2 pin)F52Not Used
Mini Fuse (2 pin)F53Not Used
Mini Fuse (2 pin)F54Not Used
Mini Fuse (2 pin)F55Not Used
Mini Fuse (2 pin)F56Washer Pump
Mini Fuse (2 pin)F57Not Used
Mini Fuse (2 pin)F58Not Used
Mini Fuse (2 pin)F60Mirrors Defogger
Mini Fuse (2 pin)F61Not Used
Mini Fuse (2 pin)F62Canister Vent Solenoid
Mini Fuse (2 pin)F63Not Used
Mini Fuse (2 pin)F64Trailer Reverse Lamp
Mini Fuse (2 pin)F65Left Trailer Stop/ Turn Lamps
Mini Fuse (2 pin)F66Right Trailer Stop/Turn Lamps
Mini Fuse (2 pin)F67Electric Power Steering
Mini Fuse (2 pin)F68Not Used
Mini Fuse (2 pin)F69Battery Regulated Voltage Control
Mini Fuse (2 pin)F70Not Used
Mini Fuse (2 pin)F71Not Used
J-Case FuseF06Wipers
J-Case FuseF12Starter
J-Case FuseF21Front Blower
J-Case FuseF22Antilock Brake System Valves
J-Case FuseF24Trailer
J-Case FuseF25Transfer Case Electronic Control
J-Case FuseF26Antilock Brake System Pump
J-Case FuseF27Trailer Brake Control Module
J-Case FuseF28Rear Window Defogger
J-Case FuseF41Not Used
J-Case FuseF42Not Used
J-Case FuseF43Cooling Fan
J-Case FuseF44Not Used
J-Case FuseF45Brake Vacuum Pump
J-Case FuseF59Not Used
Midi FuseF72Not Used
Midi FuseF73Not Used
Midi FuseF74Generator
Midi FuseF75Not Used

Relays

Assignment of the relays in the engine compartment (2015-2018)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

TypeNo.Description
Micro RelayK01Air Conditioning Compressor Clutch
Micro RelayK02Starter
Micro RelayK03Not Used
Micro RelayK04Wipers Speed
Micro RelayK05Wipers Control
Micro RelayK06Cargo Lamp
Micro RelayK08Not Used
Micro RelayK09Not Used
Micro RelayK10Not Used
Micro RelayK11Center High Mounted Stop Lamp
Micro RelayK12Not Used
Micro RelayK13Vacuum Pump
Micro RelayK14Park Lamps
Mini RelayK07Powertrain
Mini RelayK15Run/Crank
Mini RelayK17Rear Window Defogger
Solid State RelayK16Not Used

Passenger Compartment

Interior fuse box diagram: GMC Canyon (2015, 2016, 2017, 2018)
Fuses

Assignment of the fuses in the Instrument panel (2015-2018)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

TypeNo.Description
Micro Fuse (2 Pin)F01Body Control Module 1
Micro Fuse (2 Pin)F04Steering Wheel Controls
Micro Fuse (2 Pin)F05Body Control Module 2
Micro Fuse (2 Pin)F08Mirror Window Module
Micro Fuse (2 Pin)F09Instrument Cluster
Micro Fuse (2 Pin)F10Not Used
Micro Fuse (2 Pin)F11Body Control Module 8
Micro Fuse (2 Pin)F12Not Used
Micro Fuse (2 Pin)F14Radio / HMI
Micro Fuse (2 Pin)F15Body Control Module 6
Micro Fuse (2 Pin)F16Not Used
Micro Fuse (2 Pin)F17Body Control Module 4
Micro Fuse (2 Pin)F19Not Used
Micro Fuse (2 Pin)F20Amplifier (if equipped)
Micro Fuse (2 Pin)F21Not Used
Micro Fuse (2 Pin)F22Not Used
Micro Fuse (2 Pin)F24Heating, Ventilation, and Air Conditioning Ignition
Micro Fuse (2 Pin)F25Body Control Module 7
Micro Fuse (2 Pin)F26Not Used
Micro Fuse (2 Pin)F27Not Used
Micro Fuse (2 Pin)F29Miscellaneous Ignition
Micro Fuse (2 Pin)F31Front Camera
Micro Fuse (2 Pin)F32Steering Wheel Controls Backlighting
Micro Fuse (2 Pin)F34Not Used
Micro Fuse (2 Pin)F35Park, Reverse, Neutral, Drive, Low
Micro Fuse (2 Pin)F36Discrete Logic Ignition Sensor
Micro Fuse (2 Pin)F38Not Used
Micro Fuse (3 Pin)F13OnStar / Heating, Ventilation, and Air Conditioning
Micro Fuse (3 Pin)F18Airbag
Micro Fuse (3 Pin)F23Data Link Connector / USDB
Micro Fuse (3 Pin)F28Instrument Panel / Sensing and Diagnostic Module Ignition
Micro Fuse (3 Pin)F33Not Used
Micro J-Case FuseF02Not Used
Micro J-Case FuseF03Not Used
Micro J-Case FuseF06Not Used
Micro J-Case FuseF07Not Used
Micro J-Case FuseF39Auxiliary Power Outlet 2
Micro J-Case FuseF41Auxiliary Power Outlet 1 / Lighter
Micro J-Case FuseF42Left Power Window
Micro J-Case FuseF43Driver Power Seat
Micro J-Case FuseF45Right Power Window
Micro J-Case FuseF46Passenger Power Seat
J-Case FuseF30Not Used
J-Case FuseF40Auxiliary Power Outlet
J-Case FuseF44Auxiliary Power Outlet
Mini Fuse (2 Pins)F37Not Used

Relays

Assignment of the micro relays in the Instrument panel (2015-2018)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
K1Retained Accessory Power/Accessory
K2Run/Crank

2019, 2020, 2021, 2022

Engine compartment

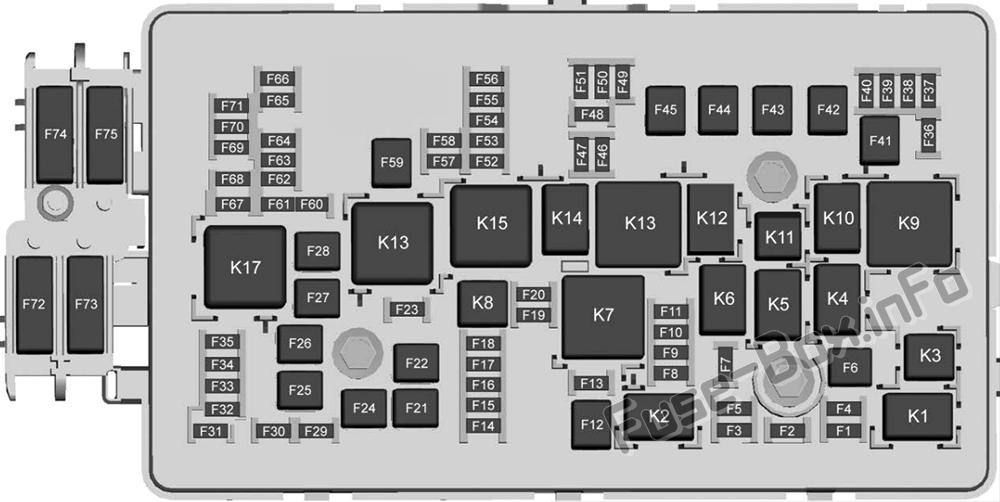

Under-hood fuse box diagram: GMC Canyon (2019, 2020)
Fuses

Assignment of the fuses in the engine compartment (2019, 2020, 2021, 2022)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F1Traction control module power
F2Engine control module power
F3Air conditioning clutch
F4Not Used
F5Engine control module/ lntegrated chassis control module/ Fuel pump power module
F6Wipers
F7Cargo lamp/Bed lighting
F8Fuel injectors-even
F9Fuel injectors-odd
F10Engine control module 1
F11Oxygen/ Mass air flow/ Humidity/ Induction air temperature/ Throttle inlet pressure sensors
F12Starter
F13Traction control module
F14Not Used
F15Not Used
F16Not Used
F17Front axle actuator
F18Not Used
F19Aeroshutters
F20Not Used
F21Front blower
F22Antilock brake system valves
F23Not Used
F24Trailer
F25Transfer case electronic control
F26Antilock brake system pump
F27Trailer brake control module/ Trailer wiring provisions
F28Rear window defogger
F29Not Used
F30Driver heated seat
F31Not Used
F32Passenger heated seat
F332019: Mid park phase lock/ Active fuel management/ Engine oil and canister purge solenoid(s)/ Oxygen sensor.

2020-2022: Right headlamp low beam/ Front right park lamp/ Right front side marker/ Right rear side marker
F34Fuel pump power module
F35Integrated chassis control module
F36Center high-mounted stoplamp
F37Right high-beam headlamp
F38Left high-beam headlamp
F39Not Used
F40Not Used
F41Not Used
F42Not Used
F432019: Cooling fan
2020-2022: Not Used
F44Not Used
F45Brake vaccuum pump
F46Engine control module 2
F472019: Right headlamp low beam/ Front right park lamp/ Right front side marker/ Right rear side marker.

2020-2022: Mid park phase lock/ Active fuel management/ Engine oil and canister purge solenoid(s)/ Oxygen sensor.
F48Fog lamps
F49Not Used
F50Trailer parking lamps
F51Horn
F52Not Used
F53Not Used
F54Not Used
F55Not Used
F56Washer pump
F57Not Used
F58Not Used
F59Not Used
F60Mirrors defogger
F61Not Used
F62Canister vent solenoid
F63Not Used
F64Trailer reverse lamp
F65Left trailer stoplamp/ Turn signal lamps
F66Right trailer stoplamp/ Turn signal lamps
F67Electric power steering
F68Not Used
F69Battery regulated voltage control
F70Not Used
F71Not Used
F72Not Used
F73Not Used
F74Generator

Relays

Assignment of the relays in the engine compartment (2019, 2020, 2021, 2022)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
K1Air conditioning clutch
K2Starter
K3Not Used
K4Wipers speed
K5Wipers control
K6Cargo lamp/Bed lighting
K7Powertrain
K8Not Used
K9Not Used
K10Not Used
K11Center high-mounted stoplamp
K12Not Used
K13Vacuum pump
K14Trailer parking lamps
K15Run/Crank
K16Not Used
K17Rear window defogger

Passenger Compartment

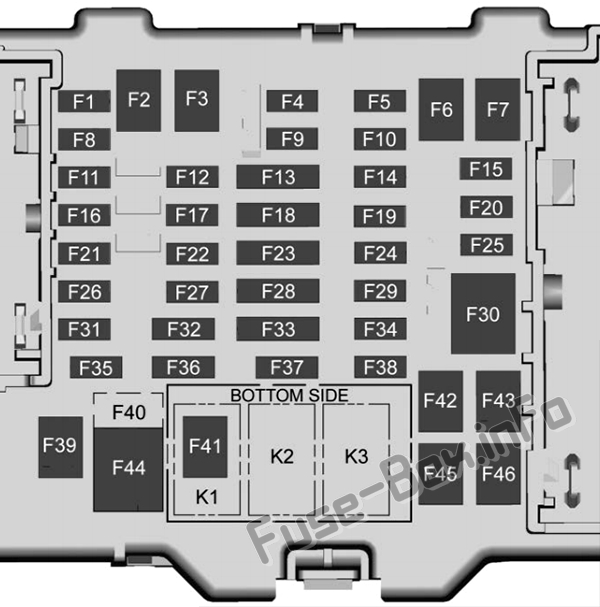

Interior fuse box diagram: GMC Canyon (2019, 2020)
Fuses

Assignment of the fuses in the Instrument panel (2019, 2020, 2021, 2022)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F12019-2021: Run/ Crank relay control/ Horn switch/ Dome lamps
2022: Body Control Module 1 – Indicator Dimming Control, Retained Accessory Power (RAP) Relay Coil Control, Rear License Lamp Supply Voltage, Windshield Washer Relay Control, Run/Crank Relay Coil Control, Cruise / Electronic Torque Control / Torque Converter Clutch Brake Signal, Run Ignition 3 Voltage
F2Not Used
F3Not Used
F4Steering wheel controls
F52019-2021: Left headlamp low beam/ Front left park lamp/ Left front side marker/ Left rear side marker
2022: Body Control Module 2 – Interior Lamp Control, Accessory Voltage (1), Backup Lamp Relay Control, Park Lock Solenoid Control, Trailer Brake Apply Signal
F6Not Used
F7Not Used
F8Mirror window module
F9Instrument panel cluster
F10Not Used
F112019-2021: Door latches
2022: Body Control Module 8 – Door Lock Actuator Lock Control 2, Door Lock Control (2), Door Lock Actuator Unlock Control
F12Not Used
F13OnStar/HVAC
F14Radio/Infotainment
F152019-2021: RAP accessory relay control/ Shifter control/ Shifter solenoid/ Wiper relay control/ Washer pump relay control/ Rear defog relay control
2022: Body Control Module 6 – LED Backlight Dimming Control, Interior Lamps, Lights Exterior Reverse/Backup Lamps Direct Drive, Stop Lamp Relay Coil Supply Voltage
F16Communication gateway module (CGM)
F172019-2021: Left rear side marker/ Right front turn lamp/ Left rear stop lamp/ Left front turn lamp/ Right rear stop lamp
2022: Body Control Module 4 – Left Headlamp Low Beam Supply Voltage, Right Park Lamp Supply Voltage, Left Rear Stop Lamp Supply Voltage, Right Rear Park Lamp Supply Voltage
F18Airbag/ Sensing and diagnostic module/ Automatic occupant sensing module
F19Not Used
F20Amplifier
F21Not Used
F22Not Used
F23Data link connector/USB front
F242019-2020: HVAC Ignition
2021-2022: HVAC Ignition / Auxiliary Heater
F252019-2021: Driver door latch
2022: Body Control Module 7 – Right Rear Stop Lamp Supply Voltage, Left Front Turn Signal Lamp Supply Voltage, Standing Lamp Relay Control
F26Not Used
F27Not Used
F28Instrument panel cluster and automatic sensing display
F29Rear vision camera/ Transfer case control module (4WD)/lnside rear view
F30Not Used
F31Front camera/Rear park assist
F32Steering wheel controls backlighting
F33Heated steering wheel/ Spare
F342019: Spare.
from 2020: Front ventilated seats
F35Park/Reverse/Neutral/ Drive/Low display/ Wireless charging module/USB rear
F36Discrete logic ignition sensor
F37Not Used
F38Not Used
F39Auxiliary power outlet 2
F40Not Used
F41Auxiliary power outlet 1/ Cigarette lighter
F42Left power window
F43Driver power seat
F44Auxiliary power outlet
F45Right power window
F46Passenger power seat

Relays

Assignment of the relays in the Instrument panel (2019, 2020, 2021, 2022)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
K1Retained accessory power
K2Run/Crank
K3Not Used

FAQ

Scroll to Top
