GMC Safari 1996-2005

Looking for GMC Safari fuse box diagrams without flipping through old manuals? This article focuses on the second-generation GMC Safari, produced from 1996 to 2005, and includes clear fuse box diagrams for GMC Safari 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, and 2005, along with exact fuse panel locations and a detailed overview of fuse and relay assignments (fuse layout) to make electrical troubleshooting straightforward and stress-free.

Passenger Compartment

Fuse Box Location

The fuse block is on the lower portion of the instrument panel on the driver’s side.

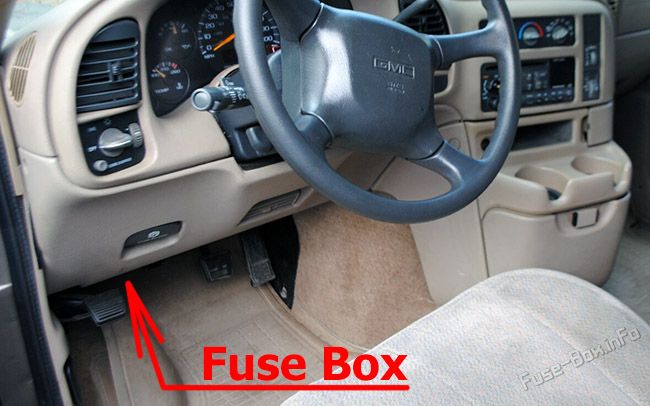

Location of the fuses in the passenger compartment: GMC Safari (1996-2005)

Fuse Box Diagram

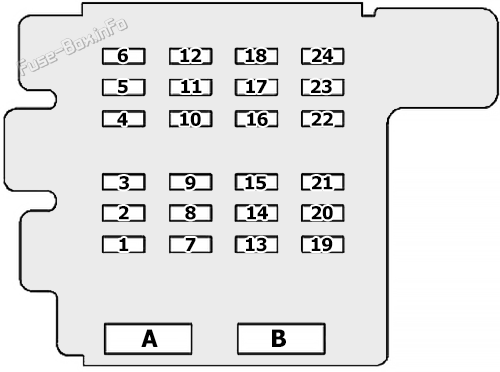

Instrument panel fuse box diagram: GMC Safari (1996-2005)

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Stop/Turn/Hazard Lamps, Center High-Mounted Stop Lamp, Anti-Lock Brakes, Chime Module (1996-1999)
21996-1998: No Fuse – Resistor;
1999: Heated Mirror (Not Used);
2000-2005: Radio Accessory, Rear Seat Audio Controls
3Courtesy Lamps, Power Outside Mirrors (1996-1999), Glove Box Lamp, Dome Reading Lamps, Vanity Mirror Lamps
41996-1999: DRL Relay, DRL Module, Chime Headlamp Switch, Keyless Entry, Cluster, Overhead Console, Interior Lamps Module;
2000-2005: Daytime Running Lamps Relay, Instrument Panel Cluster
51999-2005: Rear Defogger
61996-1999: Cruise Module, Cruise ControlSwitch, Electrochromic Mirror (1999);
2000-2005: Cruise Module, Truck Body Control Module, Instrument Panel Cluster, Cruise Control Switch, Electrochromic Mirror
7Power Outlets, DLC, Subwoofer Amplifier
81999: Starter Enable Relay;
2000-2005: Crank Circuit Fuse, Park/Neutral Switch, Starter Enabler Relay
9License Plate Lamp, Tailamps, Parking Lamps, Ashtray Lamp, Panel Lights, Trailer Taillamps, Front ana Rear Sidemarker Lamps, Door Switch Illumination, Headlamp Switch Illumination, Rear Seat Audio Illumination, Truck Body Control Module (2000-2005)
10Air Bag System
111996-1999: Wiper Motor, Washer Pump, Upfitter Relay Coil (1999)
12Blower Motor, Rear Air Conditioning Relay Coil, Front Cont. Temp. Door Motor, HI Blower Relay, Defogger Timer Coil
13Cigarette Lighter, Door Lock Switches, Dutch Door Release Module
14Cluster Illumination, Climate Controls, Chime Module, Radio Illumination, Rear Heat Switch Illumination, Rear Wiper/Washer Switch Illumination, Rear Liftgate Switch Illumination, Remote Cassette Illumination, Overhead Console, Truck Body Control Illumination
151996-1999: DRL Lamps;
2000-2005: Truck Body Module, Headlamp Relay
16Front Turn Signals, Rear Turn Signals, Trailer Turn Signals, Back-Up Lamps, Brake Transmission Shift Interlock Solenoid
171996-1999: Radio: ATC (Standby), 2000 Series (Main Feed), Rear Seat Audio Controls;
2000-2005: Front Wipers, Front Washer Pump
18VCM-Ign 3, VCM-Brake, Cruise Stepper Motor Signal, ATC Module
19Instrument Panel Radio: ATC (Main Feed), 2000 Series (Standby)
20PRNDL/Odometer, Shift A and Shift B Solenoids, 3-2 Downshift Solenoid, Instrument Panel Cluster (2000-2005), VCM Module (2000-2005)
211999: Security;
2000-2005: Power Adjust Mirrors
22Not Used
23Rear Wiper, Rear Washer Pump
24Not Used

Circuit Breakers

Assignment of the circuit breakers in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.Description
A1996-1999: Power DoorLock Relay, 6-way Power Seat, Remote Control Door Lock Receiver, Dutch Door Module, Dutch Door Release;
2000-2005: Power Door Lock Relay, 6-Way Power Seats
BPower Windows

Engine Compartment

Fuse Box Location

The under-hood fuse block is located toward the rear of the engine compartment on the driver’s side of the vehicle. Lift the hood and open the cover to gain access to this fuse block.

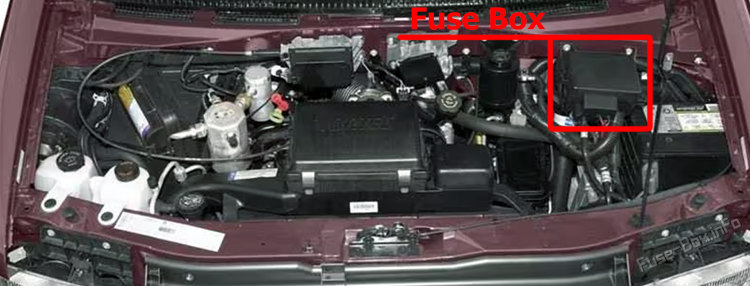

Location of the fuses in the engine compartment: GMC Safari (1996-2005)

Fuse Box Diagram

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Under-hood fuse box diagram: GMC Safari (1996-2005)

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Short-CodeDescription
UPFITTER – BATTUpfitter Battery Power Stud, Trailer Wiring Harness
UPFITTER – ACCYUpfitter Accessory Relay
SPARESpare fuses
ECM-1BFuel Pump Relay and Motor, VCM, Oil Pressure Switch/Sender
HORNHorn Relay and Horn
A/C COMPAir Conditioning Enable Relay and Compressor
RR HTR/ACRear Heater and Air Conditioning
ATCActive Transfer Case-L Van
FRT HVAC2000-2005: Front Heater and Air Conditioning
ENG-I1996-1999: Oxygen Sensors, Camshaft Position Sensor, Mass Air Flow Sensor, Evaporative Emission Canister Purge Solenoid, Linear EGR Valve Solenoid, VCM EGR HI;
2000-2005: Oxygen Sensors, Camshaft Position Sensor, Mass Air Flow Sensor, Evaporative Emission Canister Vent Solenoid
IGN-EAir Conditioning Enable Relay Coil
ECM-IFuel Injectors 1-6, Crankshaft Position Sensot, VCM, Coil Driver Module (EST), Ignition Coil
RH HDLMP2000-2005: Right Headlamp
LH HDLMP2000-2005: Left Headlamp
DIODE-1Air Conditioning
LIGHTING1996-1999: Park Lamps Fuse, DRL Fuse, Headlamp and Panel Dimmer Switch;
2000-2005: Courtesy Fuse, Power Adjust Mirrors Fuse, Truck Body Control Battery Fuse
BATT / BATT I/P1996-1998: Fuse Block Fuses, Power Seat CB, Stop/Hazard Fuse, Auxiliary Power Fuse, Cigarette Lighter Fuse, Radio, Battery Fuse;
1999: Steering/Security Fuse, Courtesy Fuse, ACSY CB, Stop/Hazard Fuse, Auxiliary Power Fuse, Cigarette Lighter Fuse, Radio Battery Fuse;
2000-2005: Power Accessory Circuit Breaker, Stop/Hazard Fuse, Auxiliary Power Fuse, Cigarette Lighter Fuse, Radio Battery Fuse
IGN AStarter Relay, Ignition Switch
IGN BIgnition Switch
ABSElectronic Brake Control Module
RAP2000-2005: Radio Accessory, Power Windows
HTD MIR/ RR DEFOGRear Window Defogger, Climate Control Head
A/C1996-1999: Blower Motor Resistor, Blower Relay

Relays

Assignment of the relays in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Short-CodeDescription
A/CRear/Heat and Air Conditioning
UPFITTER – ACCYUpfitter Accessory
STARTER ENABLEStarter
A/C ENABLEAir Conditioning
HEAD LAMPSHeadlamps
FUEL PUMPFuel Pump

Harness Connectors

Assignment of the harness connectors in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Short-CodeDescription
AUX BUpfitter Battery Feed
AUX AUpfitter Accessory Feed
