Looking for GMC Savana fuse box diagrams for the early models? This article covers GMC Savana 1997, 1998, 1999, 2000, 2001 and 2002 , providing clear fuse box diagrams , exact fuse panel locations inside the vehicle, and a detailed breakdown of fuse and relay assignments (fuse layout) to help you handle electrical checks and troubleshooting with confidence.
The fuse block access door is on the driver’s side of the instrument panel above the hood release lever
The fuse block is on the driver’s side of the engine compartment at the rear.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses and relays in the engine compartment (1997-2000)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Name Circuit protected BLOWER Front Blower Motor ABS Electronic Brake Control Module IGN B Ignition Switch IGN A Starter Relay, Ignition Switch BATT Instrument Panel Fuse Block LIGHTING Instrument Panel Fuse Block, Headlamp Switch RR BLOWER Rear Auxiliary Blower Motor Relays ENG-I Heated O2 Sensors, Mass Air Flow Sensor, EGR Valve Solenoid, Evap Canister Purge Valve, Crankshaft Position Sensor, Secondary Air Injection Relay (Diesel), Water in Fuel Sensor (Diesel), Fuel Heater (Diesel), Glowplug Relay (Diesel), Wastegate Solenoid (Diesel) A/C Air Conditioning Clutch Relay SPARE Spare Fuses AUX A Upfitter Provisions AUX B Upfitter Provisions RH-HDLP Right-hand Headlamp (Export only) RH-HIBM Right-hand High-beam Headlamp (Export only) ECM-I Ignition Coil, Camshaft Position Sensor, VCM, Fuel Injectors, Coil Driver HORN Horn Relay, Underhood Lamp(s) LH-HDLP Left-hand Headlamp (Export only) LH-HIBM Left-hand High-beam Headlamp (Export only) FUEL SOL PCM, Fuel Solenoid Driver, Engine Shutoff Solenoid IGN-E Air Conditioning Clutch Relay ECM-B Fuel Pump Relay, VCM, PCM, Fuel Pump and Engine Oil Pressure Switch
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Short-Code Description 1 STOP Stop/CHMSL, Stoplamps 2 HTD MIR Electric Heated Mirrors 3 CTSY Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors 4 GAUGES IP Cluster, DRL Relay, DRL Module, HDLP Switch, Keyless Entry Illumination, Low Coolant Module, CHIME Module, DRAB Module 5 HAZARD Hazard Lamps/CHIME Module 6 CRUISE Cruise Control 7 PWR AUX Auxiliary Power Outlet, DLC 8 CRANK — 9 PARK LPS License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers, Glove Box Ashtray 10 AIR BAGS Air Bags 11 WIPER Wiper Motor, Washer Pump 12 HTR-A/C A/C, A/C Blower, High Blower Relay, HTD Mirror 13 CIG LTR Cigarette Lighter 14 ILLUM IP Cluster, HVAC Controls, RR HVAC Controls, IP Switches, Radio Illumination, Door Switch Illumination 15 DRL DRL Relay 16 TURN B/U Front Turn, RR Turn, Back-up Lamps, BTSI Solenoid 17 RADIO-1 Radio (Ign, Accy), Upfitter Provision Relay 18 BRAKE 4WAL PCM, ABS, Cruise Control 19 RADIO-B Radio (Battery), Power Antenna 20 TRANS PRNDL, Automatic Transmission 21 SECURITY Passlock 22 RR DEFOG Rear Window Defog 23 Not Used — 24 RR HVAC RR HVAC Controls, HIGH, MED, LOW Relays A PWR ACCY Power Door Lock, Six-Way Power Seat Keyless Entry Illumination Module B PWR WDO Power Windows
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

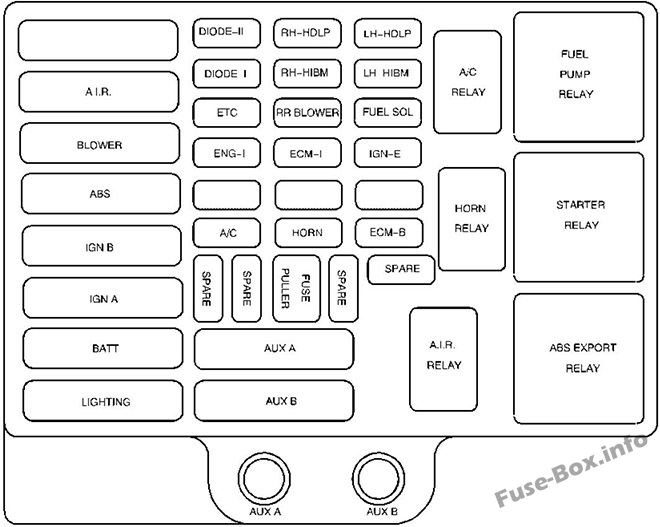

Assignment of the fuses in the engine compartment (2001, 2002)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description SPARE Spare Fuse AIR Air Pump BLOWER Front Blower Motor ABS Electronic Brake Control Module IGN B Ignition Switch IGN A Starter Relay, Ignition Switch BATT Instrument Panel Fuse Block LIGHTING Instrument Panel Fuse Block, Headlamp Switch RH-HDLP Right-hand Headlamp (Export only) LH-HDLP Left-hand Headlamp (Export only) RH-HIBM Right-hand High-beam Headlamp (Export only) LH-HIBM Left-hand High-beam Headlamp (Export only) ETC Electronic Throttle Control RR BLOWER Rear Auxiliary Blower Motor Relays FUEL SOL Fuel Solenoid ENG-I Heated 02 Sensors, Mass Air Flow Sensor, EGR Valve Solenoid, Evap Canister Purge Valve, Crankshaft Position Sensor, Secondary Air Injection Relay (Diesel), Water in Fuel Sensor (Diesel), Fuel Heater (Diesel), Glowplug Relay (Diesel), Wastegate Solenoid (Diesel) ECM-I Ignition Coil, Camshaft Position Sensor, VCM, Fuel Injectors, Coil Driver IGN-E Air Conditioning Clutch Relay SPARE Spare Fuse SPARE Spare Fuse SPARE Spare Fuse A/C Air Conditioning Clutch Relay HORN Horn Relay, Undertiood Lamp(s) ECM-B Fuel Pump Relay, VCM, PCM, Fuel Pump and Engine Oil Pressure Switch SPARE Spare Fuses SPARE Spare Fuses AUX A Upfitter Provisions AUX B Upfitter Provisions
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2001, 2002)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C RELAY Air Conditioning HORN RELAY Horn AIR RELAY Air FUEL PUMP RELAY Fuel Pump STARTER RELAY Starter ABS EXPORT RELAY ABS Export
This content requires JavaScript and a valid membership to view.

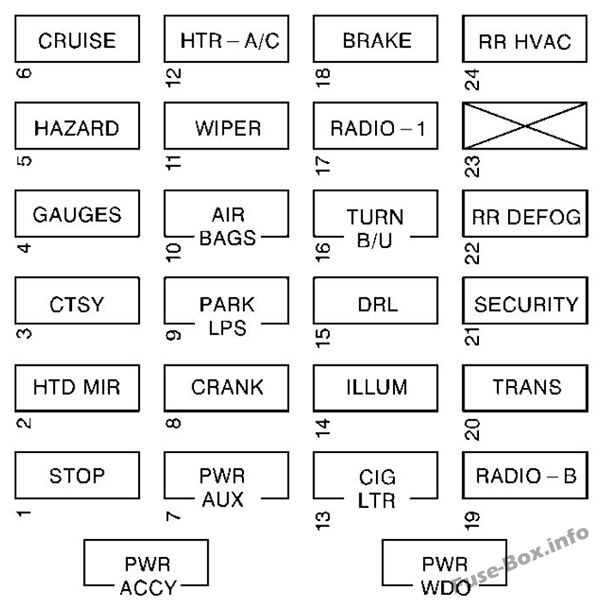

Assignment of the fuses in the Passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Short-Code Description 1 STOP Stop/CHMSL, Stoplamps 2 HTD MIR Electric Heated Mirrors 3 CTSY Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors 4 GAUGES IP Cluster, DRL Relay, DRL Module, HDLP Switch, Keyless Entry Illumination, Low Coolant Module, CHIME Module, DRAB Module 5 HAZARD Hazard Lamps/CHIME Module 6 CRUISE Cruise Control 7 PWR AUX Auxiliary Power Outlet, DLC 8 CRANK — 9 PARK LPS License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers, Glove Box Ashtray 10 AIR BAGS Air Bags 11 WIPER Wiper Motor, Washer Pump 12 HTR-A/C A/C, A/C Blower, High Blower Relay, HTD Mirror 13 CIG LTR Cigarette Lighter 14 ILLUM IP Cluster, HVAC Controls, RR HVAC Controls, IP Switches, Radio Illumination, Door Switch Illumination 15 DRL DRL Relay 16 TURN B/U Front Turn, RR Turn, Back-up Lamps, BTSI Solenoid 17 RADIO-1 Radio (Ign, Accy), Upfitter Provision Relay 18 BRAKE 4WAL PCM, ABS, Cruise Control 19 RADIO-B Radio (Battery), Power Antenna 20 TRANS PRNDL, Automatic Transmission 21 SECURITY Passlock 22 RR DEFOG Rear Window Defog 23 Not Used — 24 RR HVAC RR HVAC Controls, HIGH, MED, LOW Relays A PWR ACCY Power Door Lock, Six-Way Power Seat Keyless Entry Illumination Module B PWR WDO Power Windows
