Looking for fuse box diagrams for the second-generation GMC Sonoma? This guide covers model years 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 and 2004, showing the fuse panel locations, clear fuse layouts, and detailed fuse and relay assignments, so tracking down the right circuit is quick, painless, and doesn’t require a flashlight and guesswork.
The instrument panel fuse block is at the driver’s end of the instrument panel. Remove the cover by turning the fastener counterclockwise. Extra fuses and the fuse extractor are provided in the cover. To reinstall the fuse panel cover, push in and turn the fastener clockwise.

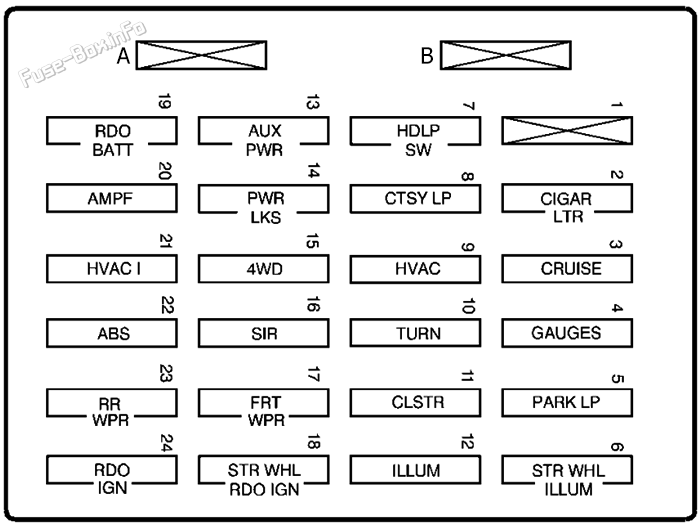

Fuse Box Diagram
Fuse Data
Full access is available to registered users — log in or register.
1994-2002: Cruise Control, Body Controls TBC, Cruise Module, Cruise Switch 2003-2004: Cruise Control Module and Switch, Body Control Module, Heated Seats
4
1994-2002: Gages, Body Controls TBC, Instrument Panel Cluster, B+ Power 2003-2004: Gages, Body Control Module, Instrument Panel Cluster
5
Parking Lamps, Power Window Switch, Body Control Module, Ashtray Lamp
6
2001-2004: Steering Wheel Radio Controls
7
Headlamps Switch, Body Control Module, Headlamp Relay
Heating, Ventilation, Air Cooling (Manual), Heating,Ventilation, Air Cooling (Automatic), Heating, Ventilation, Air Cooling Sensors (Automatic)
22
Anti-Lock Brakes (ABS)
23
Rear Wiper
24
Radio, Ignition
Engine Compartment

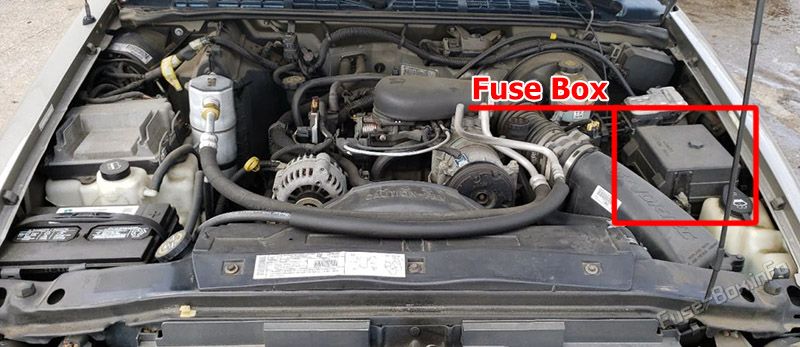

Fuse Box Location
The fuse block is under the hood on the driver’s side of the engine compartment. Remove the cover by turning the fastener counterclockwise. To reinstall the fuse panel cover, push in and turn the fastener clockwise.

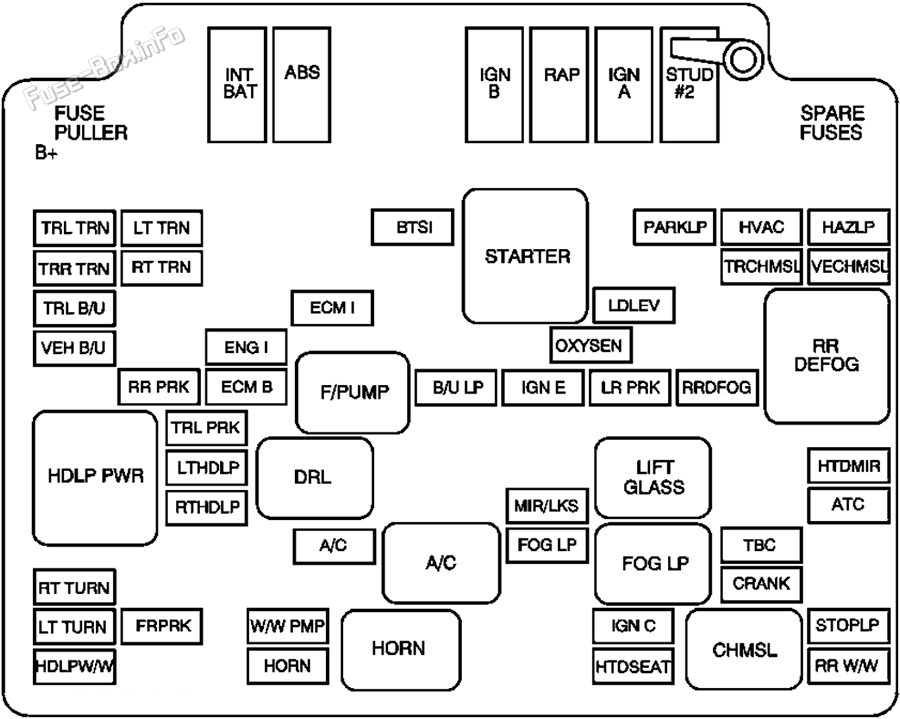

Fuse Box Diagram
Fuse Data
Full access is available to registered users — log in or register.
