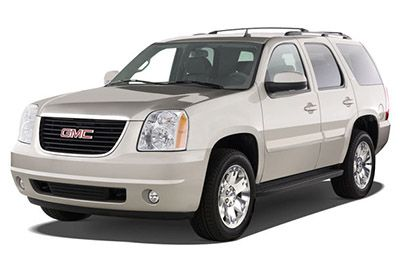

Explore GMC Yukon fuse box diagrams in this clear guide that outlines the electrical layout of the third-generation full-size SUV. In this article, we consider the third-generation GMC Yukon (also known as Yukon XL ), available from 2007 to 2014 , and provide fuse box diagrams for GMC Yukon 2007, 2008, 2009, 2010, 2011, 2012, 2013 and 2014 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

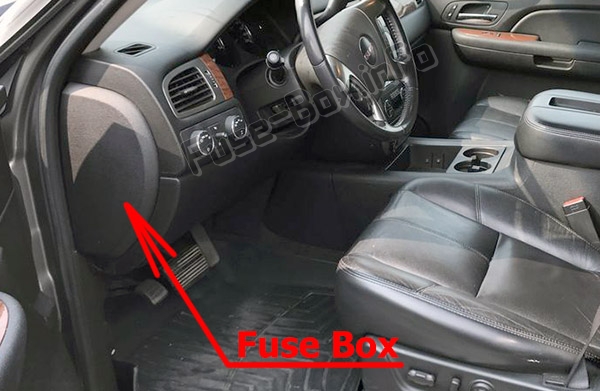

The instrument panel fuse block access door is located on the driver side edge of the instrument panel.
The center instrument panel fuse block is located underneath the instrument panel, to the left of the steering column.
The Engine Compartment Fuse Block is located in the engine compartment, on the driver side of the vehicle.

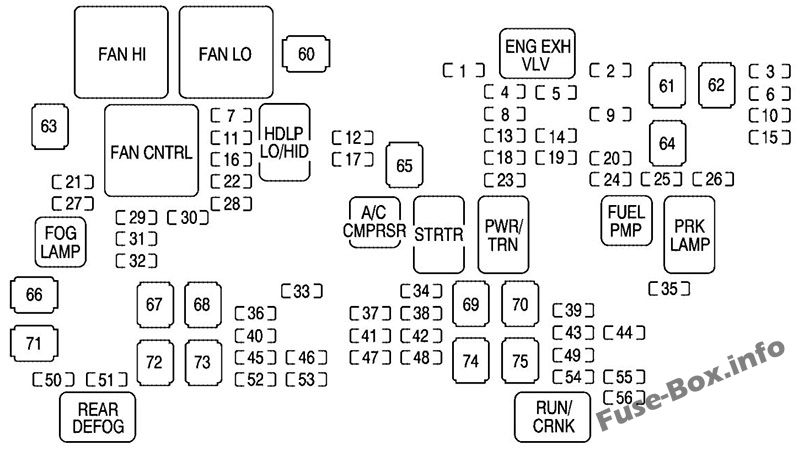

Assignment of the fuses in the engine compartment (2007)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 Mini Fuse Not Used 2 Mini Fuse Electronic Stability Suspension Control, Automatic Level Control Exhaust 3 Mini Fuse Left Trailer Stop/Turn Lamp 4 Mini Fuse Engine Controls 5 Mini Fuse Engine Control Module, Throttle Control 6 Mini Fuse Right Trailer Stop/Turn Lamp 7 Mini Fuse Front Washer 8 Mini Fuse Oxygen Sensors 9 Mini Fuse Anti-lock Brakes System 2 10 Mini Fuse Trailer Back-up Lamps 11 Mini Fuse Drivers Side Low-Beam Headlamp 12 Mini Fuse Engine Control Module (Battery) 13 Mini Fuse Fuel Injectors, Ignition Coils (Right Side) 14 Mini Fuse Transmission Control Module (Battery) 15 Mini Fuse Vehicle Back-up Lamps 16 Mini Fuse Passengers Side Low-Beam Headlamp 17 Mini Fuse Air Conditioning Compressor 18 Mini Fuse Oxygen Sensors 19 Mini Fuse Transmission Controls (Ignition) 20 Mini Fuse Fuel Pump 21 Mini Fuse Not Used 22 Mini Fuse Rear Washer 23 Mini Fuse Fuel Injectors, Ignition Coils (Left Side) 24 Mini Fuse Trailer Park Lamps 25 Mini Fuse Driver’s Side Park Lamps 26 Mini Fuse Passenger’s Side Park Lamps 27 Mini Fuse Fog Lamps 28 Mini Fuse Horn 29 Mini Fuse Passenger’s Side High-Beam Headlamp 30 Mini Fuse Daytime Running Lamps 31 Mini Fuse Driver’s Side High-Beam Headlamp 32 Mini Fuse Daylight Running Lamps 2 33 Mini Fuse Sunroof 34 Mini Fuse Key Ignition System, Theft Deterrent System 35 Mini Fuse Windshield Wiper 36 Mini Fuse SEO B2 Upfitter Usage (Battery) 37 Mini Fuse Electric Adjustable Pedals 38 Mini Fuse Climate Controls (Battery) 39 Mini Fuse Airbag System (Ignition) 40 Mini Fuse Amplifier 41 Mini Fuse Audio System 42 Mini Fuse Four-Wheel Drive 43 Mini Fuse Miscellaneous (Ignition), Rear Vision Camera, Cruise Control 44 Mini Fuse Liftgate Release 45 Mini Fuse OnStar, Rear Seat Entertainment Display 46 Mini Fuse Instrument Panel Cluster 47 Mini Fuse Not Used 48 Mini Fuse Not Used 49 Mini Fuse Auxiliary Climate Control (Ignition), Compass-Temperature Mirror 50 Mini Fuse Rear Defogger 51 Mini Fuse Airbag System (Battery) 52 Mini Fuse SEO B1 Upfitter Usage (Battery) 53 Mini Fuse Cigarette Lighter, Auxiliary Power Outlet 54 Mini Fuse Automatic Level Control Compressor Relay, SEO Upfitter Usage 55 Mini Fuse Climate Controls (Ignition) 56 Mini Fuse Engine Control Module, Secondary Fuel Pump (Ignition) 60 J-Case Fuse Cooling Fan 1 61 J-Case Fuse Automatic Level Control Compressor 62 J-Case Fuse Heavy Duty Anti-lock Brake System 63 J-Case Fuse Cooling Fan 2 64 J-Case Fuse Anti-lock Brake System 1 65 J-Case Fuse Starter 66 J-Case Fuse Stud 2 (Trailer Brakes) 67 J-Case Fuse Left Bussed Electrical Center 1 68 J-Case Fuse Electric Running Boards 69 J-Case Fuse Heated Windshield Washer System 70 J-Case Fuse Four-Wheel Drive System 71 J-Case Fuse Stud 1 (Trailer Connector Battery Power) 72 J-Case Fuse Mid-Bussed Electrical Center 1 73 J-Case Fuse Climate Control Blower 74 J-Case Fuse Power Liftgate Module 75 J-Case Fuse Left Bussed Electrical Center 2
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2007)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description FAN HI Cooling Fan High Speed FAN LO Cooling Fan Low Speed ENG EXH VLV Not Used FAN CNTRL Cooling Fan Control HDLP LO/HID Low-Beam Headlamp FOG LAMP Front Fog Lamps A/C CMPRSR Air Conditioning Compressor STRTR Starte PWR/TRN Powertrain FUEL PMP Fuel Pump PRK LAMP Parking Lamps REAR DEFOG Rear Defogge RUN/CRANK Switched Power
This content requires JavaScript and a valid membership to view.

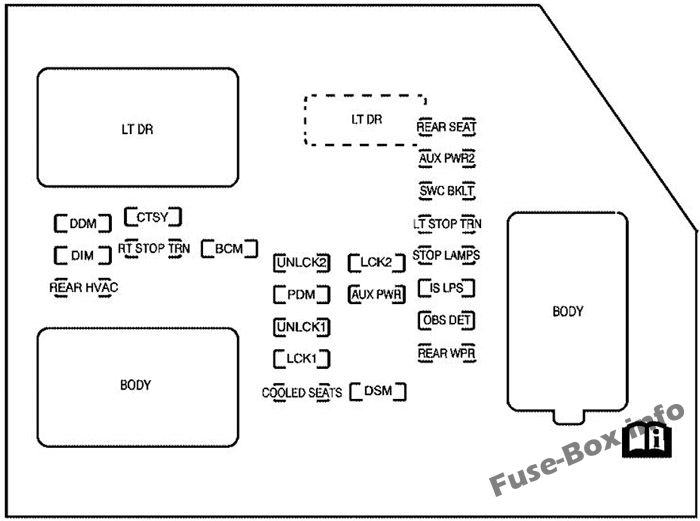

Assignment of the fuses in the Passenger Compartment (2007)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description REAR SEAT Rear Seats AUX PWR2 Rear Cargo Area Power Outlets SWC BKLT Steering Wheel Controls Backlight DDM Driver Door Module CTSY Dome Lamps, Driver’s Side Turn Signal LT STOP TRN Driver’s Side Turn Signal, Stoplamp DIM Instrument Panel Back Lighting RT STOP TRN Passenger’s Side Turn Signal, Stoplamp BCM Body Control Module UNLCK2 Power Door Lock 2 (Unlock Feature) LCK2 Power Door Lock 2 (Lock Feature) STOP LAMPS Stoplamps, Center-High Mounted Stoplamp REAR HVAC Rear Climate Controls PDM Passenger Door Module, Universal Home Remote System AUX PWR Accessory Power Outlets IS LPS Interior Lamps UNLCK1 Power Door Lock 1 (Unlock Feature) OBS DET Ultrasonic Rear Parking Assist Power Liftgate LCK1 Power Door Lock 1 (Lock Feature) REAR WPR Rear Wiper COOLED SEATS Not Used DSM Driver Seat Module, Remote Keyless Entry System
This content requires JavaScript and a valid membership to view.
Assignment of the harness connectors in the Passenger Compartment (2007)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT DR Driver’s Door Harness Connection BODY Harness Connector BODY Harness Connector
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Passenger Compartment (2007)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT DR Driver’s Side Power Window Circuit Breaker
This content requires JavaScript and a valid membership to view.

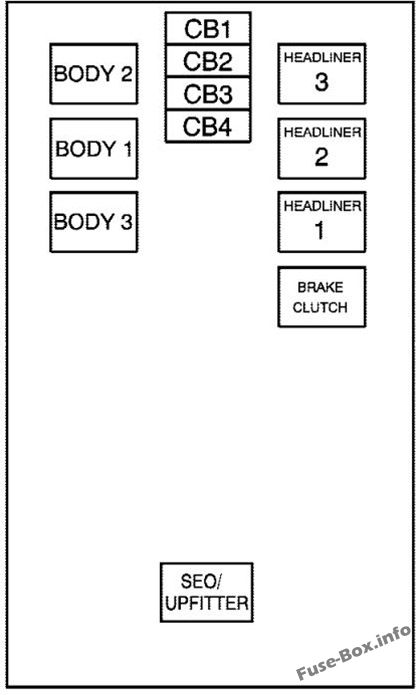

Assignment of the fuses in the Center Instrument Panel Fuse Block (2007)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description BODY 2 Body Harness Connector 2 BODY 1 Body Harness Connector 1 BODY 3 Body Harness Connector 3 HEADLINER 3 Headliner Harness Connector 3 HEADLINER 2 Headliner Harness Connector 2 HEADLINER 1 Headliner Harness Connector 1 BRAKE CLUTCH Brake Clutch Harness Connector SEO/UPFITTER Special Equipment Option Upfitter Harness Connector
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Center Instrument Panel Fuse Block (2007)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description CB1 Passenger’s Side Power Window Circuit Breaker CB2 Passenger’s Seat Circuit Breaker CB3 Driver’s Seat Circuit Breaker CB4 Not Used
This content requires JavaScript and a valid membership to view.

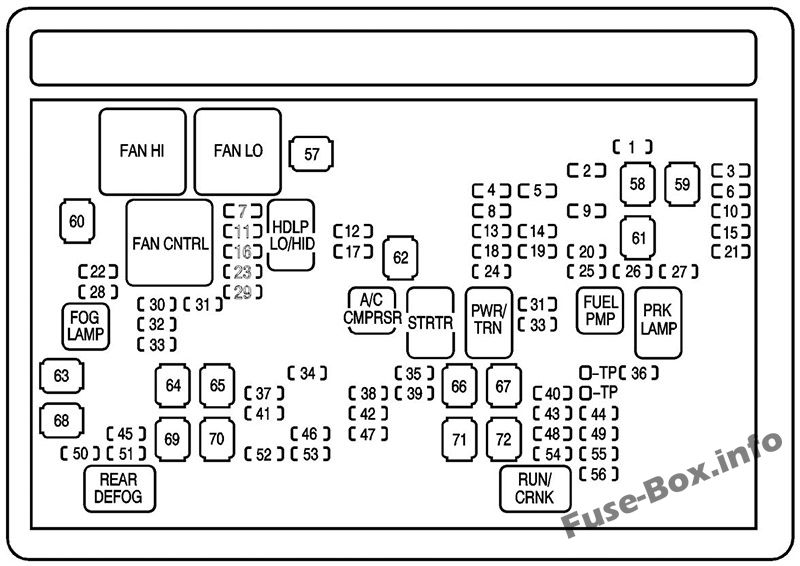

Assignment of the fuses in the engine compartment (2008)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 Mini Fuse Right Trailer Stop/Turn Lamp 2 Mini Fuse Electronic Stability Suspension Control, Automatic Level Control Exhaust 3 Mini Fuse Left Trailer Stop/Turn Lamp 4 Mini Fuse Engine Controls 5 Mini Fuse Engine Control Module, Throttle Control 6 Mini Fuse Trailer Brake Controller 7 Mini Fuse Front Washer 8 Mini Fuse Oxygen Sensors 9 Mini Fuse Anti-lock Brakes System 2 10 Mini Fuse Trailer Back-up Lamps 11 Mini Fuse Drivers Side Low-Beam Headlamp 12 Mini Fuse Engine Control Module (Battery) 13 Mini Fuse Fuel Injectors, Ignition Coils (Right Side) 14 Mini Fuse Transmission Control Module (Battery) 15 Mini Fuse Vehicle Back-up Lamps 16 Mini Fuse Passengers Side Low-Beam Headlamp 17 Mini Fuse Air Conditioning Compressor 18 Mini Fuse Oxygen Sensors 19 Mini Fuse Transmission Controls (Ignition) 20 Mini Fuse Fuel Pump 21 Mini Fuse Fuel System Control Module 22 Mini Fuse Headlamp Washers 23 Mini Fuse Rear Windshield Washer 24 Mini Fuse Fuel Injectors, Ignition Coils (Left Side) 25 Mini Fuse Trailer Park Lamps 26 Mini Fuse Driver Park Lamps 27 Mini Fuse Passenger Side Park Lamps 28 Mini Fuse Fog Lamps 29 Mini Fuse Horn 30 Mini Fuse Passengers Side High-Beam Headlamp 31 Mini Fuse Daytime Running Lamps 32 Mini Fuse Drivers Side High-Beam Headlamp 33 Mini Fuse Daylight Running Lamps 2 34 Mini Fuse Sunroof 35 Mini Fuse Key Ignition System, Theft Deterrent System 36 Mini Fuse Windshield Wiper 37 Mini Fuse SEO B2 Upfitter Usage (Battery) 38 Mini Fuse Electric Adjustable Pedals 39 Mini Fuse Climate Controls (Battery) 40 Mini Fuse Airbag System (Ignition) 41 Mini Fuse Amplifier 42 Mini Fuse Audio System 43 Mini Fuse Miscellaneous (Ignition), Rear Vision Camera, Cruise Control 44 Mini Fuse Liftgate Release 45 Mini Fuse Airbag System (Battery) 46 Mini Fuse Instrument Panel Cluster 47 Mini Fuse Power Take-Off 48 Mini Fuse Auxiliary Climate Control (Ignition), Compass-Temperature Mirror 49 Mini Fuse Center High-Mounted Stoplamp (CHMSL) 50 Mini Fuse Rear Defogger 51 Mini Fuse Heated Mirrors 52 Mini Fuse SEO B1 Upfflter Usage (Battery) 53 Mini Fuse Cigarette Lighter, Auxiliary Power Outlet 54 Mini Fuse Automatic Level Control Compressor Relay, SEO Upfitter Usage 55 Mini Fuse Climate Controls (Ignition) 56 Mini Fuse Engine Control Module, Secondary Fuel Pump (Ignition) 60 J-Case Fuse Cooling Fan 1 61 J-Case Fuse Antilock Brake System 1 62 J-Case Fuse Starter 63 J-Case Fuse Stud 2 (Trailer Brakes) 64 J-Case Fuse Left Bussed Electrical Center 1 65 J-Case Fuse Electric Running Boards 66 J-Case Fuse Heated Windshield Washer System 67 J-Case Fuse Four-Wheel Drive System 68 J-Case Fuse Stud 1 (Trailer Connector Battery Power) 69 J-Case Fuse Mid-Bussed Electrical Center 1 70 J-Case Fuse Climate Control Blower 71 J-Case Fuse Power Liftgate Module 72 J-Case Fuse Left Bussed Electrical Center 2
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2008)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description FAN HI Cooling Fan High Speed FAN LO Cooling Fan Low Speed ENG EXH VLV Not Used FAN CNTRL Cooling Fan Control HDLP LO/HID Low-Beam Headlamp FOG LAMP Front Fog Lamps A/C CMPRSR Air Conditioning Compressor STRTR Starter PWR/TRN Powertrain FUEL PMP Fuel Pump PRK LAMP Parking Lamps REAR DEFOG Rear Defogger RUN/CRANK Switched Power
This content requires JavaScript and a valid membership to view.

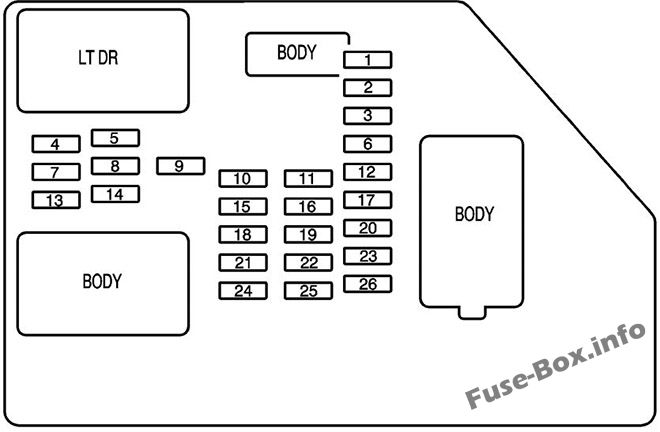

Assignment of the fuses in the Passenger Compartment (2008)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Rear Seats 2 Rear Accessory Power Outlet 3 Steering Wlieel Controls Backlight 4 Driver Door Module 5 Dome Lamps, Driver Side Turn Signal 6 Driver Side Turn Signal, Stoplamp 7 Instrument Panel Back Lighting 8 Passenger Side Turn Signal, Stoplamp 9 Passenger Door Module, Universal Home Remote System 10 Power Door Lock 2 (Unlock Feature) 11 Power Door Lock 2 (Lock Feature 12 Stoplamps, Center-High Mounted Stoplamp 13 Rear Climate Controls 14 Not Used 15 Body Control Module (BCM) 16 Accessory Power Outlets 17 Interior Lamps 18 Power Door Lock 1 (Unlock Feature) 19 Rear Seat Entertainment 20 Ultrasonic Rear Parking Assist Power Liftgate 21 Power Door Lock 1 (Lock Feature) 22 Driver Information Center (DIC) 23 Rear Wiper 24 Not Used 25 Driver Seat Module, Remote Keyless Entry System 26 Not Used
This content requires JavaScript and a valid membership to view.
Assignment of the harness connectors in the Passenger Compartment (2008)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT DR Driver Door Harness Connection BODY Harness Connector BODY Harness Connector
This content requires JavaScript and a valid membership to view.
Assignment of the harness connectors in the Center Instrument Panel Fuse Block (2008)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description BODY 2 Body Harness Connector 2 BODY 1 Body Harness Connector 1 BODY 3 Body Harness Connector 3 HEADLINER 3 Headliner Harness Connector 3 HEADLINER 2 Headliner Harness Connector 2 HEADLINER 1 Headliner Harness Connector 1 BRAKE CLUTCH Brake Clutch Harness Connector SEO/UPFITTER Special Equipment Option Upfitter Harness Connector
This content requires JavaScript and a valid membership to view.

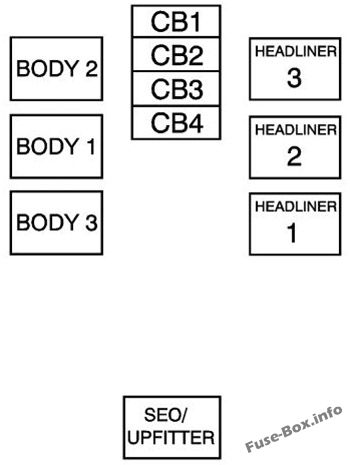

Assignment of the circuit breakers in the Center Instrument Panel Fuse Block (2008)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description CB1 Passenger’s Side Power Window Circuit Breaker CB2 Passenger’s Seat Circuit Breaker CB3 Driver’s Seat Circuit Breaker CB4 Rear Sliding Window
This content requires JavaScript and a valid membership to view.

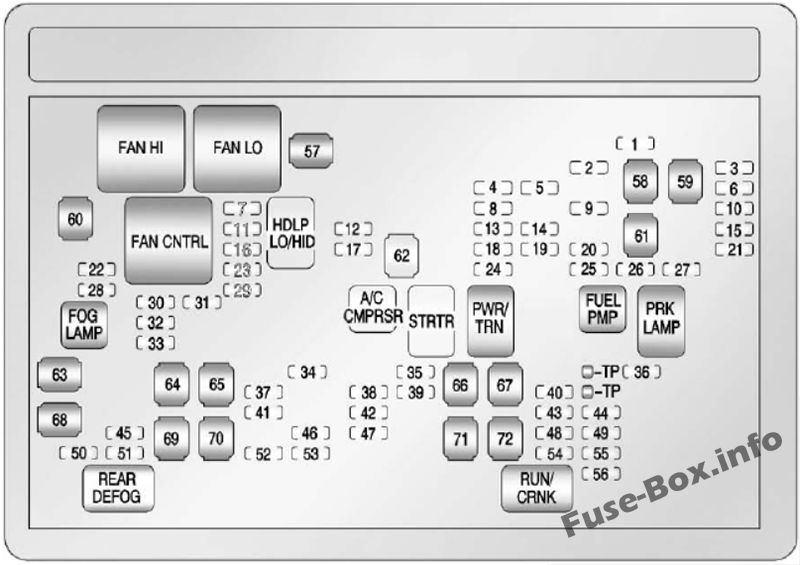

Assignment of the fuses in the engine compartment (2009-2014)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 Mini Fuse Right Trailer Stop/Turn Lamp 2 Mini Fuse Electronic Stability Suspension Control, Automatic Level Control Exhaust 3 Mini Fuse Left Trailer Stop/Turn Lamp 4 Mini Fuse Engine Controls 5 Mini Fuse Engine Control Module, Throttle Control 6 Mini Fuse Trailer Brake Controller 7 Mini Fuse Front Washer 8 Mini Fuse Oxygen Sensors 9 Mini Fuse Anti-lock Brakes System 2 10 Mini Fuse Trailer Back-up Lamps 11 Mini Fuse Driver’s Side Low-Beam Headlamp 12 Mini Fuse Engine Control Module (Battery) 13 Mini Fuse Fuel Injectors, Ignition Coils (Right Side) 14 Mini Fuse Transmission Control Module (Battery) 15 Mini Fuse Vehicle Back-up Lamps 16 Mini Fuse Passenger’s Side Low-Beam Headlamp 17 Mini Fuse Air Conditioning Compressor 18 Mini Fuse Oxygen Sensors 19 Mini Fuse Transmission Controls (Ignition) 20 Mini Fuse Fuel Pump 21 Mini Fuse Fuel System Control Module 22 Mini Fuse Headlamp Washers 23 Mini Fuse Rear Windshield Washer 24 Mini Fuse Fuel Injectors, Ignition Coils (Left Side) 25 Mini Fuse Trailer Park Lamps 26 Mini Fuse Driver Park Lamps 27 Mini Fuse Passenger Side Park Lamps 28 Mini Fuse Fog Lamps 29 Mini Fuse Horn 30 Mini Fuse Passenger’s Side High-Beam Headlamp 31 Mini Fuse Daytime Running Lamps 32 Mini Fuse Driver’s Side High-Beam Headlamp 33 Mini Fuse Daytime Running Lamps 2 34 Mini Fuse Sunroof 35 Mini Fuse Key Ignition System, Theft Deterrent System 36 Mini Fuse Windshield Wiper 37 Mini Fuse SEO B2 Upfitter Usage (Battery) 38 Mini Fuse Electric Adjustable Pedals 39 Mini Fuse Climate Controls (Battery) 40 Mini Fuse Airbag System (Ignition) 41 Mini Fuse Amplifier 42 Mini Fuse Audio System 43 Mini Fuse Miscellaneous (Ignition), Rear Vision Camera, Cruise Control 44 Mini Fuse Liftgate Release 45 Mini Fuse Airbag System (Battery) 46 Mini Fuse Instrument Panel Cluster 47 Mini Fuse Power Take-Off 48 Mini Fuse Auxiliary Climate Control (Ignition), Compass-Temperature Mirror 49 Mini Fuse Center High-Mounted Stoplamp (CHMSL) 50 Mini Fuse Rear Defogger 51 Mini Fuse Heated Mirrors 52 Mini Fuse SEO B1 Upfitter Usage (Battery) 53 Mini Fuse Cigarette Lighter, Auxiliary Power Outlet 54 Mini Fuse Automatic Level Control Compressor Relay, SEO Upfitter Usage 55 Mini Fuse Climate Controls (Ignition) 56 Mini Fuse Engine Control Module, Secondary Fuel Pump (Ignition) 60 J-Case Fuse Cooling Fan 1 61 J-Case Fuse Antilock Brake System 1 62 J-Case Fuse Starter 63 J-Case Fuse Stud 2 (Trailer Brakes) 64 J-Case Fuse Left Bussed Electrical Center 1 65 J-Case Fuse Electric Running Boards 66 J-Case Fuse Heated Windshield Washer System 67 J-Case Fuse Four-Wheel Drive System 68 J-Case Fuse Stud 1 (Trailer Connector Battery Power) 69 J-Case Fuse Mid-Bussed Electrical Center 1 70 J-Case Fuse Climate Control Blower 71 J-Case Fuse Power Liftgate Module 72 J-Case Fuse Left Bussed Electrical Center 2
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2009-2014)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description FAN HI Cooling Fan High Speed FAN LO Cooling Fan Low Speed ENG EXH VLV Not Used FAN CNTRL Cooling Fan Control HDLP LO/HID Low-Beam Headlamp FOG LAMP Front Fog Lamps A/C CMPRSR Air Conditioning Compressor STRTR Starte PWR/TRN Powertrain FUEL PMP Fuel Pump PRK LAMP Parking Lamps REAR DEFOG Rear Defogge RUN/CRANK Switched Power
This content requires JavaScript and a valid membership to view.

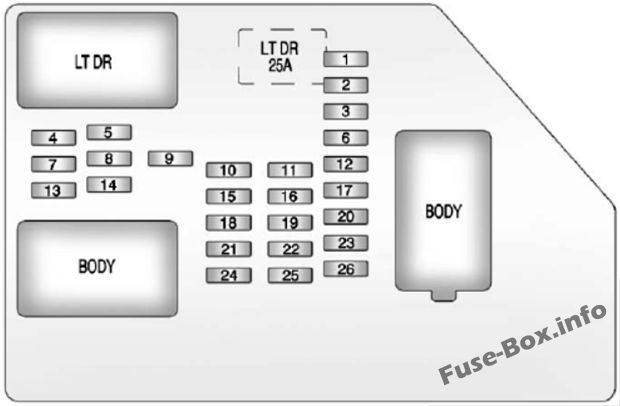

Assignment of the fuses in the Passenger compartment (2009-2014)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Usage 1 Rear Seats 2 Rear Accessory Power Outlet 3 Steering Wheel Controls Backlight 4 Driver Door Module 5 Dome Lamps, Driver Side Turn Signal 6 Driver Side Turn Signal, Stoplamp 7 Instrument Panel Back Lighting 8 Passenger Side Turn Signal, Stoplamp 9 Passenger Door Module, Universal Home Remote System 10 Power Door Lock 2 (Unlock Feature) 11 Power Door Lock 2 (Lock Feature 12 Stoplamps, Center-High Mounted Stoplamp 13 Rear Climate Controls 14 Not Used 15 Body Control Module (BCM) 16 Accessory Power Outlets 17 Interior Lamps 18 Power Door Lock 1 (Unlock Feature) 19 Rear Seat Entertainment 20 Ultrasonic Rear Parking Assist Power Liftgate 21 Power Door Lock 1 (Lock Feature) 22 Driver Information Center (DIC) 23 Rear Wiper 24 Not Used 25 Driver Seat Module, Remote Keyless Entry System 26 Not Used
This content requires JavaScript and a valid membership to view.
Assignment of the harness connectors in the Passenger compartment (2009-2014)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT DR Driver Door Harness Connection BODY Harness Connector BODY Harness Connector
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Passenger compartment (2009-2014)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT DR Driver Door Harness Connection
This content requires JavaScript and a valid membership to view.
Assignment of the harness connectors in the Center Instrument Panel Fuse Block (2009-2014)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description BODY 2 Body Harness Connector 2 BODY 1 Body Harness Connector 1 BODY 3 Body Harness Connector 3 HEADLINER 3 Headliner Harness Connector 3 HEADLINER 2 Headliner Harness Connector 2 HEADLINER 1 Headliner Harness Connector 1 BRAKE CLUTCH Brake Clutch Harness Connector SEO/UPFITTER Special Equipment Option Upfitter Harness Connector
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Center Instrument Panel Fuse Block (2009-2014)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description CB1 Passenger’s Side Power Window Circuit Breaker CB2 Passenger’s Seat Circuit Breaker CB3 Driver’s Seat Circuit Breaker CB4 Rear Sliding Window
