This guide covers the eighth-generation Honda Accord (2007–2012) (Model Codes: CP1–CP3, CS1–CS2). Here you’ll find fuse box diagrams for Honda Accord 2008, 2009, 2010, 2011 and 2012 , along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→
The driver’s side interior fuse box is under the dashboard on the driver’s side.
The passenger’s side interior fuse box is on the lower passenger’s side panel.

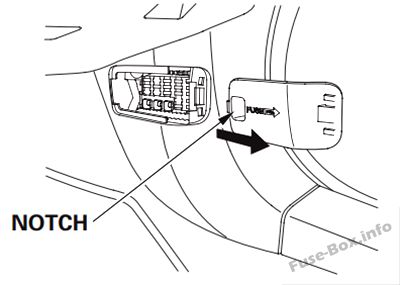

To remove the lid, put your finger in the notch on the lid, and pull it upward slightly, then pull it toward you and take it out of its hinges
The under-hood fuse box is on the driver’s side.
Assignment of the fuses in the Passenger compartment (driver’s side)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register

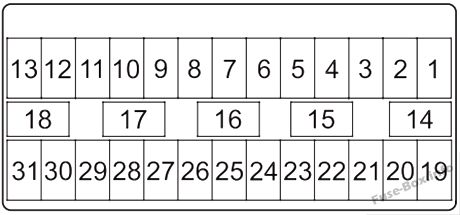

No. Amps. Circuits Protected 1 — Not Used 2 7.5 A Seat Memory (If equipped) 3 15 A Washer 4 7.5 A Wiper 5 7.5 A Meter 6 7.5 A ABS/VSA 7 15 A ACG 8 7.5 A STS (If equipped) 9 20 A Fuel Pump 10 10 A VB SOL (If equipped) 11 10 A SRS 12 7.5 A ODS (Occupant Detection System) 13 — Not Used 14 10 A ACM (If equipped) 15 7.5 A Daytime Running Lights 16 7.5 A A/C 17 7.5 A Accessory, Key, Lock 18 7.5 A Accessory 19 20 A Driver’s Power Seat Sliding (If equipped) 20 20 A Moonroof (If equipped) 21 20 A Driver’s Power Seat Reclining (If equipped) 22 20 A Rear Left Power Window 23 15 A Front Accessory Power Socket 24 20 A Driver’s Power Window 25 10 A Driver’s Side Door Lock 26 10 A Left Front Fog Light (If equipped) 27 10 A Left Side Small Lights (Exterior) 28 10 A Left Headlight High Beam 29 7.5 A TPMS 30 10 A Left Headlight Low Beam 31 — Not Used
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Passenger compartment (passenger’s side)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register

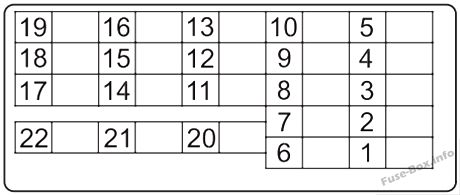

No. Amps. Circuits Protected 1 10 A Right Headlight High Beam 2 10 A Right Side Small Lights (Exterior) 3 10 A Right Front Fog Light (If equipped) 4 10 A Right Headlight Low Beam 5 — Not Used 6 7.5 A Interior Lights 7 — Not Used 8 20 A Front Passenger’s Power Seat Reclining (If equipped) 9 20 A Front Passenger’s Power Seat Sliding(If equipped) 10 10 A Right Side Door Lock 11 20 A Rear Right Power Window 12 15 A Rear Accessory Power Socket 13 20 A Front Passenger’s Power Window 14 — Not Used 15 20 A Premium AMP(If equipped) 16 — Not Used 17 — Not Used 18 10 A Lumbar Support (If equipped) 19 15 A Seat Heater(If equipped) 20 — Not Used 21 — Not Used 22 — Not Used
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register

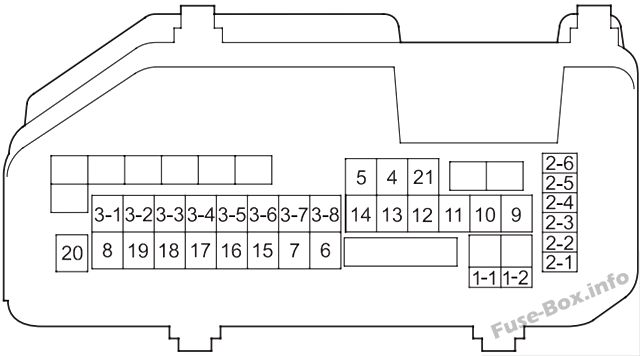

No. Amps. Circuits Protected 1-1 100 A Battery (4-cylinder models) 1-1 120 A Battery (V6 models) 1-2 40 A Passenger’s Side Fuse Box 2-1 — Not Used 2-2 40 A ABS/VSA 2-3 30 A ABS/VSA Motor 2-4 (40 A) Passenger’s Side Fuse Box 2-5 — Not Used 2-6 — Not Used 3-1 — Not Used (4-cylinder models) 3-1 30 A Sub Fan Motor (V6 models) 3-2 30 A Wiper Motor 3-3 30 A Main Fan Motor 3-4 30 A Driver’s Side Light Main 3-5 (60 A) Driver’s Side Fuse Box 3-6 30 A Passenger’s Side Light Main 3-7 (40 A) Driver’s Side Fuse Box 3-8 50 A IG Main 4 40 A Rear Defroster 5 20 A Sub Fan Motor (4-cylinder models) 5 — Not Used (V6 models) 6 — Not Used 7 — Not Used 8 40 A Heater Motor 9 15 A Hazard 10 20 A Horn, Stop 11 — Not Used 12 — Not Used 13 15 A IG Coil 14 15 A FI Sub 15 10 A Back Up 16 7.5 A Interior Lights 17 15 A FI Main 18 15 A DBW 19 — Not Used (4-cylinder models) 19 7.5 A Back Up, FI ECU (V6 models) 20 7.5 A MG Clutch 21 7.5 A Fan Relay
