Honda Accord Hybrid Fuse Box Location and Diagram (2005-2007)

This guide covers the seventh-generation Honda Accord Hybrid (2005–2007) (Model Codes: CM4, CM5, CM6, CM7, CM8). Here you’ll find fuse box diagrams for Honda Accord Hybrid 2005, 2006 and 2007, along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).

What’s Included

Fuse box locations

Passenger compartment

The interior fuse box is on the driver’s lower left side.
To remove the fuse box lid, pull it toward you and take it out of its hinges.

Engine compartment

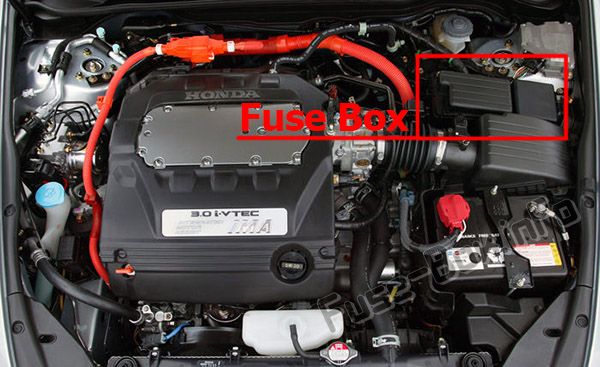

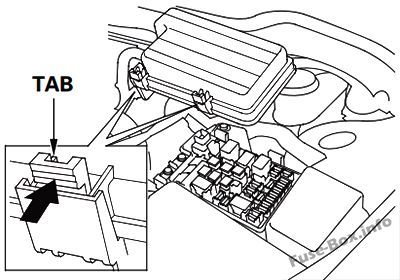

The under-hood fuse box is located near the back of the engine compartment on the driver’s side.

Fuse box diagrams

Passenger compartment

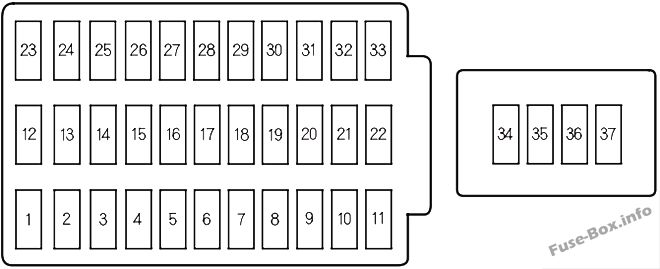

Instrument panel fuse box diagram: Honda Accord Hybrid (2005, 2006)

Assignment of the fuses in the Passenger compartment

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

No.	Amps.	Circuits Protected
1	15 A	Drive by Wire
2	15 A	Ignition Coil
3	10 A	Day Light
4	15 A	Laf Heater
5	10 A	Radio
6	7.5 A	Interior Light
7	10 A	Back-Up Lights
8	20 A	Door Lock
9	20 A	Front Accessory Socket
10	7.5 A	OPDS
11	30 A	Wiper
12	—	Not Used
13	—	Not Used
14	20 A	Driver’s Power Seat (Slide)
15	20 A	Heated Seat
16	20 A	Driver’s Power Seat (Recline)
17	—	Not Used
18	15 A	ACG
19	15 A	Fuel Pump
20	10 A	Washer
21	7.5 A	Meter
22	10 A	SRS
23	7.5 A	IGP
24	20 A	Power Window (Left Rear)
25	20 A	Power Window (Right Rear)
26	20 A	Power Window (Passenger)
27	20 A	Power Window (Driver)
28	20 A	Moonroof
29	7.5 A	Hybrid A/C
30	7.5 A	A/C
31	—	Not Used
32	7.5 A	ACC
33	—	Not Used
34	20 A	Rear Accessory Socket
35	7.5 A	STS
36	15 A	ACM
37	10 A	IMA

Engine compartment

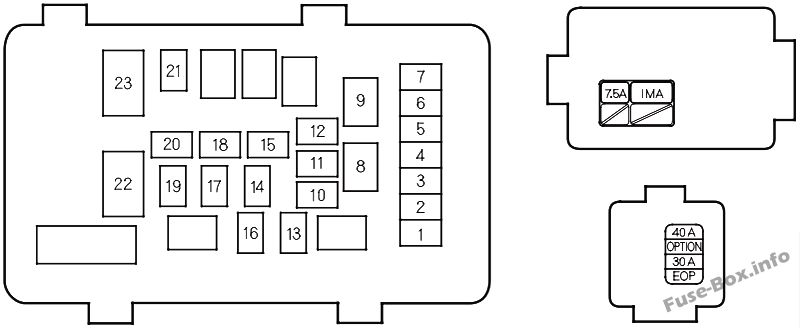

Under-hood fuse box diagram: Honda Accord Hybrid (2005, 2006)

Assignment of the fuses in the Engine compartment

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

No.	Amps.	Circuits Protected
1	10 A	Left Headlight Low
2	30 A	Rear Defroster Coil
3	10 A	Left Headlight Hi
4	15 A	Small Light
5	10 A	Right Headlight Hi
6	10 A	Right Headlight Low
7	7.5 A	Back Up
8	15 A	FI ECU
9	20 A	Condenser fan
10	—	Not Used
11	30 A	Cooling Fan
12	7.5 A	MG. Clutch
13	15 A	Horn, Stop
14	40 A	Rear Defroster
15	40 A	Back Up, ACC
16	15 A	Hazard
17	30 A	VSA Motor
18	40 A	VSA
19	40 A	Option (Ignition Coil, DRL (Canada))
20	40 A	Option (Power Seats, Seat Heaters)
21	40 A	Heater Motor
22	120 A	Battery
22	70 A	EPS
23	50 A	+ B IG1 Main
23	50 A	Power Window Main

FAQ

Which fuses control the cigar lighter (power outlets) in the Honda Accord Hybrid (2005–2007)?

Fuses #9 (Front Accessory Socket) and #34 (Rear Accessory Socket) in the passenger compartment fuse box.
