This guide covers the eighth-generation Honda Civic (2006–2011) (Model Codes: FA1, FA2, FA3, FA4, FA5 — sedan, North America and China; FD1, FD2, FD3, FD4, FD5, FD6, FD7 — sedan, global; FG1, FG2 — coupé). Here you’ll find fuse box diagrams for Honda Civic 2006, 2007, 2008, 2009, 2010 and 2011 , along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).
The interior fuse box is underneath the steering column.

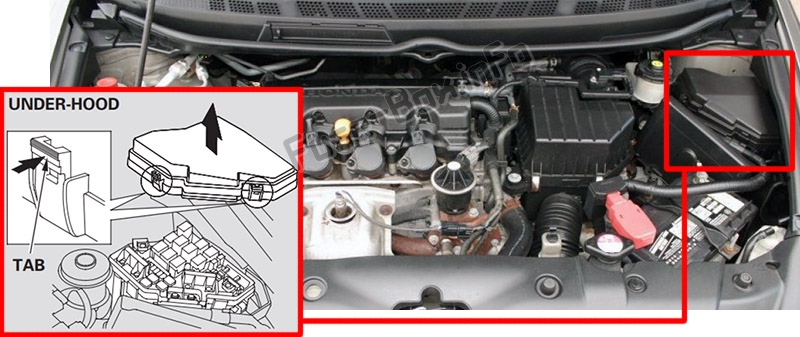

The under-hood fuse box is on the driver’s side, next to the brake fluid reservoir.

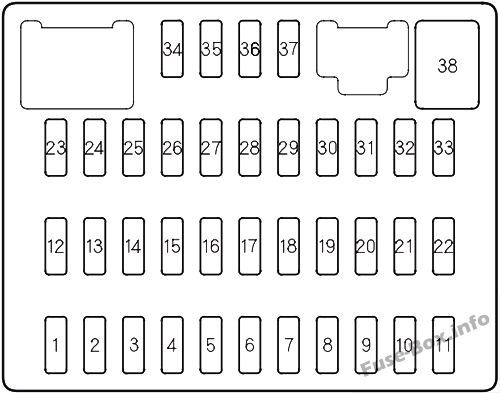

Assignment of the fuses in the Passenger compartment (2006)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps. Circuits Protected 1 7.5 A Power Window 2 15 A Fuel Pump 3 10 A Alternator 4 7.5 A ABS Unit 5 (15 A) Heated Seat (If equipped) 6 — Not Used 7 — Not Used 8 — Not Used 9 7.5 A ODS 10 7.5 A METER 11 10 A SRS 12 10 A Right Headlight High 13 10 A Left Headlight High 14 7.5 A Small (Interior) 15 7.5 A Small (Exterior) 16 10 A Right Headlight Low 17 10 A Left Headlight Low 18 20 A Headlight High Main 19 15 A Small (Main) 20 — Not Used 21 20 A Headlight Low Main 22 (7.5 A) (HAC) (If equipped) 23 (7.5 A) STS (If equipped) 24 (20 A) Moonroof (If equipped) 25 20 A Door Lock 26 20 A Driver’s Power Window 27 — Not Used 28 (15 A) Rear ACC Socket (If equipped) 29 15 A ACC 30 20 A Passenger’s Power Window 31 — Not Used 32 20 A Right Rear Power Window 33 20 A Left Rear Power Window 34 — Not Used 35 7.5 A ACC Radio 36 10 A HAC 37 7.5 A Daytime Running Light 38 30 A Wiper
This content requires JavaScript and a valid membership to view.

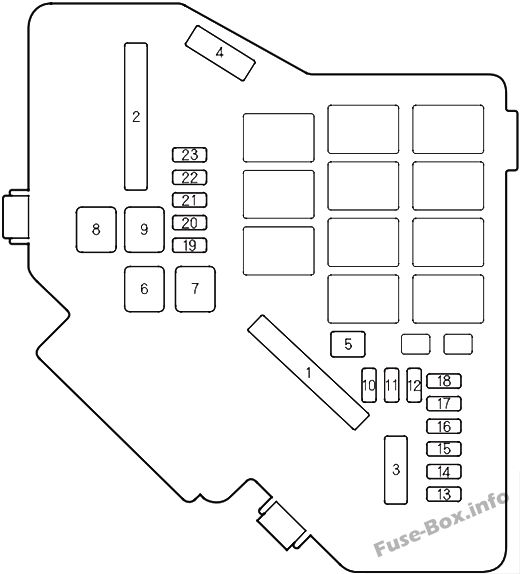

Assignment of the fuses in the Engine compartment (2006)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps. Circuits Protected 1 100 A Main Fuse 1 70 A EPS 2 80 A Option Main 2 50 A Ignition Switch Main 3 30 A ABS 3 30 A ABS 4 50 A Headlight Main 4 40 A Power Window Main 5 — Not Used 6 20 A Sub Fan Motor (If equipped) 7 20 A Main Fan Motor (M/T) 7 30 A Main Fan Motor (A/T) 8 30 A Rear Defogger 9 40 A Blower 10 10 A Hazard 11 15 A FI Sub 12 15 A Stop and Horn 13 — Not Used 14 — Not Used 15 7.5 A IGPS Oil Level 16 — Not Used 17 — Not Used 18 15 A IG Coil 19 15 A FI Main 20 7.5 A MG Clutch 21 15 A DBW 22 7.5 A Interior Light 23 10 A Back Up
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Passenger compartment (2007)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps. Circuits Protected 1 7.5 A Power Window 2 15 A Fuel Pump 3 10 A Alternator 4 7.5 A ABS/VSA 5 (15 A) Heated Seat (If equipped) 6 — Not Used 7 — Not Used 8 — Not Used 9 7.5 A ODS 10 7.5 A METER 11 10 A SRS 12 10 A Right Headlight High 13 10 A Left Headlight High 14 7.5 A Small (Interior) 15 7.5 A Small (Exterior) 16 10 A Right Headlight Low 17 10 A Left Headlight Low 18 20 A Headlight High Main 19 15 A Small (Main) 20 — Not Used 21 20 A Headlight Low Main 22 (7.5 A) (HAC) (If equipped) 23 (7.5 A) STS (If equipped) 24 (20 A) Moonroof (If equipped) 25 20 A Door Lock 26 20 A Driver’s Power Window 27 — Not Used 28 (15 A) Rear ACC Socket (If equipped) 29 15 A ACC 30 20 A Passenger’s Power Window 31 — Not Used 32 20 A Right Rear Power Window 33 20 A Left Rear Power Window 34 — Not Used 35 7.5 A ACC Radio 36 10 A HAC 37 7.5 A Daytime Running Light 38 30 A Wiper
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine compartment (2007)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps. Circuits Protected 1 100 A Main Fuse 1 70 A EPS (U.S. Si model) 2 80 A Option Main 2 50 A Ignition Switch Main 3 30 A ABS/VSA Motor 3 30 A / 40 A (U.S. Si model) ABS/VSA F/S 4 50 A Headlight Main 4 40 A Power Window Main 5 — Not Used 6 20 A Sub Fan Motor 7 20 A Main Fan Motor (M/T) 7 30 A Main Fan Motor (A/T) 8 30 A Rear Defogger 9 40 A Blower 10 10 A Hazard 11 15 A FI Sub 12 15 A Stop and Horn 13 — Not Used 14 — Not Used 15 7.5 A IGPS Oil Level 16 — Not Used 17 15 A Audio Amp 18 15 A IG Coil 19 15 A FI Main 20 7.5 A MG Clutch 21 15 A DBW 22 7.5 A Interior Light 23 10 A Back Up
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Passenger compartment (2008, 2009)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps. Circuits Protected 1 7.5 A Power Window 2 15 A Fuel Pump 3 10 A Alternator 4 7.5 A ABS/VSA 5 (15 A) Heated Seat (If equipped) 6 (20 A) Front Fog Light (If equipped) 7 (7.5 A) TPMS (If equipped) 8 — Not Used 9 7.5 A ODS 10 7.5 A METER 11 10 A SRS 12 10 A Right Headlight High Beam 13 10 A Left Headlight High Beam 14 7.5 A Small Light (Interior) 15 7.5 A Small Light (Exterior) 16 10 A Right Headlight Low Beam 17 10 A Left Headlight Low Beam 18 20 A Headlight High Beam Main 19 15 A Small Lights (Main) 20 — Not Used 21 20 A Headlight Low Beam Main 22 (7.5 A) HAC (If equipped) 23 (7.5 A) STS (If equipped) 24 (20 A) Moonroof (If equipped) 25 20 A Door Lock 26 20 A Driver’s Power Window 27 (20 A) HAC OP (If equipped) 28 (15 A) Rear Accessory Socket (If equipped) 29 15 A Accessory 30 20 A Passenger’s Power Window 31 — Not Used 32 20 A Right Rear Power Window 33 20 A Left Rear Power Window 34 — Not Used 35 7.5 A Accessory Radio 36 10 A HAC 37 7.5 A Daytime Running Light 38 30 A Front Wiper
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine compartment (2008, 2009)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps. Circuits Protected 1 100 A Main Fuse 1 (70 A) EPS (If equipped) 2 60 A Option Main 2 50 A Ignition Switch Main 3 30 A ABS/VSA Motor 3 30 A ABS/VSA F/S 3 40 A ABS/VSA F/S (On models with VSA system) 4 50 A Headlight Main 4 40 A Power Window Main 5 — Not Used 6 20 A Sub Fan Motor 7 20 A Main Fan Motor (M/T) 7 30 A Main Fan Motor (A/T) 8 30 A Rear Defogger 9 40 A Blower 10 10 A Hazard 11 15 A FI Sub 12 15 A Stop and Horn 13 — Not Used 14 — Not Used 15 7.5 A IGPS Oil Level 16 — Not Used 17 (15 A) Audio Amp (If equipped) 18 15 A IG Coil 19 15 A FI Main 20 7.5 A MG Clutch 21 15 A DBW 22 7.5 A Interior Light 23 10 A Back Up
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Passenger compartment (2010, 2011)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps. Circuits Protected 1 7.5 A Power Window 2 15 A Fuel Pump 3 10 A Alternator 4 7.5 A ABS/VSA 5 (15 A) Heated Seat (If equipped) 6 (20 A) Front Fog Light (If equipped) 7 (7.5 A) TPMS (If equipped) 8 — Not Used 9 7.5 A ODS 10 7.5 A METER 11 10 A SRS 12 10 A Right Headlight High Beam 13 10 A Left Headlight High Beam 14 7.5 A Small Light (Interior) 15 7.5 A Small Light (Exterior) 16 10 A Right Headlight Low Beam 17 10 A Left Headlight Low Beam 18 20 A Headlight High Beam Main 19 15 A Small Lights (Main) 20 — Not Used 21 20 A Headlight Low Beam Main 22 — Not Used 23 — Not Used 24 (20 A) Moonroof (If equipped) 25 20 A Door Lock 26 20 A Driver’s Power Window 27 — Not Used 28 (15 A) Rear Accessory Socket (If equipped) 29 15 A Accessory 30 20 A Passenger’s Power Window 31 — Not Used 32 20 A Right Rear Power Window 33 20 A Left Rear Power Window 34 — Not Used 35 7.5 A Accessory Radio 36 10 A HAC 37 7.5 A Daytime Running Light 38 30 A Front Wiper
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine compartment (2010, 2011)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps. Circuits Protected 1 100 A Main Fuse 1 (70 A) EPS (If equipped) 2 60 A Option Main 2 50 A Ignition Switch Main 3 30 A ABS/VSA Motor 3 30 A ABS/VSA F/S 3 40 A ABS/VSA F/S (On models with VSA system) 4 50 A Headlight Main 4 40 A Power Window Main 5 — Not Used 6 20 A Sub Fan Motor 7 20 A Main Fan Motor (M/T) 7 30 A Main Fan Motor (A/T) 8 30 A Rear Defogger 9 40 A Blower 10 10 A Hazard 11 15 A FI Sub 12 15 A Stop and Horn 13 — Not Used 14 — Not Used 15 7.5 A IGPS Oil Level 16 — Not Used 17 (15 A) Audio Amp (If equipped) 18 15 A IG Coil 19 15 A FI Main 20 7.5 A MG Clutch 21 15 A DBW 22 7.5 A Interior Light 23 10 A Back Up
This content requires JavaScript and a valid membership to view.
