Honda Civic Hybrid Fuse Box Locations and Diagrams (2006-2011)

This guide covers the eighth-generation Honda Civic Hybrid (2006–2011) (Model Codes: FA — sedan, FD — sedan, FN — hatchback). Here you’ll find fuse box diagrams for Honda Civic Hybrid 2006, 2007, 2008, 2009, 2010 and 2011, along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).

What’s Included

Fuse box locations

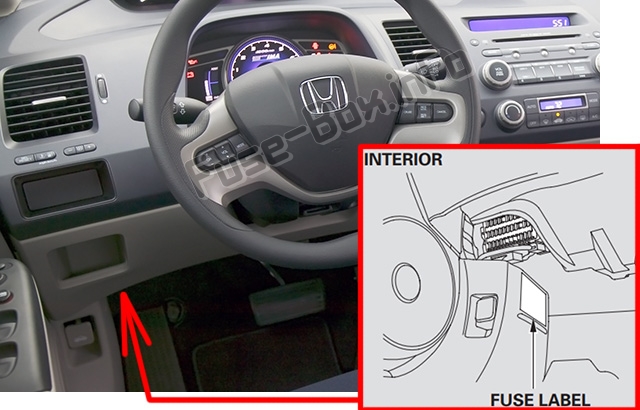

Passenger compartment

The interior fuse box is underneath the steering column.

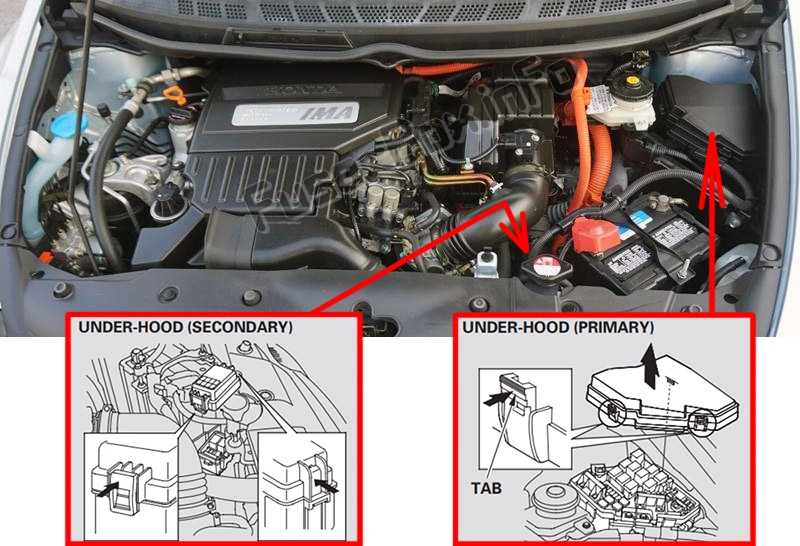

Engine compartment

The primary and secondary engine compartment fuse boxes are in the engine compartment on the driver’s side.

Fuse box diagrams

Passenger compartment

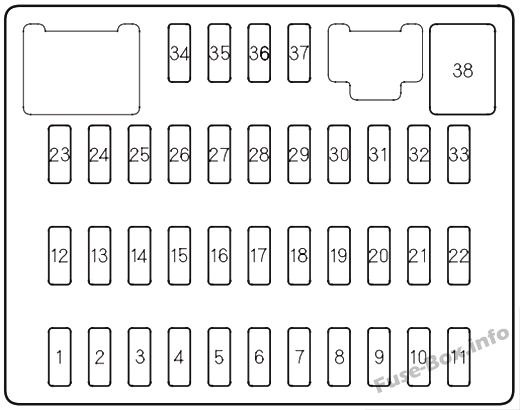

Instrument panel fuse box diagram: Honda Civic Hybrid (2006, 2007, 2008, 2009, 2010, 2011)

Assignment of the fuses in the Passenger compartment

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

No.	Amps.	Circuits Protected
1	7.5 A	Power Window
2	15 A	Fuel Pump
3	10 A	IG1ACG
4	7.5 A	ABS (ABS/VSA) Unit
5	15 A	Seat Heater (Optional)
6	—	Not Used
7	7.5 A	TPMS (Optional)
8	—	Not Used
9	7.5 A	ODS
10	7.5 A	METER
11	10 A	SRS
12	10 A	Right Headlight High Beam
13	10 A	Left Headlight High Beam
14	7.5 A	Small (Interior)
15	7.5 A	Small (Exterior)
16	10 A	Right Headlight Low Beam
17	10 A	Left Headlight Low Beam
18	20 A	Headlight High Main
19	15 A	Small (Main)
20	—	Not Used
21	20 A	Headlight Low Main
22	(7.5 A)	(HAC)
23	(7.5 A)	STS
24	—	Not Used
25	20 A	Door Lock
26	20 A	Driver’s Power Window
27	—	Not Used
28	(15 A)	Rear ACC Socket
29	15 A	ACC
30	20 A	Passenger’s Power Window
31	—	Not Used
32	20 A	Right Rear Power Window
33	20 A	Left Rear Power Window
34	—	Not Used
35	7.5 A	ACC, Radio
36	10 A	HAC
37	7.5 A	Daytime Running Light
38	30 A	Wiper

Engine compartment

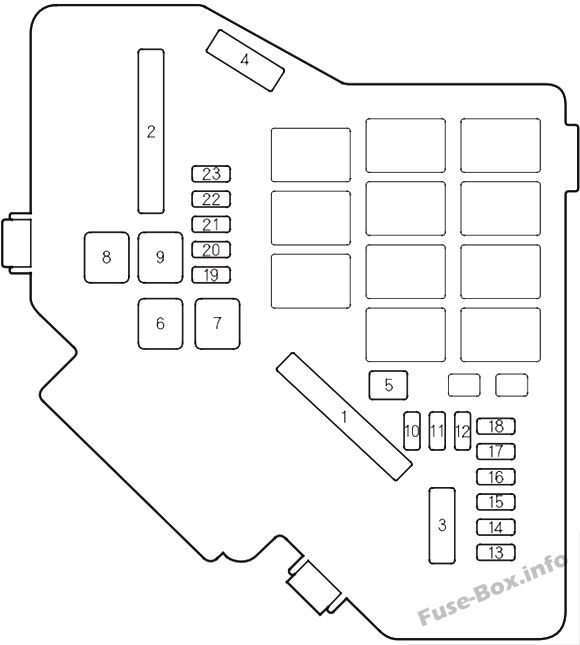

Under-hood fuse box diagram: Honda Civic Hybrid (2006, 2007, 2008, 2009, 2010, 2011)

Assignment of the fuses in the Engine compartment

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

No.	Amps.	Circuits Protected
1	100 A	Main Fuse
1	70 A	EPS
2	60 A	Option Main
2	50 A	Ignition Switch Main
3	30 A	ABS Motor
3	40 A	ABS F/S
4	50 A	Headlight Main
4	40 A	Power Window Main
5	40 A	Booster Motor
6	20 A	Sub Fan Motor
7	20 A	Main Fan Motor
8	30 A	Rear Defogger
9	40 A	Blower
10	10 A	Hazard
11	15 A	FI Sub
12	15 A	Stop and Horn
13	15 A	IG Coil (EX)
14	15 A	IG Coil (IN)
15	7.5 A	Oil Level
16	—	Not Used
17	—	Not Used
18	20 A	IG Coil
19	15 A	FI Main
20	7.5 A	MG Clutch
21	15 A	DBW
22	7.5 A	Interior Light
23	10 A	Back Up

Engine compartment Sub fuse box

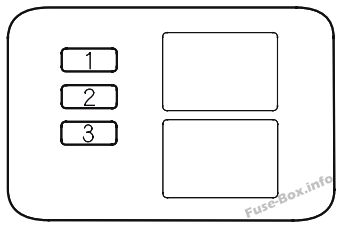

Underhood secondary fuse box: Honda Civic Hybrid (2006, 2007, 2008, 2009, 2010, 2011)

Engine compartment sub fuse box

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

No.	Amps.	Circuits Protected
1	10 A	IMA2
2	7.5 A	IMA1
3	15 A	Booster MS

FAQ

Which fuses control the cigar lighter (power outlets) in the Honda Civic Hybrid?

Fuses #28 (Rear ACC Socket) and #29 (ACC Socket) in the instrument panel fuse box.
