Honda Civic Hybrid Fuse Box Locations and Diagrams (2012-2015)

This guide covers the ninth-generation Honda Civic Hybrid (2011–2015) (Model Codes: FB1, FB2, FB3, FB4, FB5, FB6 — sedan; FG2, FG3, FG4 — coupe). Here you’ll find fuse box diagrams for Honda Civic Hybrid 2012, 2013, 2014 and 2015, along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).

What’s Included

Fuse box locations

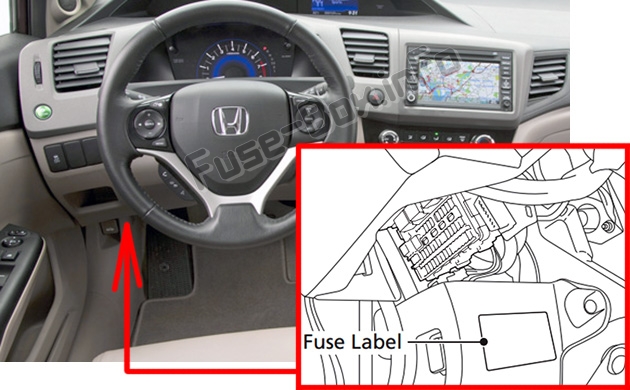

Passenger compartment

Located under the dashboard.
Fuse locations are shown on the label on the side panel.

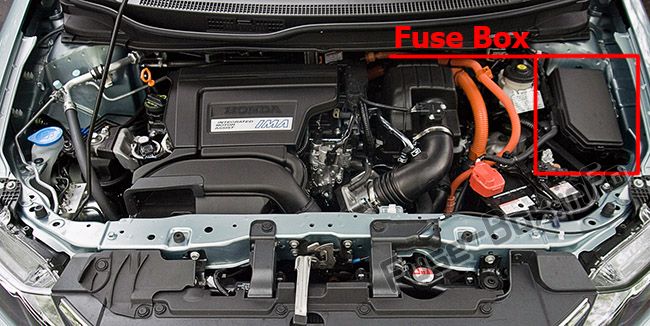

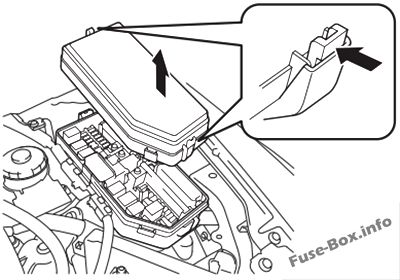

Engine compartment

Located near the brake fluid reservoir.

Fuse locations are shown on the fuse box cover.

Fuse box diagrams

2012, 2013

Passenger compartment

Assignment of the fuses in the Passenger compartment (2012, 2013)

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

№	Circuit Protected	Amps
1	—	—
2	ACG	10 A
3	SRS	10 A
4	Fuel Pump	15 A
5	Meter	7.5 A
6	Power Window	7.5 A
7	VB SOL	(15 A)
8	Door Lock Motor 2 (Unlock)	15 A
9	Door Lock Motor 1 (Unlock)	15 A
10	—	—
11	—	—
12	Accessory Power Socket (Center Console) (optional)	(20 A)
13	—	—
14	Seat Heaters (optional)	(15 A)
15	Driver’s Door Lock Motor (Unlock)	(10 A)
16	—	—
17	—	—
18	—	—
19	ACC	7.5 A
20	ACC Key Lock	7.5 A
21	Daytime Running Lights	7.5 A
22	HAC	7.5 A
23	HAC	(7.5 A)
24	ABS/VSA	7.5 A
25	—	—
26	—	—
27	Accessory Power Socket (Front)	20 A
28	Washer	15 A
29	ODS	7.5 A
30	Driver’s Door Lock Motor (Lock)	(10 A)
31	—	—
32	Door Lock Motor 2 (Lock)	15 A
33	Door Lock Motor 1 (Lock)	15 A
34	Small Lights	7.5 A
35	Illumination	7.5 A
36	—	—
37	—	—
38	Left Headlight High Beam	10 A
39	Right Headlight High Beam	10 A
40	TPMS (optional)	(7.5 A)
41	Door Lock	20 A
42	Driver’s Power Window	20 A
43	Rear Passenger’s Side Power Window	(20 A)
44	Front Passenger’s Side Power Window	20 A
45	Rear Driver’s Side Power Window	(20 A)
46	Wiper	30 A

Engine compartment

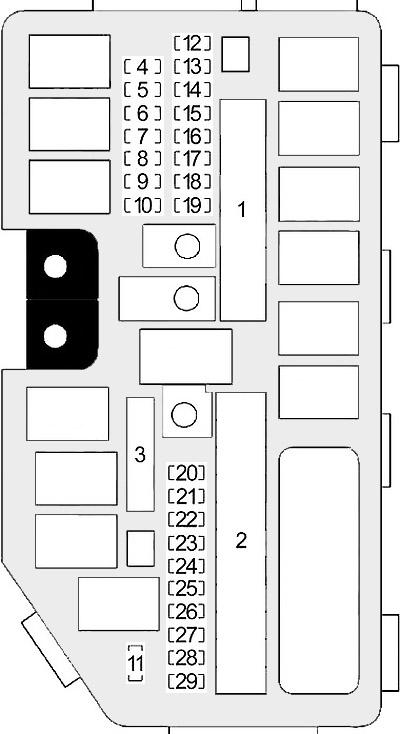

Assignment of the fuses in the Engine compartment (2012, 2013)

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

№	Circuit Protected	Amps
1	EPS	70 A
1	Booster Motor	40 A
1	ABS/VSA Motor	30 A
1	ABS/VSA FSR	30 A
1	—	—
1	Main Fuse	100 A
2	IG Main	50 A
2	Fuse Box Main	60 A
2	Fuse Box Main 2	60 A
2	Headlight Main	30 A
2	—	—
2	Rear Defogger	30 A
2	—	—
2	Blower	40 A
2	—	—
2	Sub Fan Motor	20 A
2	Main Fan Motor	20 A
3	—	—
4	IG Coil 2	15 A
5	Starter DIAG, ST MG	7.5 A
6	IG Coil 1	15 A
7	—	—
8	—	—
9	—	—
10	—	—
11	Oil Level	7.5 A
12	LED Daytime Running Lights	10 A
13	IMA 1	7.5 A
14	Hazard	10 A
15	FI Sub	15 A
16	IG Coil	20 A
17	Stop	15 A
18	Horn	10 A
19	IMA 2	10 A
20	Right Headlight Low Beam	10 A
21	IGP	15 A
22	DBW	15 A
23	Left Headlight Low Beam	10 A
24	Booster SOL	15 A
25	MG Clutch	7.5 A
26	—	—
27	SMALL	20 A
28	Interior Lights	7.5 A
29	Backup	10 A

2015

Passenger compartment

Assignment of the fuses in the Passenger compartment (2015)

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

№	Circuit Protected	Amps
1	—	—
2	ACG	10 A
3	SRS	10 A
4	Fuel Pump	15 A
5	Meter	7.5 A
6	Power Window	7.5 A
7	VB SOL	15 A
8	Door Lock Motor 2 (Unlock)	15 A
9	Door Lock Motor 1 (Unlock)	15 A
10	–	–
11	–	–
12	–	–
13	–	–
14	Seat Heaters (optional)	(15 A)
15	Driver’s Door Lock Motor (Unlock)	(10 A)
16	–	–
17	–	–
18	–	–
19	ACC	7.5 A
20	ACC Key Lock	7.5 A
21	Daytime Running Lights	7.5 A
22	HAC	7.5 A
23	HAC	(7.5 A)
24	ABS/VSA	7.5 A
25	ACC	7.5 A
26	–	–
27	Accessory Power Socket (Front)	20 A
28	–	–
29	ODS	7.5 A
30	Driver’s Door Lock Motor (Lock)	(10 A)
31	SMART	10 A
32	Door Lock Motor 2 (Lock)	15 A
33	Door Lock Motor 1 (Lock)	15 A
34	Small Lights	7.5 A
35	Illumination	7.5 A
36	–	–
37	–	–
38	Left Headlight High Beam	10 A
39	Right Headlight High Beam	10 A
40	—	—
41	Door Lock	20 A
42	Driver’s Power Window	20 A
43	Rear Passenger’s Side Power Window	(20 A)
44	Front Passenger’s Side Power Window	20 A
45	Rear Driver’s Side Power Window	(20 A)
46	—	—

Engine compartment

Assignment of the fuses in the Engine compartment (2015)

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

№	Circuit Protected	Amps
1	EPS	70 A
1	Booster Motor	40 A
1	ABS/VSA Motor	30 A
1	ABS/VSA FSR	30 A
1	Wiper Motor	30 A
1	Main Fuse	100 A
2	IG Main	30 A
2	Fuse Box Main	60 A
2	Fuse Box Main 2	60 A
2	Headlight Main	30 A
2	ST MG	30 A
2	Rear Defogger	30 A
2	—	–
2	Blower	40 A
2	—	–
2	Sub Fan Motor	20 A
2	Main Fan Motor	20 A
3	—	—
4	IG Coil 2	15 A
5	Starter DIAG, ST MG	7.5 A
6	IG Coil 1	15 A
7	—	–
8	–
9	—	—
10	–	–
11	Oil Level	7.5 A
12	LED Daytime Running Lights	10 A
13	IMA 1	7.5 A
14	Hazard	10 A
15	FI Sub	15 A
16	IG Coil	20 A
17	Stop	15 A
18	Horn	10 A
19	IMA 2	10 A
20	Right Headlight Low Beam	15 A
21	IGP	15 A
22	DBW	15 A
23	Left Headlight Low Beam	15 A
24	Booster SOL	15 A
25	MG Clutch	7.5 A
26	Washer	15 A
27	SMALL	20 A
28	Interior Lights	7.5 A
29	Backup	10 A

FAQ

Which fuses control the cigar lighter (power outlets) in the Honda Civic Hybrid (2012–2015)?

Fuses #12 (Center Console Accessory Power Socket, if equipped) and #27 (Front Accessory Power Socket) in the instrument panel fuse box.
