Honda CR-V | 2017-2022 | Fuse Box Diagrams and Locations

This guide covers the fifth-generation Honda CR-V (2016–2023) (Model Codes: RW1, RW2, RW3, RW4, RW5, RW6, RW7, RW8, RT5, RT6, RY1, RY2). Here you’ll find fuse box diagrams for Honda CR-V models from 2017 to 2022, along with details on the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).

What’s Included

Fuse box locations

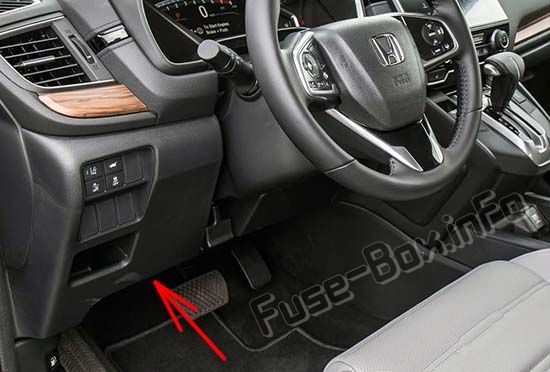

Passenger compartment

Located under the dashboard.

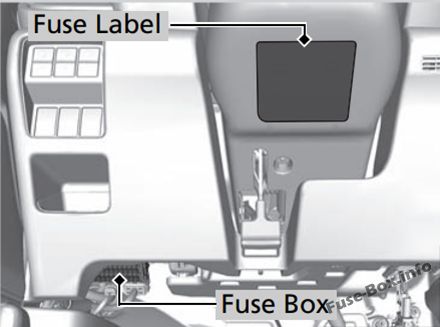

Fuse locations are shown on the label on the steering column lower cover.

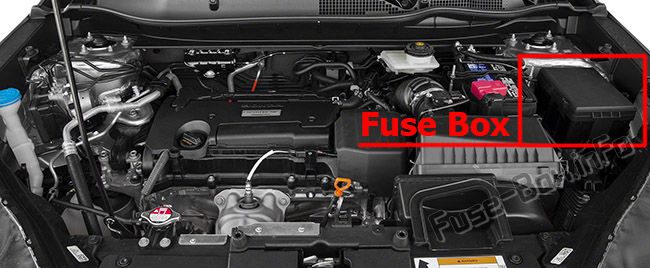

Engine compartment

Located near the brake fluid reservoir.

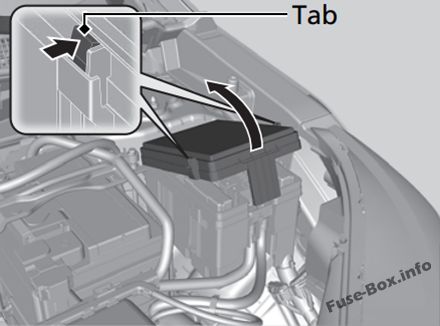

Fuse locations are shown on the fuse box cover.

Fuse Box Diagrams

2017

Passenger compartment

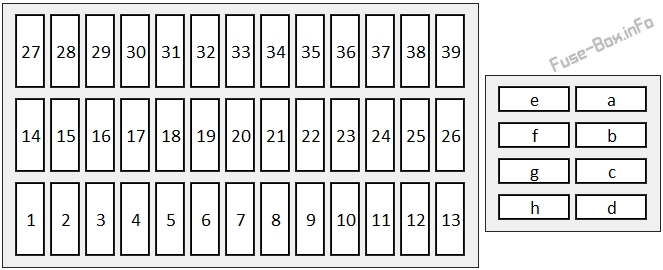

Assignment of the fuses in the passenger compartment (2017)

Fuse Data

Full access is available to registered users — log in or register.

№	Circuit Protected	Amps
1	Accessory	10 A
2	Key Lock	5 A
3	Option	10 A
4	Option (with smart entry system)	5 A
4	Transmission (without smart entry system) (1.5L)	(10 A)
5	Option	10 A
6	SRS Indicator	10 A
7	Meter	10 A
8	Fuel Pump	15 A
9	A/C	10 A
10	Accessory Power Socket (Center Console)	(20 A)
11	Engine Control’ 3	5 A
12	Passenger’s Side Door Lock	10 A
13	Driver’s Side Door Unlock	10 A
14	Rear Driver’s Side Power Window	20 A
15	Front Passenger’s Side Power Window	20 A
16	Door Lock	20 A
17	Transmission (with smart entry system) (1.5L)	(10 A)
17	Option (without smart entry system)	5 A
18	Front Driver’s Lumber support (option)	(10 A)
19	Moonroof (option)	(20 A)
20	Starter	10 A
21	ACG	10 A
22	Daytime Running Light	10 A
23	Steering Wheel Heater (Canadian models with steering heater) ; Handsfree Power Tailgate Sensor (option)	(10 A)
24	Option	5 A
25	Driver’s Door Lock	(10 A)
26	Passenger’s Side Door Unlock	10 A
27	Rear Passenger’s Side Power Window	20 A
28	Driver’s Power Window	20 A
29	Front Accessory Power Socket	20 A
30	Smart Entry (Canadian models with steering heater)	10 A
30	STS (without smart entry system)	5 A
31	Driver’s Power Seat Reclining (option)	(20 A)
32	Front Seat Heater (option)	(20 A)
33	Driver’s Power Seat Sliding (option)	(20 A)
34	ABS/VSA	10 A
35	SRS	10 A
36	HAC Option (option)	20 A
37	Trailer (option)	15 A
38	Driver’s Side Door Lock	10 A
39	Driver’s Door Unlock	(10 A)
a	Power Tailgate Closer (option)	(20 A)
b	Passenger’s Power Seat Sliding (option)	(20 A)
c	Passenger’s Power Seat Reclining (option)	(20 A)
d	Panorama Shade Motor (Canadian models with panoramic roof)	(20 A)
e	Rear Blower	(20 A)
f	EPT L	(20 A)
g	EPT R	(20 A)
h	Accessory Power Socket (Cargo Area) (Canadian models)	(20 A)

Engine compartment

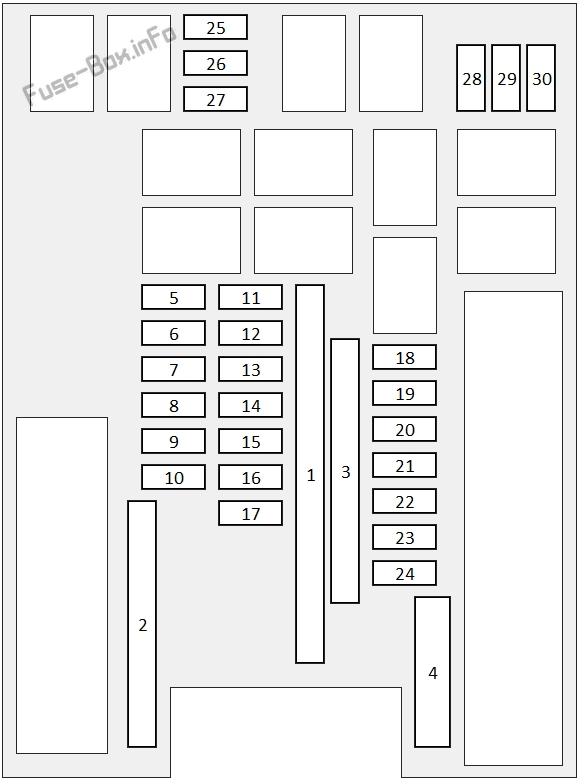

Under-hood fuse box diagram: Honda CR-V (2017)

Assignment of the fuses in the engine compartment (2017)

Fuse Data

Full access is available to registered users — log in or register.

№	Circuit Protected	Amps
1	Audio AMP (optoin)	(30 A)
1	Electric Brake Booster	40 A
1	Main Fan Motor	30 A
1	Relay Module 1	30 A
1	IG Main 2 (with smart entry system)	30 A
1	Relay Module 2	30 A
1	Battery	125 A
2	EPS	70 A
2	IG Main 1 (30 A (with smart entry system) / 50 A (without smart entry system))	30 A / 50 A
2	Fuse Box Option	(40 A)
2	Fuse Box	60 A
2	Front Wiper Motor	30 A
2	Sub Fan Motor	30 A
3	Rear Defroster	40 A
3	Starter Motor	30 A
3	Fuse Box	40 A
3	ABS/VSA Motor	40 A
3	ABS/VSA FSR	40 A
3	Blower Motor	40 A
4	Option Block 1 (optoin)	(40 A)
4	Option Block 2 (optoin)	(40 A)
4	–	–
4	Power Tail Gate (optoin)	(40 A)
5	VB ACT (1.5L)	(7.5 A)
6	Washer	15 A
7	FI Main	15 A
8	FI Sub (1.5L) / DBW (2.4L)	15 A
9	Stop Lights	10 A
10	Injector	20 A
11	LAF	7.5 A
12	FI ECU (1.5L)	10 A
12	– (2.4L)	–
13	Front Wiper Deicer (optoin)	(15 A)
14	Hazard	10 A
15	IG Coil	15 A
16	Transmission (1.5L)	(15 A)
16	– (2.4L)	–
17	—	—
18	Back Up	10 A
19	Audio	15 A
20	AWD (optoin)	(20 A)
21	Rear Seat Heater (Canadian models with rear seat heater)	(20 A)
21	– (without rear seat heater)	–
22	Front Fog Lights (Models with fog lights) / Lower Shutter Grille	(15 A)
23	A/C Compressor / Upper Shutter Grille	10 A
24	Horn	10 A
25	Cooling Fan	7.5 A
26	–	—
27	–	—
28	ST Magnetic Switch (without smart entry system)	(7.5 A)
29	–	—
30	–	—

2018, 2019, 2020, 2021, 2022

Passenger compartment

Instrument panel fuse box diagram: Honda CR-V (2018, 2019)

Assignment of the fuses in the passenger compartment (2018, 2019, 2020, 2021, 2022)

Fuse Data

Full access is available to registered users — log in or register.

№	Circuit Protected	Amps
1	Accessory	10 A
2	Key Lock	5 A
3	Option 3	10 A
4	Option 2 (with smart entry system)	5 A
4	Transmission (without smart entry system)	(10 A)
5	Option	10 A
6	SRS Indicator	10 A
7	Meter	10 A
8	Fuel Pump	15 A
9	A/C	10 A
10	Accessory Power Socket (Center Console)	(20 A)
11	Engine Control	5 A
12	Passenger’s Side Door Lock	10 A
13	Driver’s Side Door Unlock	10 A
14	Rear Driver’s Side Power Window	20 A
15	Front Passenger’s Side Power Window	20 A
16	Door Lock	20 A
17	Transmission (with smart entry system)	(10 A)
17	Option 2 (without smart entry system)	5 A
18	Front Driver’s Lumber support (option)	(10 A)
19	Moonroof (option)	(20 A)
20	Starter	10 A
21	ACG	10 A
22	Daytime Running Light	10 A
23	Steering Wheel Heater (option)	(10 A)
24	Option	5 A
25	Driver’s Door Lock	(10 A)
26	Passenger’s Side Door Unlock	10 A
27	Rear Passenger’s Side Power Window	20 A
28	Driver’s Power Window	20 A
29	Front Accessory Power Socket	20 A
30	Smart Entry (with smart entry system)	10 A
30	STS (without smart entry system)	5 A
31	Driver’s Power Seat Reclining (option)	(20 A)
32	Front Seat Heater (option)	(20 A)
33	Driver’s Power Seat Sliding (option)	(20 A)
34	ABS/VSA	10 A
35	SRS	10 A
36	HAC Option (option)	20 A
37	Trailer (option)	15 A
38	Driver’s Side Door Lock	10 A
39	Driver’s Door Unlock	(10 A)
a	Power Tailgate Closer (option)	(20 A)
b	Passenger’s Power Seat Sliding (option)	(20 A)
c	Passenger’s Power Seat Reclining (option)	(20 A)
d	Panorama Shade Motor	(20 A)
e	Rear Blower	(20 A)
f	EPT L	(20 A)
g	EPT R	(20 A)
h	Accessory Power Socket (Cargo Area)	(20 A)

Engine compartment

Under-hood fuse box diagram: Honda CR-V (2018, 2019)

Assignment of the fuses in the engine compartment (2018, 2019, 2020, 2021, 2022)

Fuse Data

Full access is available to registered users — log in or register.

№	Circuit Protected	Amps
1	Audio AMP (option)	(30 A)
1	Not Used (Canadian models without power seat). (without smart entry system)	–
1	Electric Brake Booster	40 A
1	Main Fan Motor	30 A
1	Relay Module 1	30 A
1	IG Main 2 (with smart entry system)	30 A
1	Not Used (without smart entry system)	–
1	Relay Module 2	30 A
1	Battery	125 A
2	EPS	70 A
2	IG Main 1 (30 A (with smart entry system) / 50 A (without smart entry system))	30 A / 50 A
2	Fuse Box Option	40 A
2	Fuse Box 1	60 A
2	Front Wiper Motor	30 A
2	Sub Fan Motor	30 A
3	Rear Defroster	40 A
3	Starter Motor	30 A
3	Fuse Box 2	40 A
3	ABS/VSA Motor	40 A
3	ABS/VSA FSR	40 A
3	Blower Motor	40 A
4	Option Block 1 (option)	(40 A)
4	Not Used (Canadian models without power seat). (without smart entry system)	–
4	Option Block 2 (option)	(40 A)
4	Not Used (without smart entry system)	–
4	Power Tail Gate (option)	(40 A)
4	Not Used (Canadian models without power seat). (without smart entry system)	–
5	VB ACT (with smart entry system)	7.5 A
5	Not Used (without smart entry system)	–
6	Washer	15 A
7	FI Main	15 A
8	FI Sub (with smart entry system) / DBW (without smart entry system)	15 A
9	Stop Lights	10 A
10	Injector	20 A
11	LAF	7.5 A
12	FI ECU (with smart entry system)	10 A
12	Not Used (without smart entry system)	–
13	Front Wiper Deicer (Canadian models)	15 A
13	Not Used (U.S. models)	–
14	Hazard	10 A
15	IG Coil	15 A
16	Transmission (with smart entry system)	15 A
16	Not Used (without smart entry system)
17	Not Used	–
18	Back Up	10 A
19	Audio	15 A
20	E-DPS (option)	(20 A)
21	Rear Seat Heater (Canadian models with rear seat heater)	(20 A)
21	Not Used (Models without rear seat heater)	–
22	Front Fog Lights (option) (U.S. models and Canadian models with power seat)	(15 A)
22	Lower Shutter Grille (Canadian models without power seat)	15 A
23	A/C Compressor / Upper Shutter Grille	10 A
24	Horn	10 A
25	Cooling Fan	7.5 A
26	Not Used	–
27	Not Used	–
28	Not Used (with smart entry system)	–
28	ST Magnetic Switch (without smart entry system)	(7.5 A)
29	Not Used	–
30	Not Used	–

FAQ

Which fuses control the cigar lighter (power outlets) in Honda CR-V 2017-2022?

Fuses #10 (Center Console Accessory Power Socket), #29 (Front Accessory Power Socket), and fuse “h” (Cargo Area Accessory Power Socket, if equipped) in the instrument panel fuse box.
