Honda Fit / Jazz Fuse Box Locations and Diagrams (2015-2020)

Fuse box information about the Honda Fit / Jazz (2015–2020), third-generation (Model Codes: GK3, GK4, GK5, GK6, GK7, GH7, GP5, GP6). Here you will find fuse box diagrams of Honda Fit / Jazz 2015, 2016, 2017, 2018, 2019 and 2020, get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout).

What’s Included

Fuse box locations

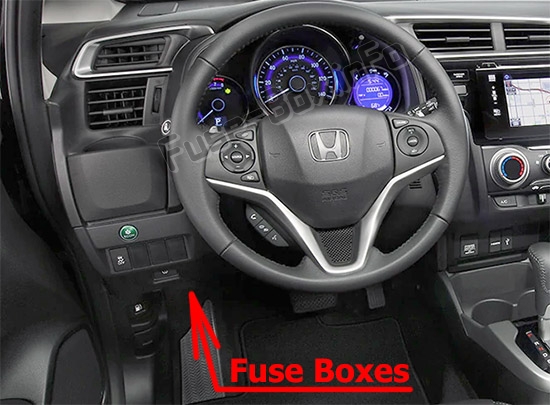

Passenger compartment

Located under the dashboard.

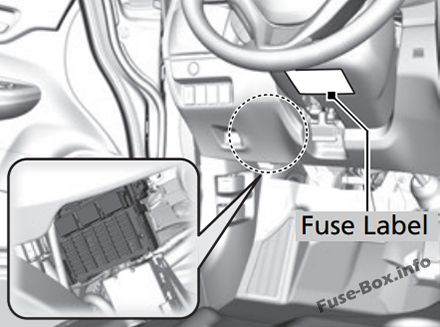

Fuse box A:
Fuse locations are shown on the label under the steering column.

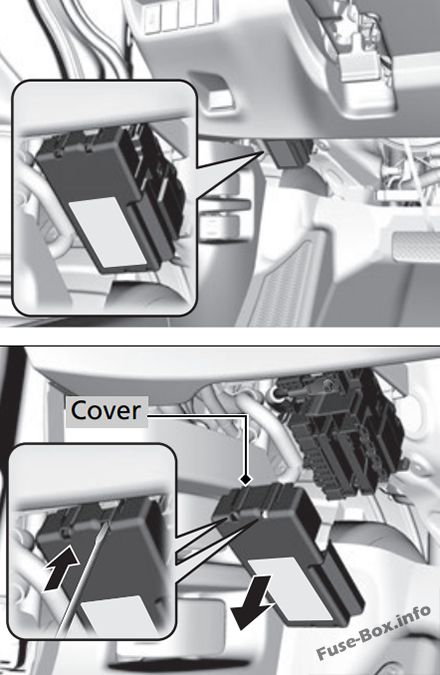

Fuse box B:
Remove the cover by putting the flat-tip screwdriver into the side slot as shown.

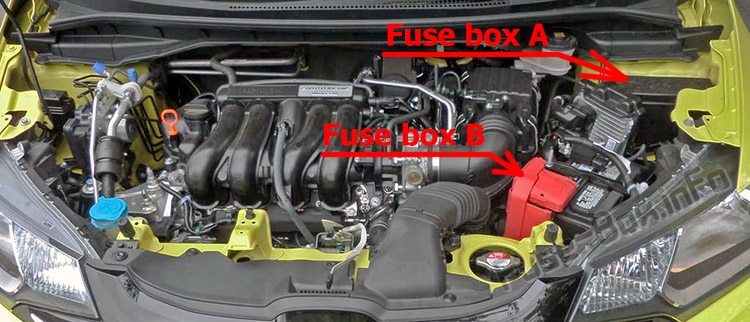

Engine compartment

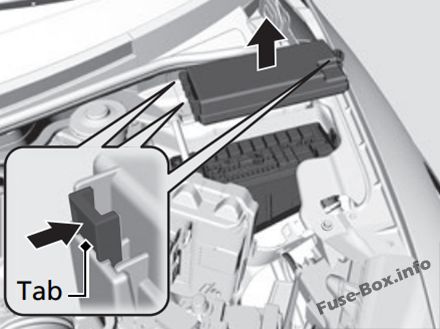

Fuse box A:
Located near the brake fluid reservoir.
Push the tabs to open the box. Fuse locations are shown on the fuse box cover.

Fuse box B:

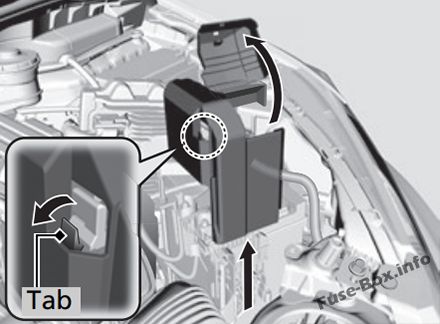

Pull up the cover on the + terminal, then remove it while pulling out the tab as shown

Fuse Box Diagrams

2015, 2016

Passenger compartment (Fuse box A)

Assignment of the fuses in the passenger compartment (Fuse box A) (2015-2020)

№	Circuit Protected	Amps
1	Door Lock	(20 A)
2	–	–
3	Smart (optional)	(10 A)
4	Driver Side Door Unlock	15 A
5	Passenger Side Door Unlock	15 A
6	Driver Door Unlock	(10 A)
7	Driver Door Lock	(10 A)
8	Driver’s Power Window	20 A
9	Passenger’s Power Window	20 A
10	Rear Left Power Window	20 A
11	Rear Right Power Window	20 A
12	Driver Side Door Lock	15 A
13	Passenger Side Door Lock	15 A
14	–	–
15	Right Headlight High Beam	10 A
16	STS (optional)	(7.5 A)
17	ACC Socket (Console) (optional)	(20 A)
18	Moonroof (optional)	(20 A)
19	Front Seat Heater (optional)	(20 A)
20	–	–
21	–	–
22	Washer	15 A
23	Rear Wiper	(10 A)
24	A/C	7.5 A
25	Daytime Running Lights	7.5 A
26	Starter Cut	7.5 A
27	ABS/VSA	7.5 A
28	SRS	10 A
29	Left Headlight High Beam	10 A
30	ACG	10 A
31	Power Window	10 A
32	Fuel Pump	15 A
33	SRS	7.5 A
34	Meter	7.5 A
35	Mission SOL	7.5 A
36	Front ACC Socket	20 A
37	ACC	7.5 A
38	ACC Key Lock	7.5 A
39	Option	(10 A)
40	Rear Wiper	10 A
41	—	—
42	—	—

Passenger compartment (Fuse box B)

Instrument panel fuse box B diagram: Honda Fit (2015, 2016)

Assignment of the fuses in the passenger compartment (Fuse box B) (2015, 2016)

№	Circuit Protected	Amps
1	EPS	70 A
1	IG Main 30 A (with smart entry system), 50 A (without smart entry system)	30 A / 50 A
1	Fuse Box Main 2	50 A
1	ABS/VSA Motor	40 A
1	Fuse Box Main 1	30 A
1	Fuse Box Main 3	40 A
2	–	–
2	–	–
2	–	–
2	–	–
2	–	–
2	–	–
2	–	–
3	Heater	30 A
4	IG Main 2 (with smart entry system) Not Used (without smart entry system)	30 A –
5	ABS/VSA FSR	30 A
6	Deicer	(10 A)
7	–	–
8	–
9	Small Light	10 A
10	ACC Socket (Console) (optional)	(20 A)
11	Rear Defogger	30 A
12	Not Used (with smart entry system) ACC Key Lock (without smart entry system)	– (7.5 A)
13	Heated Door Mirror (optional)	(10 A)
14	A/C Blower SW	(7.5 A)
15	Not Used (with smart entry system) Wiper (without smart entry system)	– 30 A

Engine compartment (Fuse box A)

Under-hood fuse box diagram: Honda Fit (2015, 2016)

Assignment of the fuses in the engine compartment (Fuse box A) (2015, 2016)

№	Circuit Protected	Amps
1	Headlight Low Beam Main	20 A
2	CDC (optional)	(30 A)
3	Hazard	10 A
4	DBW	15 A
5	Wiper	(30 A)
6	Stop	10 A
7	IGP	15 A
8	IG Coil	15 A
9	ECP (optional)	(10 A)
10	INJ	(20 A)
11	–	–
12	Main Fan	30 A
13	Starter SW	(30 A)
14	MG Clutch	7.5 A
15	Battery Sensor	(7.5 A)
16	–	–
17	Daytime Running Lights	(7.5 A)
18	Horn	10 A
19	Fog Light (optional)	(15 A)
21	Back Up Main	15 A
22	Interior Lights	7.5 A
23	Sub Fan	(30 A)
24	–	–
25	Smart Entry Auto Start (optional)	(7.5 A)
26	ST MG	(7.5 A)
27	–	–
28	–	–
29	Back Up	(10 A)
30	IGPLAF	(10 A)
31	IGPS	(7.5 A)
32	Right Headlight Low Beam	10 A
33	Left Headlight Low Beam	10 A

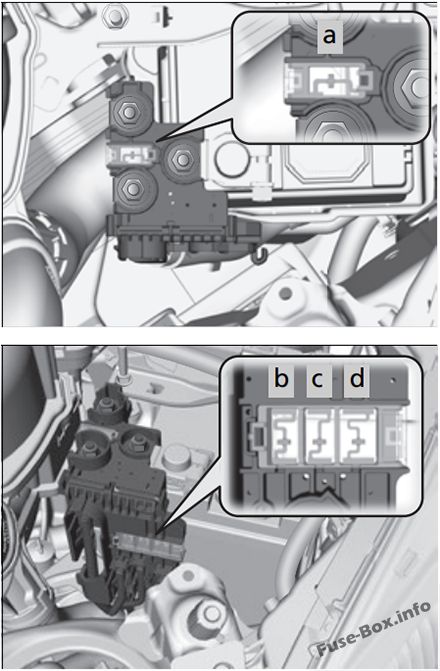

Engine compartment (Fuse box B)

Assignment of the fuses in the engine compartment (Fuse box B) (2015-2020)

№	Circuit Protected	Amps
a	Battery Main	100 A
b	RB Main 1	70 A
c	RB Main 2	80 A
d	CAP Main	70 A

2017, 2018, 2019, 2020

Passenger compartment (Fuse box A)

Instrument panel fuse box A diagram: Honda Fit (2017, 2018, 2019)

Assignment of the fuses in the passenger compartment (Fuse box A) (2015-2020)

№	Circuit Protected	Amps
1	Door Lock	(20 A)
2	–	–
3	Smart (optional)	(10 A)
4	Driver Side Door Unlock	15 A
5	Passenger Side Door Unlock	15 A
6	Driver Door Unlock	(10 A)
7	Driver Door Lock	(10 A)
8	Driver’s Power Window	20 A
9	Passenger’s Power Window	20 A
10	Rear Left Power Window	20 A
11	Rear Right Power Window	20 A
12	Driver Side Door Lock	15 A
13	Passenger Side Door Lock	15 A
14	–	–
15	Right Headlight High Beam	10 A
16	STS (optional)	(7.5 A)
17	ACC Socket (Console) (optional)	(20 A)
18	Moonroof (optional)	(20 A)
19	Front Seat Heater (optional)	(20 A)
20	–	–
21	–	–
22	Washer	15 A
23	Rear Wiper	(10 A)
24	A/C	7.5 A
25	Daytime Running Lights	7.5 A
26	Starter Cut	7.5 A
27	ABS/VSA	7.5 A
28	SRS	10 A
29	Left Headlight High Beam	10 A
30	ACG	10 A
31	Power Window	10 A
32	Fuel Pump	15 A
33	SRS	7.5 A
34	Meter	7.5 A
35	Mission SOL	7.5 A
36	Front ACC Socket	20 A
37	ACC	7.5 A
38	ACC Key Lock	7.5 A
39	Option	(10 A)
40	Rear Wiper	10 A
41	—	—
42	—	—

Passenger compartment (Fuse box B)

Instrument panel fuse box B diagram: Honda Fit (2017, 2018, 2019)

Assignment of the fuses in the passenger compartment (Fuse box B) (2017, 2018, 2019, 2020)

№	Circuit Protected	Amps
1	EPS	70 A
1	IG Main (30 A (with smart entry system), 50 A (without smart entry system))	30 A / 50 A
1	Fuse Box Main 2	50 A
1	ABS/VSA Motor	40 A
1	Fuse Box Main 1	30 A
1	Fuse Box Main 3	40 A
2	–	–
2	–	–
2	–	–
2	–	–
2	–	–
2	–	–
3	Healer	30 A
4	IG Main 2 (with smart entry system) Not Used (without smart entry system)	30 A –
5	ABS/VSA FSR	30 A
6	FCW (optional) / LDW (optional)	(15 A)
7	–	–
8	Front Sensor Camera (optional)	(7.5 A)
9	Small Light	10 A
10	ACC Socket (Console) (optional)	(20 A)
11	Rear Defogger	30 A
12	Not Used (with smart entry system) ACC Key Lock (without smart entry system)	– (7.5 A)
13	Heated Door Mirror (optional)	(10 A)
14	A/C Blower SW	(7.5 A)
15	Not Used (with smart entry system) Wiper (without smart entry system)	– 30 A

Engine compartment (Fuse box A)

Under-hood fuse box diagram: Honda Fit (2017, 2018, 2019)

Assignment of the fuses in the engine compartment (Fuse box A) (2017, 2018, 2019, 2020)

№	Circuit Protected	Amps
1	Headlight Low Beam Main	20 A
2	CDC (optional)	(30 A)
3	Hazard	10 A
4	DBW	15 A
5	Wiper	(30 A)
6	Stop	10 A
7	IGP	15 A
8	IG Coil	15 A
9	EOP (optional)	(10 A)
10	INJ	(20 A)
11	–	–
12	Main Fan	30 A
13	Starter SW	(30 A)
14	MG Clutch	(7.5 A)
15	Battery Sensor	(7.5 A)
16	–	–
17	Daytime Running Lights	(7.5 A)
18	Horn	10 A
19	Fog Light (optional)	(15 A)
20	UB ECU (optional)	(7.5 A)
21	Back Up Main	15 A
22	Interior Lights	7.5 A
23	Sub Fan	(30 A)
24	–	–
25	Smart Entry Auto Start (with smart entry system)	(7.5 A)
26	ST MG (without smart entry system)	(7.5 A)
27	–	–
28	–	–
29	Back Up	(10 A)
30	IGP LAF	(10 A)
31	IGPS	(7.5 A)
32	Right Headlight Low Beam	10 A
33	Left Headlight Low Beam	10 A

Engine compartment (Fuse box B)

Assignment of the fuses in the engine compartment (Fuse box B) (2015-2020)

№	Circuit Protected	Amps
a	Battery Main	100 A
b	RB Main 1	70 A
c	RB Main 2	80 A
d	CAP Main	70 A

FAQ

Which fuses control the cigar lighter (power outlets) in the Honda Fit?

Fuses #17 (Console ACC Socket) and #36 (Front ACC Socket) in the instrument panel fuse box A, and fuse #10 (Console ACC Socket) in the instrument panel fuse box B.
