Fuse box information about the Honda Fit / Jazz (2020–2025) , fourth-generation (Model Codes: GR1, GR2, GR3, GR4, GR5, GR6, GR7, GR8, GS4, GS5, GS6, GS7). Here you will find fuse box diagrams of Honda Fit / Jazz 2020, 2021, 2022, 2023, 2024 and 2025 , get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout).

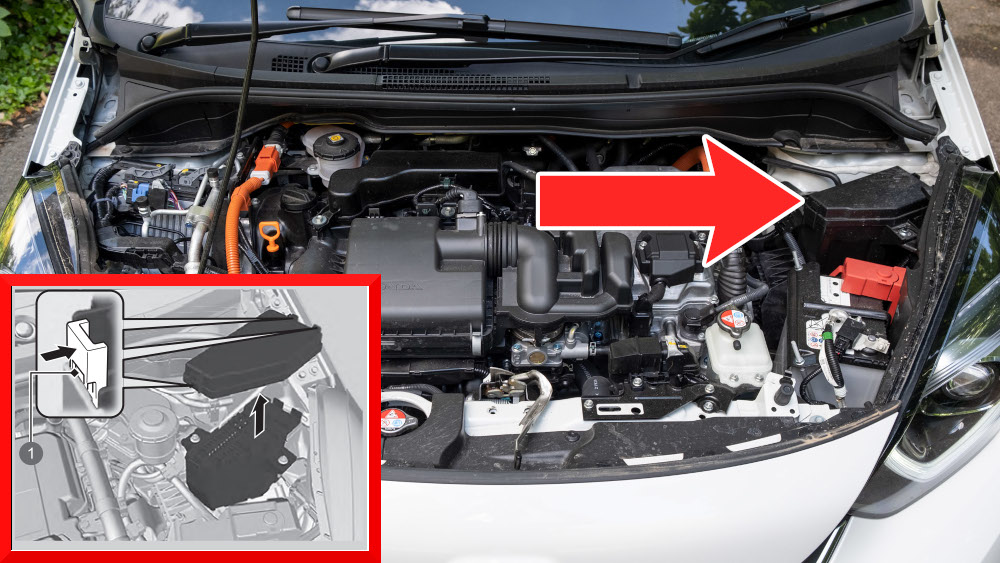

Located near the 12-volt battery. Push the tabs to open the box.

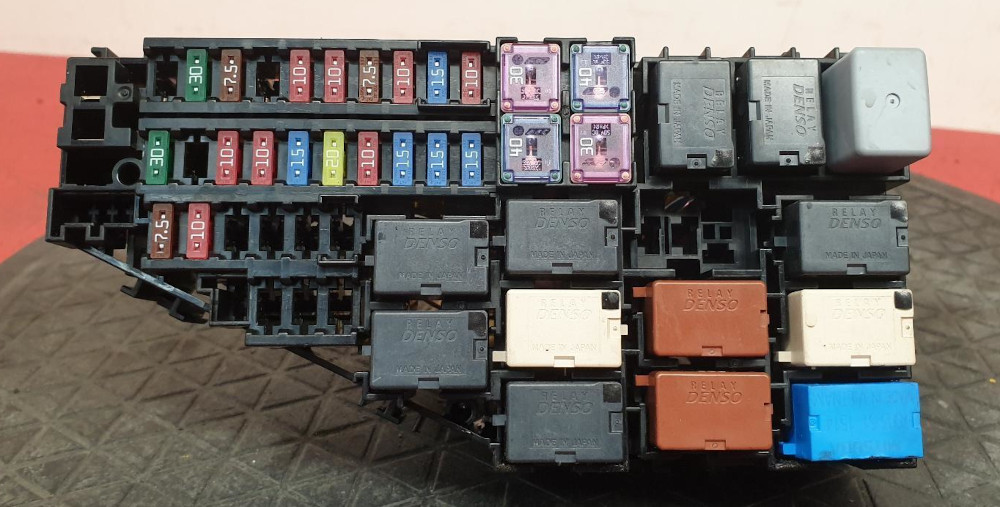

Assignment of the fuses in the engine compartment
No. Amps Circuit Protected 1 30A Wiper 2 — — 3 10A Hazard 4 10A Stop 5 15A PCU EWP 6 20A EVTC 7 10A IMG 8 15A IGP 9 15A IG Coil 10 15A DBW 11 40A ABS/VSA MTR 12 30A Main Fan 13 — — 14 30A Water Pump 15 7.5A Battery Sensor 16 — — 17 10A Back Up FI-ECU 18 10A Horn 19 7.5A Sub Audio 20 10A Front Fog Lights* 21 15A Back Up Main 22 10A Back Up 23 30A Sub Fan 24 40A ABS/VSA FSR 25 7.5A IGP2 Sub 26 10A LAF 27 — — 28 — — 29 — — 30 — — 31 — — 32 — — 33 — —
Login or Register to view this content

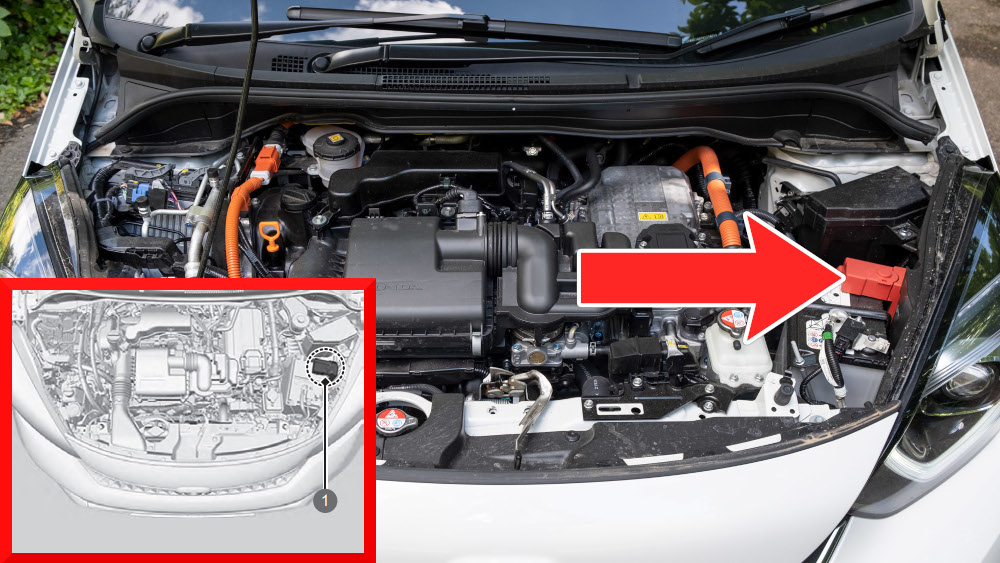

Located near the terminal of the 12-volt battery

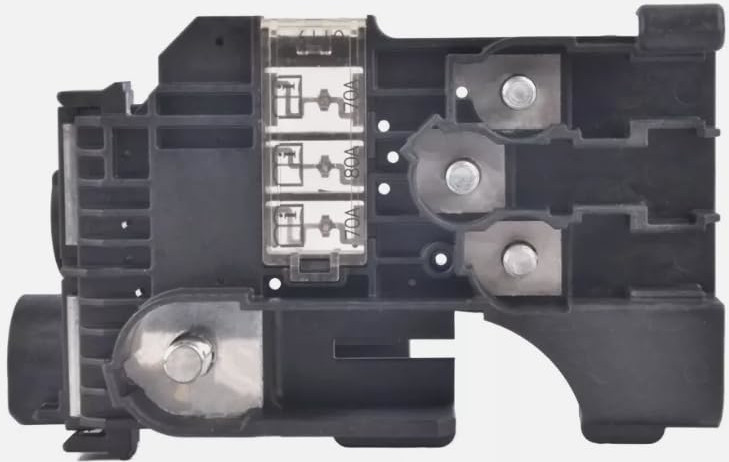

Assignment of the fuses in the engine compartment battery fuse box
No. Amps Circuit Protected a 170A Battery Main b 60A Battery Main (Fan) c 80A Battery Main (ENG) d 60A Battery Main (HEV) e 70A EPS f 40A ESB
Login or Register to view this content
Located under the dashboard (left side)

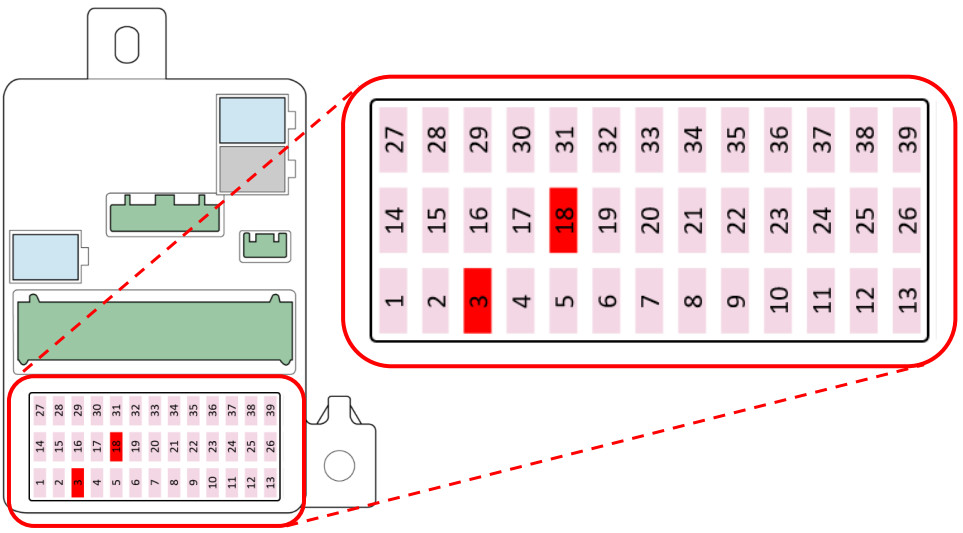

Assignment of the fuses in the passenger compartment left side fuse box
No. Amps Circuit Protected 1 7.5A Accessory 2 7.5A ACC Key Lock 3 — — 4 — — 5 10A Option 6 10A Option 2 7 10A Meter 8 15A Fuel Pump 9 10A AIRCON 10 — — 11 5A MON 12 10A Right Side Door Lock 13 10A Left Side Door Unlock 14 20A Rear Left Side Power Window 15 20A Front Passenger’s Side Power Window 16 20A Door Lock 17 10A Transmission 18 — — 19 20A — 20 7.5A Starter Cut Relay 21 10A ACG 22 7.5A Daytime Running Lights 23 10A Rear Fog Light 24 7.5A Option 25 10A — 26 10A Right Side Door Unlock 27 20A Rear Right Side Power Window 28 20A Driver’s Power Window 29 20A Front Accessory Power Socket 30 10A Keyless Access System* 31 10A USB Charger* 32 20A Front Seat Heater* 33 — — 34 10A ABS/VSA 35 10A SRS 36 — — 37 10A — 38 10A Left Side Door Lock 39 10A —
Login or Register to view this content

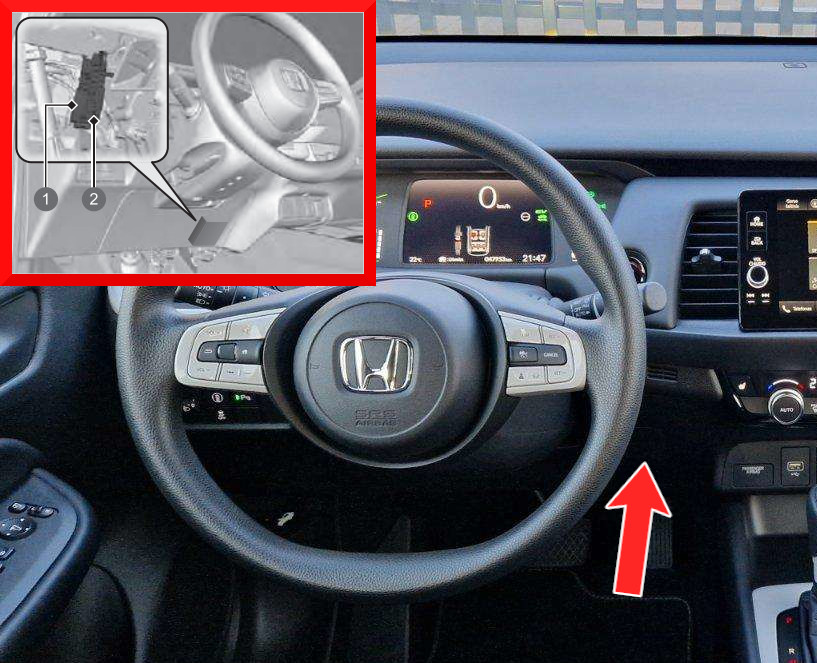

Located under the dashboard (right side)

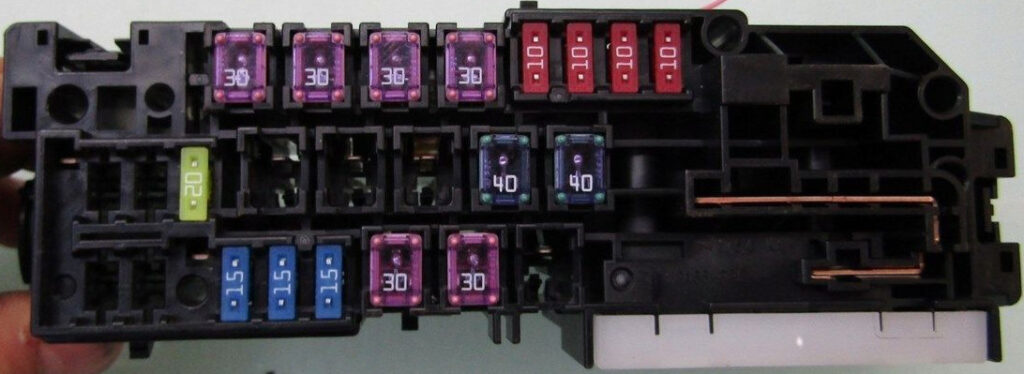

Assignment of the fuses in the passenger compartment right side fuse box
No. Amps Circuit Protected 1 60A Fuse Box Main 2 30A IG Main 3 30A IG Main 2 4 30A Relay Module 1 5 30A Relay Module 2 6 40A Fuse Box Main 2 7 40A Fuse Box Main 3 8 40A A/C PTC1 9 — — 10 — — 11 40A A/C PTC2 12 30A Heater Motor 13 30A Rear Demister 14 10A SRS 15 10A IGB 16 10A IGA 17 10A Keyless Access System* 18 20A — 19 10A — 20 20A — 21 15A Washer 22 15A Heated Steering* 23 15A IGA2 24 10A Heated Door Mirror 25 — —
