Fuse box information about the Honda HR-V (1999–2006), first-generation (Model Codes: GH1, GH2, GH3, GH4). Here you will find fuse box diagrams of Honda HR-V 1999, 2000, 2001, 2002, 2003, 2004, 2005 and 2006, get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout) and relay.

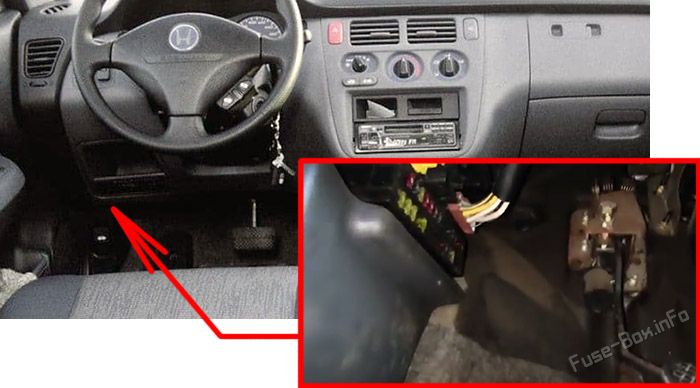

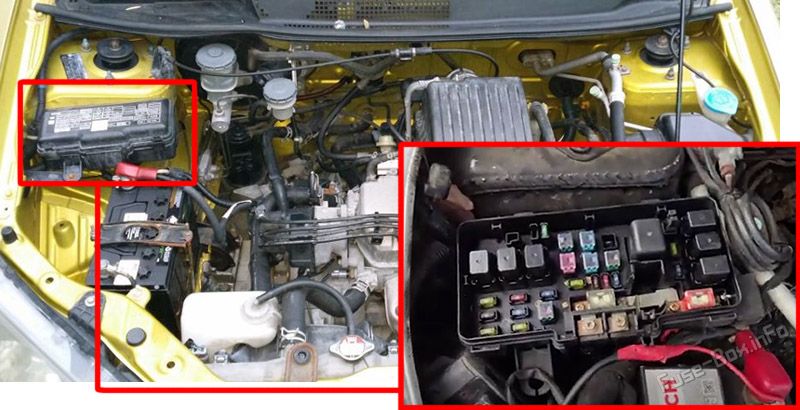

The fuses are located under the dashboard on the driver’s side.

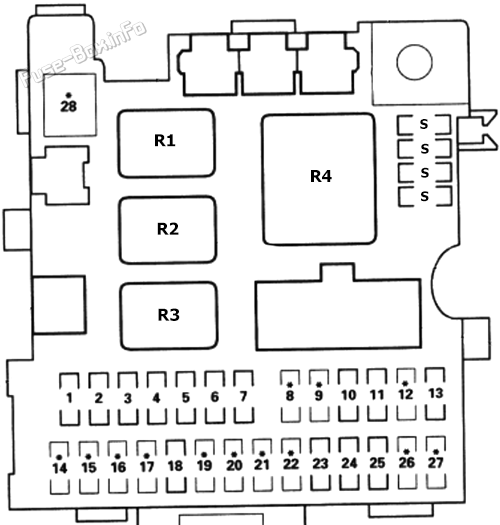

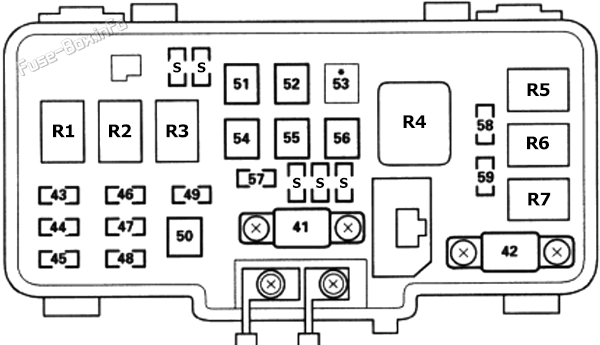

Fuse Box Diagram
Assignment of the fuses in the instrument panel
№
Amps
Component(s) or Circuit(s) Protected
1
10A
SRS unit (VA)
2
15A
SRS unit (VA) Inertia switch (KG and KE models), PGM-FI main relay (Except KG and KE models)
3
20A
Windshield wiper motor, windshield washer motor
4
10A
Headlight adjuster switch (KG and KE models), headlight adjuster unit (KG and KE models), rear window intermittent wiper control unit (KG and KE models), rear window washer motor, rear window wiper motor, power window master switch, power window relay
5
10A
Integrated control unit, turn signal/hazard relay, back-up lights
6
7.5A
Gauge Assembly, Clock, vehicle speed alarm unit (KY model), seat belt alarm unit (KY and KQ models), keyless door lock control unit, secondary HO2S (KG, KE, KN and KQ models), ELD unit (CVT), alternator, VSS, primary HO2S (KG, KE and KU models), PCM, EVAP purge control solenoid valve (KG, KY, KE and KU models)
7
15A
Distributor
8
–
Not used
9
–
Not used
10
15A
Rear window defogger
11
7.5A
Blower motor relay, radiator fan relay, condenser fan relay, A/C switch, A/C compressor clutch relay, recirculation control motor, A/C thermostat, ABS modulator assembly, power mirror actuator, power mirror defogger (KG model), power mirror retract actuator (with keyless entry system), seat heater main relay (KG model)
12
–
Not used
13
7.5A
ECM/PCM, PGM-FI main relay
14
–
Not used
15
–
Not used
16
–
Not used
17
–
Not used
18
15A
Audio unit, cigarette lighter
19
–
Not used
20
–
Not used
21
–
Not used
22
–
Not used
23
7.5A
Clock, seat belt alarm unit (KY and KQ models), intregated control unit, ceiling lights, immobiliser indicator light (KG, KE, KQ and KU models), cargo area light, ECM/PCM
24
15A
Audio unit
25
15A
Keyless / power door lock control unit
26
–
Not used
27
–
Not used
28
–
Not used
S
Spare fuses
R1
Power window relay
R2
Taillight relay
R3
Seat heater main relay (KG model) Shift lock relay (KQ and KU models with CVT)
