Honda Odyssey Fuse Box Locations and Diagrams (1995-1998)

Fuse box information about the Honda Odyssey (1994–1998), first-generation (Model Code: RA1–5). Here you will find fuse box diagrams of Honda Odyssey 1995, 1996, 1997 and 1998, get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout).

What’s Included

Passenger Compartment

Fuse Box Location

The fuse box is underneath the instrument panel on the driver’s side. To open it, turn the knob clockwise.

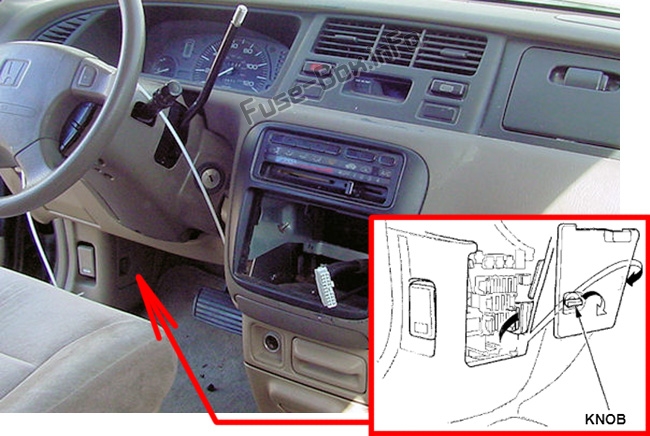

The location of the fuses in the passenger compartment: Honda Odyssey (1994-1998)

Fuse Box Diagram

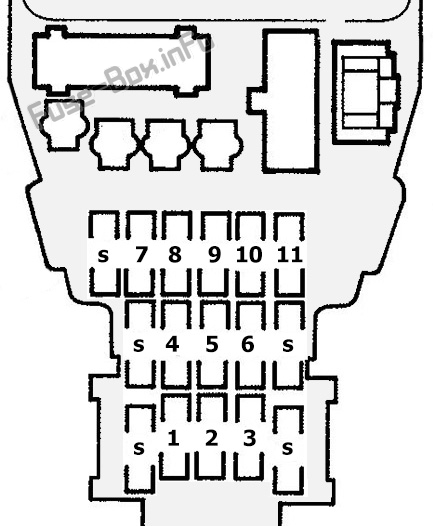

Assignment of the fuses in the Passenger Compartment Fuse Box

№	Amp	Description
1	10 A	Back-up Lights, Meter Lights (Turn Signal)
2	15 A	Fuel Pump
3	10 A	SRS
4	7.5 A	ECU (Cruise Control)
5	10 A	Window Relay, Sunroof, Rear Wiper
6	10 A	Front Wiper Relay, Front Washer
7	7.5 A	Power Mirror
8	7.5 A	Heater Control Relay, A/C Clutch Relay, Cooling Fan Relay
9	7.5 A	Starter Signal
10	7.5 A	Daytime Running (On Canadian models)
11	7.5 A	Radio
s		Spare Fuses

Engine Compartment

Fuse Box Location

The main fuse box is located in the engine compartment on the passenger’s side. To open, push the tab as shown. Cars equipped with ABS have an additional fuse box in the engine compartment next to the main box.

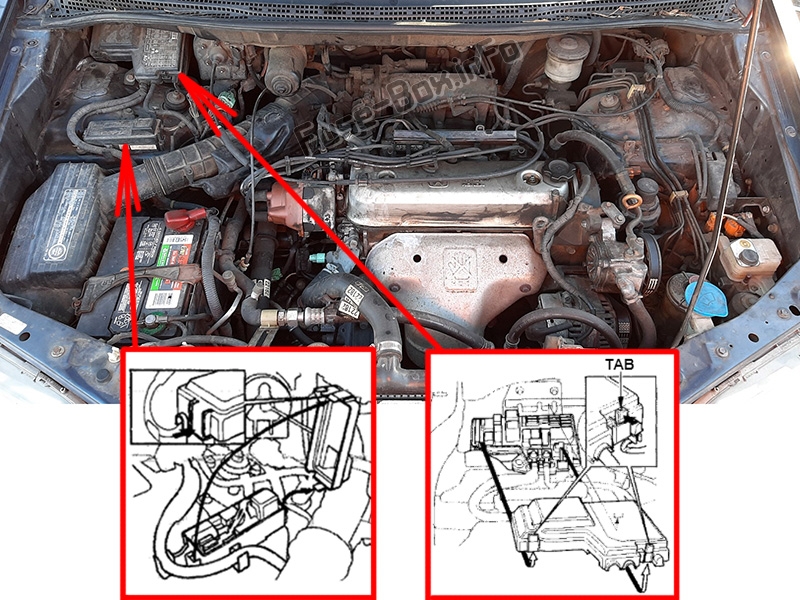

The location of the fuses in the engine compartment: Honda Odyssey (1994-1998)

Fuse Box Diagram

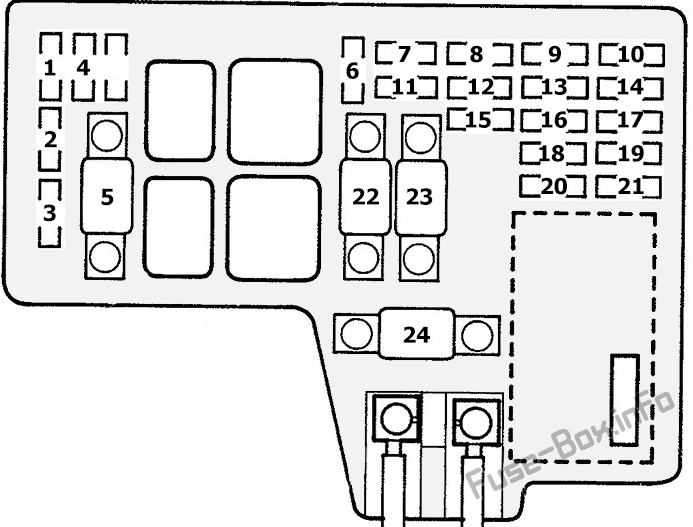

Main Fuse Box

Assignment of the fuses in the Engine Compartment Fuse Box

№	Amp	Description
1	20 A	Cooling Fan
2	15 A	Right Headlight
3	15 A	Left Headlight
4	30 A	Rear Defroster
5	50 A	Ignition Switch
6	20 A	Rear Right Power Window
7	20 A	Front Right Power Window
8	30 A	Sunroof
9	20 A	Condenser Fan
10	7.5 A	Back Up (Radio)
11	20 A	Rear Left Power Window
12	20 A	Front Left Power Window
13	15 A	ECU (Injector) (PCM)
14	20 A	Door Lock
15	10 A	Daytime Running Light (on Canadian models)
16	15 A	Dash lights, Exterior lights
17	7.5 A	Interior Light
18	20 A	Power Seat Height
19	15 A	Radio, Cigarette Lighter
20	15 A	Stop Light, Horn
21	10 A	Hazard
22	40 A	Heater Blower
23	40 A	Wiper
24	100 A	Battery

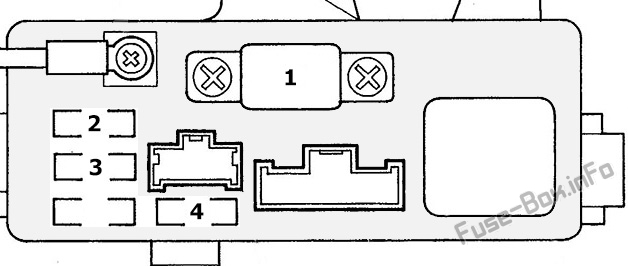

ABS Fuse Box

№	Amp	Description
1	40 A	ABS Motor
2	20 A	ABS B1
3	15 A	ABS B2
4	10 A	ABS Unit

FAQ

Which fuse controls the cigar lighter (power outlet)?

Fuse #19 in the engine compartment fuse box.
