Fuse box information about the Honda Odyssey (1999–2004) , second-generation (Model Code: RL1). Here you will find fuse box diagrams of Honda Odyssey 1999, 2000, 2001, 2002, 2003 and 2004 , get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout).

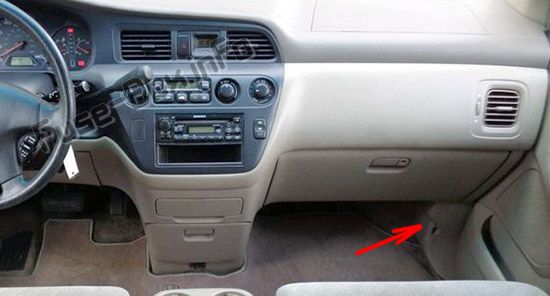

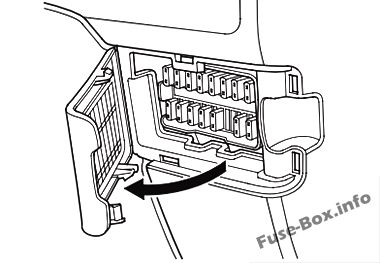

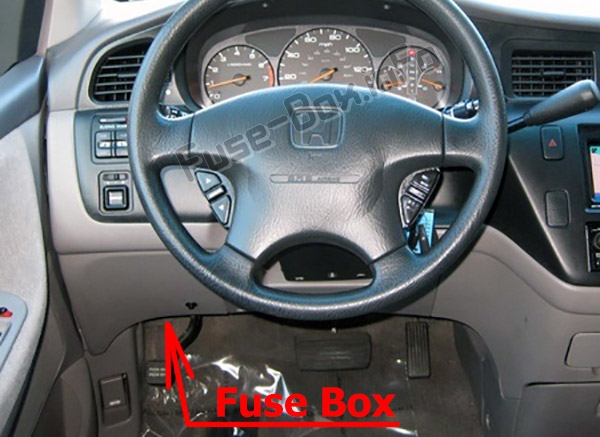

The interior fuse boxes are located underneath the dashboard on each side.

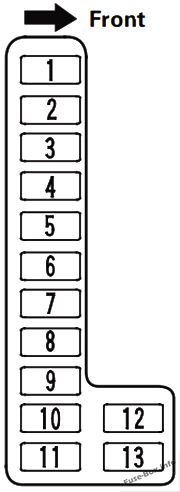

Assignment of the fuses in the Passenger compartment, driver’s side (1999, 2000, 2001)
No. Amps. Circuits Protected 1 15 A Fuel Pump 2 10 A SRS 3 7.5 A Heater Control, A/C Clutch Relay, Cooling Fan Relay 4 7.5 A Power Mirror 5 7.5 A Daytime Running Light (On Canadian models) 6 15 A ECU (PCM), Cruise Control 7 10 A Rear Wiper 8 7.5 A ACC Relay 9 10 A Back-up Lights, Instrument Lights 10 7.5 A Turn Signals 11 15 A IG Coil 12 30 A Front Wiper 13 7.5 A Starter Signal
Login or Register to view this content

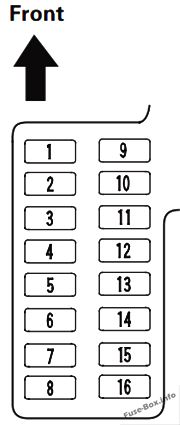

Assignment of the fuses in the Passenger compartment, passenger’s side (1999, 2000, 2001)
No. Amps. Circuits Protected 1 20 A Driver’s Side Automatic Sliding Door 2 20 A Power Seat Reclining (EX) 3 10 A BSC (EX) 4 20 A Power Seat Sliding (EX) 5 20 A Passenger’s Side Automatic Sliding Door 6 10 A Daytime Running Light (Canadian models) 7 7.5 A Left Power Vent 8 20 A Front Passenger’s Power Window 9 15 A ACC Socket 10 15 A Small Light, License Light 11 15 A Interior Light, Radio 12 20 A Power Door Locks 13 7.5 A Clock, Back Up 14 7.5 A ABS Motor Check 15 20 A Driver’s Power Window 16 7.5 A Right Power Vent
Login or Register to view this content
Assignment of the fuses in the Passenger compartment, driver’s side (2002, 2003, 2004)
No. Amps. Circuits Protected 1 15 A Fuel Pump 2 10 A SRS 3 7.5 A Heater Control, A/C Clutch Relay, Cooling Fan Relay 4 7.5 A Power Mirror 5 7.5 A Daytime Running Light (On Canadian models) 6 15 A ECU (PCM), Cruise Control 7 15 A IG Coil 8 7.5 A ACC Relay 9 10 A Back-up Lights, Instrument Lights 10 7.5 A Turn Signals 11 10 A Rear Wiper 12 30 A Front Wiper 13 7.5 A Starter Signal
Login or Register to view this content
Assignment of the fuses in the Passenger compartment, passenger’s side (2002, 2003, 2004)
No. Amps. Circuits Protected 1 20 A Driver’s Side Automatic Sliding Door 2 20 A Power Seat Reclining (EX and EX-L models) 3 10 A BSC (EX and EX-L models) 4 20 A Power Seat Sliding (EX and EX-L models) 5 20 A Passenger’s Side Automatic Sliding Door 6 10 A Daytime Running Light (Canadian models) 7 7.5 A Left Rear Window 8 20 A Front Passenger’s Power Window 9 15 A ACC Socket 10 15 A Inst. Panel Light, License Light 11 10 A Interior Light, Radio 12 20 A Power Door Locks 13 7.5 A Clock, Back Up 14 7.5 A ABS Motor Check 15 20 A Driver’s Power Window 16 7.5 A Right Rear Window
Login or Register to view this content
Assignment of the fuses in the Passenger compartment, driver’s side (2002, 2003, 2004)
No. Amps. Circuits Protected 1 15 A Fuel Pump 2 10 A SRS 3 7.5 A Heater Control, A/C Clutch Relay, Cooling Fan Relay 4 7.5 A Power Mirror 5 7.5 A Daytime Running Light (On Canadian models) 6 15 A ECU (PCM), Cruise Control 7 15 A IG Coil 8 7.5 A ACC Relay 9 10 A Back-up Lights, Instrument Lights 10 7.5 A Turn Signals 11 10 A Rear Wiper 12 30 A Front Wiper 13 7.5 A Starter Signal
Login or Register to view this content
Assignment of the fuses in the Passenger compartment, passenger’s side (2002, 2003, 2004)
No. Amps. Circuits Protected 1 20 A Driver’s Side Automatic Sliding Door 2 20 A Power Seat Reclining (EX and EX-L models) 3 10 A BSC (EX and EX-L models) 4 20 A Power Seat Sliding (EX and EX-L models) 5 20 A Passenger’s Side Automatic Sliding Door 6 10 A Daytime Running Light (Canadian models) 7 7.5 A Left Rear Window 8 20 A Front Passenger’s Power Window 9 15 A ACC Socket 10 15 A Inst. Panel Light, License Light 11 10 A Interior Light, Radio 12 20 A Power Door Locks 13 7.5 A Clock, Back Up 14 7.5 A ABS Motor Check 15 20 A Driver’s Power Window 16 7.5 A Right Rear Window
Login or Register to view this content

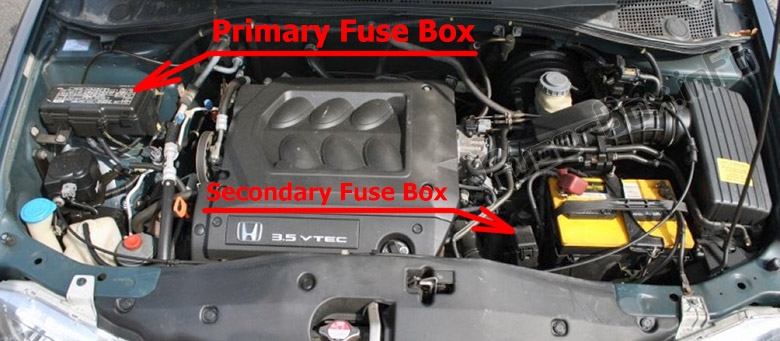

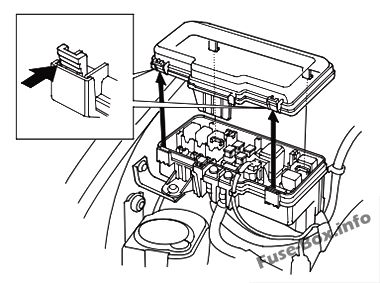

The primary under-hood fuse box is located in the back of the engine compartment on the passenger’s side.

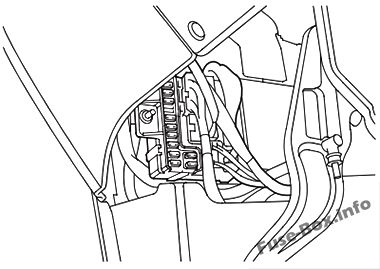

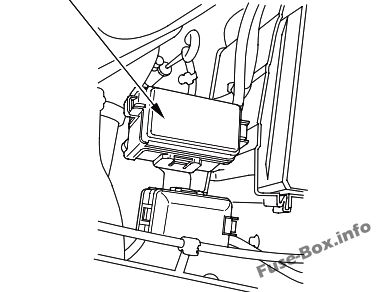

The secondary fuse box are in the engine compartment next to the battery.

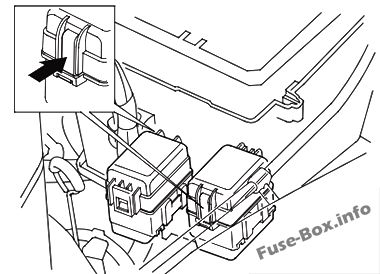

Type 1

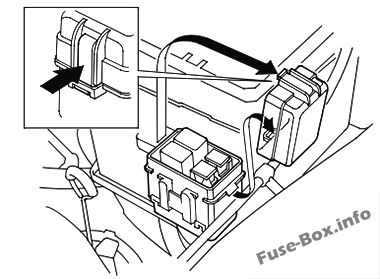

Type 2
Type 3

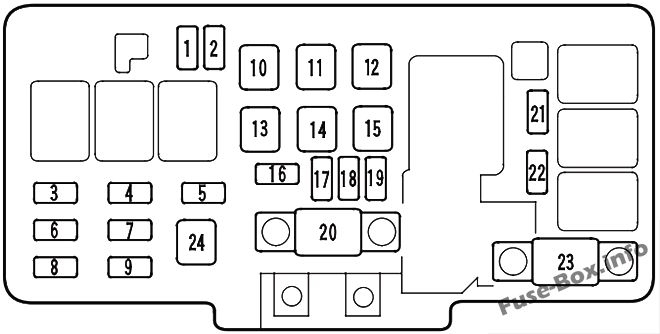

Assignment of the fuses in the Engine compartment, primary fuse box (1999, 2000, 2001)
No. Amps. Circuits Protected 1 20 A Spare Fuse 2 30 A Spare Fuse 3 15 A Right Headlight 4 15 A ACGS 5 15 A Hazard 6 — Not Used 7 20 A Stop 8 15 A Left Headlight 9 20 A ABS F/S 10 40 A Power Window Motor 11 30 A Power Sliding Door (EX model) 12 30 A Rear Defroster 13 40 A Back Up, ACC 14 40 A Power Seat (EX model) 15 40 A Heater Motor 16 30 A Cooling Fan 17 7.5 A Spare Fuse 18 10 A Spare Fuse 19 15 A Spare Fuse 20 120 A Battery 21 30 A Condenser Fan 22 7.5 A MG Clutch 23 50 A Ignition Switch (IG 1 Main) 24 30 A ABS Motor
Login or Register to view this content
No. Amps. Circuits Protected 1 30 A Power Sliding Door (EX model) 2 40 A Rear A/ C
Login or Register to view this content
Assignment of the fuses in the Engine compartment, primary fuse box (2002)
No. Amps. Circuits Protected 1 20 A Spare Fuse 2 30 A Spare Fuse 3 15 A Right Headlight 4 15 A ACGS 5 15 A Hazard 6 — Not Used 7 20 A Stop 8 15 A Left Headlight 9 20 A ABS F/S 10 40 A Power Window Motor 11 30 A Power Sliding Door (EX and EX-L models) 12 30 A Rear Defroster 13 40 A Back Up, ACC 14 40 A Power Seat (EX and EX-L models) 15 40 A Heater Motor 16 30 A Cooling Fan 17 7.5 A Spare Fuse 18 10 A Spare Fuse 19 15 A Spare Fuse 20 120 A Battery 21 30 A Condenser Fan 22 7.5 A MG Clutch 23 50 A Ignition Switch (IG 1 Main) 24 30 A ABS Motor
Login or Register to view this content
No. Amps. Circuits Protected 1 30 A Power Sliding Door (EX and EX-L models) 2 40 A RearA/C 1 20 A Seat Heaters (EX-L model) 2 20 A Rear Entertainment system (EX-L model)
Login or Register to view this content
Assignment of the fuses in the Engine compartment, primary fuse box (2003, 2004)
No. Amps. Circuits Protected 1 20 A Spare Fuse 2 30 A Spare Fuse 3 15 A Right Headlight 4 15 A ACGS 5 15 A Hazard 6 — Not Used 7 20 A Stop 8 15 A Left Headlight 9 20 A ABS F/S 10 40 A Power Window Motor 11 30 A Power Sliding Door (EX and EX-L models) 12 30 A Rear Defroster 13 40 A Back Up, ACC 14 40 A Power Seat (EX and EX-L models) 15 40 A Heater Motor 16 30 A Cooling Fan 17 7.5 A Spare Fuse 18 10 A Spare Fuse 19 15 A Spare Fuse 20 120 A Battery 21 30 A Condenser Fan 22 7.5 A MG Clutch 23 50 A Ignition Switch (IG 1 Main) 24 30 A ABS Motor
Login or Register to view this content

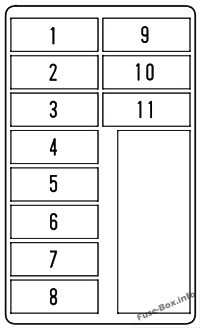

Assignment of the fuses in the Engine compartment, secondary fuse box (2003, 2004)
No. Amps. Circuits Protected 1 20 A Rear Entertaiment system (EX-L model) 2-7 — Not Used 8 20 A Seat Heaters (EX-L model) 9 30 A Driver’s Power Window 10 40 A RearA/C 11 20 A Power Sliding Door (EX and EX-L model)
