Honda Odyssey Fuse Box Locations and Diagrams (2011-2017)

Fuse box information about the Honda Odyssey (2011–2017), fourth-generation (Model Code: RL5). Here you will find fuse box diagrams of Honda Odyssey 2011, 2012, 2013, 2014, 2015, 2016 and 2017, get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout).

Passenger compartment

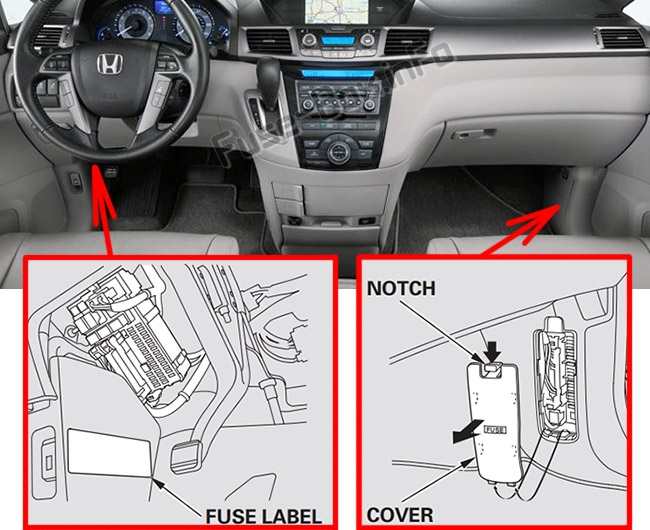

Fuse box location

The driver’s side interior fuse box is under the dashboard on the driver’s side.
The passenger’s side interior fuse box is under the dashboard (Push down the tab and slide the cover upward to remove it).

Fuse box diagram

2011, 2012, 2013

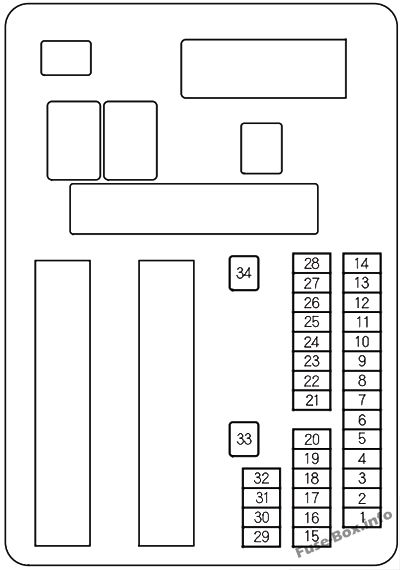

Driver’s side

Assignment of the fuses in the Passenger compartment, driver’s side (2011, 2012, 2013)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps.	Circuits Protected
1	7.5 A	Door Lock Motor 1 (Lock)
2	7.5 A	Door Lock Motor 2 (Lock)
3	7.5 A	Driver’s Door Lock Motor (Lock)
4	7.5 A	Door Lock Motor 1 (Unlock)
5	7.5 A	Door Lock Motor 2 (Unlock)
6	7.5 A	Driver’s Door Unlock
7	20 A	Door Lock Main
8	—	Not Used
9	20 A	Driver’s Side Power Slide Door Closer (If equipped)
10	15 A	Rear Fuse Box
11	7.5 A	Meter
12	20 A	Primary Under-hood Fuse Box
13	7.5 A	Accessory
14	7.5 A	STS
15	20 A	Driver’s Power Seat Sliding
16	20 A	Moonroof (If equipped)
17	20 A	Rear Left Power Window
18	—	—
19	20 A	Driver’s Power Window
20	—	—
21	20 A	Fuel Pump
22	15 A	Passenger’s Side Fuse Box
23	7.5 A	VSA
24	7.5 A	ACG AS
25	7.5 A	STRLD
26	7.5 A	HAC
27	7.5 A	DRL
28	7.5 A	ACC Key Lock
29	7.5 A	Driver’s Power Seat (If equipped), Lumbar Support
30	7.5 A	TPMS
31	—	—
32	20 A	Driver’s Power Seat Reclining
33	40 A	Driver’s Side Power Slide Door Motor (If equipped)
34	—	—

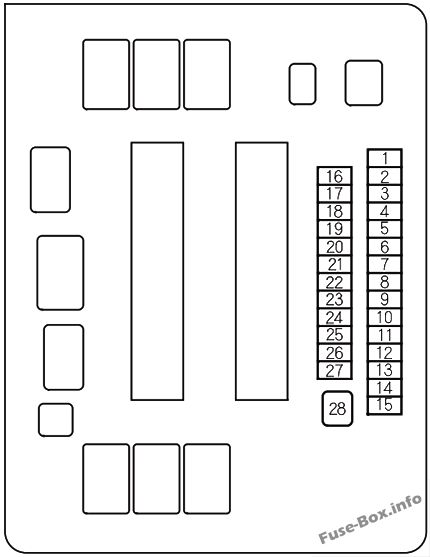

Passenger’s side

Assignment of the fuses in the Passenger compartment, passenger’s side (2011, 2012, 2013)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps.	Circuits Protected
1	30 A	Premium Amp (If equipped)
2	20 A	Rear Right Power Window
3	10 A	ACM
4	—	—
5	20 A	Seat Heaters (If equipped)
6	—	—
7	20 A	Front Passenger’s Power Seat Sliding (If equipped)
8	20 A	Front Passenger’s Power Seat Reclining (If equipped)
9	—	—
10	—	—
11	—	—
12	—	—
13	20 A	Passenger’s Side Power Slide Door Closer (If equipped)
14	15 A	Rear Accessory Power Socket
15	15 A	Front Accessory Power Socket (If equipped)
16	—	—
17	—	—
18	20 A	Front Passenger’s Power Window
19	10 A	SRS
20	7.5 A	ECU AS
21	7.5 A	Auto Leveling Headlight (If equipped)
22	—	—
23	7.5 A	OPDS
24	—	—
25	7.5 A	Instrument Panel Illumination
26	—	—
27	15 A	Front Accessory Power Socket
28	—	—

2014, 2015, 2016, 2017

Driver’s side

Assignment of the fuses in the Passenger compartment, driver’s side (2014, 2015, 2016, 2017)

Fuse Data

Full access is available to registered users — log in or register.

№	Circuit Protected	Amps
1	Front Passenger’s Door Lock	7.5 A
2	Rear Passenger’s Door Lock	7.5 A
3	Driver’s Door Lock	7.5 A
4	Front Passenger’s Door Unlock	7.5 A
5	Rear Passenger’s Door Unlock	7.5 A
6	Driver’s Door Unlock	7.5 A
7	Door Lock Main	20 A
8	FI AC Option (optional)	10 A
9	Driver’s Side Power Sliding Door Closer (optional)	(20 A)
10	Rear Fuse Box	15 A
11	Meter	7.5 A
12	Engine Compartment Fuse Box (Passenger Side)	20 A
13	Accessory	7.5 A
14	STS (optional)	7.5 A
15	Driver’s Power Seat Sliding	20 A
16	Moonroof (optional)	(20 A)
17	Rear Driver’s Side Power Window	20 A
18	Smart Entry System (optional)	(10 A)
19	Driver’s Power Window	20 A
20	–	–
21	Fuel Pump	20 A
22	Passenger Side Fuse Box	15 A
23	VSA	7.5 A
24	ACG AS	7.5 A
25	STRLD	7.5 A
26	HAC	7.5 A
27	DRL	(7.5 A)
28	ACC Key Lock	7.5 A
29	Driver’s Power Seat Lumbar Support (optional)	(7.5 A)
30	TPMS	7.5 A
31	–	–
32	Driver’s Power Seat Reclining	20 A
33	Driver’s Side Power Sliding Door Motor (optional)	(40 A)
34	–	–

Passenger’s side

Assignment of the fuses in the Passenger compartment, passenger’s side (2014, 2015, 2016, 2017)

Fuse Data

Full access is available to registered users — log in or register.

№	Circuit Protected	Amps
1	Premium Amp (optional)	(30 A)
2	Rear Passenger’s Side Power Window	20 A
3	ACM	10 A
4	–	–
5	Seat Heaters (optional)	(15 A)
6	–	–
7	Front Passenger’s Power Seat Sliding	(20 A)
8	Front Passenger’s Power Seat Reclining	(20 A)
9	–	–
10	–	–
11	–	–
12	–	–
13	Passenger’s Side Power Sliding Door Closer (optional)	(20 A)
14	Rear Accessory Power Socket	15 A
15	–	–
16	–	–
17	–	–
18	Front Passenger’s Power Window	20 A
19	SRS	10 A
20	ECU AS	7.5 A
21	Headlight Adjuster (optional)	(7.5 A)
22	–	–
23	OPDS (optional)	(7.5 A)
24	OPDS (optional)	(7.5 A)
25	Illumination (Interior)	7.5 A
26	–	–
27	Front Accessory Power Socket	15 A
28	–	–

Luggage compartment

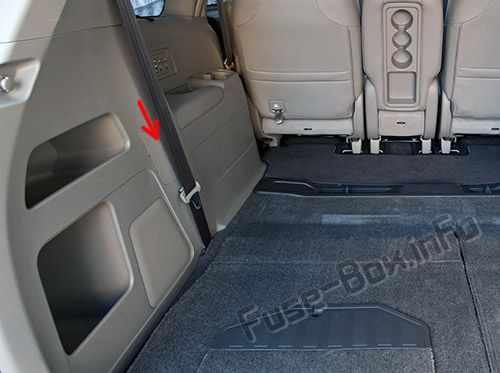

Fuse box location

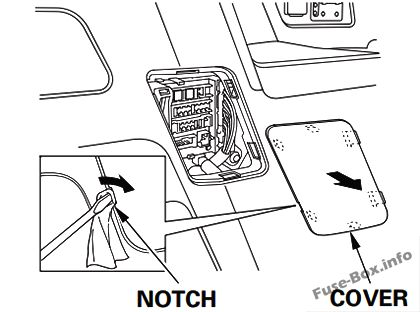

The rear fuse box is located at the left side of the cargo area.

Place a cloth on the edge of the cover to prevent scratches, then remove it by carefully prying in the notch on its middle edge with a small flat-tip screwdriver.

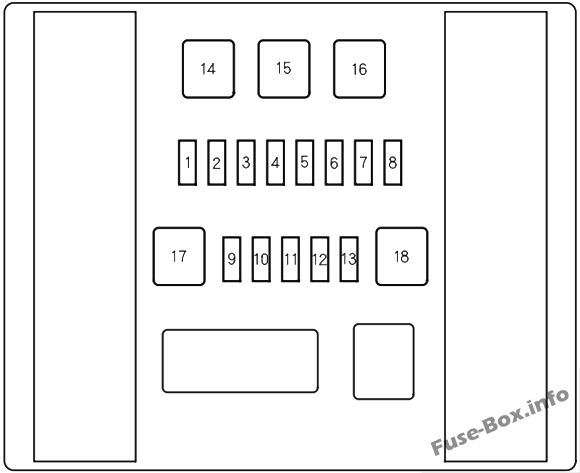

Fuse box diagram

2011, 2012, 2013

Assignment of the fuses in the Rear fuse box (2011, 2012, 2013)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps.	Circuits Protected
1	20 A	Power Tailgate Closer (If equipped)
2	—	Not Used
3	—	—
4	10 A	Tailgate (If equipped)
5	7.5 A	Rear Left Door Lock
6	—	—
7	—	—
8	—	Not Used
9	—	Not Used
10	—	Not Used
11	—	Not Used
12	10 A	Rear Wiper
13	7.5 A	ECU RR
14	40 A	Power Tailgate Motor (If equipped)
15	30 A	AC Inverter (If equipped)
16	—	—
17	—	—
18	—	—

2014, 2015, 2016, 2017

Assignment of the fuses in the Rear fuse box (2014, 2015, 2016, 2017)

Fuse Data

Full access is available to registered users — log in or register.

№	Circuit Protected	Amps
1	Power Tailgate Closer (optional)	(20 A)
2	Trailer Small Light (optional)	(7.5 A)
3	–	–
4	Tailgate (optional)	(10 A)
5	Rear Driver’s Side Door Lock	7.5 A
6	–	–
7	–	–
8	Trailer (optional)	(10 A)
9	Trailer Charge (optional)	(20 A)
10	Trailer Back Light (optional)	(7.5 A)
11	Trailer Hazard (optional)	(7.5 A)
12	Rear Wiper	10 A
13	ECU RR	7.5 A
14	Power Tailgate Motor (optional)	(40 A)
15	AC Inverter (optional)	(30 A)
16	–	–
17	–	–
18	–	–

Engine compartment

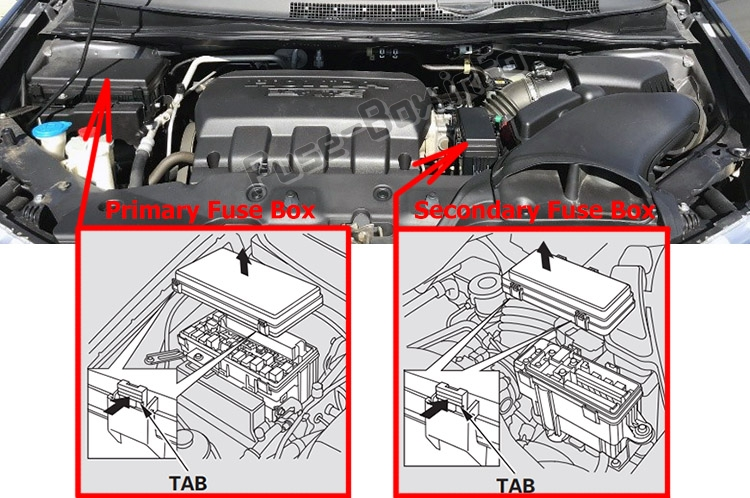

Fuse box location

The primary under-hood fuse box is located on the passenger’s side, near the windshield washer reservoir.
The secondary fuse box is located next to the battery.

Fuse box diagram

2011, 2012, 2013

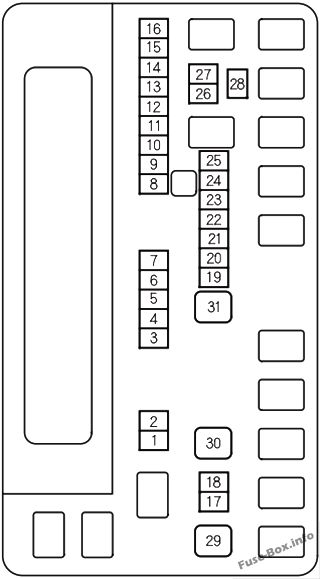

Primary fuse box

*Сan differ in models for different markets*

Assignment of the fuses in the Engine compartment, primary fuse box (2011, 2012, 2013)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps.	Circuits Protected
1	—	—
2	—	—
3	15 A	ACG FR
4	15 A	Washer
5	7.5 A	VBSOL
6	7.5 A	ECU FR
7	—	—
8	15 A	FI Sub
9	15 A	DBW
10	15 A	FI Main
11	15 A	Ignition Coil
12	—	—
13	7.5 A	FI ECU (Not available on all models)
14	—	—
15	20 A	Radio
16	10 A	Back Up
17	7.5 A	MG Clutch
18	20 A	Front Fog Lights (If equipped)
19	—	—
20	10 A	Right Headlight High Beam
21	—	—
22	10 A	Small Lights
23	—	—
24	10 A	Left Headlight High Beam
25	—	—
26	15 A	Right Headlight Low Beam
27	15 A	Left Headlight Low Beam
28	7.5 A	IGPS Oil Level
29	30 A	Cooling Fan
30	30 A	Sub Fan
31	30 A	Wiper Main

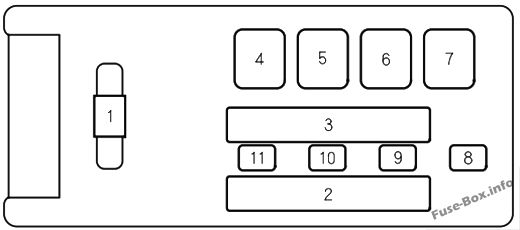

Secondary fuse box

Assignment of the fuses in the Engine compartment, secondary fuse box (2011, 2012, 2013)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps.	Circuits Protected
1	125 A	Battery
2-1	60 A	Fan Main
2-2	50 A	Passenger’s Side Fuse Box 2
2-3	30 A	Rear Blower
2-4	30 A	FI Main
2-5	40 A	VSA Motor
2-6	30 A	Stop & Horn, Hazard
2-7	30 A	VSA FSR
2-8	30 A	Battery Management System Main
3-1	50 A	Driver’s Side Fuse Box 2
3-2	50 A	IG1 Main
3-3	60 A	Rear Fuse Box 1
3-4	50 A	Passenger’s Side Fuse Box 1
3-5	50 A	Driver’s Side Fuse Box 1
3-6	60 A	Primary Under-hood Fuse Box Main
3-7	40 A	Front Blower
3-8	40 A	Passenger’s Side Power Slide Door Motor (If equipped)
4	—	—
5	—	—
6	40 A	Rear Window Defogger
7	—	—
8	7.5 A	Battery Management System
9	20 A	Stop & Horn
10	15 A	Hazard
11	7.5 A	Interior Lights

2014, 2015, 2016, 2017

Primary fuse box

Assignment of the fuses in the Engine compartment, primary fuse box (2014, 2015, 2016, 2017)

Fuse Data

Full access is available to registered users — log in or register.

№	Circuit Protected	Amps
1	–	–
2	–	–
3	ACG FR	15 A
4	Washer	15 A
5	VB SOL	7.5 A
6	ECU FR	7.5 A
7	–	–
8	FI Sub	15 A
9	DBW	15 A
10	FI Main	15 A
11	Ignition Coil	15 A
12	–	–
13	–	–
14	–	–
15	Radio	20 A
16	Back Up	10 A
17	MG Clutch	7.5 A
18	Front Fog Lights (optional)	(20 A)
19	–	–
20	Right Headlight High Beam	10 A
21	–	–
22	Small Lights	10 A
23	–	–
24	Left Headlight High Beam	10 A
25	–	–
26	Right Headlight Low Beam	15 A
27	Left Headlight Low Beam	15 A
28	Oil Level	7.5 A
29	Main Fan	30 A
30	Sub Fan	30 A
31	Wiper Main	30 A

Secondary fuse box

Assignment of the fuses in the Engine compartment, secondary fuse box (2014, 2015, 2016, 2017)

Fuse Data

Full access is available to registered users — log in or register.

№	Circuit Protected	Amps
1	Main Fuse	125 A
2-1	Fan Main	60 A
2-2	Passenger Side Fuse Box 2	50 A
2-3	HondaVAC (optional)	(60 A)
2-4	Interior Light, FI Main	30 A
2-5	Stop & Horn, Hazard	30 A
2-6	Rear Blower, Battery Management System	30 A
2-7	VSA FSR	30 A
2-8	VSA Motor	40 A
3-1	Driver Side Fuse Box 2	50 A
3-2	IG1 Main (Models without smart entry system)	50 A
3-2	Starter Motor (Models with smart entry system)	40 A
3-3	Rear Fuse Box 1	60 A
3-4	Passenger Side Fuse Box 1	50 A
3-5	Driver Side Fuse Box 1	50 A
3-6	Engine Compartment Fuse Box (Passenger Side) Main	60 A
3-7	Passenger’s Side Power Sliding Door Motor (optional)	(40 A)
3-8	Front Blower	40 A
4	Rear Defroster	40 A
5	–	–
6	IG Main 2 (optional)	30 A
7	IG Main 1 (optional)	30 A
8	Battery Management System	7.5 A
9	Stop & Horn	20 A
10	Hazard	15 A
11	Interior Lights	7.5 A

FAQ

What are the cigar lighter (power outlet) fuses in the Honda Odyssey?

Fuses #14 (rear accessory power socket), #15 (front accessory power socket, if equipped), and #27 (front accessory power socket) in the instrument panel fuse box on the passenger’s side.
