Honda Odyssey Fuse Box Locations and Diagrams (2018-2025)

Fuse box information about the Honda Odyssey (2018–2025), fifth-generation (Model Code: RL6). Here you will find fuse box diagrams of Honda Odyssey 2018, 2019, 2020, 2021, 2022, 2023, 2024 and 2025, get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout).

Fuse box locations

Passenger compartment

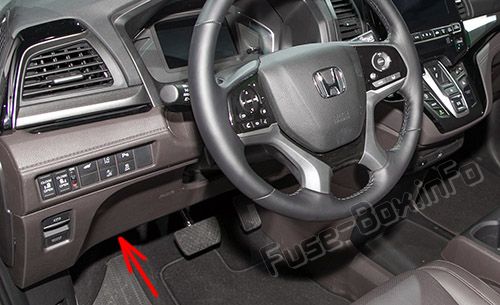

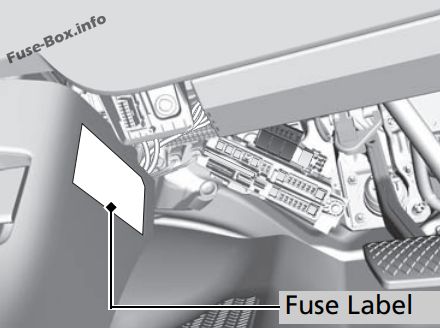

The interior fuse boxes are located under the dashboard on the driver’s side.
Fuse locations are shown on the label on the side panel.

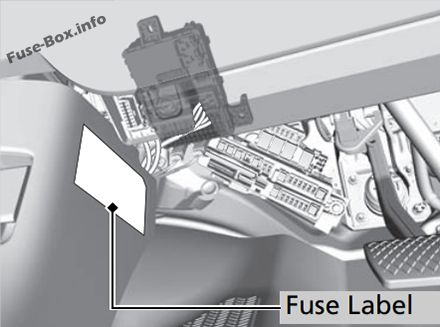

Fuse box (A)

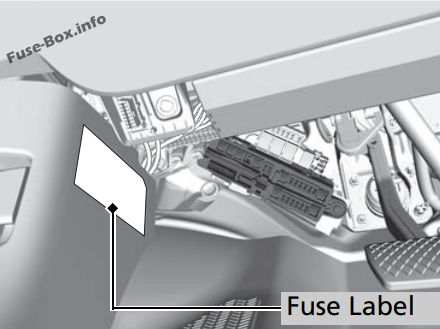

Fuse box (B)

Fuse box (C) (Not available on all models)

Luggage compartment

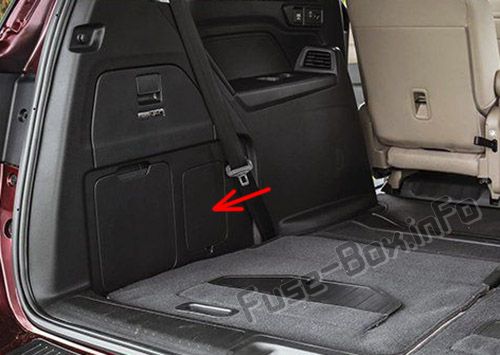

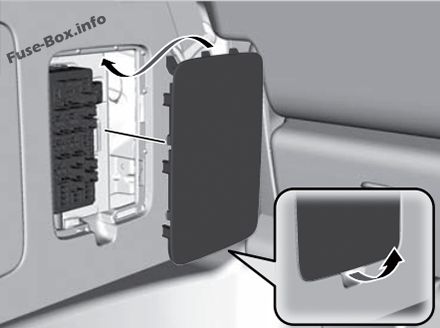

Located on the left side of the cargo area.

The location of the fuses in the trunk: Honda Odyssey (2018, 2019-...)

Fuse locations are shown on the fuse box cover.

Engine compartment

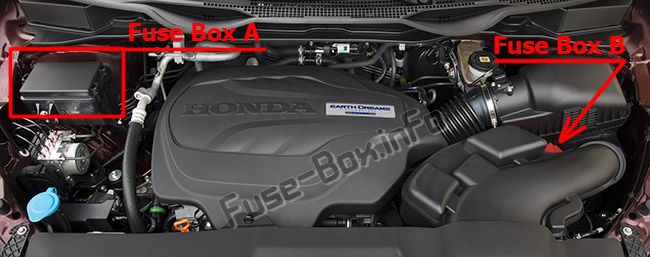

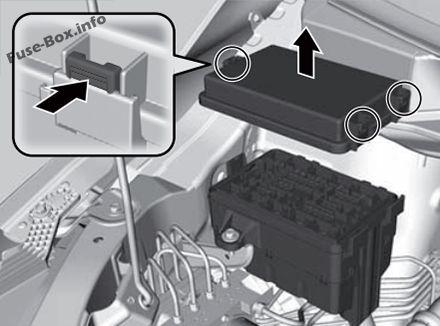

Fuse box (A)

Located at the rear end of the engine compartment on the right side.

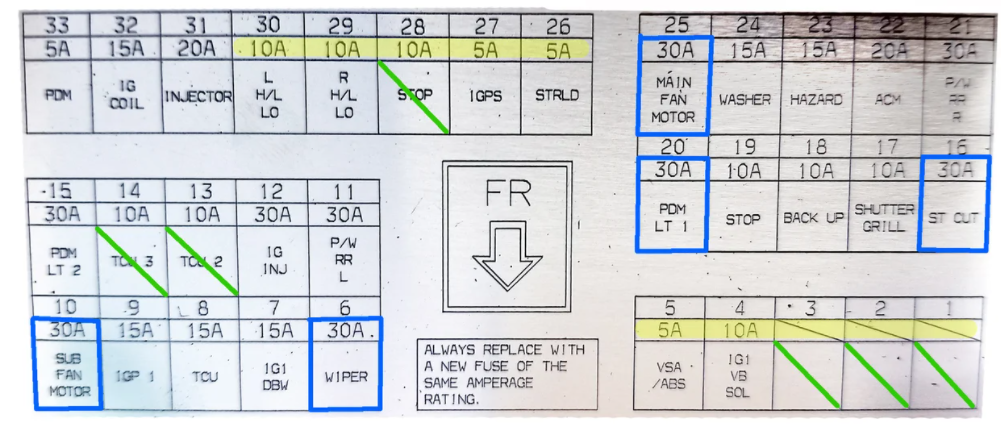

Fuse locations are shown on the fuse box cover.

Fuse box (B)

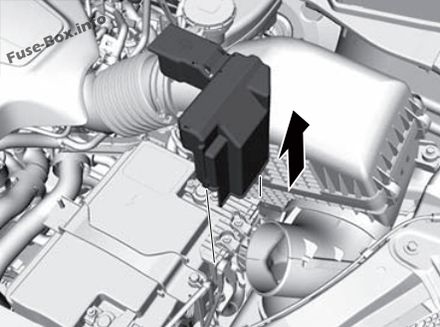

The secondary fuse box is located on the battery.
Remove the engine compartment cover and the air intake duct, remove the cover on the + terminal.

Fuse box diagrams

Passenger compartment

Fuse box (A)

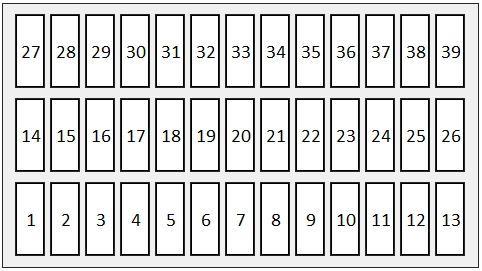

Assignment of the fuses in the Passenger compartment, Fuse box A

№	Circuit Protected	Amps
1	Meter	10 A
2	Starter Motor (optional)	(10 A)
3	Option	10 A
4	—	—
5	—	—
6	Moonroof (optional)	(20 A)
7	—	—
8	Rear Fuse Box	10 A
9	IG1 Front	15 A
10	Rear Passenger’s Door Lock	10 A
11	Driver’s Door Lock	10 A
12	Front Passenger’s Door Lock	10 A
13	Front Passenger’s Door Unlock	10 A
14	Driver’s Door Unlock	(10 A)
15	Rear Wiper	10 A
16	SMART	10 A
17	Driver’s Power Seat Reclining	20 A
18	Heated Steering Wheel (optional)	(10 A)
19	Front Passenger’s Power Seat Reclining	20 A
20	SRS	10 A
21	Fuel Pump	20 A
22	Front Accessory Power Socket	20 A
23	Left Headlight High Beam	10 A
24	Right Headlight High Beam	10 A
25	Driver’s Power Window	20 A
26	Rear Passenger’s Door Unlock	10 A
27	ACC	10 A
28	SRS2	10 A
29	Driver’s Power Seat Lumbar Support (optional)	(10 A)
30	Front Passenger’s Power Seat Sliding	20 A
31	Driver’s Power Seat Sliding	20 A
32	Tailgate Lock (optional)	(10 A)
33	—	—
34	ACG	15 A
35	DRL	10 A
36	A/C	10 A
37	Radio	20 A (Models with color audio system) 15 A (Models without color audio system)
38	Door Lock Main	20 A
39	Front Passenger’s Power Window	20 A

Fuse box (B)

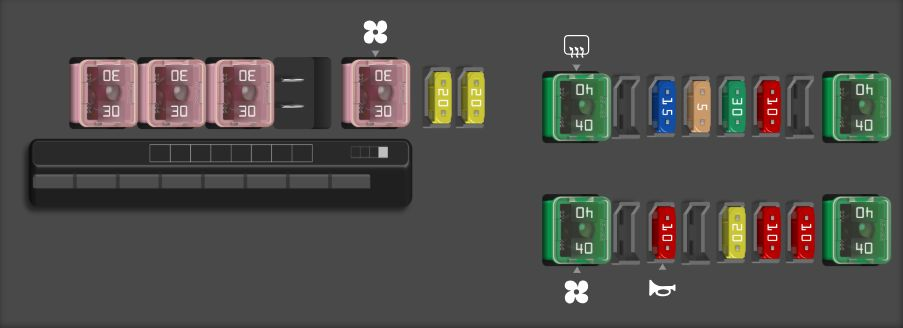

Assignment of the fuses in the Passenger compartment, Fuse box B

№	Circuit Protected	Amps
1	DC/DC2	(30 A)
1	DC/DC1	(30 A)
1	—	—
1	Fuse Box Main1	50 A
1	Fuse Box Main2	50 A
1	Rear Fuse Box Main1	50 A
1	Rear Fuse Box Main2	50 A
1	Vacuum (optional)	(60 A)
2	IG Mainl	30 A
3	AC Outlet	(30 A)
4	IG Main2	30 A
5	—	—
6	Rear Blower	30 A
7	Audio Amp2 (optional)	(20 A)
8	Audio Amp1 (optional)	(20 A)
9	Rear Defogger	40 A
10	—	—
11	Heated Windshield (optional)	(15 A)
12	BMS	5 A
13	Audio Amp3 (optional)	(30 A)
14	—	—
15	—	—
16	VSA Motor	40 A
17	Front Blower	40 A
18	—	—
19	Horn	10 A
20	—	—
21	3rd Row Accessory Power Socket (optional)	(20 A)
22	Shift By Wire	10 A
23	VBUM	10 A
24	VSA	40 A

Fuse box (C)

Assignment of the fuses in the Passenger compartment, Fuse box C

№	Circuit Protected	Amps
a	Meter	(10 A)
b	VSA	(10 A)
c	ACG	(10 A)
d	Body Control Module	(10 A)
e	—	—
f	Back Up	(10 A)
g	ACC	(10 A)

Luggage compartment

Assignment of the fuses in the luggage compartment fuse box

№	Circuit Protected	Amps
1	Rear Driver’s Side Door Lock	10 A
2	Passenger’s Side Power Sliding Door Closer (optional)	(20 A)
3	Power Tailgate Closer Motor (optional)	(20 A)
4	Cargo Area’s Accessory Power Socket	20 A
5	Fuel Fill Door	10 A
6	—	—
7	Driver’s Side Power Sliding Door Closer (optional)	(20 A)
8	—	—
9	—	—
10	—	—
11	—	—
12	—	—
13	—	—
14	Passenger’s Side Power Sliding Door Motor (optional)	(30 A)
15	—	—
16	Power Tailgate Motor (optional)	(40 A)
17	—	—
18	—	—
19	Driver’s Side Power Sliding Door Motor (optional)	(30 A)

Engine compartment

Fuse box (A)

Assignment of the fuses in the Engine compartment, Fuse box A

№	Circuit Protected	Amps
1	—	—
2	—	—
3	—	—
4	IG1 VB SOL	10 A
5	VSA/ABS	5 A
6	Wiper	30 A
7	IG1 DBW	15 A
8	TCU	15 A
9	IGP1	15 A
10	Sub Fan Motor	30 A
11	Rear Driver’s Side Power Window	30 A
12	Ignition Coil/lnjector	30 A
13	TCU 2	10 A
14	TCU 3	10 A
15	PDM LT2	30 A
16	ST CUT	30 A
17	Shutter Grill	10 A
18	Back Up	10 A
19	Stop	10 A
20	PDM LT1	30 A
21	Rear Passenger’s Side Power Window	30 A
22	ACM	20 A
23	Hazard	15 A
24	Washer	15 A
25	Main Fan Motor	30 A
26	STRLD	5 A
27	IGPS	5 A
28	Stop	10 A
29	Right Headlight Low Beam	10 A
30	Left Headlight Low Beam	10 A
31	Injector	20 A
32	Ignition Coil	15 A
33	FET Module	5 A

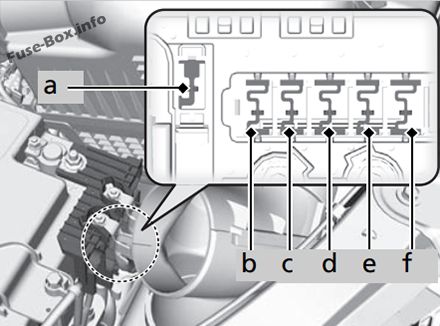

Fuse box (B)

Assignment of the fuses in the Engine compartment, Fuse box B

№	Circuit Protected	Amps
a	Battery Main	150 A
b	FET	70 A
c	R/B Main 1	70 A
d	R/B Main 2	70 A
e	EPS	70 A
t	VAC	60 A

FAQ

What are the cigar lighter (power outlet) fuses in the Honda Odyssey?

Fuse #22 (front accessory power socket) in instrument panel fuse box A, fuse #21 (3rd-row accessory power socket) in instrument panel fuse box B, and fuse #4 (cargo area accessory power socket) in the rear fuse box.
