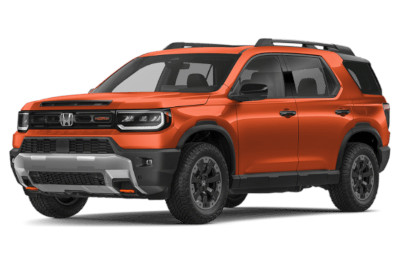

The fourth-generation Honda Passport (Model Code: YF9 ) enters production from 2025 , continuing Honda’s tradition of blending rugged SUV capability with modern comfort and advanced technology. With bold styling, improved safety systems, and refined performance, the latest Passport is designed to serve both adventurous lifestyles and everyday driving needs.
In this article, you will find fuse box diagrams for the Honda Passport, covering the model year 2026. These diagrams are essential for identifying the fuse layout, helping owners and technicians locate, check, and replace fuses and relays efficiently.
What’s Included:
Fuse Box Diagrams – Detailed layouts showing the arrangement of fuses and relays.Fuse Panel Locations – Guidance on where to find fuse panels inside the vehicle.Fuse Assignments – Clear explanations of each fuse and relay function for accurate troubleshooting.
Whether you’re replacing a blown fuse or addressing an electrical issue , this guide helps ensure your Honda Passport (2026) continues to deliver reliable performance and confidence on every journey.

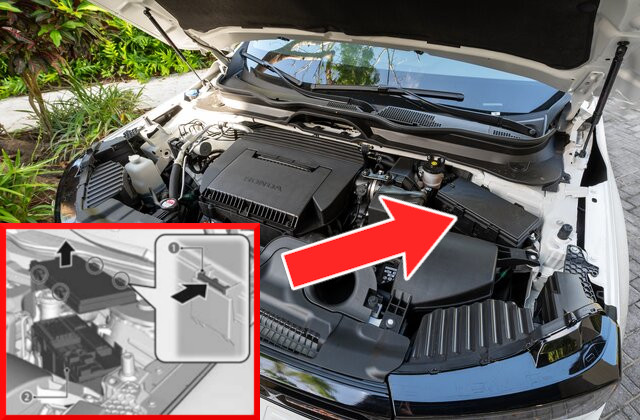

Located at the engine compartment on the driver’s side. Push the tabs to open the box.

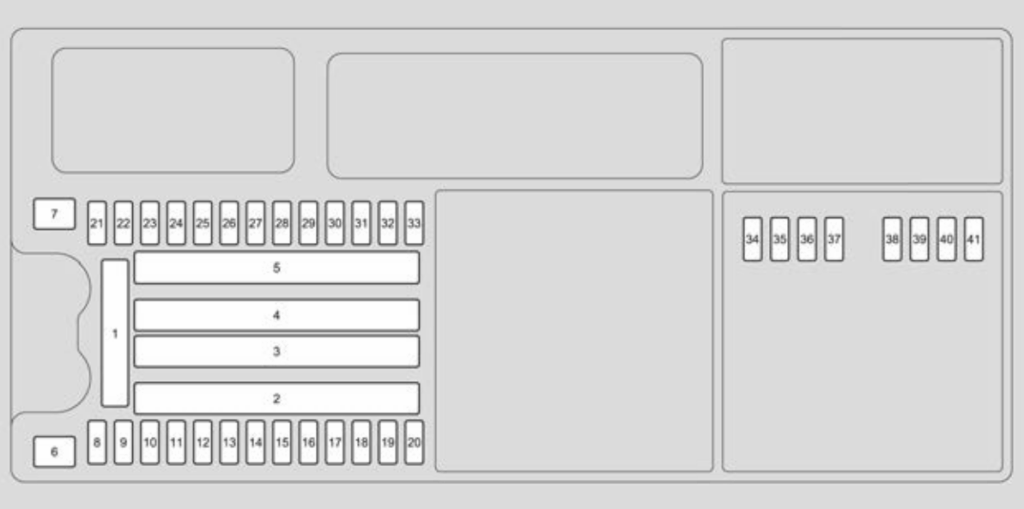

Assignment of the fuses in the Engine compartment
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps Circuits Protected 1 225A BATTERY 2-1 30A IDLE STOP 1 2-2 30A IDLE STOP 2 2-3 80A EPS 2-4 70A FET MAIN 1 2-5 60A FUSE BOX MAIN 1 2-6 60A FUSE BOX OP 1 2-7 30A RR BLOWER 3-1 30A ACM 3-2 30A STARTER CUT 3-3 – – 3-4 40A RAD FAN 1 3-5 40A ACC SOCKET MAIN 3-6 40A RR DEF 3-7 60A FUSE BOX OP 2 4-1 40A EBB 4-2 40A PTG 4-3 – – 4-4 40A HEATER MTR 4-5 40A ABS/VSA FSR 4-6 30A AC INVERT* 4-7 60A FUSE BOX MAIN 2 5-1 30A FET MAIN 2 5-2 40A ABS/VSA MOTOR 5-3 30A IG MAIN 2 5-4 30A SRM 2 5-5 30A SRM 1 5-6 30A 4WD 5-7 30A IG MAIN 1 6 40A RAD FAN 2 7 30A WIPER MOTOR 8 20A PTG 9 20A ICB SUB* 10 10A RFC RELAY 11 10A BACK UP 12 20A Trailer Battery* 13 20A Trailer Electric Brake* 14 15A HORN 15 10A Trailer Backup Lamps* 16 10A VBU 17 – – 18 30A Trailer Parking Lamps* 19 20A FI MAIN 20 20A INJ 21 15A TCU 1 22 15A IG COIL 23 10A HAZARD 24 15A R H/L 25 5A STOP 26 15A L H/L 27 10A TCU 3 28 10A TCU 2 29 – – 30 10A Trailer Stop/Turn Lamps* 31 15A FR WASHER 32 10A BATT SNSR 33 10A SHUTTER GRILLE 34 5A IG1 START 35 5A BATT FAN 36 5A FI ECU 37 – – 38 5A IG1 PCS 39 10A IGPS VSSV 40 – – 41 – –
* : Not available on all models
This content requires JavaScript and a valid membership to view.

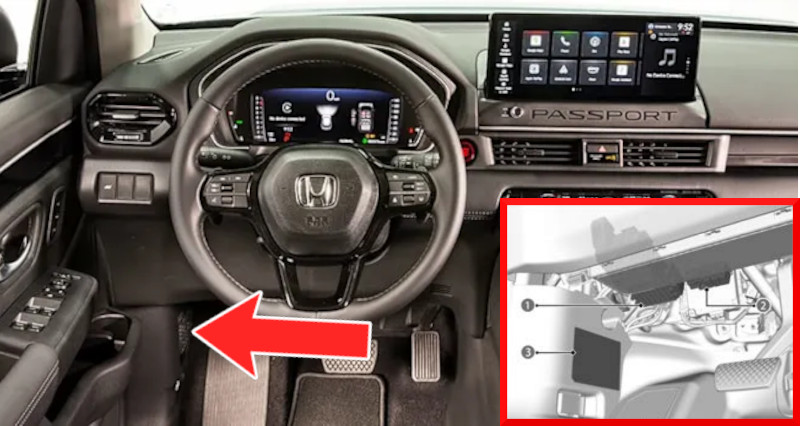

Located under the dashboard.

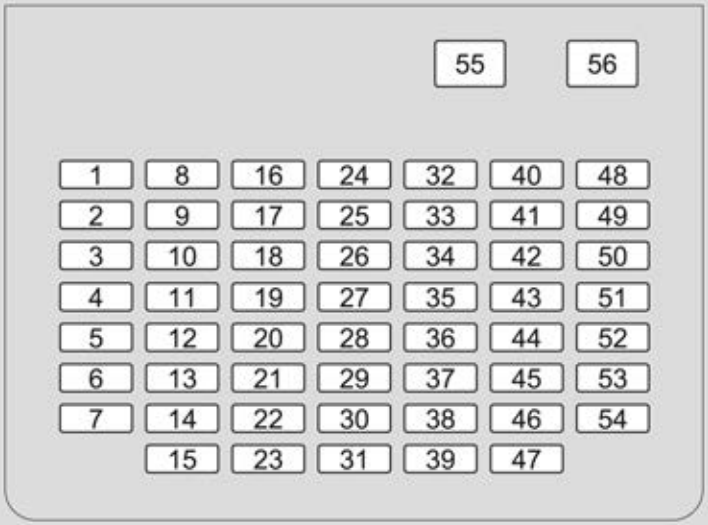

Assignment of the fuses in the Passenger compartment, Driver’s Side (Main fuse box)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps Circuits Protected 1 30A DRIVER POWER WINDOW 2 30A PASSENGER POWER WINDOW 3 30A REAR R POWER WINDOW 4 30A REAR L POWER WINDOW 5 10A OPTION 6 10A SRS 7 – – 8 – – 9 20A REAR ACCESSORY* 10 20A DOOR LOCK MAIN 11 10A METER 12 10A TRANSMISSION 13 10A REAR WIPER 14 – – 15 10A DRIVER DOOR UNLOCK 16 20A SUNROOF* 17 – – 18 20A HAC ACCESSORY* 19 10A ALL WHEEL DRIVE 20 10A DISPLAY 21 – – 22 10A SMART ENTRY 23 10A DRIVER DOOR LOCK 24 – – 25 10A SHIFTER 26 10A SRS 27 15A ACG 28 10A VSA/ABS 29 20A FUEL PUMP 30 10A LEFT DOOR UNLOCK 31 10A RIGHT DOOR UNLOCK 32 20A SUNSHADE* 33 10A CGW 34 – – 35 10A FRONT USB CHARGE 36 10A REAR USB CHARGE 37 – – 38 – – 39 10A RIGHT DOOR LOCK 40 20A DRIVER SEAT SLIDE 41 20A DRIVER SEAT RECLINE 42 10A STARTER 43 10A AIRCON 44 10A DRL 45 10A ACCESSORY 46 – – 47 10A LEFT DOOR LOCK 48 – – 49 20A PASSENGER SEAT SLIDE 50 10A DRIVER SEAT LUMBAR 51 – – 52 – – 53 20A PASSENGER SEAT RECLINE 54 – – 55 30A AUDIO AMP* 56 – –
* : Not available on all models
This content requires JavaScript and a valid membership to view.

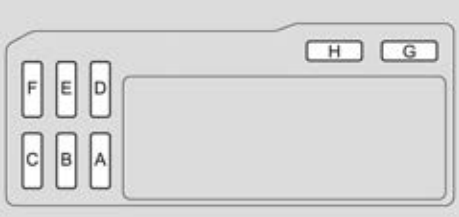

Assignment of the fuses in the Passenger compartment, Driver’s Side (Sub fuse box)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps Circuits Protected A 10A OPTION B 10A ACCESSORY C 15A AUDIO D 10A MVC* E 20A AUDIO F – – G 15A METER H 10A MICU
* : Not available on all models
This content requires JavaScript and a valid membership to view.

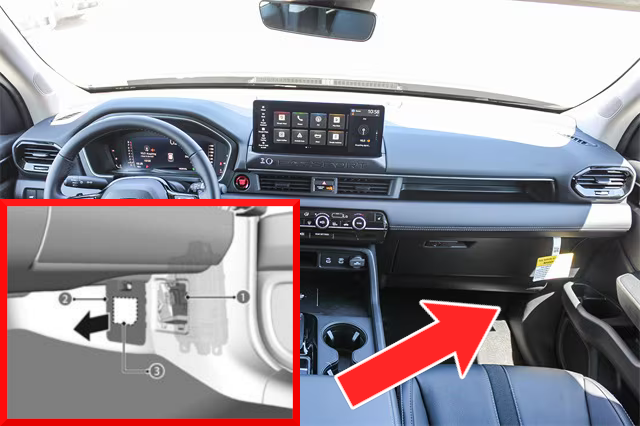

Located on the lower side panel. Take off the cover to open.

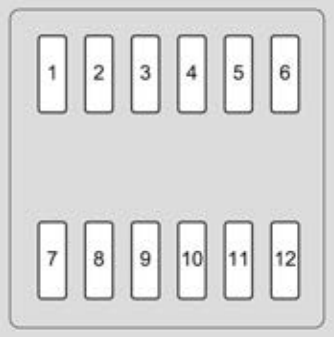

1. Fuse Box Assignment of the fuses in the Passenger compartment, Passenger’s Side
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps Circuits Protected 1 – – 2 10A A/C COMPRESSOR 3 10A HEATED STEERING WHEEL* 4 15A FR DEICER* 5 10A FRONT FOG LIGHTS* 6 15A FI SUB 7 20A FRONT HEATED SEAT 8 – – 9 – – 10 20A REAR HEATED SEAT* 11 – – 12 20A FRONT ACC SOCKET
* : Not available on all models
