Jeep Gladiator (2020-2026)

Explore Jeep Gladiator fuse box diagrams in this straightforward guide designed to help you understand the JT model’s electrical layout without any confusion. Here we look at the Jeep Gladiator (2020–present) (Model Code: JT) and provide fuse diagrams for 2020, 2021, 2022, 2023, 2024, 2025 and 2026, along with the location of the fuse panels and the assignment of each fuse, giving you the essential information in one place.

Engine compartment

Fuse box location

The Power Distribution Center is located in the engine compartment near the battery.

Gasoline:

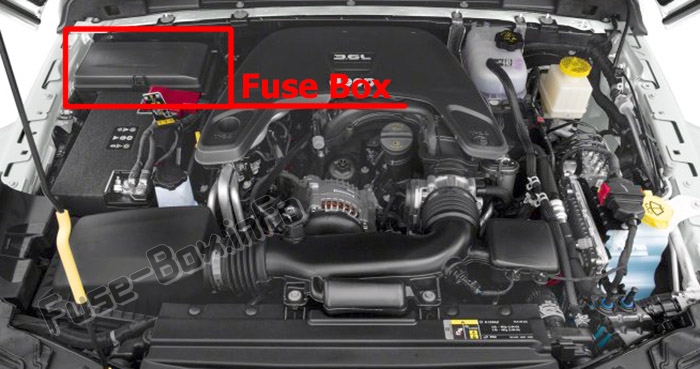

The location of the fuses in the engine compartment: Jeep Gladiator (2020-...)

Diesel:

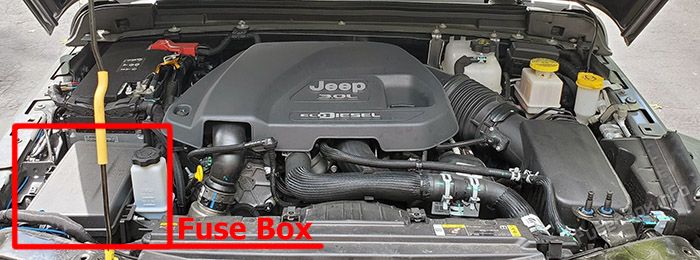

The location of the fuses in the engine compartment (diesel): Jeep Gladiator (2020-...)

Fuse box diagram

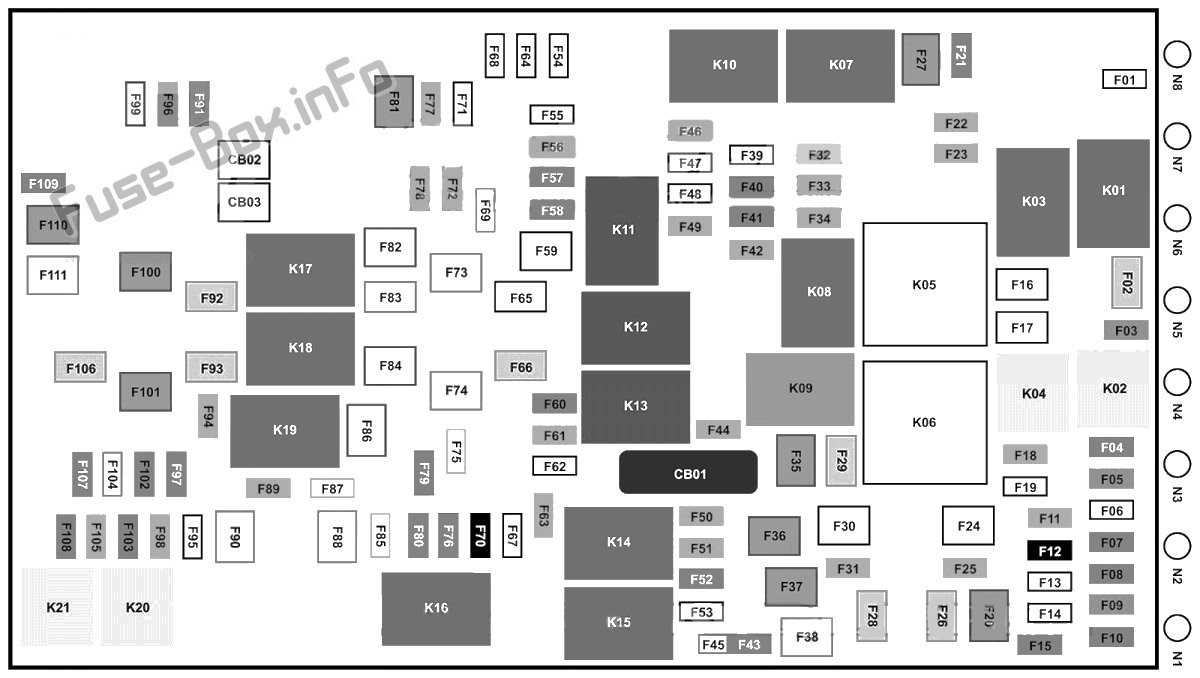

Under-hood fuse box diagram: Jeep Gladiator (2020-...)

Assignment of the fuses in the Power Distribution Center

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№Amp RatingDescription
F01–Spare
F0240 Amp GreenStarter
F035 Amp TanIntelligent Battery Sensor (IBS)
F0420 Amp YellowFuel Pump MTR/FPCM
F055 Amp TanSecurity Gateway
F06–Spare
F07–Spare
F0815 Amp BlueTrans Control Module TCM-8HP CYGNUS
F09–Spare
F1015 Amp BlueKey Ignition Node (KIN)/Radio Frequency Hub (RF HUB)/Electric Steering Column Lock (ESCL)
F1110 Amp RedUCI Port (USB & AUX)
F1225 Amp ClearHIFI Amplifier
F13–Spare
F14–Spare
F1515 Amp BlueInstrument Panel Cluster (IPC)/ Switch Bank-Heavy Duty Electrical Pkg (SWITCH BANK-HDELEC)
F16–Spare
F17–Spare
F1810 Amp RedAir Conditioning Clutch (AC CLUTCH)
F19–Spare
F2030 Amp PinkCentral Body Controller (CBC) 1-INTERIOR LIGHTS
F21–Spare
F2210 Amp RedEngine Control Module (ECM)/Powertrain Control Module (PCM)
F2310 Amp RedPowertrain Control Module (PCM)/Engine Control Module (ECM)
F24–Spare
F2510 Amp RedModule Shift By Wire (MOD.SBW)
F2640 Amp GreenCentral Body Controller (CBC) 2-EXTERIOR LIGHTS #1
F2730 Amp PinkFront Wipers
F2840 Amp GreenCentral Body Controller (CBC) 3-POWER LOCKS
F2940 Amp GreenCentral Body Controller (CBC) 4-EXTERIOR LIGHTS #2
F30–Spare
F3110 Amp RedDIAGNOSTIC PORT
F3210 Amp RedHeating Ventilation Air Conditioning Mod (HVAC CTRL MOD)/Steering Column Lock (SCL)/Occupant Classification Module (OCM)/ Driver Presence Detection Module (DPDM)
F3310 Amp RedParkTronics System (PTS)/Infrared Camera Module (IRCM)/Airbag Disable Lamps (AIRBAG DISABLE LMPS)
F3410 Amp RedElectronic Stability Control (ESC)/Electric Hydraulic Power Steering (EHPS)/Smart Bar Control Module (SBCM) WAKE UP
F3530 Amp PinkBRAKE VAC PMP – If Equipped
F3630 Amp PinkTRAILER TOW MOD – If Equipped
F3730 Amp PinkTRAILER TOW CONN 7W – If Equipped
F3820 Amp BlueEngine Control Module ECM
F39–Spare
F4015 Amp BlueDrivetrain Control Module (DTCM)/Axle Lock (AXLE LOC) FT_RR
F4115 Amp BlueInstrument Cluster (IC)/Security GateWay (SGW) WAKE UP
F4210 Amp RedPower Control Relay Control Feed (Electric Stop/Start)
F43–Spare
F4410 Amp RedInfrared Camera (IRCAM) HEATERS
F45–Spare
F4610 Amp RedAUTO HDLP LVL MOD/LVL MTR/HDLP SW
F47–Spare
F48–Spare
F4910 Amp RedOccupant Restraint Controller (ORC)
F5010 Amp RedHD ACC – If Equipped
F5110 Amp RedHumidity Light Rain Sensor (HLRS)/Inverter 400W Wake Up/USB/InSide RearView Mirror (ISRVM)/Compass Module (CSGM)
F5220 Amp YellowCigar Lighter
F5310 Amp RedWireless Speaker – If Equipped
F54–Spare
F5510 Amp RedCentral Vision Processing Module (CVPM) or Parktronics Module
F5610 Amp RedIn-Car Temp Sensor/PTC Heater Coil Feed
F5720 Amp YellowFrt Drvr Htd Seat
F5820 Amp YellowFrt Pass Htd Seat
F59–Spare
F6015 Amp BlueComfort Steering Wheel Module (CSWM) (HTD STR WHEEL)
F6110 Amp RedLeft Blind Spot Sensor (LBSS)/Right Blind Spot Sensor (RBSS)
F62–Spare
F6310 Amp RedOccupant Restraint Controller (ORC)
F64–Spare
F6550 Amp RedPower Inverter 400W
F6640 Amp GreenHVAC BLOWER MTR FRT
F67–Spare
F68–Spare
F69–Spare
F7025 Amp ClearINJ/IGN COIL (GAS)/GLO PLUG MOD (DSL)
F71–Spare
F7210 Amp RedHD ELEC ACC PKG – If Equipped
F73–Spare
F74–Spare
F75–Spare
F7620 Amp YellowECM (GAS)/PCM (DSL)
F7710 Amp RedHeated Mirrors
F78–Spare
F7920 Amp YellowSMART BAR CTRL MOD
F8015 Amp BluePowertrain Control Module (PCM)/Solenoid 1 2 Block Shift
F8130 Amp PinkREAR DEFROSTER (EBL)
F8230 Amp PinkFUEL HTR – If Equipped
F8360 Amp YellowGLOW PLUG – If Equipped
F8430 Amp PinkUREA HTR CTRL UNIT – If Equipped
F8510 Amp RedPM SENSOR – If Equipped
F86–Spare
F8710 Amp RedSUPPLY/PURGING PMP – If Equipped
F8820 Amp BlueNOx SENSOR #l/#2 – If Equipped
F8910 Amp RedSteering Column Control Module (SCCM)/ Cruise Control (CRUISE CTL)/Digital TV (DTV)/ Airbag Disable Lamp
F9020 Amp BlueTRAILER TOW PARK LMP – If Equipped
F9120 Amp YellowHorn
F9240 Amp GreenHD ACCY #2 – If Equipped
F9340 Amp GreenHD ACCY #1 – If Equipped
F9410 Amp RedTire Pressure Monitor (TPM)/RF Hub system (CORAX)
F95–Spare
F9610 Amp RedPWR MIRROR SW
F9720 Amp YellowRADIO/TBM
F9810 Amp RedSW BANK-HD ELEC/OFF ROAD
F99–Spare
F10030 Amp PinkESC-ECU & VALVES
F10130 Amp PinkDrivetrain Control Module (DTCM)
F10215 Amp BlueDUAL USB PORT
F10315 Amp BlueHD ACCY #3 – If Equipped
F104–Spare
F10510 Amp RedIntegrated Center Stack (ICS)/Heat Ventilation Air Conditioning (IFVAC)
F10650 Amp RedElectronic Speed Control (ESC)/PUMP MTR
F10720 Amp YellowTRAILER TOW STOP/TURN LT – If Equipped
F10815 Amp BlueHD ACCY #4 – If Equipped
F10920 Amp YellowTRAILER TOW STOP/TURN RT – If Equipped
F11030 Amp Pinkfrom 2022: Power Inverter 150W
F11120 Amp BlueTRAILER TOW BACKUP – If Equipped
