Explore Jeep Wagoneer S fuse box diagrams in this quick guide built to help you understand the electrical layout of Jeep’s all-electric crossover. In this article, we look at the Jeep Wagoneer S (produced from 2024) and provide fuse diagrams for 2024, 2025 and 2026, along with the location of the fuse panels and the assignment of each fuse, giving you a clear view of how the vehicle’s systems are powered.
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
What’s Included
ToggleUnderhood compartment
Fuse box location

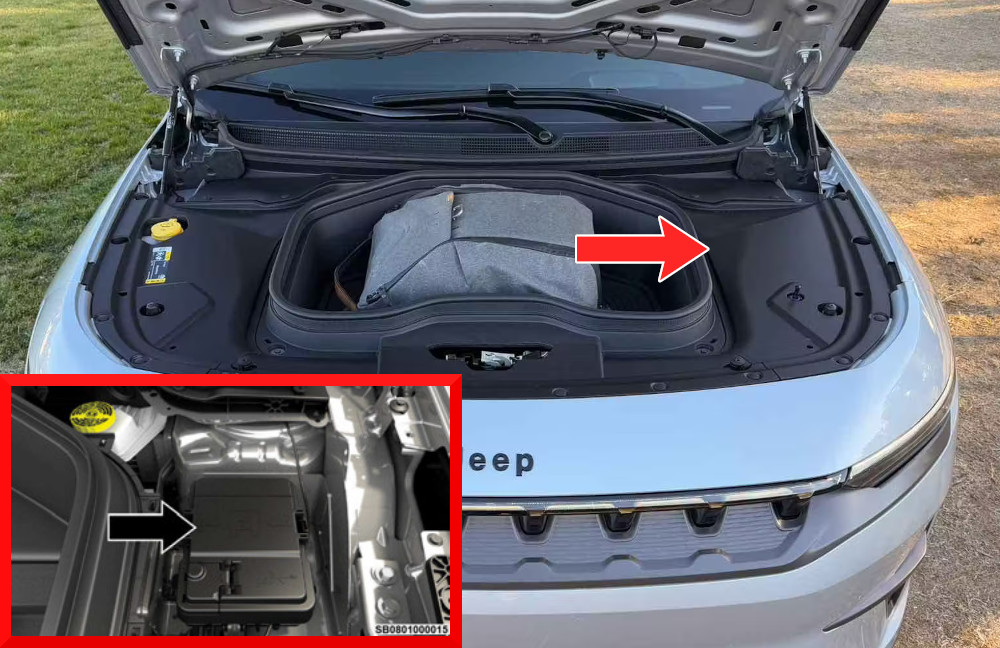

The Power Distribution Center (PDC) is located in the under-hood compartment, beneath the plastic lid.

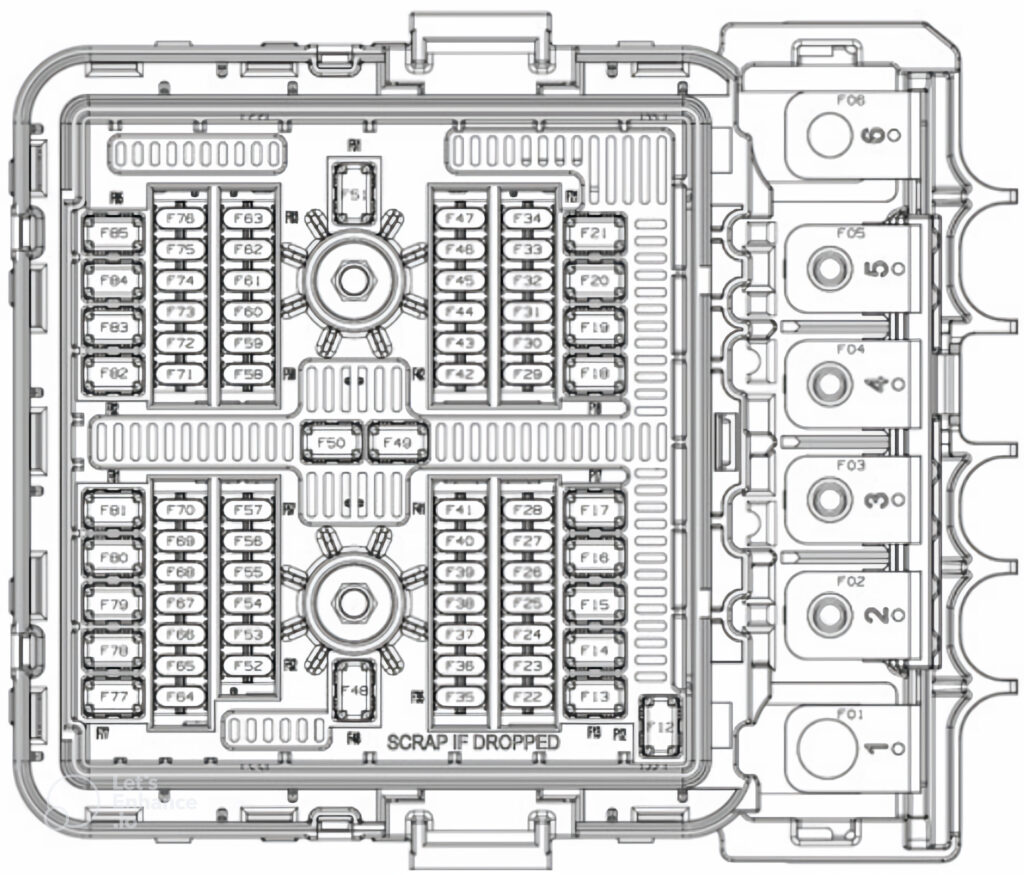

Fuse box diagram
Assignment of the fuses in the Under-hood compartment
| No. | Cartridge Fuse | Micro Fuse | Description |
|---|---|---|---|
| F12 | — | — | Spare |
| F13 | 30A | — | BSM #2 – Valves (L2+) — if equipped |
| F14 | 50A | — | BSM #2 – Motor (L2+) — if equipped |
| F15 | — | — | Spare |
| F16 | — | — | Spare |
| F17 | 20A | — | Electric oil pump – EDM front (400V) |
| F17 | 30A | — | Spare |
| F18 | — | — | Spare |
| F19 | 50A | — | BSM valves |
| F20 | 30A | — | L3: LIDAR washer pump — if equipped |
| F21 | — | — | Spare |
| F22 | — | — | Spare |
| F23 | — | 10A | (BEV & HEV) Charge port indicator (CPIM) / SW_PHEV_EDRIVE_MODE / Electric A/C compressor (IOD) |
| F24 | — | 10A | (BEV & HEV) AHP (aux heater pump) |
| F25 | — | 5A | (BEV & HEV) Electric air compressor / Electric expansion valve module (EEXV) |
| F26 | — | 20A | SLM feed left (SLM FEED_LT) |
| F27 | — | — | Spare |
| F28 | — | 15A | Coolant proportioning valve / HTL bypass valve |
| F29 | — | — | Spare |
| F30 | — | — | Spare |
| F31 | — | — | Spare |
| F32 | — | 5A | Automatic gearbox shifter module (AGSM / GSM) |
| F33 | — | 5A | (BEV) Electric coolant heater (ECH); (HEV) IGCT / IGCW / PBW / HCU |
| F34 | — | 20A | Horn |
| F35 | — | 20A 15A | (BEV) PECP (power electronics coolant pump) — if equipped |
| F36 | — | — | Spare |
| F37 | — | 20A 15A | (BEV) Battery coolant pump (BCP) |
| F39 | — | 10A | EPS1 |
| F40 | — | 20A | Electric power steering (EPS2 / BSM / ESCL / DTCM) #1 |
| F41 | — | 10A | Engine control module (ECM) / Transmission control module (TCM) / Fuel pump relay coil / ELSD / ECC (HVAC) blower relay coil / BSM #1 / MOD_SLM |
| F42 | — | 10A | Long range radar front |
| F43 | — | 20A | Rear power outlet (12V APO) |
| F44 | — | 20A | (BEV) ADCM — if equipped |
| F45 | — | 10A | (BEV) ADCM — if equipped |
| F47 | — | 10A | SW_BANK_LOWER #2 / SW_BANK_LOWER_LT / SW_BANK_LOWER_RT — if equipped |
| F48 | — | — | Spare |
| F49 | 30A | — | Front windshield defrost |
| F50 | 40A | — | ECC (HVAC) blower |
| F51 | — | — | Spare |
| F52 | — | — | Spare |
| F53 | — | 20A | Radio (CMCM) |
| F54 | — | 20A | SLM feed right (SLM FEED_RT) |
| F55 | — | — | Spare |
| F56 | — | — | Spare |
| F57 | — | 20A | Camera washer |
| F58 | — | 10A | Port diagnostics |
| F59 | — | — | Spare |
| F60 | — | 15A 20A | (HEV) LTR coolant pump (B+) / Driver motor power inverter (DMPI) feed (B1 & B2); (BEV) PECP-2 (B+) |
| F61 | — | 5A | Mid range radar rear L&R / Mid range radar front L&R |
| F62 | — | — | Spare |
| F63 | — | 10A | Steering column control module (SCCM) |
| F64 | — | 10A | (BEV) Outside heat exchanger expansion valve module (OEXV) / Chiller expansion valve module (CEXV) |
| F65 | — | 7.5A | Heated windshield nozzle |
| F66 | — | 15A | Active sway bar system (ASBS) / Electric steering column lock (ESCL) / SW_TRANSFER_CASE |
| F67 | — | 15A | Instrument panel cluster (IPC) — if equipped |
| F68 | — | 20A | Transmission control module (TCM) — if equipped |
| F69 | — | 10A | MOD_DCSD / Handsfree liftgate module / UCI + USB port / Humidity and rain light sensor (HRLS) / Active grille shutter (AGS) |
| F71 | — | — | Spare |
| F72 | — | 10A | (BEV) MOD_CVPAM / (HEV) MOD_CVADAS — if equipped |
| F73 | — | 10A | ADCAM |
| F77 | — | — | Spare |
| F79 | 30A | — | Rear defrost (EBL) |
| F80 | 40A | — | BCM feed 4 |
| F82 | 30A | — | Front wiper fuse |
| F83 | 50A | — | BCM feed 1 |
| F85 | 50A | 10A | BSM pump |
Luggage compartment
Fuse box location

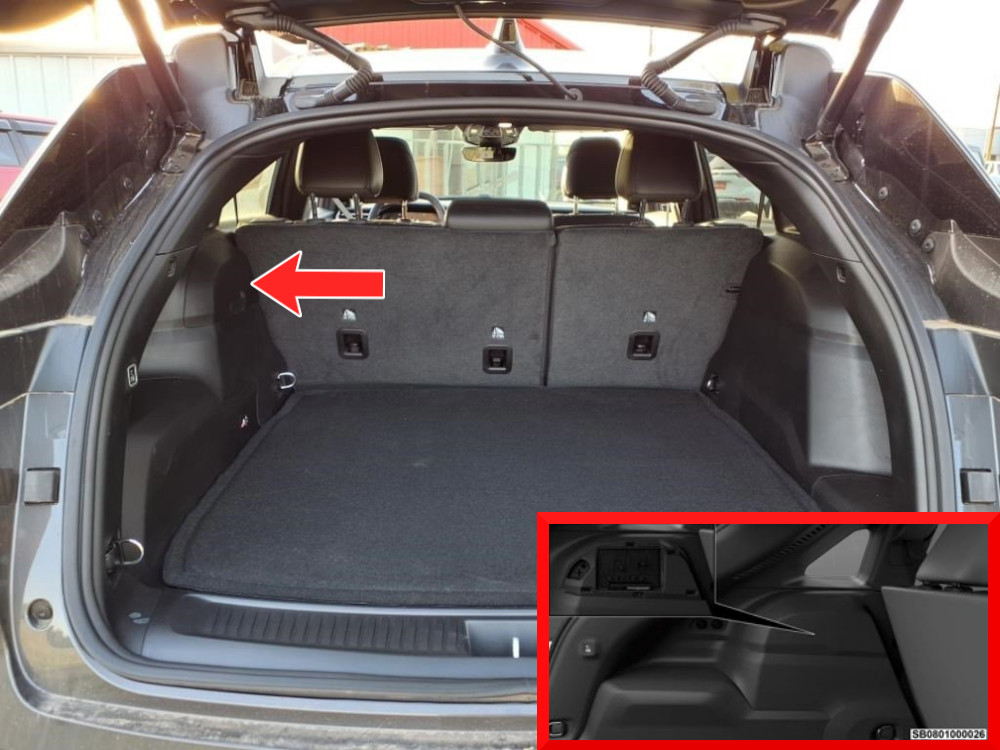

The Rear Power Distribution Center is located behind the trim panel on the driver’s side in the luggage compartment.

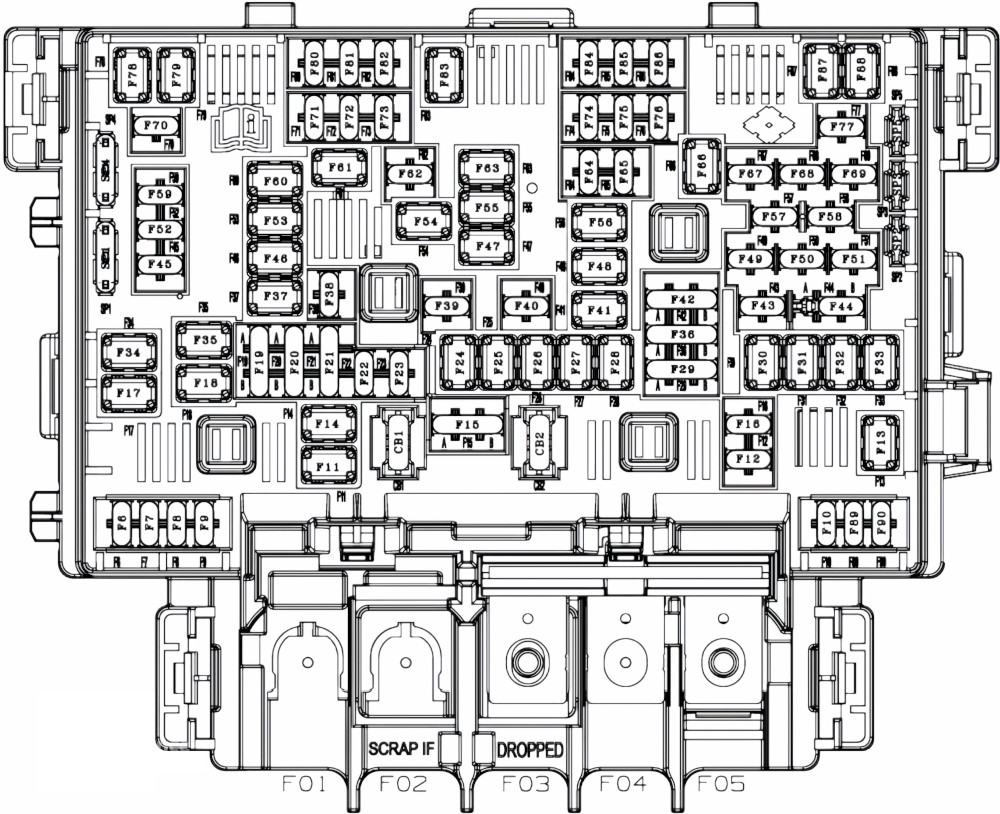

Fuse box diagram
Assignment of the fuses in the Luggage compartment
| No. | Cartridge Fuse | Micro Fuse | Description |
|---|---|---|---|
| F06 | — | — | Spare |
| F07 | — | — | Spare |
| F08 | — | — | Spare |
| F09 | — | — | Spare |
| F10 | — | — | Spare |
| F11 | 50A | — | MOD_BCM feed #2 |
| F12 | — | 5A | Intelligent battery sensor (IBS) |
| F13 | — | — | Spare |
| F14 | 20A | — | MOD DOOR MUX passenger rear or smart motor |
| F15A | — | 10A | Intelligent event base lighting module / Animation lighting – taillamp |
| F15B | — | 10A | Occupant restraint controller (ORC) |
| F16 | — | 10A | IDCM / AMD |
| F17 | — | — | Spare |
| F18 | 20A | — | 400V electric oil pump EDM rear |
| F19A | — | 10A | BEV: EVU-2 feed #2 IHEV & BEV |
| F19B | — | 10A | MOD_ICS switch bank / Assy overhead console (OHC) with sunshade / Heads up display (HUD) / SW_HDLP / Cutlength upfitter |
| F20A | — | 10A | Electric drive motor feed #1 |
| F20B | — | 10A | Electric drive motor feed #2 |
| F21A | — | 10A | Animation lighting – RR left |
| F21B | — | 10A | Keyless ignition node module (KNM) / Radio frequency hub (RFHM) / Brake pedal switch – normally open / Electric park brake switch (EPB) |
| F22 | — | — | Spare |
| F23 | — | — | Spare |
| F24 | — | — | Spare |
| F25 | — | — | Spare |
| F26 | 20A | — | Electric drive motor feed #2 – rear |
| F27 | — | — | Spare |
| F28 | — | — | Spare |
| F29A | — | 15A | Instrument panel cluster (IPC) / Drivetrain control module (DTCM) / Driver assistance system module (DASM) / EVCU-2 / HVAC_CTRL_FT |
| F29B | — | 15A | Spare |
| F30 | 30A | — | MOD_MEMORY / Power seat – passenger front |
| F31 | 15A | — | E-STOP |
| F32 | — | — | Spare |
| F33 | — | — | Spare |
| F34 | — | — | Spare |
| F35 | — | — | Spare |
| F36A | — | 10A | L2+: Driver alert lighting module (DALM) / ADAS_E_STOP (VP only) / BEV: EVCU-2 |
| F36B | — | 10A | Quiet pedestrian module (QVPM) / Animation lighting RR right / Liftgate taillamp |
| F37 | 30A | — | Trailer tow electric brake – aftermarket |
| F38 | — | 10A | HVIL – main power feed / HVIL – redundant power feed |
| F39 | — | 20A | Module seat heater front (passenger) |
| F40 | — | 30A | Audio amplifier module #1A |
| F41 | 30A | — | MOD DOOR MUX driver |
| F42A | — | 10A | Spare |
| F42B | — | 10A | APO illumination / 2nd & 3rd row seat switches illumination / Rear view mirror |
| F43 | — | — | Spare |
| F44A | — | 20A | 12V power outlet cargo area (ignition) |
| F44B | — | 20A | 12V power outlet cargo area battery |
| F45 | — | 15A | PORT_UCI dual USB rear / PORT power or USB console USB charge-only / Wireless charging pad – front console |
| F46 | 30A | — | MOD_MEMORY / Power seat – driver front |
| F47 | 20A | — | EVCU-2 feed #3 (HEV & BEV) |
| F48 | 30A | — | MOD DOOR MUX passenger |
| F49 | 30A | — | MOD iAir suspension (valves) (PF) |
| F50 | — | 10A | Occupant restraint controller (ORC) |
| F51 | — | 20A | MPAD-1 / RIMU / Mid range radar ECU |
| F52 | — | 15A | SSMD seat massage driver module / SSMP seat massage passenger module |
| F53 | 20A | — | EVCU-2 feed #4 (HEV & BEV) |
| F54 | 20A | — | MOD DOOR MUX driver rear or smart motor |
| F55 | 25A | — | Trailer tow module #2 |
| F56 | 30A | — | Sunroof |
| F57 | — | 20A | Haptic lane feedback module (HALF) / Occupant classification module (OCM) / Trailer tow module (TTM) / Headlamp leveling – motor feed & reference signal to switch / Security gateway module (SGW) / Rear view mirror / Parktronics system module (PTS) |
| F58 | — | 15A | Battery pack control module (BPCM) (BEV & HEV) |
| F59 | — | 15A | Telematics box module (TBM) / Vehicle theft module (VTM) / Gateway security module / Alarm siren unit (ASU) / Ultrasonic alarm module (UAM) / Climate control display module front (CCDMF) |
| F60 | — | — | Spare |
| F61 | 30A | — | Trailer tow receptacle fuse B+ |
| F62 | — | 20A | Module seat heater front (driver) |
| F63 | 25A | — | Trailer tow module #1 |
| F64 | — | 5A | NFC door handle #2 |
| F65 | — | 10A | Animation lighting – RR right |
| F66 | 30A | — | Power liftgate module (PLG) |
| F67 | — | 20A | MOD_CRSM (heated seat RR left) |
| F68 | — | 15A | PORT power or USB console USB charge-only / Digital TV (China/Japan) / Sunroof |
| F69 | — | 15A | Lumbar support driver & passenger switch |
| F70 | — | 10A | EVCU-2 feed |
| F71 | — | 15A | Battery pack control module (BPCM) – redundant (BEV & HEV) |
| F72 | — | 10A | Heated seat switch – RR right & RR left / Animation lighting – RR left |
| F73 | — | 10A | Night vision module / Driver monitoring system module (DMSM) |
| F74 | — | 30A | Audio amplifier module |
| F75 | — | 5A | NFC door handle #3 |
| F76 | — | 5A | NFC door handle #4 |
| F77 | — | 20A | MOD_CRSM (heated seat RR right) |
| F78 | 40A 50A | — | MOD_BCM feed #3 / MOD iAir suspension (PF) |
| F79 | — | — | Spare |
| F80 | — | 10A | Electric drive motor feed #1 – rear |
| F81 | — | 15A | Video routing module (VRM) / PORT power or USB IP USB charge-only / Front passenger display module (FPDM) / DVD / Blu-ray player / Rear window switches / HVAC control front / Switch bank upper (ASBM #2) |
| F82 | — | 15A | Comfort steering wheel surface module |
| F83 | — | — | Spare |
| F84 | — | — | Spare |
| F85 | — | 15A | UWB sensor (1–7)* |
| F86 | — | 5A | NFC door handle #1 |
| F87 | — | — | Spare |
| F88 | 30A | — | Inverter module 115V / 230V |
| CB1 | — | — | Spare (circuit breaker) |
| CB2 | — | 10A | MOD_SPAAK (circuit breaker) |
CB1 and CB2 are circuit breakers.
