Explore Jeep Wrangler fuse box diagrams in this straightforward guide made to help you sort out the TJ’s electrical system without the usual confusion. In this article, we focus on the second-generation Jeep Wrangler (1996–2006) (Model Code: TJ) and provide fuse diagrams for 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 and 2006, along with the location of the fuse panels and the assignment of each fuse and relay, giving you the essentials you need in one place.
Fuse box locations

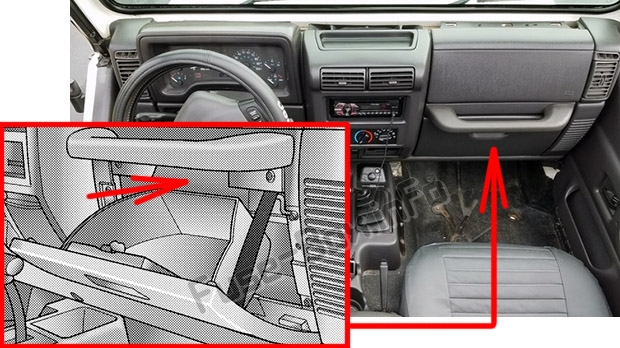

Passenger compartment
The fuse panel is located behind the glove box.
To access the fuse panel, the glove box must be removed. Remove it by slipping the glove box strap off the hook and allowing the door to roll down off its hinges.
To reinstall, position the glove box door at an 8 o’clock orientation and engage the hinge hook formations on the lower edge of the glove box door with the hinge pins on the lower edge of the instrument panel. Tilt the upper edge of the glove box door upward toward the instrument panel enough to reattach the glove box strap to the door. Rotate the glove box door to the closed position. Open and close it to ensure proper installation.

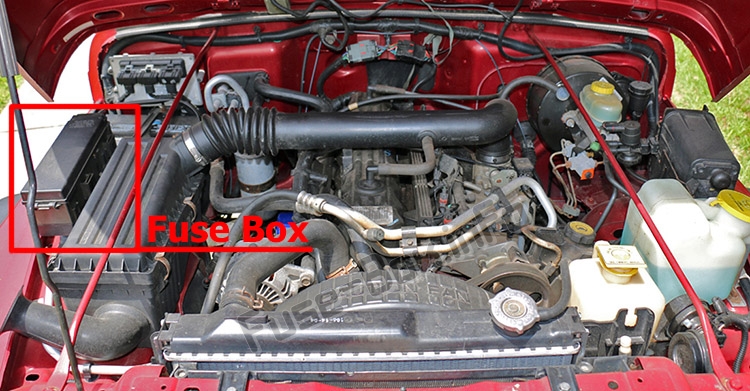

Engine compartment
Your vehicle is equipped with an electrical power distribution center located in the engine compartment near the battery.
This power center houses plug-in “Cartridge” fuses, ISO relays, and Mini (Micro) fuses. A label inside the latching cover of the center identifies each component for ease of replacement, if necessary. Cartridge and mini (micro) fuses can be obtained from your authorized dealer.
Fuse box diagrams

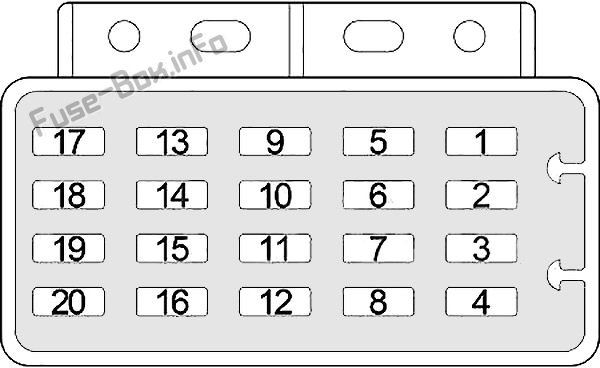

Passenger compartment

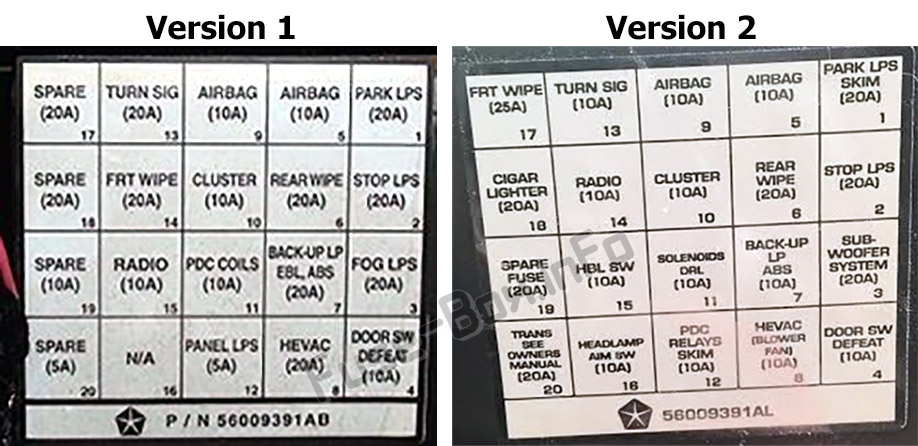

Assignment of the interior fuses
Engine compartment

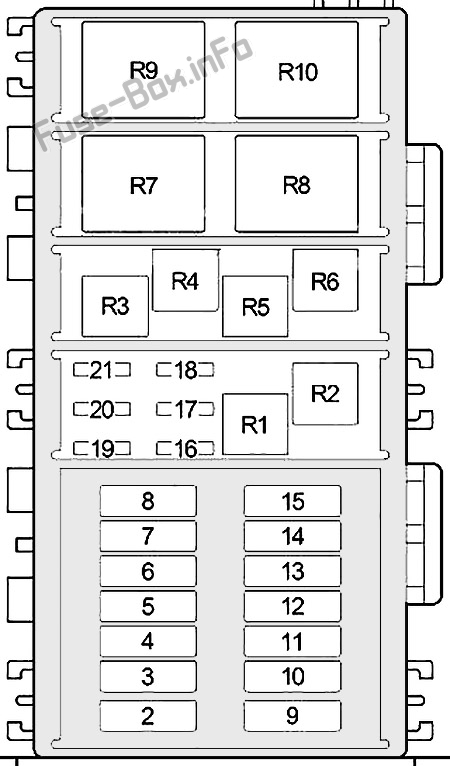

1997-1998
Assignment of the fuses in the engine compartment (1997-1998)

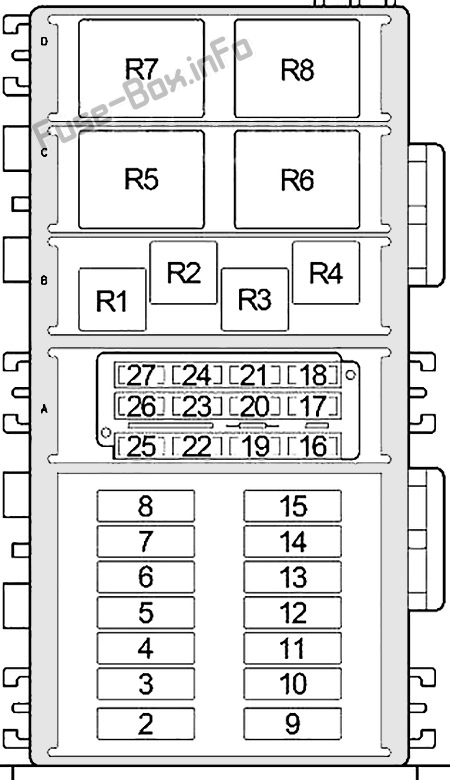

1999
Assignment of the fuses in the engine compartment (1999)

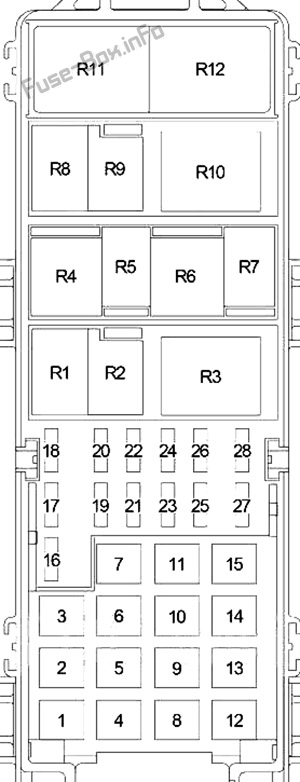

2000-2006
Assignment of the fuses in the engine compartment (2000-2006)
