Lincoln MKZ | 2013-2016 | Fuse Box Diagrams and Locations

Explore Lincoln MKZ fuse box diagrams for 2013–2016 models, including relay locations, fuse assignments, panel placement, and electrical layout details. This article covers the second-generation Lincoln MKZ before the facelift, produced from 2013 to 2016, and includes fuse box diagrams for Lincoln MKZ 2013, 2014, 2015 and 2016, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Passenger Compartment

Fuse Box Location

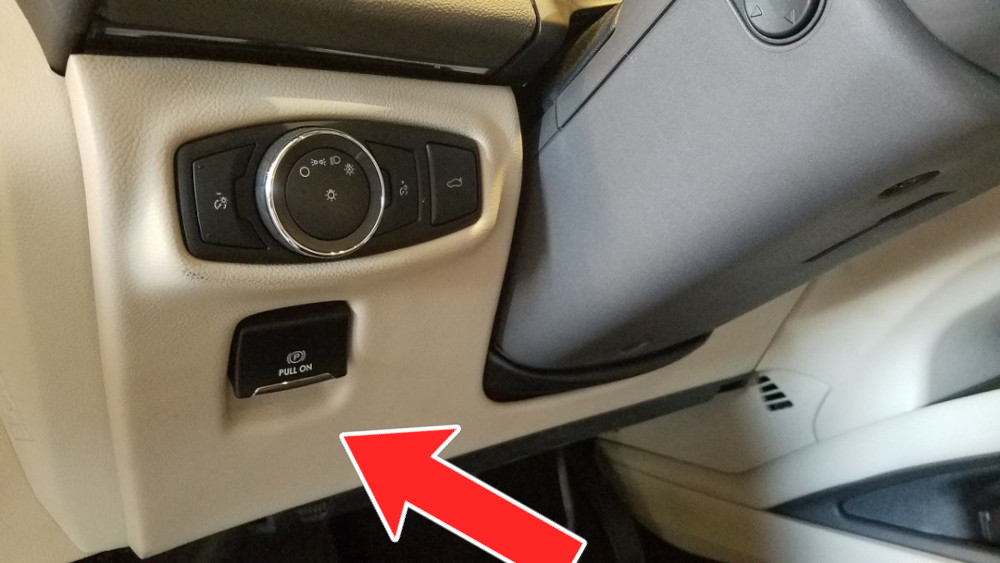

The fuse panel is located under the instrument panel to the left of the steering column.

Fuse Box Diagram

Fuses

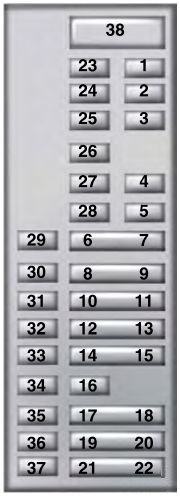

Assignment of the fuses in the passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	10 A	Lighting (ambient, glove box, vanity, dome, trunk)
2	7.5 A	Memory seats, Lumbar, Power mirror
3	20 A	Driver door unlock
4	5 A	N/A (Spare)
5	20 A	2013-2015: Subwoofer amplifier, THX amplifier 2016: Subwoofer amplifier
6	10 A	2013-2014: N/A (Spare) 2015-2016: Heated seat relay coil
7	10 A	N/A (Spare)
8	10 A	N/A (Spare)
9	10 A	N/A (Spare)
10	2013-2015: 5 A 2016: 25 A	2013-2015: Power trunk logic, Keypad 2016: Power trunk logic, Keypad, Cellphone passport module
11	5 A	N/A (Spare)
12	7.5 A	Climate control, Gear shift
13	7.5 A	Steering wheel column, Cluster, Datalink logic
14	10 A	2013-2015: N/A (Spare) 2016: Battery electronic control module
15	10 A	Datalink/Gateway module
16	15 A	2013: N/A (Spare) 2014: Trunk release 2015-2016: Trunk release, Child lock
17	5 A	2013-2015: N/A (Spare) 2016: Tracking and blocking
18	5 A	Ignition, Push button stop/start
19	2013-2015: 5 A 2016: 7.5 A	Passenger airbag disabled indicator, Transmission range
20	2013-2015: 5 A 2016: 7.5 A	Adaptive headlamps
21	2013-2015: 5 A 2016: 25 A	2013-2014: Humidity and in-car temperature, Rear climate seats 2015: Humidity and in-car temperature, Blind-spot information system, Rear video camera, Adaptive cruise control, Occupant classification sensor 2016: Humidity and in-car temperature sensor
22	2013-2015: 5 A 2016: 25 A	Occupant classification sensor
23	10 A	2013-2014: Delayed accessory (power inverter logic, moonroof logic) 2015-2016: Delayed accessory (power inverter, smart window, driver-window switch)
24	2013-2014: 30 A 2015-2016: 20 A	Central lock-unlock
25	30 A	Driver door (window, mirror)
26	30 A	Front passenger door (window, mirror)
27	30 A	Moonroof
28	20 A	2013-2015: THX amplifier 2016: Amplifier
29	30 A	Rear driver side door (window)
30	30 A	Rear passenger side door (window)
31	15 A	N/A (Spare)
32	10 A	GPS, Voice control, Display, Adaptive cruise control, Radio frequency receiver
33	20 A	Radio, Active noise control, CD changer
34	30 A	Run/start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker)
35	5 A	Restraints control module
36	15 A	2013-2014: Continuous control damping suspension, Auto-dimming rear view mirror, Lane keeping system module 2015: Continuous control damping suspension module, Auto dimming rearview mirror, Lane keeping system module, Auto high beam, All wheel drive module 2016: Continuous control damping suspension module, Auto dimming rear view mirror, Rear heated seats
37	15 A	All-wheel drive relay, Heated steering wheel
38	30 A	2013-2015: Rear window shade 2016: N/A (Spare)

Engine Compartment (Top)

Fuse Box Location

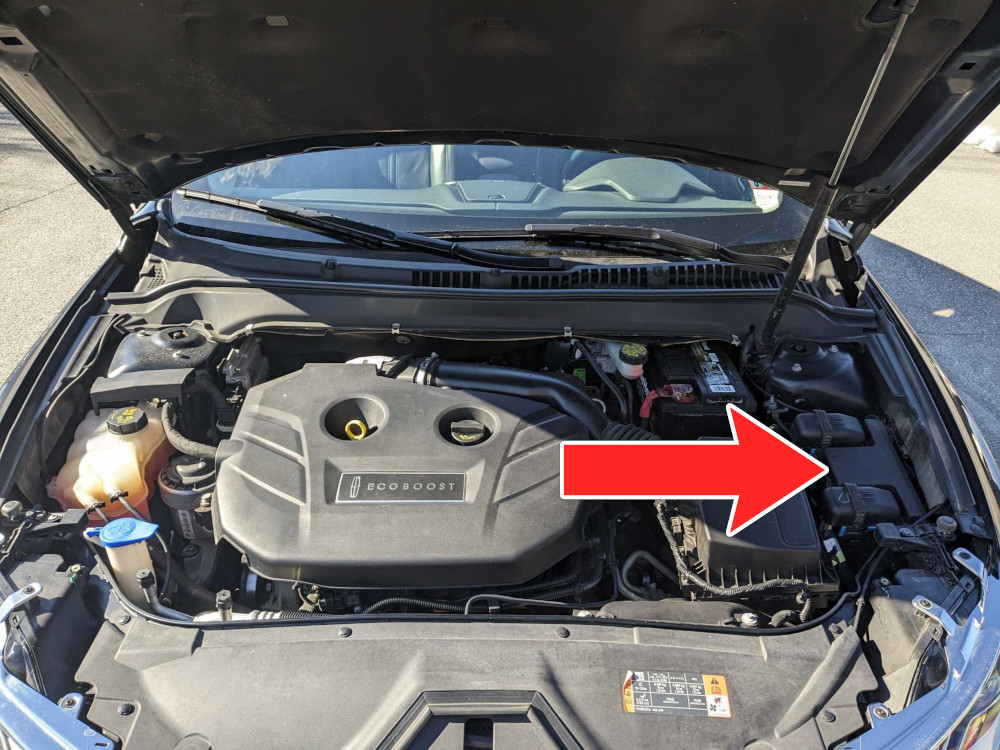

The power distribution box is located in the engine compartment on the driver’s side.

Fuse Box Diagram

Fuses

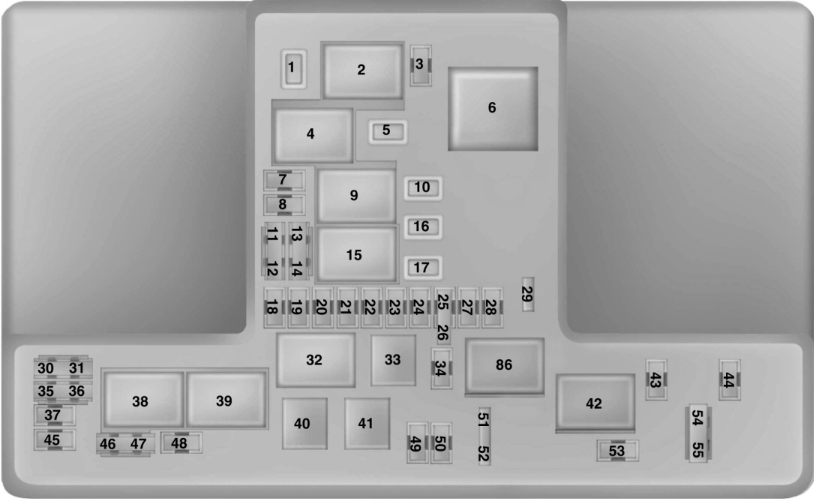

Assignment of the fuses in the engine compartment (Top)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	2013-2014: 25 A 2015-2016: 30 A	2013-2014: Not used (spare) 2015-2016: Moonroof
3	15 A	Autowipers/Rain sensor
5	20 A	Power point 3 – Back of console
6	N/A	N/A
7	20 A	Powertrain control module – vehicle power 1
8	20 A	Powertrain control module – vehicle power 2
10	20 A	Power point 1 – driver front
11	15 A	Powertrain control module – vehicle power 4
12	15 A	Powertrain control module – vehicle power 3
13	10 A	Powertrain control module – vehicle power 5
14	10 A	Powertrain control module – vehicle power 6
16	20 A	Power point 2 – console
17	2013-2014, 2016: N/A 2015: 20 A	2013-2014, 2016: N/A 2015: Not used (spare)
18	10 A	2013-2015: Powertrain control module – keep alive power 2016: N/A
19	10 A	2013: Electronic power assist steering 2014-2016: Run/start electronic power assist steering
20	10 A	Run/start lighting
21	15 A	Run/start transmission control, Transmission oil pump start/stop
22	10 A	Air conditioner clutch solenoid
23	15 A	2013: Blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display, Shifter 2014-2015: Run/start: Blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display, Shifter 2016: Run-start: blind spot information system, rear view camera, adaptive cruise control, heads-up display, shifter, Voltage stability module
24	10 A	2013-2014, 2016: N/A 2015: Run-start 7
25	10 A	2013: Anti-lock brake system 2014-2016: Run/start anti-lock brake system
26	10 A	2013: Powertrain control module 2014-2016: Run/start powertrain control module
27	N/A	N/A
28	N/A	N/A
29	5 A	2013-2014: N/A 2015-2016: Mass air flow monitor
30	N/A	N/A
31	N/A	N/A
34	N/A	N/A
35	N/A	N/A
36	N/A	N/A
37	N/A	N/A
43	N/A	N/A
44	N/A	N/A
45	N/A	N/A
46	10 A	2013-2014: Alternator 2015-2016: N/A
47	10 A	2013-2014: Brake on/off switch 2015-2016: N/A
48	20 A	2013-2014: Horn 2015-2016: N/A
49	2013-2014: 5 A 2015-2016: 10 A	2013-2014: Mass air flow monitor 2015-2016: Keep-alive power
50	20 A	2013-2014: N/A 2015-2016: Horn
51	N/A	N/A
52	N/A	N/A
53	10 A	Power seats
54	10 A	2013-2014: N/A 2015-2016: Brake on-off switch
55	10 A	2013-2014: N/A 2015-2016: Alt sensor

Relays

Assignment of the relays in the engine compartment (Top)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
2	Starter relay
4	Blower motor relay
9	Powertrain control module relay
15	Run/start relay
32	Electronic fan #1 relay
33	Air conditioner clutch relay
38	Electronic fan #2 relay
39	2013-2014: Electronic fan #3 relay 2015: N/A 2016: Electronic fan coil #2 and #3 relay
40	2013-2014: Fuel pump relay 2015: Electronic fan #2 relay coil. Electronic fan #3 relay coil. 2016: Horn relay
41	2013-2015: Horn relay 2016: N/A
42	2013-2014: N/A 2015-2016: Fuel pump relay coil

Engine Compartment (Bottom)

Fuse Box Location

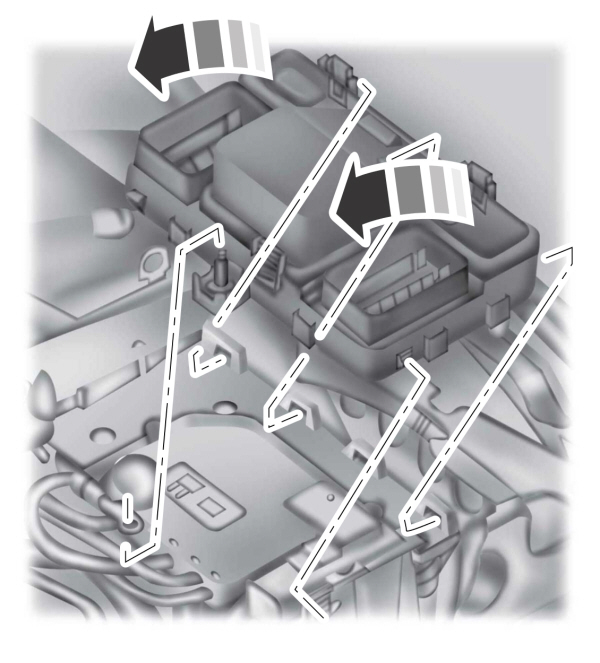

Located under the top power distribution box in the engine compartment.

Fuse Box Diagram

Fuses

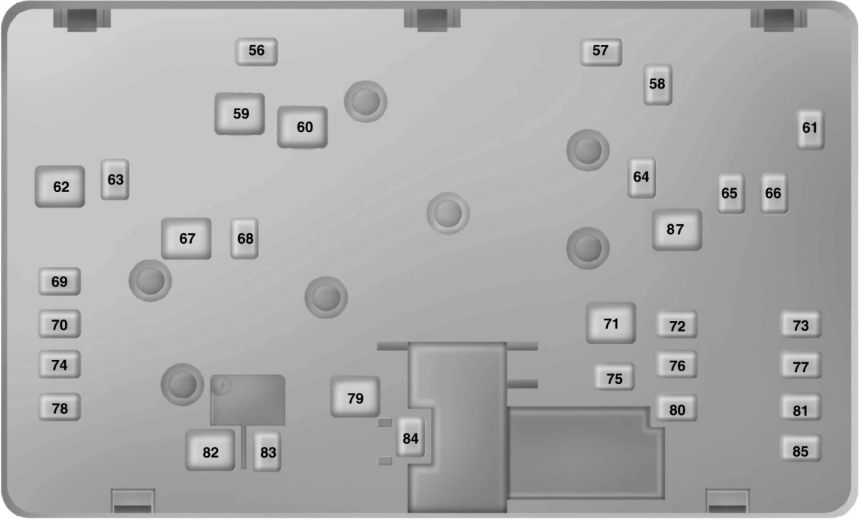

Assignment of the fuses in the engine compartment (Bottom)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
56	30 A	2013-2014: Fuel pump feed 2015-2016: N/A
57	2015: 30 A 2016: 20 A	2013-2014: N/A 2015-2016: Diesel vaporizer or E100
58	30 A	2013-2014: N/A 2015-2016: Fuel pump feed
59	30 A	Electronic fan #3
60	30 A	Electronic fan #1
61	N/A	N/A
62	50 A	Body control module 1
63	2013-2015: 20 A 2016: 25 A	Electronic fan #2
64	N/A	N/A
65	20 A	Front heated seat
66	N/A	N/A
67	50 A	Body control module 2
68	40 A	Heated rear window
69	30 A	Anti-lock brake system valves
70	30 A	Passenger seat
71	N/A	N/A
72	2013-2014: 30 A 2015-2016: 20 A	2013-2014: Moonroof #1 2015-2016: Transmission oil pump
73	20 A	Rear climate controlled seats
74	30 A	Driver seat module
75	25 A	2013-2014: N/A 2015-2016: Wiper motor #1
76	2013-2015: 20 A 2016: 30 A	2013-2015: Transmission oil pump #2 stop/start 2016: Power lift gate module
77	30 A	Front climate controlled seats
78	40 A	2013-2014: N/A 2015-2016: Trailer tow module
79	40 A	Blower motor
80	2013-2015: 30 A 2016: 25 A	2013-2015: Power trunk 2016: Wiper motor #2
81	40 A	Inverter
82	60 A	2013-2014: Anti-lock brake system pump 2015-2016: N/A
83	2013-2015: 25 A 2016: 20 A	2013-2014: Wiper motor #1 2015: Wiper motor 2016: TRCM shifter
84	30 A	Starter solenoid
85	30 A	Moonroof #2
86	N/A	N/A
87	60 A	2013-2015: N/A 2016: Anti-lock brake system pump

FAQ

Where are the cigar lighter / power outlet fuses located?

They are in the engine compartment fuse box:
#5 – Power point 3 (back of console)
#10 – Power point 1 (driver front)
#16 – Power point 2 (console)
