Looking for Lincoln Town Car fuse box diagrams? This article covers the third-generation Lincoln Town Car (Model Code: FN145) before the facelift, available from 1998, and includes fuse box diagrams for Lincoln Town Car 1998, 1999, 2000, 2001 and 2002, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Engine Compartment

Fuse Box Location

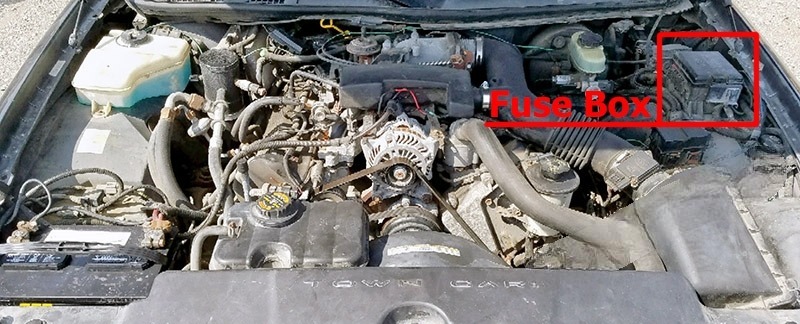

The power distribution box is located in the engine compartment.

Fuse Box Diagram

1998-2000

Fuses

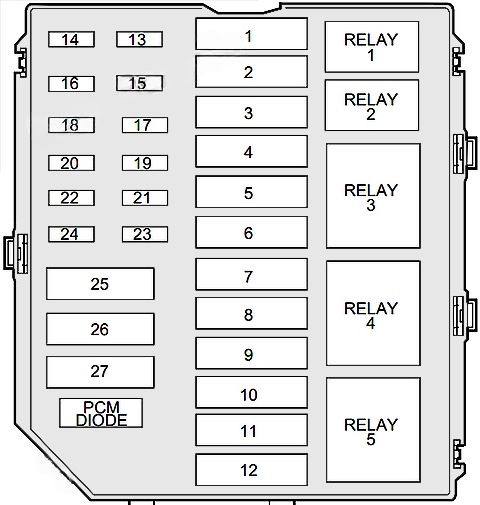

Assignment of the fuses in the engine compartment (1998, 1999, 2000)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	50A	Ignition Switch
2	40A	Ignition Switch
3	50A	Cooling Fan-High Speed
4	30A	PCM Power Relay
5	40A	I/P Fuse Panel, Fuses 10, 19, 21, 23, 25, 27, 32 (Long Wheel Base Only)
6	30A	Starting System
7	50A	I/P Fuse Panel, Fuses 1, 3, 5, 7, 9, 31
8	30A	Driver Power Seat, I/P Fuse Panel, Fuse 30
9	50A	Anti-Lock Brakes
10	40A	Rear Defrost
11	40A	Accessory Delay Relay (Signature/Cartier), Power Window Relay (Executive), I/P Fuse Panel, Fuse 29
12	30A	Air Suspension
13	15A	Charging System
14	20A	Fuel Pump
15	10A	1998: Air Bags (10A) 1999-2000: Not Used
16	30A	Heated Seats
17	10A	Air Suspension
18	15A	Horn
19	30A	Subwoofer, I/P Fuse Panel, Fuse 23
20	15A	Fuel Injectors
21	15A	1998: Heated Oxygen Sensors 1999-2000: Heated Oxygen Sensors, Transmission Solenoids, EVAP Canaster Vent Solenoid, EGR Vacuum Regulator, EVAP Vapor Management Valve
22	—	Not Used
23	—	Not Used
24	20A	Auxiliary Power Outlet
25	30A	Power Lumbar, Passenger Power Seat
26	30A	Cooling Fan-Low Speed (Circuit Breacker)
27	—	Not Used

Relays

Assignment of the relays in the engine compartment (1998, 1999, 2000)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Fuel Pump Relay
2	A/C Clutch Relay
3	PCM Power Relay
4	Air Suspension Relay
5	Rear Defrost Relay

2001-2002

Fuses

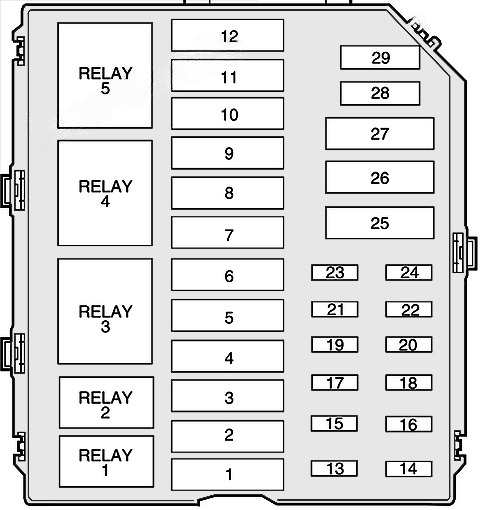

Assignment of the fuses in the engine compartment (2001, 2002)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	50A	Ignition Switch
2	40A	Ignition Switch
3	50A	Cooling Fan-High Speed
4	30A	PCM Power Relay
5	40A	I/P Fuse Panel, Fuses 11, 19, 21, 23, 25, 27, and 32 (Long Wheel Base Only)
6	—	Not Used
7	40A	I/P Fuse Panel, Fuses 1, 3, 5, 7, 9, 31
8	30A	Driver Power Seat, I/P Fuse Panel, Fuse 30, Adjustable Pedal, Passenger Power Seat
9	40A	Anti-Lock Brakes
10	40A	Rear Defrost, I/P Fuse Panel, Fuse 28
11	40A	Accessory Delay Relay (Sigriature/Cartier), Power Window Relay (Executive), I/P Fuse Panel, Fuse 29
12	30A	Air Suspension
13	30A	Rear Heated Seats (Long Wheel Base Only)
14	20A	Rear Power Point (Long Wheel Base Only)
15	20A	Rear Power Point (Longe Wheel Base)
16	30A	Heated Seats
17	10A	Air Suspension
18	15A	Horn
19	30A	Subwoofer, I/P Fuse Panel, Fuse 33
20	15A	Fuel Injectors, PCM
21	15A	Heated Oxygen Sensors, Transmission Solenoids, EVAP Canaster Vent Solenoid, EGR Vacuum Regulator, EVAP Vapor Management Valve
22	20A	Fuel Pump
23	15A	Charging System
24	20A	Auxiliary Power Outlet
25	30A	Passenger Seat (Long Wheel Base Only)
26	30A	Cooling Fan-Low Speed (Circuit Breacker)
27	20A	Anti-Lock Brakes
28	—	PCM Diode
29	—	Not used

Relays

Assignment of the relays in the engine compartment (2001, 2002)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Fuel Pump Relay
2	A/C Clutch Relay
3	PCM Power Relay
4	Air Suspension Relay
5	Rear Defrost Relay

Passenger Compartment

Fuse Box Location

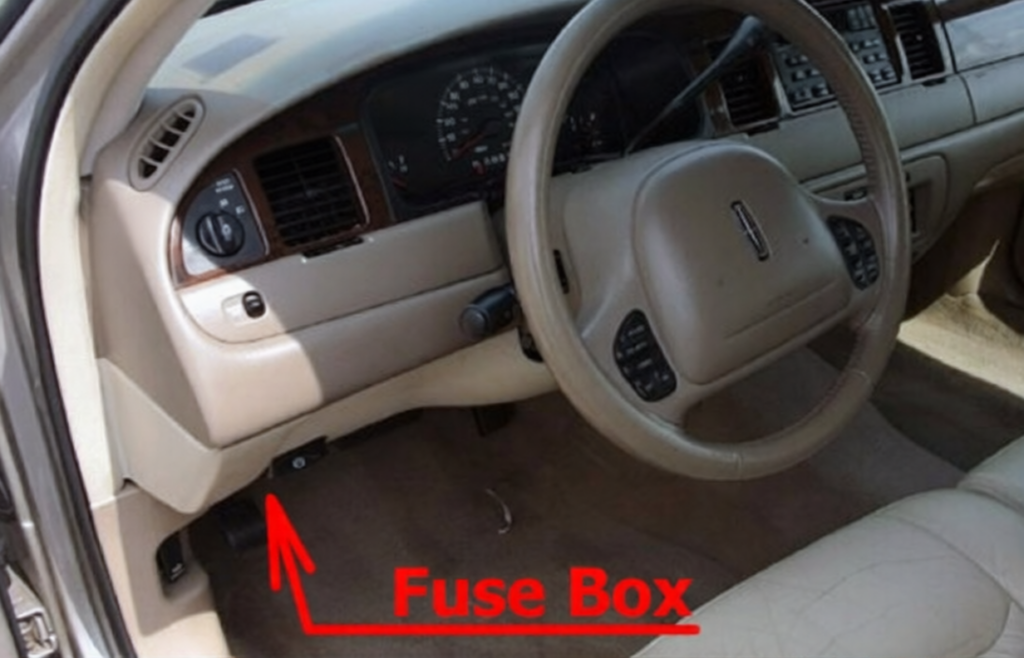

The fuse panel is located below and to the left of the steering wheel by the brake pedal. Remove the panel cover to access the fuses.

Fuse Box Diagram

Fuses

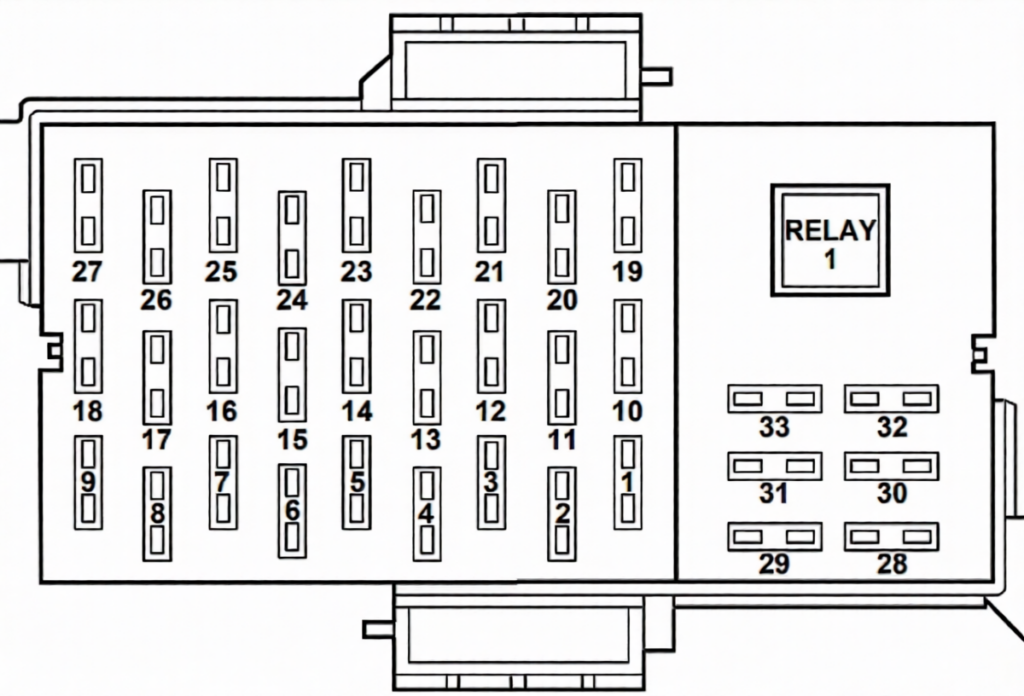

Assignment of the fuses in the passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	10 A	1998: Lighting Control Module (LCM) 1999-2002: Lighting Control Module (LCM), Left-Hand Low Beam Headlamp
2	30 A	EATC Blower Motor
3	10 A	1998: Lighting Control Module (LCM) 1999-2002: Lighting Control Module (LCM), Right-Hand Low Beam Headlamp
4	7.5 A	Instrument Cluster
5	7.5 A	1998: Lighting Control Module (LCM) 1999-2000: Lighting Control Module (LCM), Park/Tail Lamps 2001-2002: Lighting Control Module (LCM), Instrument Panel Light
6	15 A	EATC, Heated Seats
7	15 A	1998-2000: Lighting Control Module (LCM), Day/Night Sensor/Amplifier 2001-2002: Lighting Control Module (LCM), Day/Night Sensor/Amplifier, Park/Tail Lamps
8	10 A	Shift Lock, Speed Control, Air Suspension, Steering Wheel Rotation Sensor
9	20 A	1998: Lighting Control Module (LCM), Multi-Function Switch 1999-2002: Lighting Control Module (LCM), Multi-Function Switch, Hi Beam Headlamps
10	1998-2000: 20 A 2001-2002: 10 A	1998: Brake Pedal Position (BPP) Switch, Brake Pressure Switch 1999-2000: Brake Pedal Position (BPP) Switch, Brake Pressure Switch, Stop Lamps 2001-2002: Restraint Control Module (RCM), Air Bags
11	1998-2000: 10 A 2001-2002: N/A	1998-2000: Electronic Crash Sensor (Airbag) 2001-2002: N/A
12	15 A	1998: Instrument Cluster, Anti-Theft, Ignition Switch 1999-2002: Instrument Cluster, Anti-Theft, Ignition Switch, Ignition Coils
13	10 A	Anti-Lock Brake Module, Traction Control Switch
14	7.5 A	1998-2000: Transmission Control Switch, Lighting Control Module (LCM) 2001-2002: Transmission Control Switch, Lighting Control Module (LCM), VCS
15	20 A	1998: Multi-Function Switch 1999-2002: Multi-Function Switch, Turn Signals
16	30 A	Wiper Control Module (WCM), Windshield Wiper Motor
17	10 A	1998: Digital Transmission Range (DTR) Sensor 1999-2002: Digital Transmission Range (DTR) Sensor, Back-Up Lamps, EC Mirrors
18	7.5 A	1998-2000: Lighting Control Module (LCM), Front Radio Control Unit, Cellular Telephone Transceiver, Electronic Day/Night Mirror, Compass Module 2001-2002: Lighting Control Module (LCM), Front Radio Control Unit, Cellular Telephone Transceiver, Electronic Day/Night Mirror, Compass Module / Rear Audio / Climate Control Module, VCS
19	10 A	EATC, Clock, Instrument Cluster, PCM
20	7.5 A	Lighting Control Module (LCM), ABS, Shift Lock
21	20 A	1998: Multi-Function Switch 1999-2002: Multi-Function Switch, Hazard Lamps
22	20 A	Multi-Function Switch, High Mounted Stop Lamps, Stop Lamps
23	20 A	Datalink Connector, I/P Cigar Lighter, Rear Door Cigar Lighters (Long Wheel Base Only)
24	5 A	Front Radio Control Unit
25	15 A	1998: Lighting Control Module (LCM) 1999-2002: Lighting Control Module (LCM), Courtesy/Demand Lamps
26	5 A	1998: Digital Transmission Range (DTR) Sensor 1999-2002: Digital Transmission Range (DTR) Sensor, Starter Relay Coil
27	20 A	Fuel Filler Door Release Switch
28	10 A	Heated Mirrors
29	20 A	LF Door Module, Door Locks, Decklid Release
30	7.5 A	LF Seat Module, Trunk Lid Release Switch, Door Lock Switches, LF Seat Control Switch, LF Door Module, Power Mirror Switch
31	7.5 A	Main Light Switch, Lighting Control Module (LCM)
32	1998-2000: 15 A 2001-2002: 25 A	1998-2000: Spare 2001-2002: Brake Pedal Position Switch (BPP), Brake Pressure Switch, Fuses 20 and 22
33	15 A	1998-2000: Front Radio Control Unit, Digital Compact Disk Changer, Cellular Telephone Transceiver 2001-2002: Front Radio Control Unit, Digital Compact Disk Changer, Cellular Telephone Transceiver, VCS

Relay

Assignment of the relay in the passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
Relay 1	Accessory Delay Relay (Signature/Cartier) or Power Window Relay (Executive)
