Looking for Lincoln Zephyr fuse box diagrams ? This article covers the mid-size sedan Lincoln Zephyr , available only in 2006 , and includes fuse box diagrams for Lincoln Zephyr 2006 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

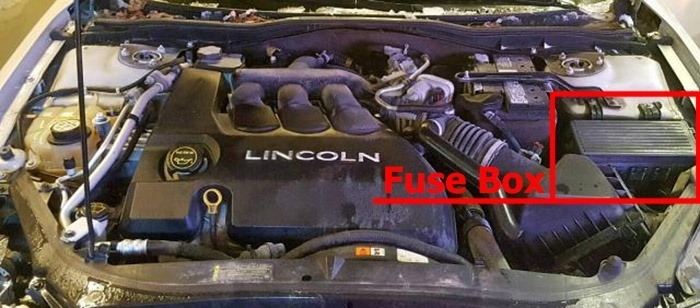

The power distribution box is located in the engine compartment (driver’s side).

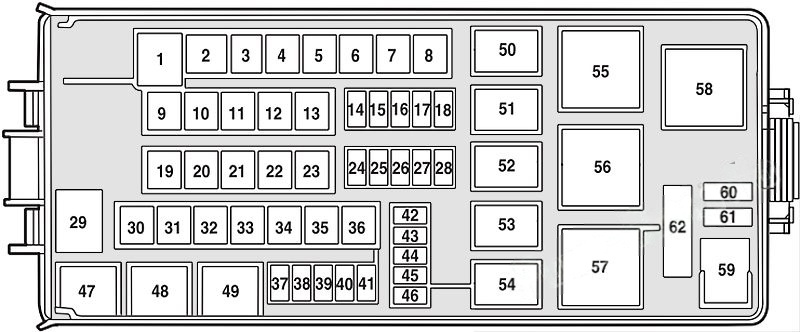

Assignment of the fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 A3 Fuse 60 A SJB power feed (fuses 12, 13, 14, 15, 16, 17, 18, C/B) 2 A1 Fuse 40 A Powertrain power 3 N/A N/A N/A 4 A1 Fuse 40 A Blower motor 5 N/A N/A N/A 6 A1 Fuse 40 A Rear window defroster, Heated mirrors 7 N/A N/A N/A 8 N/A N/A N/A 9 A1 Fuse 20 A Wipers 10 A1 Fuse 20 A ABS Valves 11 A1 Fuse 30 A Heated seats, Passenger heated/cooled seat 12 A1 Fuse 30 A Driver heated/cooled seat 13 N/A N/A N/A 14 Mini Fuse 15 A Ignition switch 15 Mini Fuse 10 A Memory module logic 16 Mini Fuse 15 A Transmission 17 Mini Fuse 20 A Console power point 18 Mini Fuse 10 A Alternator sense 19 A1 Fuse 40 A Logic feed to SJB (solid state devices) 20 A1 Fuse 20 A THXII Amplifier #1 21 A1 Fuse 20 A THXII Amplifier #2 22 N/A N/A N/A 23 A1 Fuse 60 A SJB power feed (fuses 1, 2, 4, 10, 11) 24 Mini Fuse 15 A Fog lamps 25 Mini Fuse 10 A A/C Compressor clutch 26 Mini Fuse 15 A LH HID Low beam 27 Mini Fuse 15 A RH HID Low beam 28 N/A N/A N/A 29 A3 Fuse 60 A Engine cooling fan 30 A1 Fuse 30 A Fuel pump relay feed 31 A1 Fuse 30 A Passenger power seat 32 A1 Fuse 30 A Driver power seat 33 A1 Fuse 20 A Moonroof 34 A1 Fuse 30 A Driver Smart power window 35 A1 Fuse 30 A Passenger Smart power window 36 A1 Fuse 40 A ABS Pump 37 N/A N/A N/A 38 N/A N/A N/A 39 N/A N/A N/A 40 N/A N/A N/A 41 N/A N/A N/A 42 Mini Fuse 15 A PCM non-emission related 43 Mini Fuse 15 A Coil on plug 44 Mini Fuse 15 A PCM emission related 45 N/A N/A N/A 46 Mini Fuse 15 A Injectors
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 47 1/2 ISO Relay Fog lamps 48 1/2 ISO Relay LH HID Low beam 49 1/2 ISO Relay RH HID Low beam 50 1/2 ISO Relay Wiper Park 51 1/2 ISO Relay A/C Clutch 52 N/A N/A 53 1/2 ISO Relay Wiper RUN 54 N/A N/A 55 Full ISO Relay Fuel pump 56 Full ISO Relay Blower motor 57 Full ISO Relay PCM 58 N/A N/A 59 N/A N/A 60 Diode Fuel pump 61 N/A N/A 62 Circuit Breaker Spare
This content requires JavaScript and a valid membership to view.

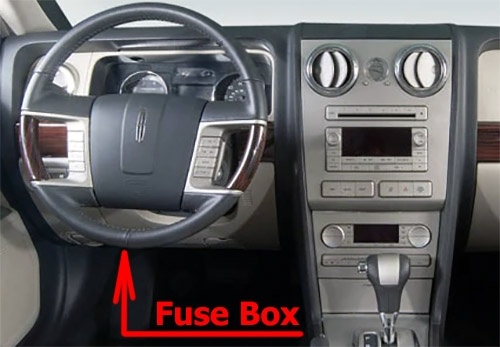

The fuse panel is located below and to the left of the steering wheel by the brake pedal (under the instrument panel).

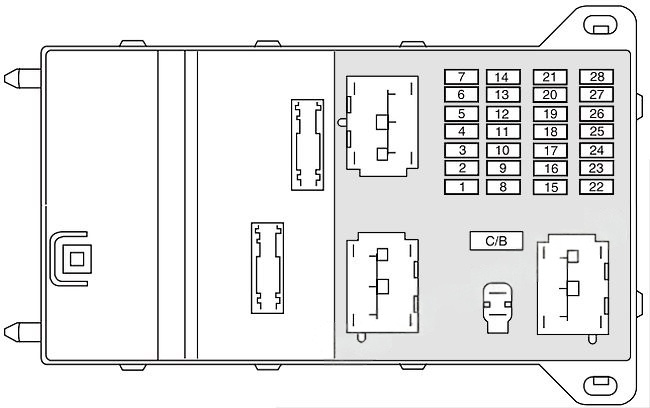

Assignment of the fuses in the Passenger Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 10A Backup lamps, Electrochromatic mirror 2 20A Horns 3 15A Battery saver: Interior lamps, Puddle lamps, Trunk lamp, Glove box lamp, Rear power windows 4 15A Parklamps, License plate lamps 5 — Not used 6 — Not used 7 — Not used 8 30A Rear window defroster 9 10A Heated mirrors 10 30A Starter coil, PCM 11 15A High beams 12 7.5A Delay accessories: Radio head units, Moonroof, Front power windows, Electrochromatic mirrors 13 7.5A Cluster, KAM-PCM, Analog clock, Climate control head units, Canister vent solenoid 14 15A Washer pump 15 20A Cigar lighter 16 15A Door lock actuator, Decklid lock solenoid 17 20A Subwoofer, THXII DSP module 18 20A Radio head units, OBDII connector 19 — Not used 20 7.5A Power mirrors, DSP (THX/Navigation radio) 21 7.5A Stop lamps 22 7.5A Audio 23 7.5A Wiper relay coil, Cluster logic 24 7.5A OCS (Passenger’s seat), PAD indicator 25 7.5A RCM 26 7.5A PATS Transceiver, Brake shift interlock solenoid, Brake pedal switch 27 7.5A Cluster, Climate control head units 28 10A ABS/Traction Control, Heated seats, Compass C/B 30A (Circuit Breaker) Rear p ower windows, Delayed accessory (SJB fuse 12)
