Explore Mercedes-Benz E-Class fuse box diagrams for 2017–2023 models with fuse locations, panel layouts, and detailed electrical information for all variants. This article covers the fifth-generation Mercedes-Benz E-Class (Model Codes: W213, C238, A238) , available from 2017 , and includes fuse box diagrams for Mercedes-Benz E180, E200, E250, E300, E350, E400, E450, E43, E53, E63, E200d, E220d, E300d, E350d and E400d (2017, 2018, 2019, 2020, 2021, 2022 and 2023) , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

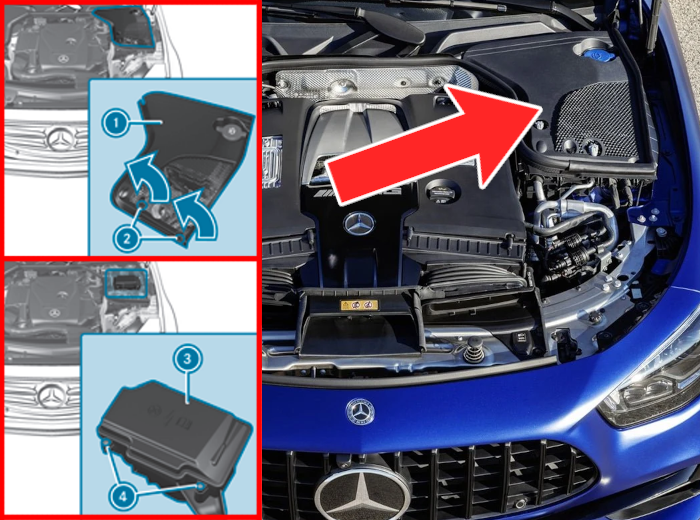

The fuse box is positioned in the engine compartment on the driver’s side beneath the lid. To access it, rotate the clips (2) on the engine cover (1) a quarter turn counterclockwise, then remove the cover in the direction indicated by the arrow. Unscrew the screws (4) and take off the fuse box cover (3).

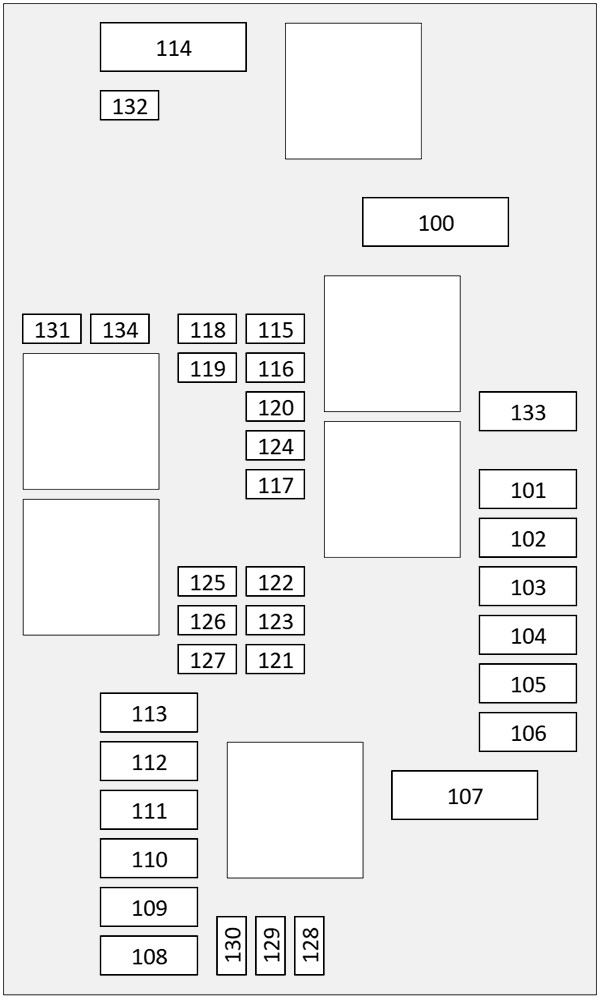

Assignment of the fuses in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 100 40A ABS/ASR/ESP/BAS 101 15A Engine electronics 102 20A Engine electronics 103 15A Engine electronics 104 15A Engine electronics 105 25A Automatic transmission 108 15A Engine electronics 109 10A Engine electronics 110 30A Low beam 111 30A Windshield wipers 113 30A Starter 114 40A AIRMATIC / Air suspension 116 5A ABS/ASR/ESP/BAS 117 7.5A A/C system / heater, Engine electronics 118 15A Engine electronics 119 15A Engine electronics 120 5A Windshield heating 122 5A Automatic transmission 123 5A Body Controller front 124 5A Engine electronics 125 5A Engine electronics 126 5A Exterior lamp switch 128 5A Exterior lamp switch 129 5A ABS/ASR/ESP/BAS 132 5A AIRMATIC / Air suspension 133 30A Low beam 134 30A Starter
This content requires JavaScript and a valid membership to view.

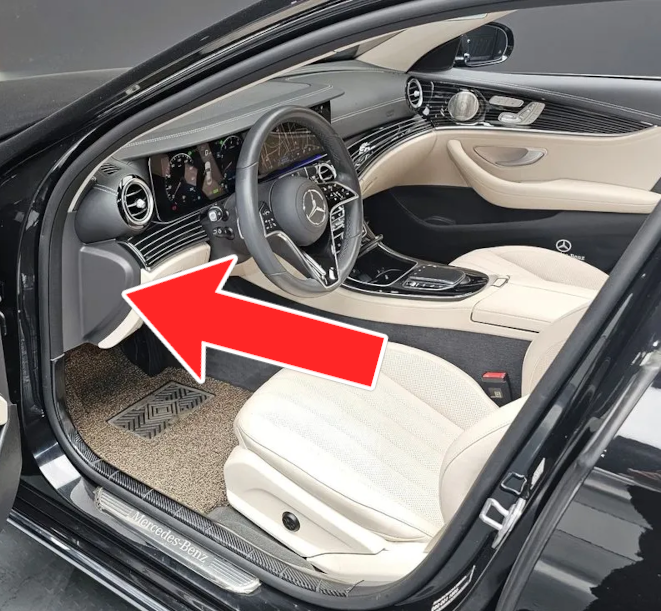

The fuse panel can be found on the side of the instrument panel, behind the side cover.

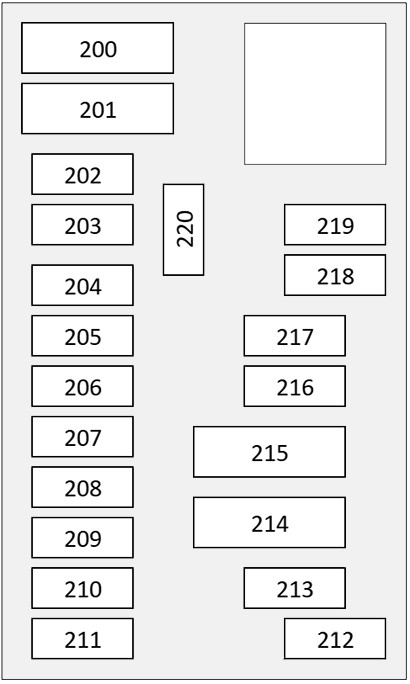

Assignment of the fuses in the passenger compartment (instrument panel)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 200 40A Front body controller 201 40A Front body controller 203 30A Electric windows 204 5A Taxi 205 7.5A Airbag systems 206 5A Analog watch 208 7.5A Radio; Navigation system. 209 5A Air conditioning and heating system 210 15A Air conditioning and heating system 211 15A Heating and steering control 213 30A Left and right seat belt pretensioner 214 30A Electric windows
This content requires JavaScript and a valid membership to view.

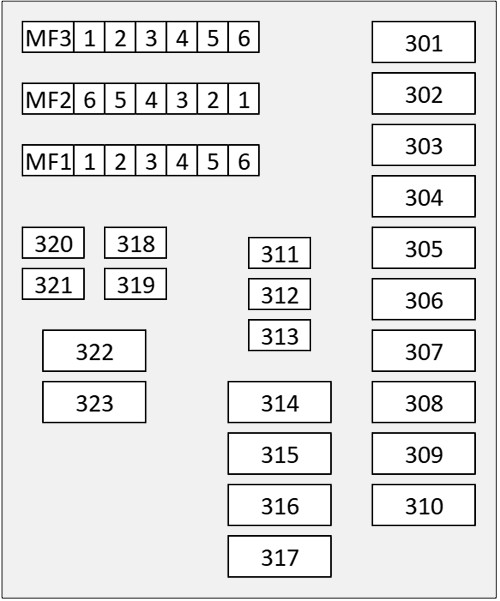

Passenger Compartment (Footwell)

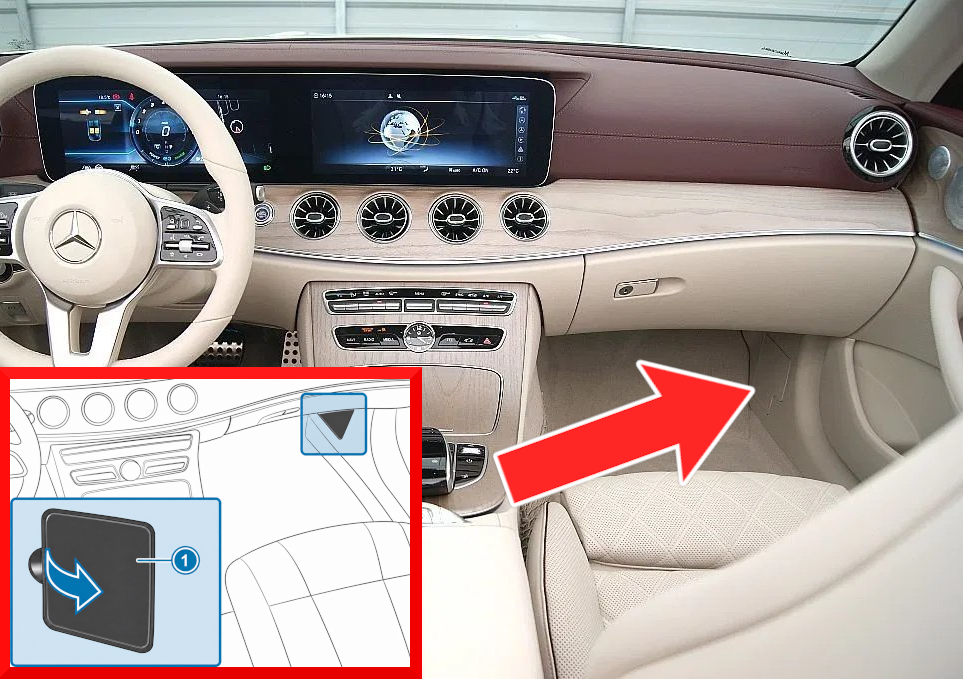

The fuse box is located in the passenger compartment, in the passenger-side footwell on the right, beneath the lid. To access it, fold the cover (1) back and remove it.
Assignment of the fuses in the passenger compartment (front footwell)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 301 30A Power window, Vario roof 302 30A Power window 303 30A Seat adjustment front 304 30A Seat adjustment front 305 5A Ligh/rain sensor 306 30A Seat heating / ventilation front 307 5A Emergency call system 308 5A Radio / Navigation system 309 30A Tilting/Sliding sunroof, Panoramic sunroof 310 30A Belt tensioner left right 311 5A Engine electronics 312 7.5A Airbag systems 313 7.5A Radio / Navigation system 314 5A Auxiliary heating 314 20A Auxiliary heating 315 30A Engine electronics 316 10A Overhead instruments 317 15A Radio / Navigation system 318 5A Anti-theft alarm 319 10A KEYLESS-GO 320 5A Radio / Navigation system 321 10A Ignition lock 322 7.5A Instrument cluster 323 Diagnostic socket MF 1-2 Driving assistance systems MF 1-3 Comfort telephony MF 1-4 Seat adjustment front MF 1-5 Seat adjustment front MF 1-6 DISTRONIC PLUS MF 2-2 Radio / Navigation system MF 2-3 Belt tensioner left right MF 2-4 Head-up-Display MF 2-5 A/C system/ heater MF 2-6 A/C system/ heater MF 3-1 Engine electronics MF 3-2 Radio / Navigation system MF 3-3 Radio / Navigation system MF 3-4 Driving assistance systems MF 3-5 A/C system/ heater
This content requires JavaScript and a valid membership to view.

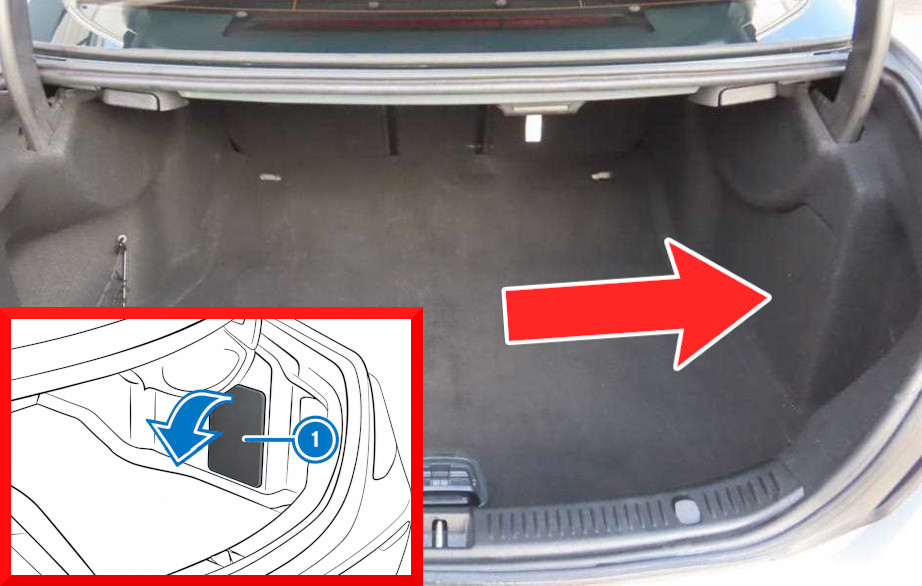

For the sedan, the fuse box is located on the right side of the luggage compartment beneath the lid.

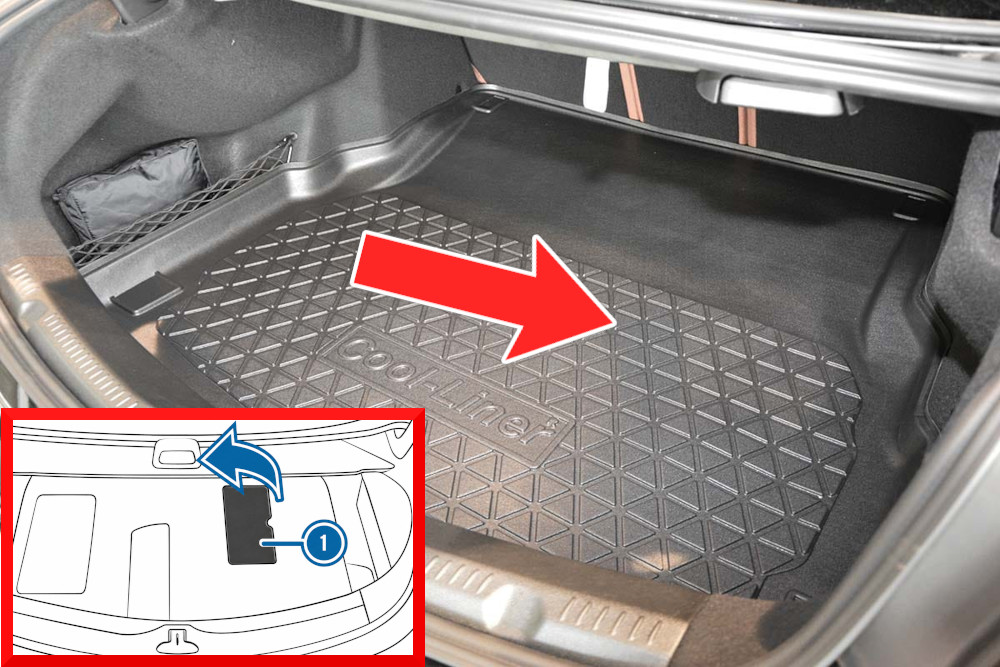

In the coupe or convertible, the fuse box can be found beneath the mat.

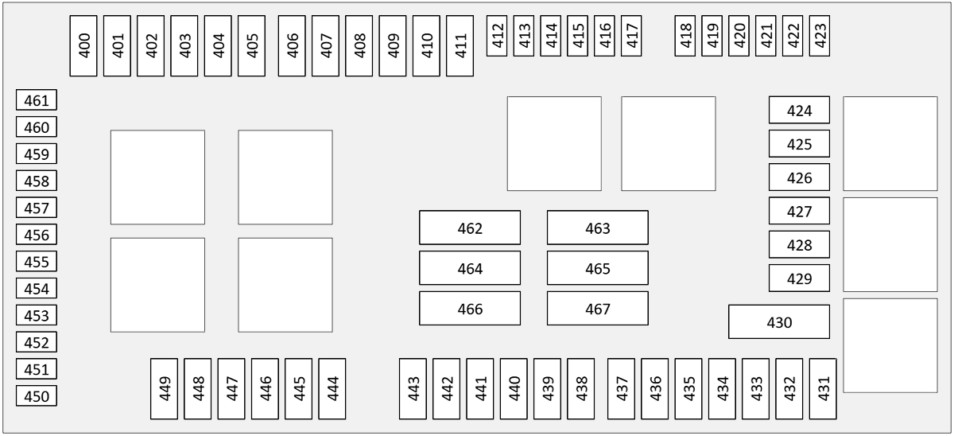

Assignment of the fuses in the luggage compartment (version 1)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 400 15A Engine electronics 401 20A Engine electronics 402 25A Engine electronics 403 15A A/C system/ heater 404 30A Seat adjustment front 405 5A A/C system/ heater 406 30A Vario roof 407 30A Seat adjustment front 408 30A Sound system 409 15A Engine electronics 411 25A Fuel System 412 5A Belt tensioner left right 413 5A Engine electronics 414 5A TV tuner 415 5A DISTRONIC PLUS 416 5A Auxiliary heating 417 5A Ambient lighting 419 30A AIRSCARF, Seat heating / ventilation front 420 20A AIRSCARF, Taxi – official vehicle 420 30A AIRSCARF, Taxi – official vehicle 421 25A Engine electronics 422 15A AIRMATIC / Air suspension 423 7.5A Seat adjustment rear 425 Radio / Navigation system 430 40A Remote trunk lid release, Vario roof 430 50A Remote trunk lid release, Vario roof 431 5A Taxi – official vehicle 431 20A Taxi – official vehicle 432 25A Taxi – official vehicle 432 7.5A Taxi – official vehicle 433 20A Trailer hitching 434 30A Trailer hitching 435 30A Trailer hitching 436 20A Trailer hitching 437 30A Trailer hitching 438 25A Socket 230V 439 7.5A Seat adjustment rear 440 30A Seat heating / ventilation rear 441 20A Engine electronics 442 30A Seat heating / ventilation front 443 15A AIRMATIC / Air suspension 444 5A Socket 230V 445 15A Socket 12V in trunk 446 15A Socket 12V (front) 447 15A Socket 12V (front) 450 10A A/C system/ heater 452 5A Automatic transmission 453 10A Automatic transmission, Engine electronics 456 5A Tire pressure monitoring system 457 7.5A Park assist 458 5A Remote trunk lid release 459 5A Engine electronics 461 5A Belt tensioner left right 462 40A AIRMATIC / Air suspension, Engine electronics 463 50A Heated rear window 464 40A Sound system 465 40A Body Controller rear 466 40A Body Controller rear 467 40A Sound system
This content requires JavaScript and a valid membership to view.

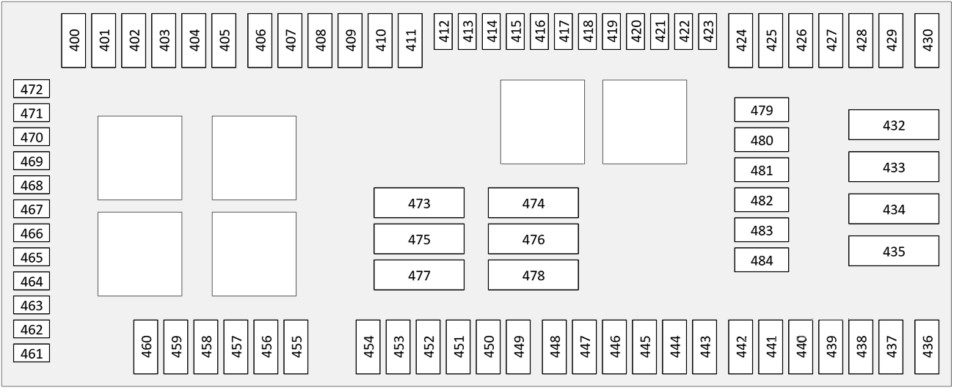

Assignment of the fuses in the luggage compartment (version 2)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 400 15A Engine electronics 401 20A Engine electronics 402 25A Engine electronics 403 15A A/C system/ heater 404 30A Seat adjustment front 405 5A A/C system/ heater 406 30A Vario roof 407 30A Seat adjustment front 408 30A Sound system 409 15A Engine electronics 411 25A Fuel System 412 5A Belt tensioner left right 413 5A Engine electronics 414 5A TV tuner 415 5A DISTRONIC PLUS 416 5A Auxiliary heating 417 5A Ambient lighting 420 AIRSCARF, Taxi – official vehicle 421 Comfort telephony 422 Radio / Navigation system 425 30A AIRSCARF, Seat heating / ventilation front 426 AIRSCARF, Taxi – official vehicle 427 25A Engine electronics 428 15A AIRMATIC / Air suspension 429 7.5A Seat adjustment rear 430 Remote trunk lid release, Vario roof 432 Taxi – official vehicle 435 40A Remote trunk lid release, Vario roof 436 5A Taxi – official vehicle 438 30A Seat adjustment rear 439 30A Seat adjustment rear 440 Comfort telephony 441 Seat heating / ventilation rear 442 A/C system/ heater 443 25A Taxi – official vehicle 443 7.5A Taxi – official vehicle 444 20A Trailer hitching 445 30A Trailer hitching 446 30A Trailer hitching 447 20A Trailer hitching 448 30A Trailer hitching 449 25A Socket 230V 450 7.5A Seat adjustment rear 451 30A Seat heating / ventilation rear 452 20A Engine electronics 453 30A Seat heating / ventilation front 454 15A AIRMATIC / Air suspension 455 5A Socket 230V 456 15A Socket 12V in trunk 457 15A Socket 12V (front) 458 15A Socket 12V (front) 461 10A A/C system/ heater 463 5A Automatic transmission 464 10A Automatic transmission, Engine electronics 467 5A Tire pressure monitoring system 468 7.5A Park assist 469 5A Remote trunk lid release 470 5A Engine electronics 472 5A Belt tensioner left right 473 40A AIRMATIC / Air suspension, Engine electronics 474 50A Heated rear window 475 40A Sound system 476 40A Body Controller rear 477 40A Body Controller rear 478 40A Sound system 480 Radio / Navigation system
This content requires JavaScript and a valid membership to view.

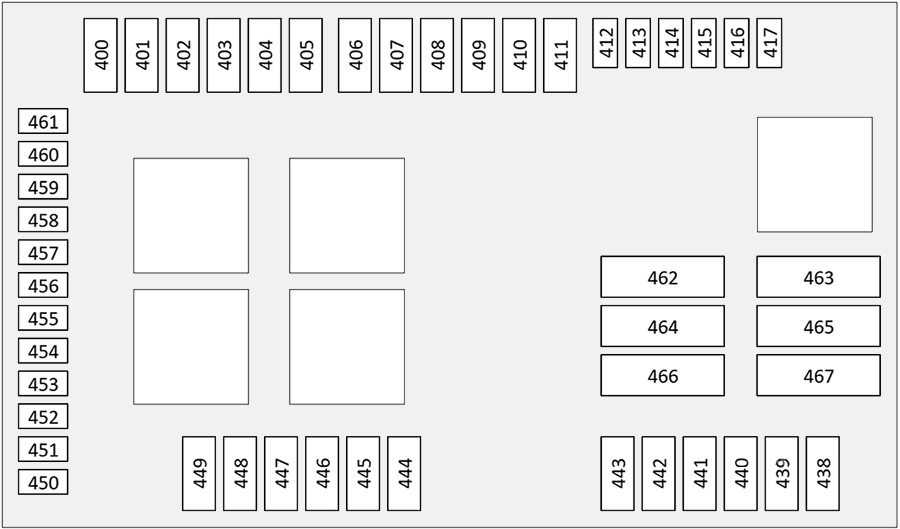

Assignment of the fuses in the luggage compartment (version 3)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 400 15A Engine electronics 401 20A Engine electronics 402 25A Engine electronics 403 15A A/C system/ heater 404 30A Seat adjustment front 405 5A A/C system/ heater 406 30A Vario roof 407 30A Seat adjustment front 408 30A Sound system 409 15A Engine electronics 411 25A Fuel System 412 5A Belt tensioner left right 413 5A Engine electronics 414 5A TV tuner 415 5A DISTRONIC PLUS 416 5A Auxiliary heating 417 5A Ambient lighting 438 25A Socket 230V 439 7.5A Seat adjustment rear 440 30A Seat heating / ventilation rear 441 20A Engine electronics 442 30A Seat heating / ventilation front 443 15A AIRMATIC / Air suspension 444 5A Socket 230V 445 15A Socket 12V in trunk 446 15A Socket 12V (front) 447 15A Socket 12V (front) 450 10A A/C system/ heater 452 5A Automatic transmission 453 10A Automatic transmission, Engine electronics 456 5A Tire pressure monitoring system 457 7.5A Park assist 458 5A Remote trunk lid release 459 5A Engine electronics 461 5A Belt tensioner left right 462 40A AIRMATIC / Air suspension, Engine electronics 463 50A Heated rear window 464 40A Sound system 465 40A Body Controller rear 466 40A Body Controller rear 467 40A Sound system
This content requires JavaScript and a valid membership to view.
