MB GLA-Class (H247) | 2020-2026

Access Mercedes-Benz GLA-Class fuse box diagrams for 2020–2026 models with fuse locations, panel layouts, and detailed electrical information for all variants. This article covers the second-generation Mercedes-Benz GLA-Class (Model Code: H247), available from 2020, and includes fuse box diagrams for Mercedes-Benz GLA180, GLA200, GLA250, GLA35, GLA45, GLA180d, GLA200d and GLA220d (2020, 2021, 2022, 2023, 2024, 2025 and 2026), along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Engine Compartment

Fuse Box Location

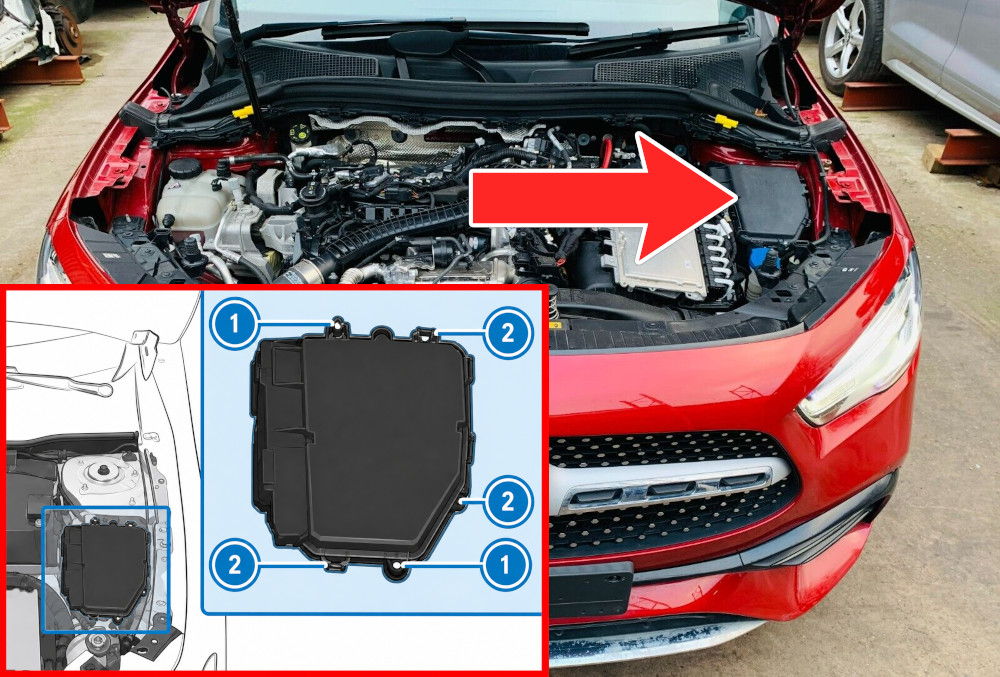

The fuse box is located on the driver’s side of the engine compartment. To access the fuses, unscrew the bolts (1), press the clips (2), and remove the cover.

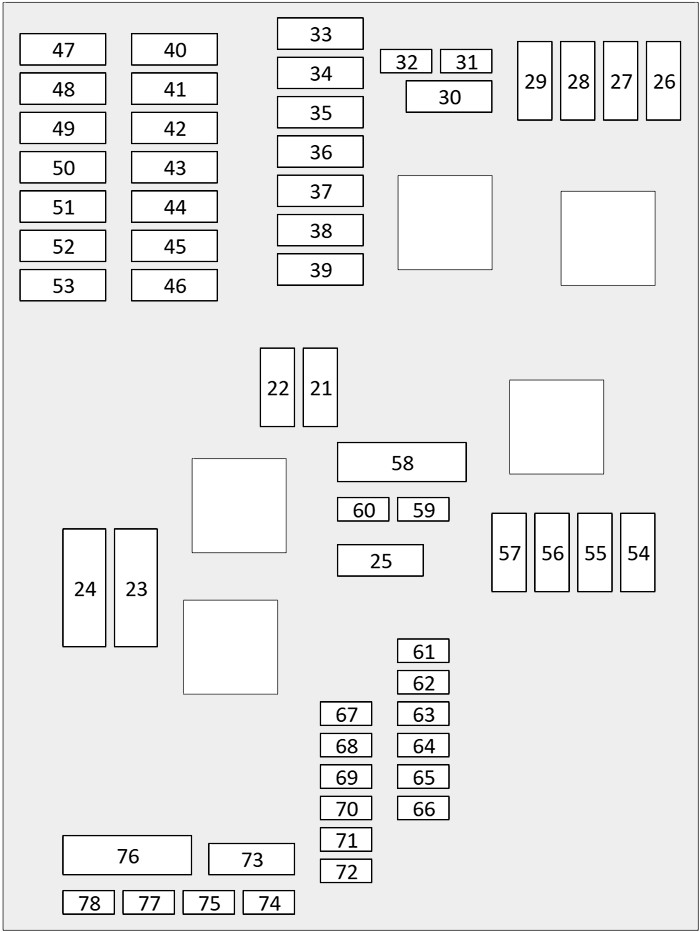

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
2130ACBC / SAM, Headlights
2220AHeadlights
2340AESP, Parking brake
2460AESP, Parking brake
25—–
2615A / 25AEngine M260/M282 (15A): Engine Control Unit
Engine OM654/M139 (25A): Engine Control Unit
2715ADiagnosis, Engine Control Unit
2815AEngine Control Unit
2915ADiesel Engine, Engine Control Unit
3015AEngine Control Unit, Hybrid
3110AEngine Control Unit, Hybrid
32—–
33—–
34—–
35—–
36—–
37—–
38—–
39—–
4030ACBC / SAM, Headlights
415A / 10AEngine M260/M282 (10A): Engine Control Unit
Engine OM654/M139 (5A): Engine Control Unit
4230ACBC / SAM, Fanfare horn, Windshield wipers front, Rain sensor
4310AAutomatic Transmission, Engine Control Unit
4430AWindshield wipers front, Rain sensor
4520AAutomatic Transmission
4610AHybrid
477.5ADistronic / FCW
4820AHeadlights
4920A / 25AEngine M282 (20A): Automatic Transmission
Engine M260 (25A): Automatic Transmission
505AHybrid
5120AAutomatic Transmission
525AA/C system / heater
537.5A / 20AStandard (20A): A/C system / heater
Hybrid (7.5A): A/C system / heater
5410AEngine Control Unit
557.5AEngine Control Unit
565A / 20AAMG (20A): Engine Control Unit
Non AMG (5A): Engine Control Unit
5710AAutomatic Transmission, Diesel Engine, Hybrid
58—–
59—–
605A4-Wheel drive, AMG
615AHybrid
62—–
635AHybrid
645AHeadlights
655ADriving School
665AHybrid
675ADiesel Engine
685ACBC / SAM
695AEngine Control Unit
707.5ADistronic / FCW
715AEngine Control Unit
725AESP, Parking brake
7330AStarter
74DiodeStarter
755AStarter
7640AHybrid
77—–
785AESP, Parking brake, Hybrid

Passenger Compartment

Fuse Box Location

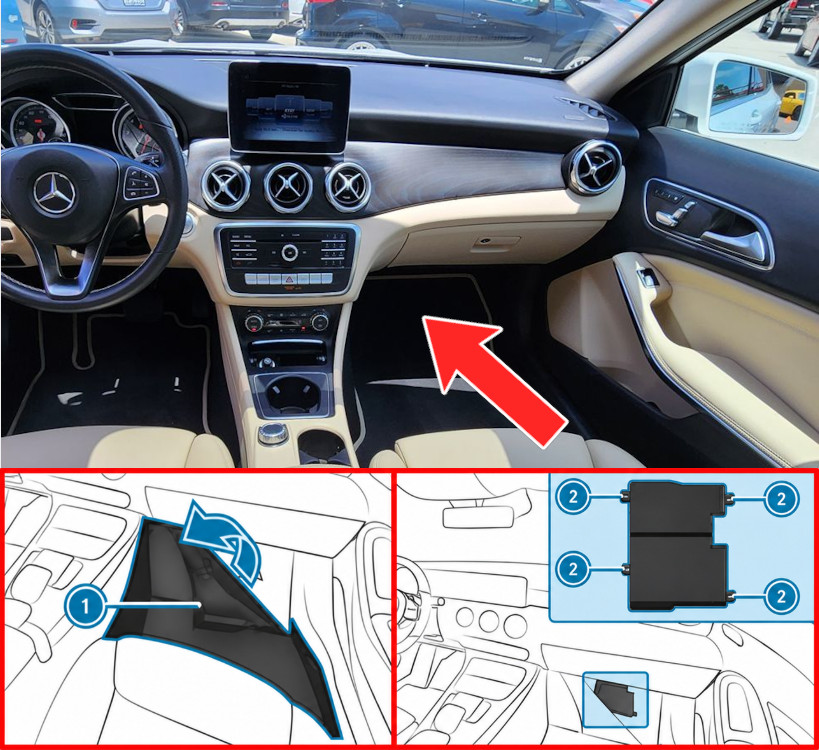

The fuse box is located in the front passenger footwell beneath the mat. To access it, fold the mat (1) back in the direction shown by the arrow, then unscrew the bolts (2) and remove the fuse box cover.

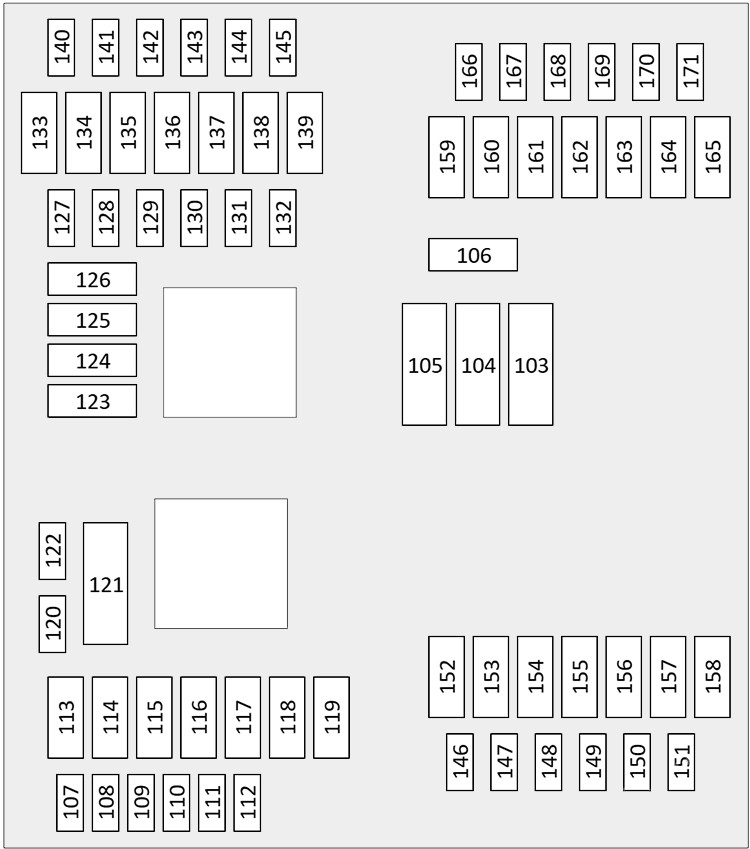

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
10340AA/C system / heater
10430A / 40ASound Midline (30A): Radio system
Sound Premium (40A): Radio system
10530A / 40AAMG (30A): 4-Wheel drive
Diesel (40A): 4-Wheel drive
10630AAnti-theft alarm system, CBC/SAM, Central locking, Wipers rear
1075ADistronic / FCW
1085AEmergency call system
10915AMulti-Media Box, Telephone system, Navigation, Multifunction steering wheel
11010ADiagnosis
1117.5AInstrument Cluster
1127.5AAirbag Restraint System
11330ATilting / Sliding roof
11415ADamper adjustment
11530AAirbag Restraint System
1167.5ASeat driver, Seat passenger
11730ACentral console or 115/230V socket
118—–
11930AAirbag Restraint System
120—–
12130A / 40ATrunk (30A): Heated rear windows
Tailgate (40A): Heated rear windows
122—–
12310APower socket / USB
12420ACigar lighter / socket front
125—–
12620ASocket, load compartment, special vehicles
127—–
128—–
12910AAnti-theft alarm system
1305AHybrid
1315ARadio system
1327.5AElectronic ignition lock, Steering column lock
133—–
13430A4-Wheel drive, AMG
13515ADiesel engine
13630ASeat driver, Seat passenger
137—–
13830ASeat driver, Seat passenger
13920A4-Wheel drive, AMG
14015AOverhead control panel
141—–
1427.5ARotary light switch
1437.5AControl panel
1445AControl panel, Multi-Media Box, Telephone system, Navigation, Multifunction steering wheel
14510AMulti-Media Box, Telephone system, Navigation, Multifunction steering wheel
1467.5AMulti-Media Box, Telephone system, Navigation, Multifunction steering wheel
147—–
1485AMulti-Media Box, Telephone system, Navigation, Multifunction steering wheel
14910A4-Wheel drive, AMG
150—–
1517.5AHybrid
15225AInstrument Cluster, Multi-Media Box, Telephone system, Navigation, Multifunction steering wheel, Radio system
15310AHybrid
15430ADoor functions
15510AHybrid
15630ADoor functions
157—–
15830ACBC/SAM, Exterior lighting, Hazard warning flashers / ECO
15925AFuel pump
16010AElectronic ignition lock, Steering column lock
16130ADoor functions
162—–
16330ADoor functions
164—–
16530ACBC/SAM, Exterior lighting, Hazard warning flashers / ECO
1662A / 5AStandard (5A): A/C system / heater
Japan (2A): ETC/DSRC Card Reader
1675ACentral locking, Tire pressure monitoring system
1685AMulti-Media Box, Telephone system, Navigation, Multifunction steering wheel
1697.5ADistronic / FCW, Exterior lighting, Hazard warning flashers / ECO, Multi-Media Box, Telephone system, Navigation, Multifunction steering wheel, Windshield wipers front, Rain-Sensor
17010ACigar lighter / socket front, Multi-Media Box, Telephone system, Navigation, Multifunction steering wheel
1717.5AParktronic system

Luggage Compartment

Fuse Box Location

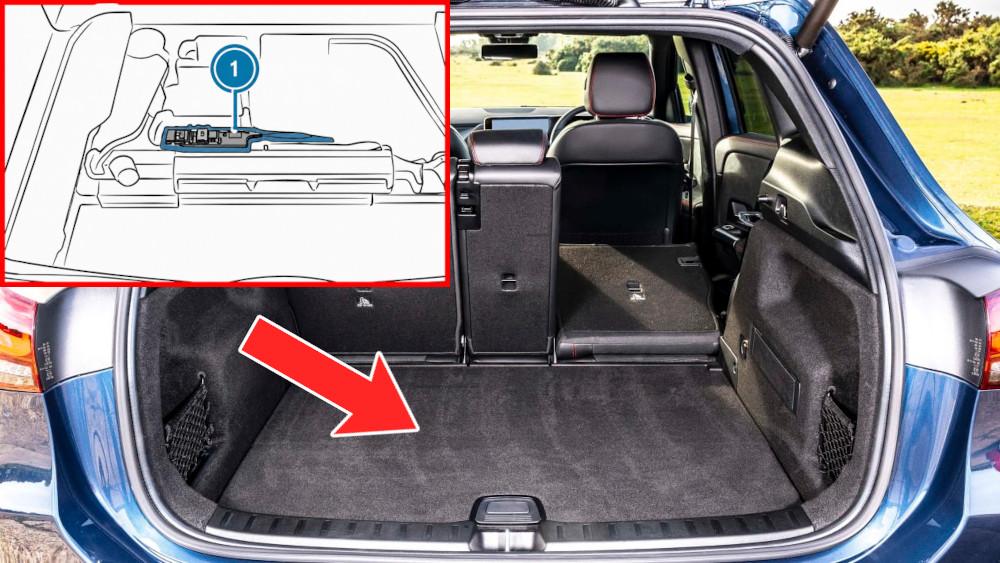

It’s beneath the floor mat; lift the mat to access the fuse box.

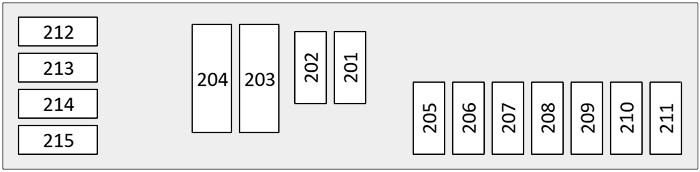

Fuse Box Diagram

Fuses

Assignment of the fuses in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
201Special vehicles, Taxi
20225ATrailer Hitch
20820ATrailer Hitch
20930ATrailer Hitch
21020ATrailer Hitch
21130ATrailer Hitch
