Browse Mercedes-Benz GLE-Class fuse box diagrams for 2020–2026 models with fuse locations, panel layouts, and detailed electrical information for all variants. This article covers the fourth-generation Mercedes-Benz GLE-Class (Model Codes: W167, C167) , available from 2020 , and includes fuse box diagrams for Mercedes-Benz GLE350, GLE350e, GLE450, GLE580, GLE63, GLE300d, GLE350d and GLE400d (2020, 2021, 2022, 2023, 2024, 2025 and 2026) , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

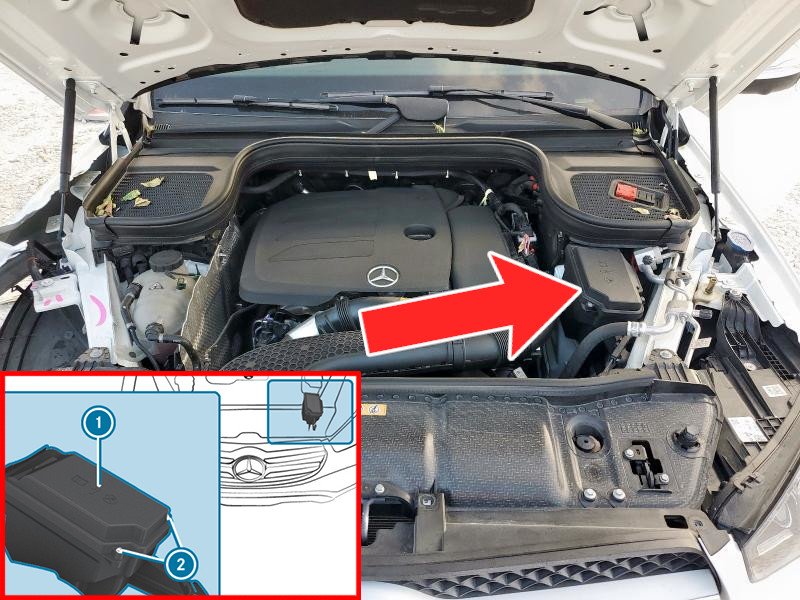

The fuse box is positioned in the engine compartment on the driver’s side. To access the fuses, loosen screws (2) and lift off the fuse box cover (1) from above.

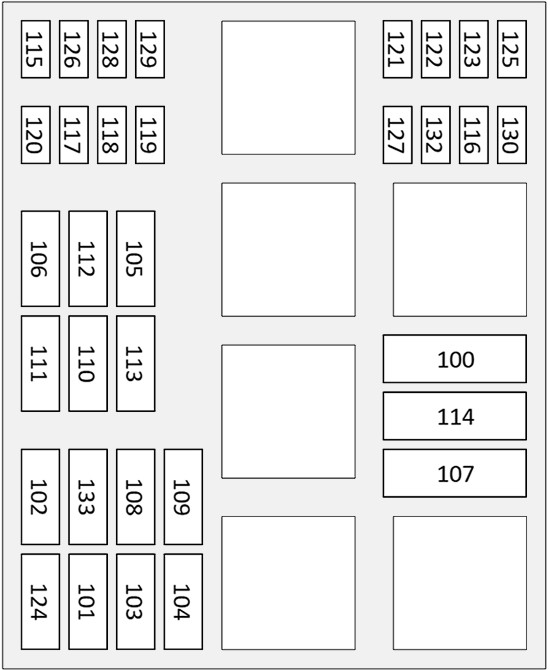

Assignment of the fuses in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 100 40A Hybrid systems 101 15A Engine electronics 102 25A Engine electronics 103 15A Engine electronics 104 15A Engine electronics 105 10A AQUABLADE 106 25A Windshield wiper 107 60A Coolant pumps 108 — – 109 5A Sound generator 110 20A Exterior light 111 30A Windshield wiper 112 — – 113 — – 114 30A Engine electronics 115 — – 116 5A ABS/ASR/ESP/BAS 117 — – 118 15A Coolant pumps 119 15A Coolant fan 120 5A Coolant pumps 121 10A Automatic transmission 122 5A Automatic transmission 123 5A Engine electronics 124 5A Engine electronics 125 5A Engine electronics 126 5A Exterior lamp switch 127 5A USB charging socket 128 5A Engine electronics 129 — – 130 — – 131 — – 132 5A Engine electronics
This content requires JavaScript and a valid membership to view.

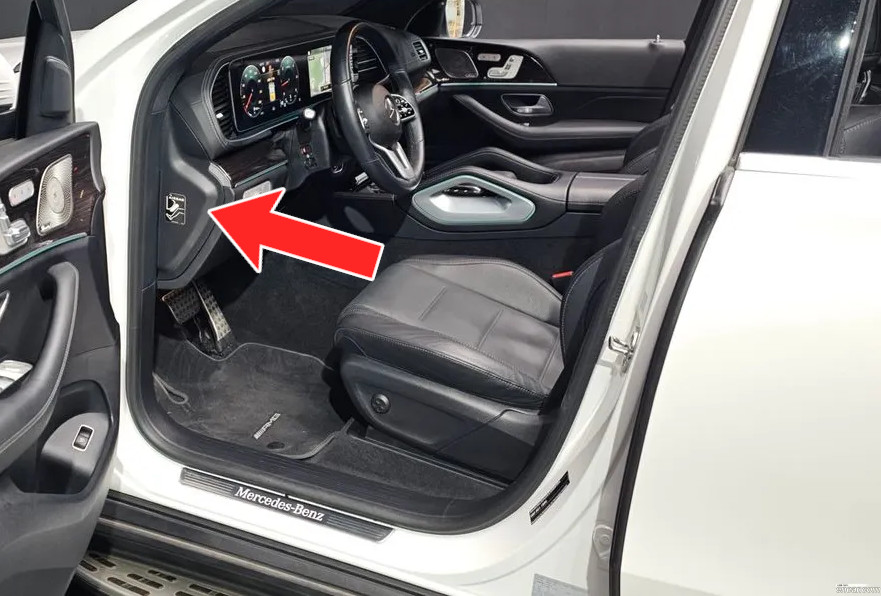

The fuse box is located on the driver’s side edge of the dashboard, beneath a cover.

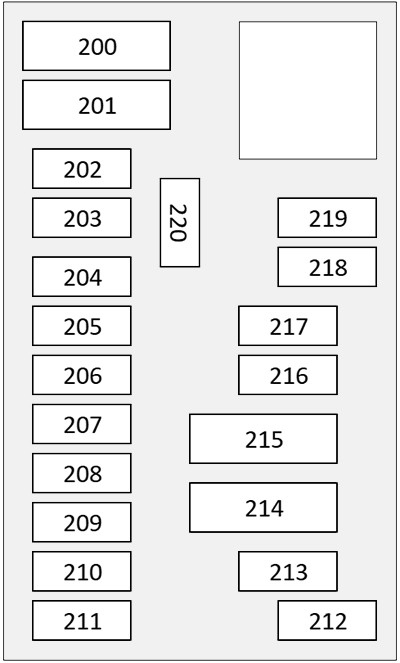

Assignment of the fuses in the passenger compartment (Dashboard)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 200 40A A/C system 201 — – 202 — – 203 10A Steering column switch 204 5A Odorant 205 10A Displays rear 206 5A Head-up-Display 207 15A Radio/Navigation system 208 7.5A Instrument cluster 209 5A Switch panel center console front 210 10A ETC/Electronic Toll Collection 211 — – 212 — – 213 20A A/C system 214 — – 215 — – 216 — – 217 — – 218 — – 219 — – 220 — –
This content requires JavaScript and a valid membership to view.
Footwell

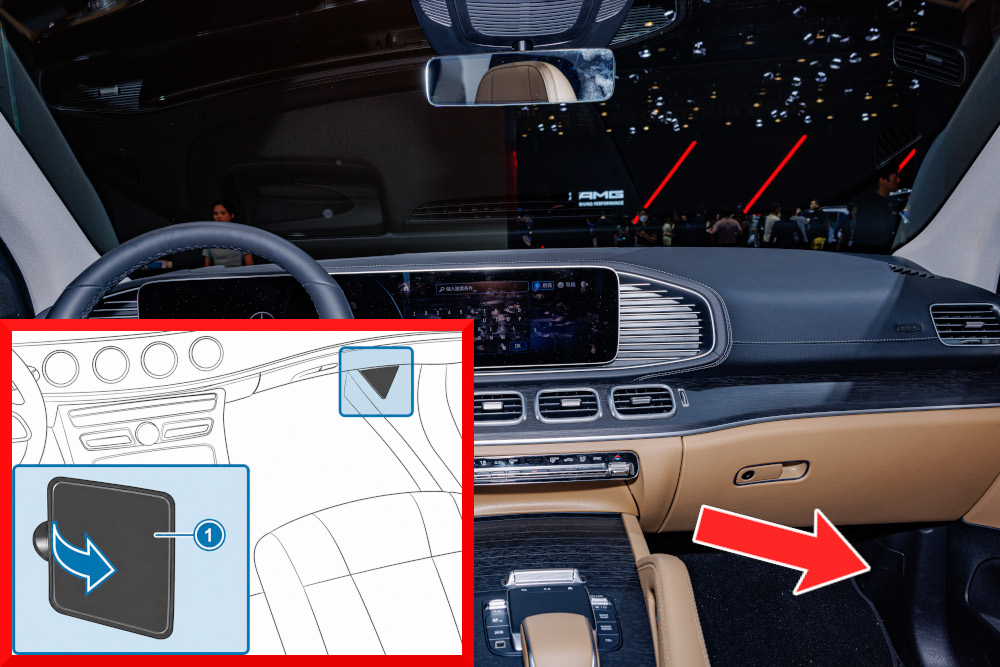

The fuse box is positioned on the right side of the front passenger footwell, beneath the lid.

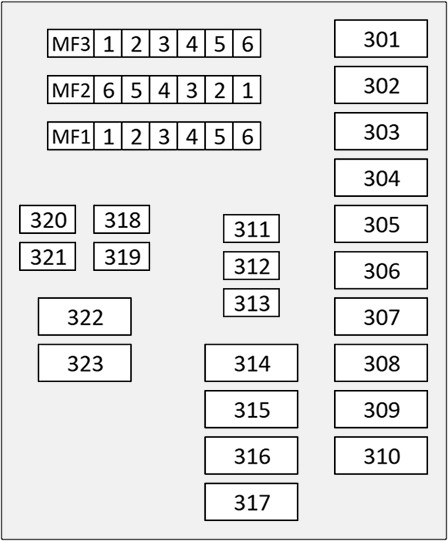

Assignment of the fuses in the passenger compartment (Front footwell)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Amps Description 301 30A Belt tensioner left/right 302 30A Door functions 303 30A Seat adjustment 304 30A Seat adjustment 305 30A Seat heating / ventilation front 306 30A Seat heating / ventilation front 307 25A Stop-start-system 308 15A AIRMATIC / Air suspensión 309 30A Sunroof 311 10A Engine electronics 312 7.5A Telephone charge pad, inductive WMI 313 5A Diagnostic socket 314 20A A/C system, Auxiliary heating, Heating 315 5A Engine electronics 316 15A Roof console front 317 25A Radio/ Navigation system 318 5A Anti-theft alarm 319 5A Engine electronics, Reserve 320 5A Radio/ Navigation system 321 5A Anti-theft alarm, Reserve MF1-1 Service-Disconnect MF1-2 Camera systems MF1-3 Telephone MF1-4 Seat adjustment MF1-5 Seat adjustment MF1-6 DISTRONIC PLUS MF2-1 DISTRONIC PLUS MF2-2 A/C system MF2-3 Reserve MF2-4 Reserve MF2-5 Windshield heating MF3-1 Chassis control AMG MF3-2 Gesture control MF3-3 Touchpad MF3-4 Light/rain sensor MF3-5 Switch panel centerconscle rear MF3-6 Auxiliary heating
This content requires JavaScript and a valid membership to view.

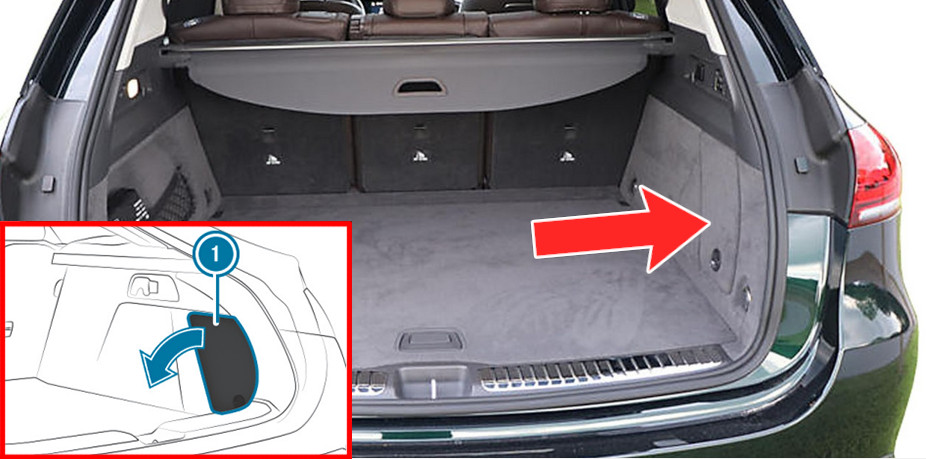

The fuse box is located on the passenger side of the luggage compartment. Remove the cover (1) to access it.

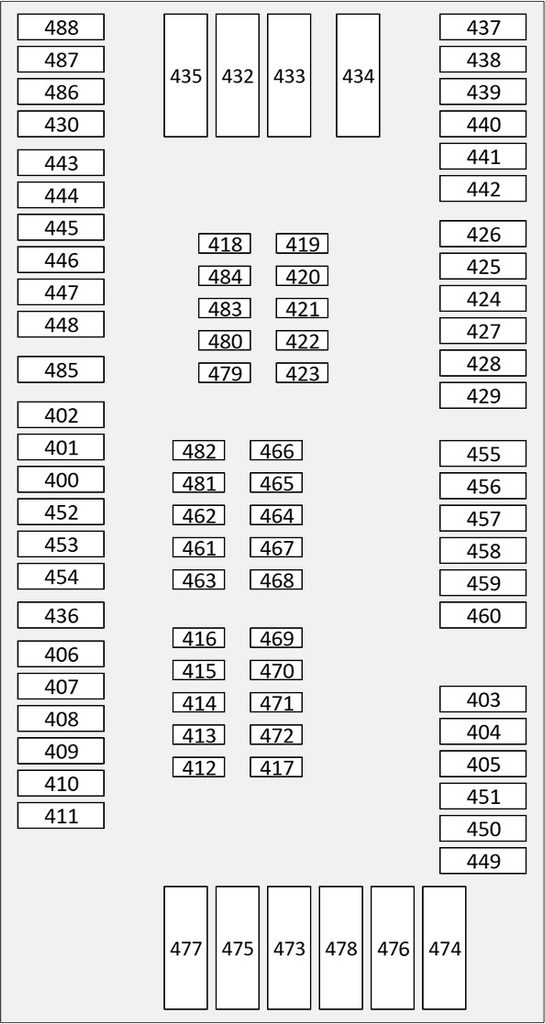

Assignment of the fuses in the luggage compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 400 — – 401 — – 402 — – 403 15A Cupholder heated in front 404 — – 405 — – 406 30A Door functions 407 30A Seat adjustment 2nd seat row 408 — – 409 15A Exhaust gas treatment Diesel SCR; Sound system 410 30A Seat adjustment 2nd seat row 411 25A Fuel System 412 10A DRIVE UNIT (AMG) ; High-voltage charger 413 5A Hybrid systems 414 5A Telephone 415 — – 416 5A Battery 48V 417 7.5A Ambient light 418 — – 419 — – 420 — – 421 — – 422 — – 423 — – 424 20A Engine bearers (AMG) 425 25A Differential gear (AMG) 426 30A Multi-contour seats 2nd seat row 427 7.5A Refrigerator rear 428 5A Engine bearers (AMG) 429 20A Seat heating 3rd seat row 430 — – 431 — – 432 40A Heating 433 — – 434 40A Heating 435 40A Central electronic rear 436 20A Trailer hitching 437 — – 438 25A Anti-theft alarm 439 — – 440 — – 441 30A Seat heating 2nd seat row 442 30A Seat heating 2nd seat row 443 — – 444 — – 445 — – 446 — – 447 — – 448 — – 449 30A Heated panel center console 450 30A Trailer hitching 451 30A Seat heating 2nd seat row 452 30A Trailer hitching 453 20A Trailer hitching 454 30A Trailer hitching 455 15A Cupholder heated in rear 456 20A Socket 115V/230V 457 20A Cigar lighter, front; Socket 12V in trunk 458 10A Socket 12V in center console; Stop-start-system 459 — – 460 — – 461 10A Active Sound 462 10A Roller blind rear sidewards 463 5A Touchpad 464 5A Telephone charge pad, inductive WMI 465 — – 466 — – 467 5A Tire pressure monitoring system 468 5A Backup camera 469 5A Tailgate Motor 470 5A Battery charger hybrid; Differential gear (AMG) 471 — – 472 5A Battery 48V 473 40A Exhaust gas treatment Diesel SCR 474 30A Heated rear window 475 40A Sound system 476 40A Central electronic rear 477 30A Tailgate Motor 478 40A Sound system 479 — – 480 — – 481 — – 482 10A DRIVE UNIT (AMG) 483 — – 484 — – 485 15A Hybrid systems 486 20A A/C system 487 7.5A Multi-contour seats 2nd seat row 488 — –
