Find Mercedes-Benz EQC fuse box diagrams for 2019–2023 models with fuse locations, panel layouts, and detailed electrical system information for this electric SUV. This article covers the Mercedes-Benz EQC (Model Code: N293) and includes fuse box diagrams for Mercedes-Benz EQC 2019, 2020, 2021, 2022 and 2023 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

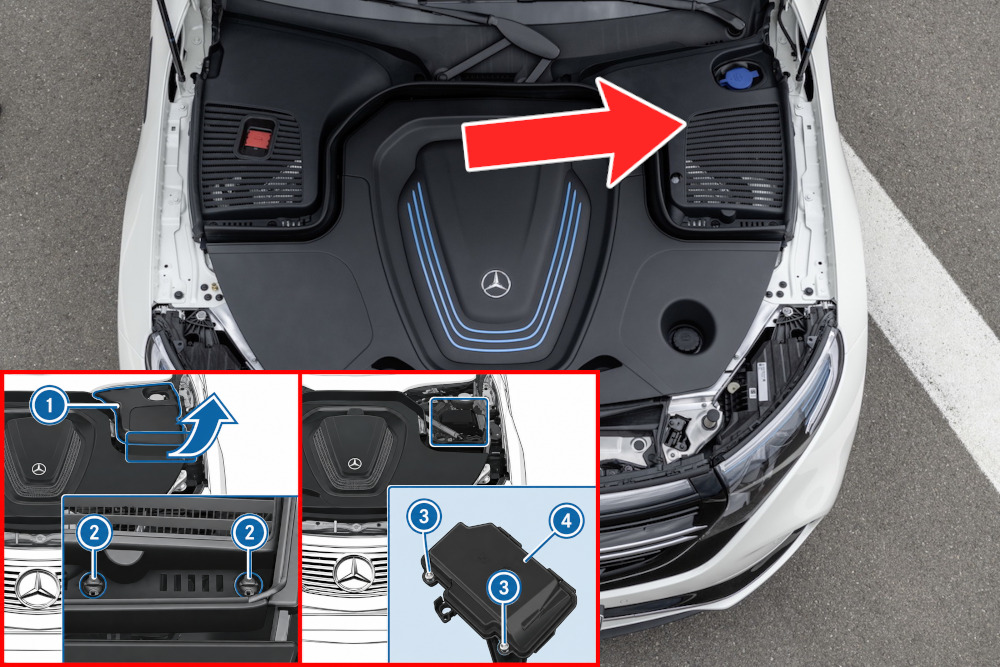

The fuse box is situated in the engine compartment on the driver’s side near the windshield. To access it, turn the clamps (2) on the cover (1) a quarter turn counterclockwise and fold the cover upward. Unscrew the screws (3), then remove the fuse box cover (4).

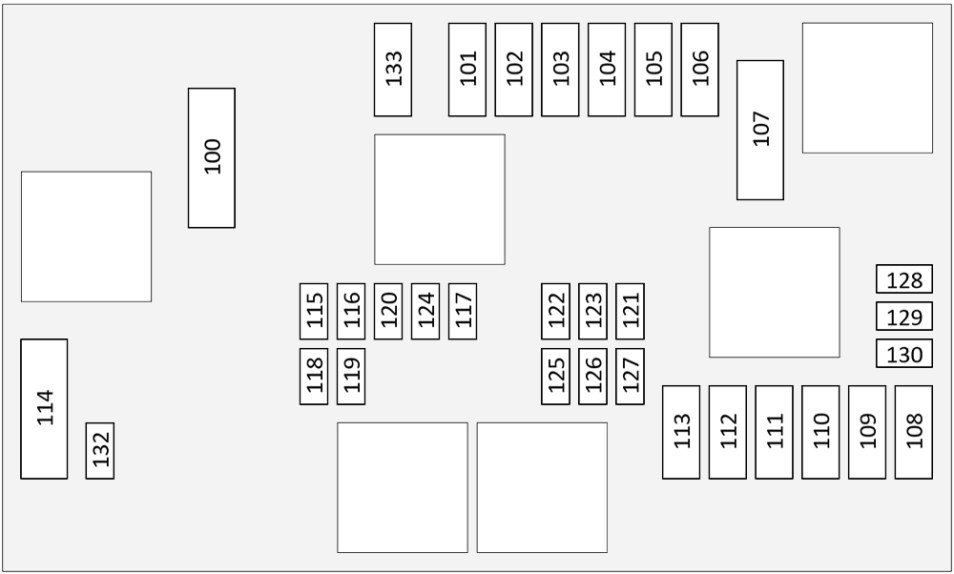

Assignment of the fuses in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 100 40A ABS / AST / ESP / BAS / ESP 109 7.5A Sound system 110 20A Exterior illumination, Headlamp range adjustment 111 20A Exterior illumination, Headlamp range adjustment 112 30A Windshield wipers 114 40A Agility Select 116 7.5A ABS / AST / ESP / BAS / ESP 118 15A Engine electronics 119 15A Engine electronics 121 10A Automatic transmission 123 5A Body controller front 125 5A Engine electronics 126 5A Exterior illumination, Exterior lamp switch, Headlamp range adjustment 128 5A ABS / AST / ESP / BAS / ESP 129 7.5A USB charging socket in rear compartment 132 5A AIRMATIC / Air suspension 133 10A AIRMATIC / Air suspension
This content requires JavaScript and a valid membership to view.

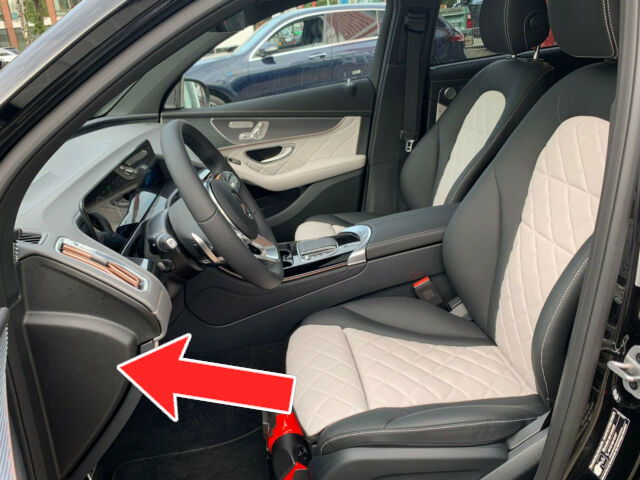

The fuse panel is positioned at the driver’s-side edge of the instrument panel, behind the side cover.

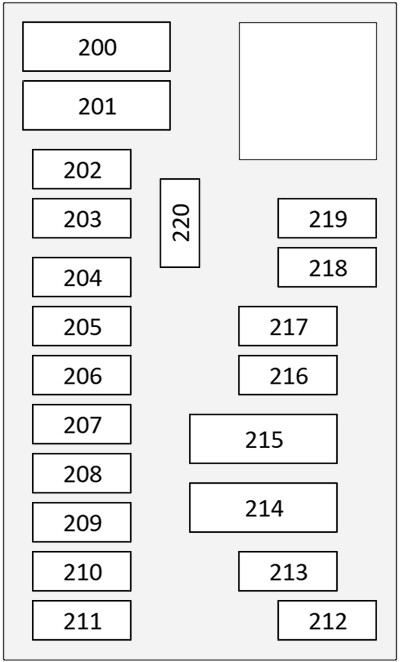

Assignment of the fuses in the passenger compartment (Dashboard)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 200 50A Body controller front 201 40A Body controller front 202 5A Park assist 204 5A Diagnostic socket 205 5A Car2GO, ETC (Electronic Toll Collection) 206 5A A/C system / heater 207 20A A/C system / heater 208 10A A/C system / heater 209 5A Instrument cluster 210 10A Heated / adjustment steering wheel, Multi-function steering wheel 211 7.5A Driving assistance system 213 5A Ambient lighting 220 15A Service-Disconnect
This content requires JavaScript and a valid membership to view.
Passenger Compartment (Footwell)

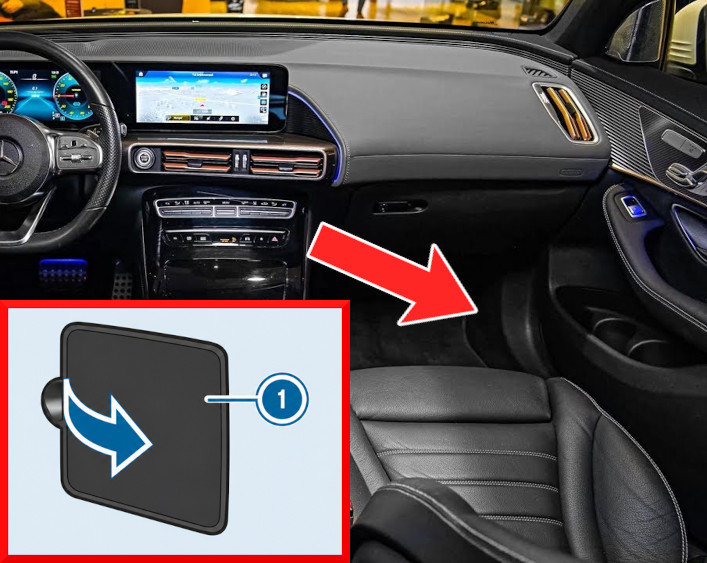

The fuse box is positioned in the right side of the front passenger footwell. To access it, fold back the cover (1) and remove it.

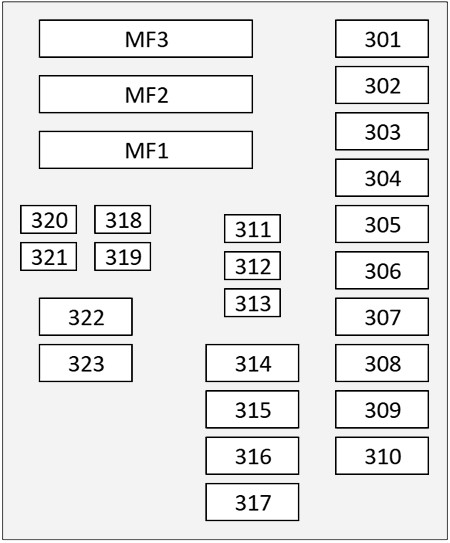

Assignment of the fuses in the passenger compartment (Footwell)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 302 30A Central locking, Exterior mirror function, Power window 303 30A Central locking, Power window 304 30A Radio / Navigation systems 305 30A Seat adjustment / comfort functions at the front, Seat heating / ventilation 306 30A Seat adjustment / comfort functions at the front, Seat heating / ventilation 307 20A ABS / AST / ESP / BAS / ESP 308 7.5A Engine electronics 310 20A Engine electronics 311 7.5A Collision Prevent Assist Plus, Distronic Plus, Driving assistance system 312 10A Tilting / Sliding sunroof Panoramic sunroof 313 7.5A Electric parking brake. AMG, Engine electronics 314 15A Agility Select 315 5A Engine electronics 316 7.5A Airbag system 317 30A Tilting / Sliding sunroof Panoramic sunroof 318 5A Anti-theft alarm, Engine electronics 319 7.5A Keyless-GO 320 5A Central locking, Keyless-GO 321 10A Ignition lock 322 7.5A Instrument cluster MF1 Heated / adjustment steering wheel, Multi-function steering wheel, Radio / Navigation systems, Rain / Light sensor MF2 A/C system / heater, Belt tensioner left/right, Head-up Display, Wireless phone charging in front MF3 A/C system / heater, Emergency call system, Engine electronics, Gesture camera, Radio / Navigation systems, USB charging socket in rear compartment
This content requires JavaScript and a valid membership to view.

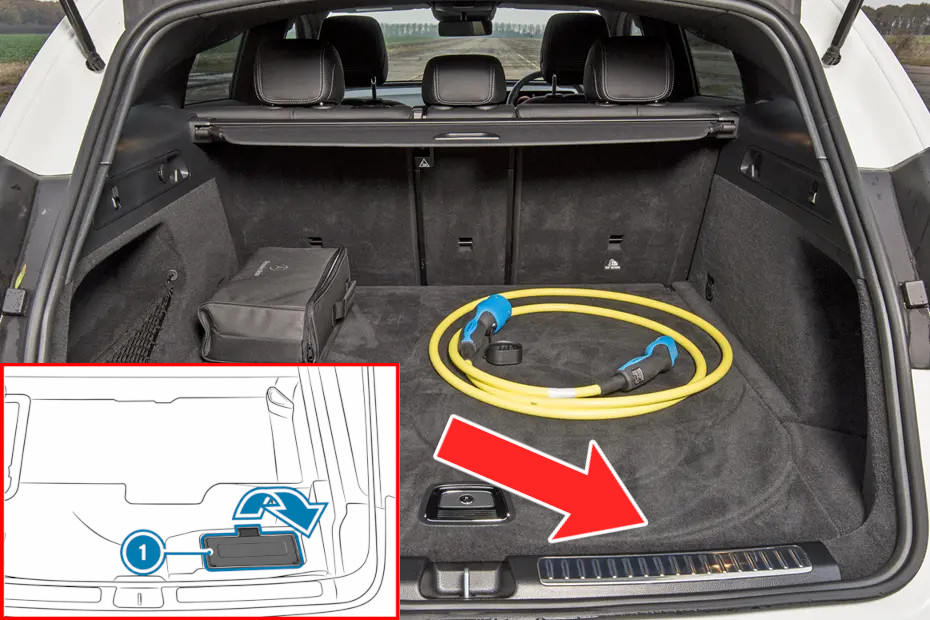

The fuse box is situated beneath the floor panel in the cargo area. To reach it, lift the trunk floor and then open lid (1) in the arrow’s direction.

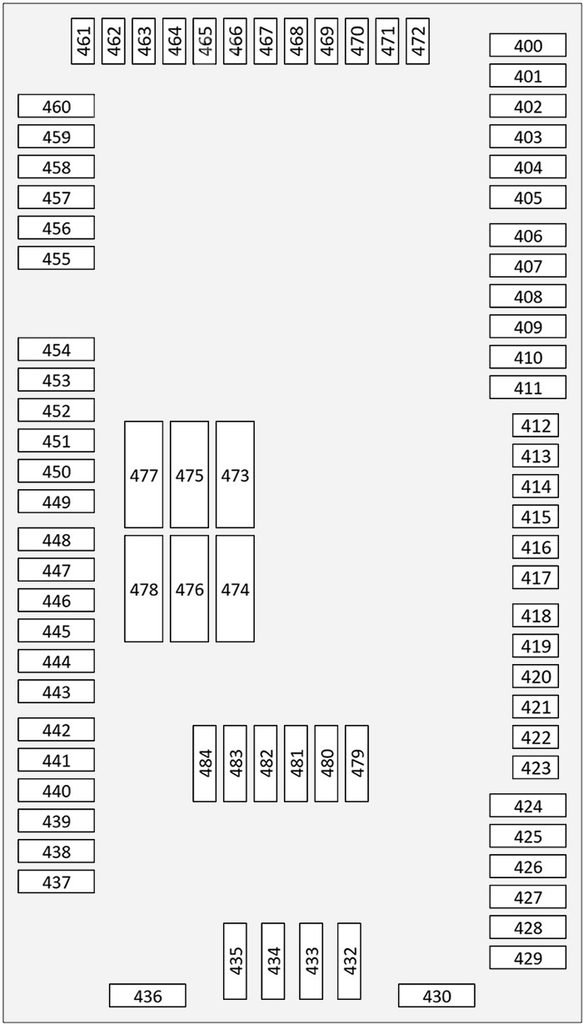

Assignment of the fuses in the luggage compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 403 5A Socket 230V 404 30A Seat adjustment / comfort functions at the front 405 30A Seat adjustment / comfort functions at the front 406 30A Central locking, Exterior mirror function, Power window 408 30A Central locking, Power window 410 25A Electric parking brake. AMG, Engine electronics 411 30A Belt tensioner left/right 412 5A Engine electronics 414 5A Tire pressure monitoring system 415 5A A/C system / heater 416 10A Engine electronics 417 5A Backup camera 444 20A Trailer hitching 445 30A Trailer hitching 446 30A Trailer hitching 447 20A Trailer hitching 448 30A Trailer hitching 449 30A Socket 230V 451 30A Seat heating / ventilation 454 30A Belt tensioner left/right 455 15A Rear compartment entertainment 456 15A Socket 12V in trunk 457 15A Cigar lighter front 458 15A Socket 12V rear 460 15A Engine electronics 467 5A Seat adjustment / comfort functions at the front 469 5A Keyless-GO 470 5A Seat adjustment / comfort functions at the front 471 10A DC protection box rear 472 5A Driving assistance system 473 30A Sound system 473 40A Sound system 474 30A Heated rear window 475 40A Easy-Pack tailgate 476 40A Body controller rear 477 40A Body controller rear
This content requires JavaScript and a valid membership to view.
