Nissan Sentra (B16) | 2007-2012 | Fuse Box Diagrams and Locations

Explore Nissan Sentra fuse box diagrams for 2007–2012 models with fuse locations, panel layouts, and detailed electrical system and fuse assignment information. This article covers the sixth-generation Nissan Sentra (Model Code: B16), available from 2007 to 2012, and includes fuse box diagrams for Nissan Sentra 2007, 2008, 2009, 2010, 2011 and 2012, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

What’s Included

Engine Compartment

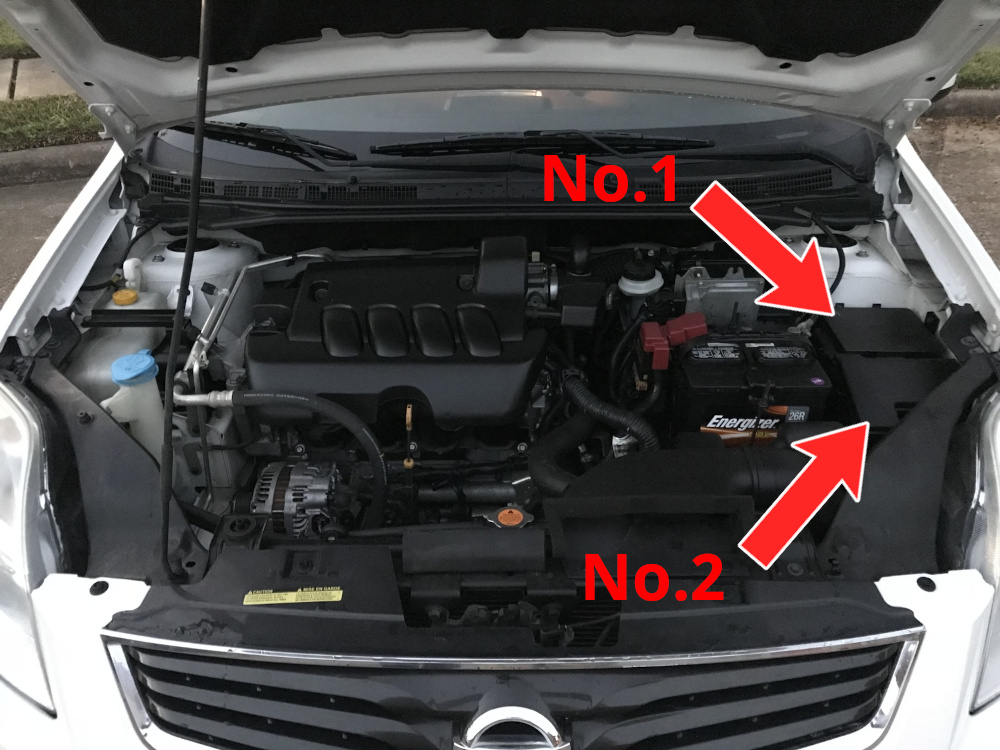

Fuse Box Location

Both fuse boxes are located in the engine compartment on the driver’s side, near the main battery. To access the fuses, remove the fuse box cover by pressing the tabs and lifting the cover from the front.

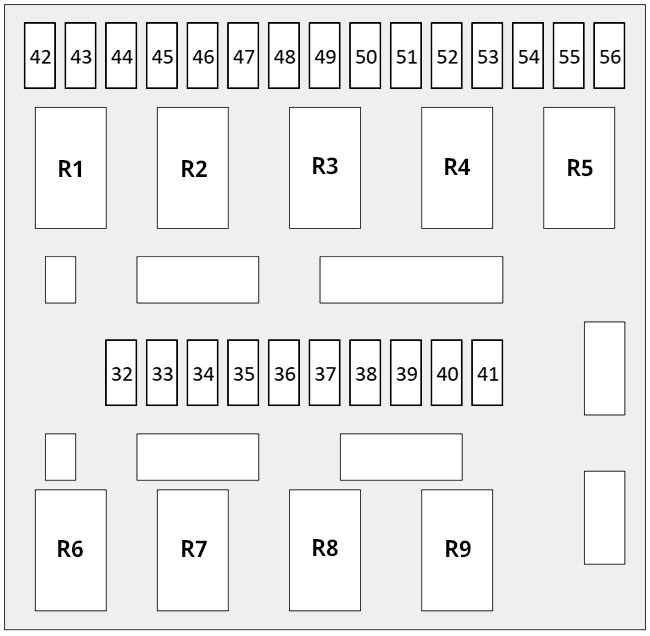

Fuse Box Diagram (No.1)

Fuses

Assignment of the fuses in the engine compartment fuse box No.1

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Short-Code	Description
34	10A	H/LAMP HI RH	Headlamp High RH, Daytime Light System
35	10A	H/LAMP HI LH	Headlamp High LH, Daytime Light System
36	10A	TAIL LAMP	Parking Lamp, License Lamp, Tail Lamp, Illumination
37	10A	FR PARKING LAMP	Parking Lamp, License Lamp, Tail Lamp
39	30A	FR WIPER	Front Wiper Relay, Front Wiper High Relay
40	15A	H/LAMP LO LH	Headlamp Low LH, Daytime Light System
41	15A	H/LAMP LO RH	Headlamp Low RH, Daytime Light System
42	10A	A/C COMP	A/C Relay
44	30A	SPARE	Spare
46	15A	RR DEF	Rear Window Defogger Relay
47	15A	RR DEF	Rear Window Defogger Relay
48	15A	FUEL PUMP	Fuel Pump Relay
49	10A	A/T ECU	Transmission Control Module (Power Supply), Secondary Pressure Sensor Solenoid Valve, CVT Indicator Lamp, Primary Speed Sensor CVT (Revolution Sensor)
50	10A	ABS ECU	Anti-lock Brake System
51	10A	A/F SENSOR 1	Heated Oxygen Sensor
52	15A	THROTTLE MOTOR	Throttle Control Motor Relay
53	20A	ECCS	Engine Control Module (ECM) Relay, Nissan AntiTheft System, Transmission Control Module (Power Supply), CVT Indicator Lamp, ECM Power Supply For Back-up
54	15A	O2 SENSOR 1	Oxygen sensor
55	15A	INJECTOR	Injector, Fuel Ignition System Function
56	15A	FR FOG LAMP	Front Fog Lamp

Relays

Assignment of the relays in the engine compartment fuse box No.1

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Starter
R2	Cooling Fan 2
R3	Cooling Fan 3
R4	Cooling Fan 1
R5	Ignition
R6	Rear Window Defogger
R7	Engine Control Module (ECM)
R8	Headlamp Low
R9	Front Fog Lamp

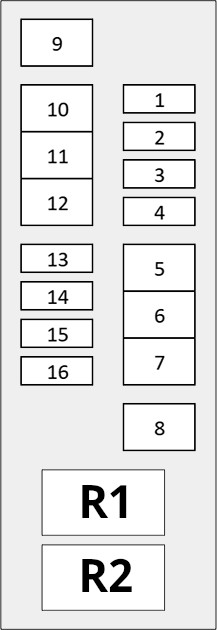

Fuse Box Diagram (No.2)

Fuses

Assignment of the fuses in the engine compartment fuse box No.2

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	20A	Audio, Vehicle Information and Integrated Switch System, Audio Visual Communication System
2	20A	Heated Seat
4	10A	Rear Window Defogger
5	40A	Starting System, Ignition Switch
6	40A	Cooling Fan
7	40A	Cooling Fan
8	50A	Low Tire Pressure Warning System, Sunroof, Power Door Lock, Daytime Light System, Front Fog Lamp, Turn Signal and Hazard Warning Lamps, Combination Switch, Parking Lamp, License Lamp, Tail Lamp, Warning Chime, Illumination, Remote Keyless Entry System, Intelligent Key System, Trunk Lid Opener, Hands Free Telephone, Vehicle Security (Theft Warning) System, Nissan Anti-Theft System, Power Window, Rear Window Defogger, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Front Wiper and Washer, Vehicle Information and Integrated Switch System, Audio Visual Communication System Fuse: “9”
10	30A	Anti-lock Brake System
11	30A	Anti-lock Brake System
12	60A	Electronic Controlled Power Steering
13	10A	Daytime Light System
14	10A	Charging System
15	10A	Horn, Remote Keyless Entry System, Intelligent Key System, Vehicle Security (Theft Warning) System

Relays

Assignment of the relays in the engine compartment fuse box No.2

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Horn
R2	Daytime Light System 2

Passenger Compartment

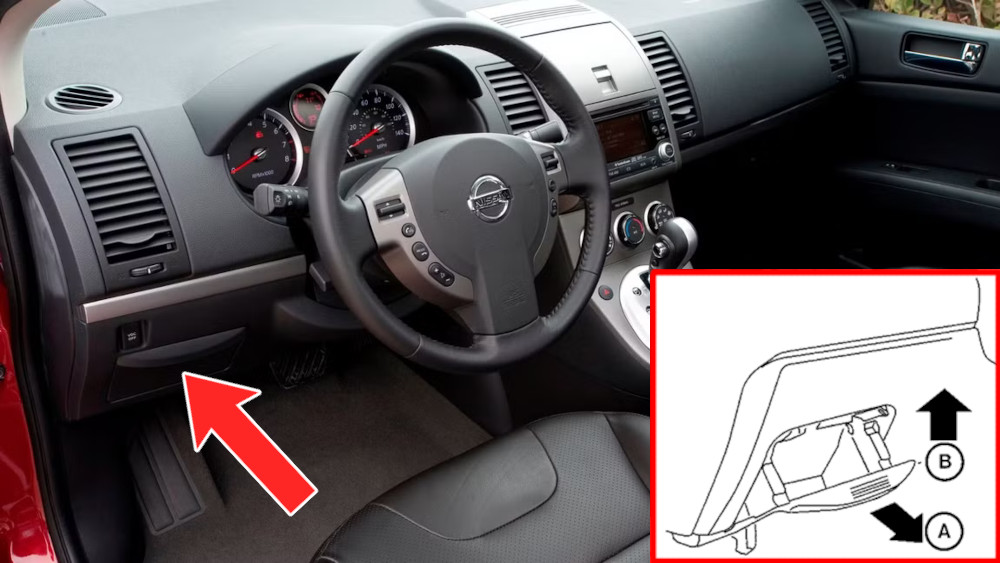

Fuse Box Location

The fuse box is located in the passenger compartment on the driver’s side, to the left of the steering wheel behind the storage bin. To access the fuse box: Open storage bin A. Pull the storage bin upward and outward to remove it B. The storage bin contains a fuse guide.

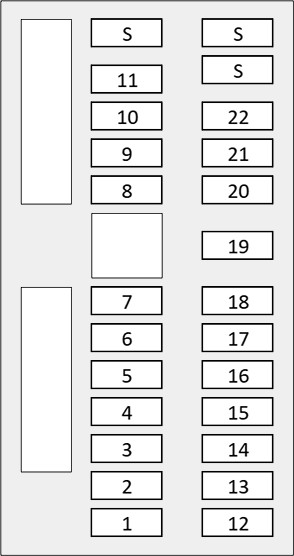

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
5	10A	Door Mirror, Warning Lamps, Warning Chime, CVT Indicator Lamp
6	10A	Combination Meter, Remote Keyless Entry System, Headlamp, Turn Signal and Hazard Warning Lamps, Front Fog Lamp, Parking Lamp, License Lamp, Tail Lamp, Combination Switch, Illumination, Audio, Daytime Light System, Hands Free Telephone, Vehicle Security (Theft Warning) System, Power Window, Audio Visual Communication System, Vehicle Information and Integrated Switch System, Intelligent Key System, Room/Map Lamps, Vanity Lamp, Luggage Lamp
7	15A	Power Socket
8	10A	Rear Window Defogger
9	10A	Warning Chime, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Power Door Lock, Intelligent Key System, Trunk Lid Opener
10	15A	Heater System, Manual Air Conditioner
11	15A	Heater System, Manual Air Conditioner
12	10A	Illumination, Malfunction Indicator Lamp, CVT Shift Lock System, Electronic Controlled Power Steering, Intelligent Key System, Headlamp, Turn Signal and Hazard Warning Lamps, Low Tire Pressure Warning System, Warning Chime, Daytime Light System, Hands Free Telephone, Vehicle Security (Theft Warning) System, Remote Keyless Entry System, Nissan Anti-Theft System, Front Wiper and Washer, Front Fog Lamp, Sunroof, Combination Switch, Heater System, Manual Air Conditioner, Parking Lamp, License Lamp, Tail Lamp, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Vehicle Information and Integrated Switch System, Power Window, Rear Window Defogger, Audio Visual Communication System, ASCD Brake Switch, Park/Neutral Position Switch, CVT Indicator Lamp, Starting System, Heated Seat
13	10A	Supplemental Restraint System
14	10A	Back-up Lamp, Combination Meter, Intelligent Key System, Headlamp, Turn Signal and Hazard Warning Lamps, Illumination, Warning Chime, Daytime Light System, Low Tire Pressure Warning System, Electronic Controlled Power Steering, Charging System, Warning Lamps, Park/Neutral Position Switch, ASCD Indicator, CVT Indicator Lamp, Malfunction Indicator Lamp, Anti-lock Brake System, Overdrive Control Switch, Supplemental Restraint System, Audio Visual Communication System
15	10A	Front Wiper and Washer
16	15A	QR: Air Fuel Ratio Sensor, Fuel Ignition System Function, Heated Oxygen Sensor
17	20A	Audio
18	15A	Power Socket
19	10A	Stop Lamp, Combination Meter, Illumination, Power Door Lock, Brake Switch, Daytime Light System, Intelligent Key System, Headlamp, Nissan Anti-Theft System, Turn Signal and Hazard Warning Lamps, Vehicle Security (Theft Warning) System, Electronic Controlled Power Steering, Warning Chime, Low Tire Pressure Warning System, CVT Indicator Lamp, Heater, Manual Air Conditioner, Warning Lamps, Anti-lock Brake System, ASCD Indicator, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Audio Visual Communication System, Malfunction Indicator Lamp, Rear Window Defogger, ASCD Brake Switch
20	10A	Intelligent Key System, Audio Visual Communication System, Vehicle Information and Integrated Switch System, Power Door Lock, Remote Keyless Entry System, Nissan Anti-Theft System, Trunk Lid Opener, Vehicle Security (Theft Warning) System, Warning Chime, Combination Switch, Daytime Light System, Front Fog Lamp, Headlamp, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Illumination, Turn Signal and Hazard Warning Lamps, Parking Lamp, License Lamp, Tail Lamp, ASCD Brake Switch
21	10A	Power Door Lock, Warning Chime, Intelligent Key System, Remote Keyless Entry System, Room/Map Lamps, Vanity Lamp, Luggage Lamp
22	10A	Hands Free Telephone
S		Spare Fuses
