This guide covers the Ram ProMaster City (2019–2022) (Model Code: Type 636). Here you’ll find fuse box diagrams for Ram ProMaster City 2019, 2020, 2021 and 2022, along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).

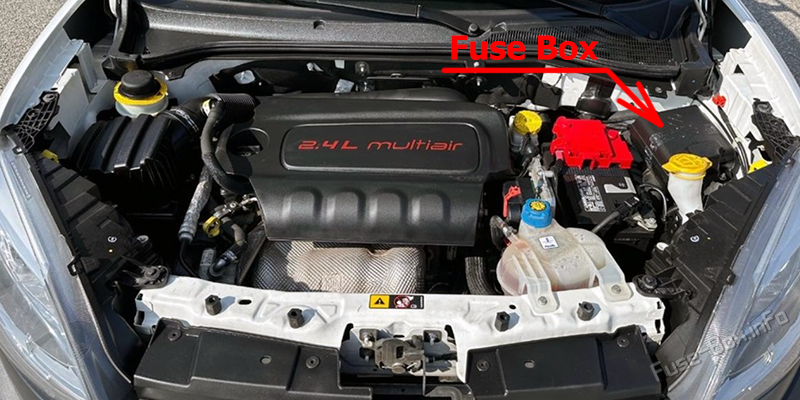

The Front Distribution Unit is located on the right side of the engine compartment, next to the battery. To access the fuses, remove fasteners and remove the cover. The ID number of the electrical component corresponding to each fuse can be found on the back of the cover.
Fuse Box Diagram
Assignment of the fuses in the engine compartment
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
BSM System, Positive Key and Steering Angle Sensor
F30
–
15A Blue
2nd Instrument Panel Power Outlet (Battery)
F83
20A Yellow
–
Fuel Pump
F84
–
15A Blue
AT Module
F85
–
15A Blue
Rear Power Outlet 12 Volts (ACC/ON/ RUN)
F86
–
15A Blue
2020-2022: IP Power Outlet 12 Volts (ACC/ON/ RUN)
F87
–
5A Tan
IBS
F88
–
7.5A Brown
External Mirror Defrost
Passenger compartment
Fuse Box Location

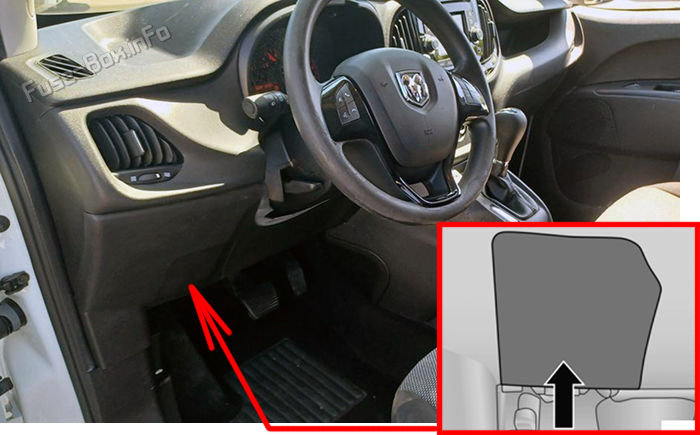

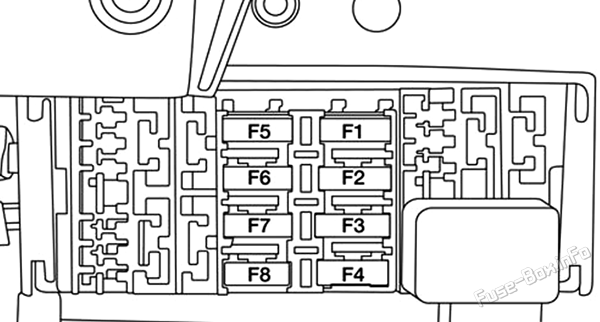

The interior fuse panel is part of the Body Control Module (BCM) and is located on the driver’s side under the instrument panel. Remove the cover to access. The central power fuse panel is located on the driver’s side under the instrument panel.
Fuse Box Diagrams

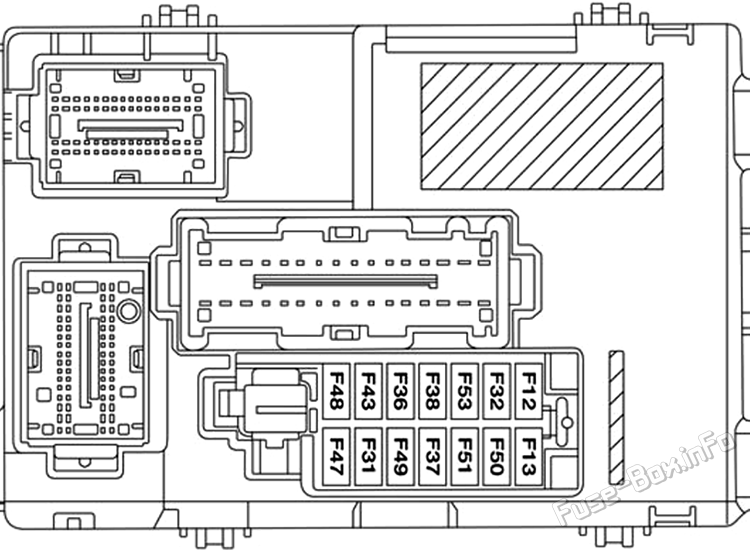

Body Control Module (BCM)
Assignment of the fuses in the Body Control Module
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
