Toyota Auris Hybrid Fuse Box Locations and Diagrams (2012-2018)

The first-generation Toyota Auris Hybrid—also known as the Auris HSD—was produced from 2009 to 2013 under the model code E150. As Toyota’s first compact hatchback to incorporate hybrid technology, it delivered a quiet, efficient, and environmentally friendly driving experience while retaining the practicality and comfort of the standard Auris.

In this article, you will find fuse box diagrams for the Toyota Auris Hybrid, covering model years 2009, 2010, 2011, 2012 and 2013. These diagrams are vital for understanding the fuse layout and identifying the location and function of specific fuses and relays related to electrical components.

What’s Included:

Fuse Box Diagrams – Visual layouts of fuses and relays for each year.
Fuse Panel Locations – Guidance on where to find the fuse panels inside the car.
Fuse Assignments – A detailed list explaining what each fuse and relay controls.

Whether you’re troubleshooting a malfunction or replacing a specific fuse, this guide will help you maintain the electrical systems of your Toyota Auris Hybrid (2009–2013).

What’s Included

Passenger Compartment

Fuse Box Location

Left-hand drive vehicles

Remove the lid.

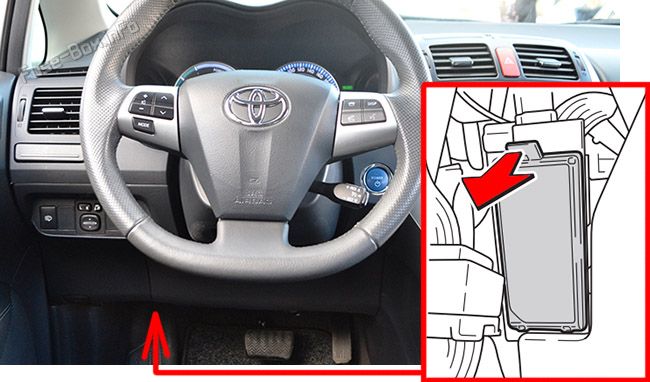

Location of the fuses in the passenger compartment (LHD): Toyota Auris Hybrid (2010-2012)

Right-hand drive vehicles

Remove the cover and then remove the lid.

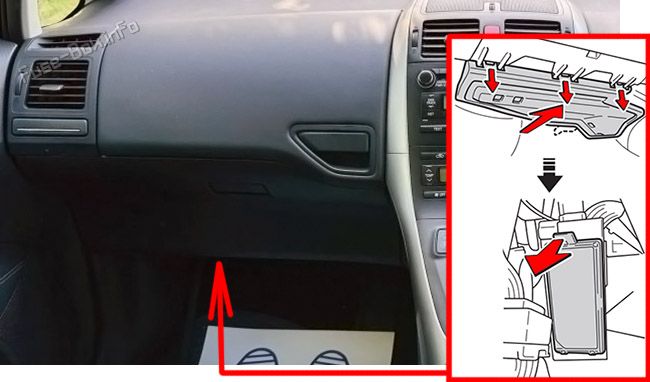

Location of the fuses in the passenger compartment (RHD): Toyota Auris Hybrid (2010-2012)

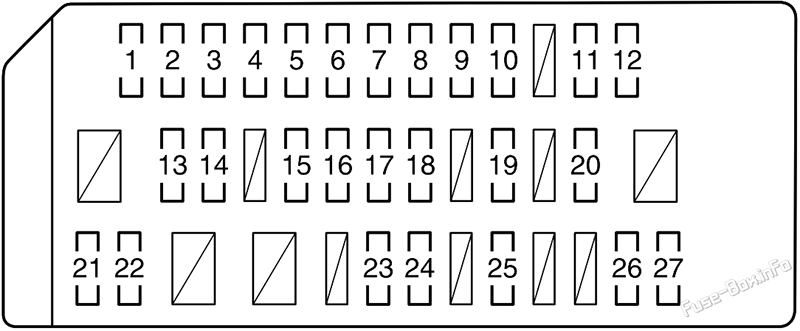

Fuse Box Diagram

Assignment of the fuses in the instrument panel

№	Fuse	Amps	Circuit
1	TAIL	10A	Front position lights, tail lights, license plate lights, rear fog light, front fog lights, manual headlight leveling dial
2	PANEL	7.5A	Audio system, “touch screen”, cigarette lighter, glove box light, Toyota parking assist-sensor, switch illumination
3	IGN	7.5A	SRS airbag system, multiport fuel injection system/sequential multi-port fuel injection, smart entry & start system, push button start, brake system, hybrid system
4	MET	7.5A	Gauge and meters
5	WASHER RR	10A	Rear windshield washer
6	WIP	25A	Windshield wipers, rain sensor
7	RR WIP	15A	Rear window wiper
8	WASHER FR	15A	Windshield washer
9	HTR-IG	10A	Air conditioning system
10	GAUGE	10A	Horn, left-hand headlight (low beam), right-hand headlight (low beam), back-up lights, “touch screen”, auto anti-glare inside rear view mirror, Toyota parking assistsensor
11	ECU-IG №2	10A	Air conditioning system, turn signal lights, auto anti-glare inside rear view mirror, rear view monitor system, moon roof, Toyota parking assist-sensor, brake system
12	ECU-IG1 №1	10A	Main body ECU, electric cooling fans, automatic headlight leveling system, electric power steering, rain-sensing windshield wipers, headlight cleaner, vehicle stability control system
13	DOOR RL	20A	Power windows
14	DOOR RR	20A	Power windows
15	D FR DOOR	20A	Power windows
16	S/ROOF	20A	Moon roof
17	P FR DOOR	20A	Power windows
18	STOP	10A	Stop lights, high mounted stop light, brake system, hybrid system
19	RR FOG	7.5A	Rear fog light
20	OBD	7.5A	On-board diagnosis system
21	FR FOG	15A	Front fog lights
22	DBL LOCK	25A	Multiport fuel injection system/ sequential multiport fuel injection
23	DOOR №1	25A	Power door lock
24	SEAT HTR FL	10A	Seat heater
25	SEAT HTR FR	10A	Seat heater
26	ECU-ACC	7.5A	Outside rear view mirrors, audio system, “touch screen”
27	CIG	15A	Cigarette lighter, power outlet

Engine Compartment

Fuse Box Location

Push the tab in and lift the lid off.

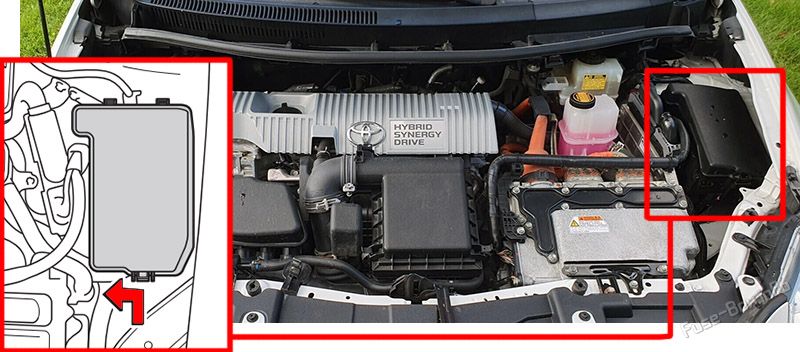

Location of the fuses in the engine compartment: Toyota Auris Hybrid (2010, 2011, 2012)

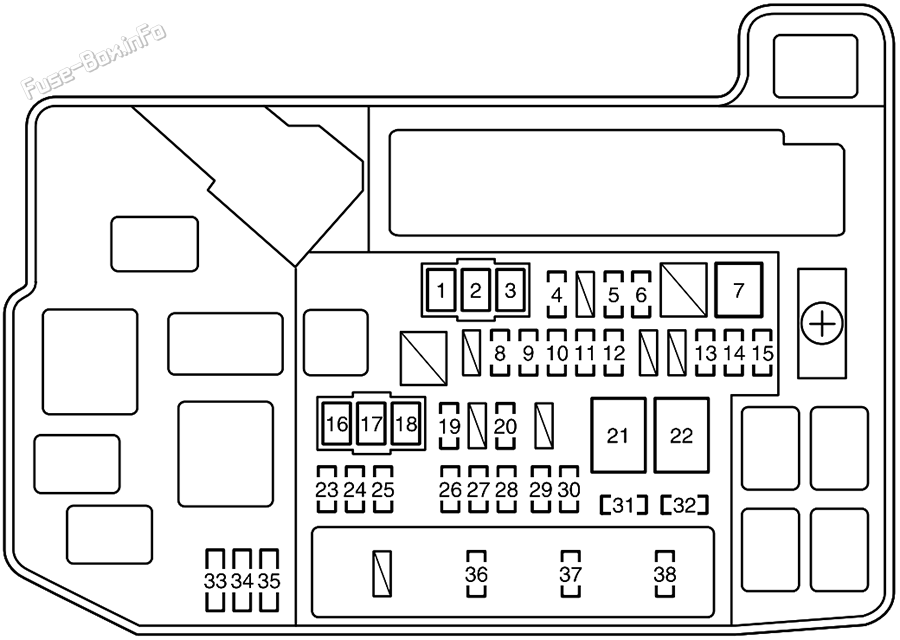

Fuse Box Diagram

Assignment of the fuses in the engine compartment

№	Fuse	Amps	Circuit
1	HTR	50A	Air conditioning system
2	RDI	30A	Electric cooling fan
3	CDS	30A	Electric cooling fan
4	DRL	7.5A	Daytime running lights
5	ENG W/P	30A	Cooling system
6	ABS MAIN №2	7.5A	Brake system
7	H-LP CLN	30A	Headlight cleaner
8	IGCT	30A	IGCT №2, IGCT №3, PCU
9	DC/DC-S	5A	Inverter and converter
10	P.CON MAIN	7.5A	P position control system
11	AM2	7.5A	Hybrid system
12	ECU-B2	10A	Air conditioning system, smart entry & start system, push button start, power windows
13	TURN & HAZ	10A	Turn signal lights
14	ETCS	10A	Multiport fuel injection system/ sequential multiport fuel injection
15	ABS MAIN №1	20A	Brake system
16	P/I 2	40A	Horn, left-hand headlight (low beam), right-hand headlight (low beam), back-up lights, “touch screen”, auto anti-glare inside rear view mirror, Toyota parking assistsensor
17	ABS MTR 1	30A	Brake system
18	ABS MTR 2	30A	Brake system
19	H-LP HI MAIN	20A	H-LP LH HI, H-LP RH HI (high beam headlights)
20	P CON MTR	30A	P position control system
21	P/l 1	60A	EFI MAIN, BATT FAN, IG2
22	EPS	60A	Electric power steering
23	PCU	10A	Hybrid system
24	IGCT №2	10A	Hybrid system, P position control system, hybrid battery
25	MIR HTR	10A	Outside rear view mirror defoggers, outside rear view mirrors
26	RAD №1	15A	Audio system, “touch screen”
27	DOME	10A	Interior light, personal lights, vanity lights, smart entry & start system, luggage compartment light
28	ECU-B	10A	Gauge and meters, vehicle stability control system, main body ECU
29	H-LP LH HI	10A	Left-hand headlight (high beam)
30	H-LP RH HI	10A	Right-hand headlight (high beam)
31	EFI №2	10A	Multiport fuel injection system/ sequential multiport fuel injection
32	IGCT №3	10A	Cooling system
33	SPARE	30A	Spare fuse
34	SPARE	10A	Spare fuse
35	SPARE	7.5A	Spare fuse
36	EFI MAIN	20A	Multiport fuel injection system/ sequential multiport fuel injection, EFI №2, cooling system
37	BATT FAN	10A	Hybrid battery cooling fan
38	IG2	15A	Multiport fuel injection system/ sequential multiport fuel injection, starting system, IGN, MET, hybrid system
