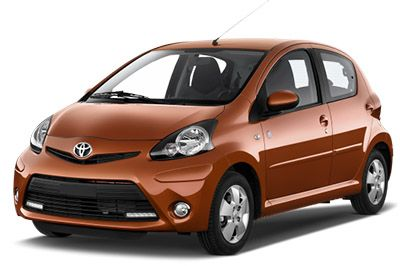

The first-generation Toyota Aygo (Model Code: AB10) was produced from 2005 to 2014. Developed as part of a joint venture with Citroën and Peugeot, the Aygo shared its platform with the C1 and 107, offering a practical, efficient, and compact solution for urban driving.
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
In this article, you will find fuse box diagrams for the Toyota Aygo, covering model years 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 and 2014. These diagrams are valuable for identifying fuse and relay functions, as well as locating relevant panels during maintenance or troubleshooting.
What’s Included:

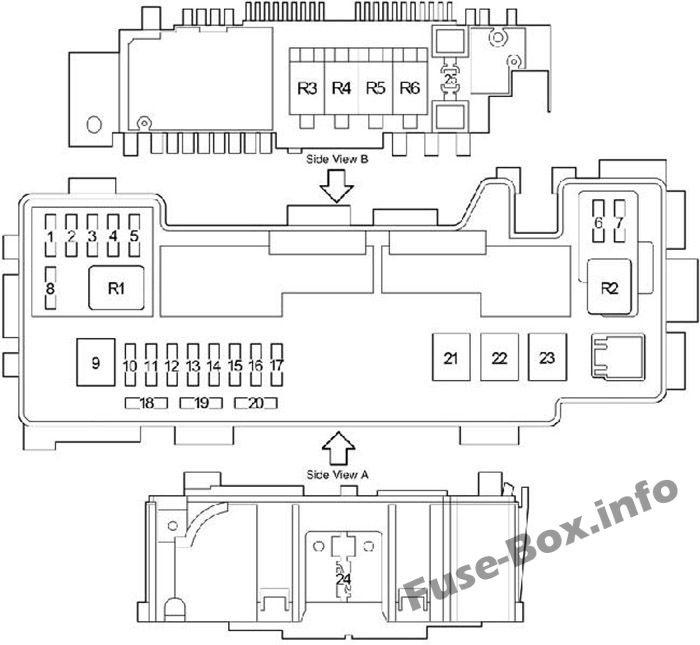

Fuse Box Diagrams – Visual layouts of all main fuses and relays.

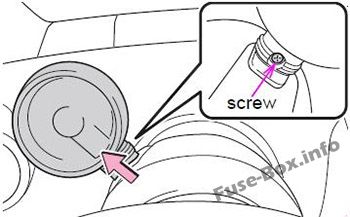

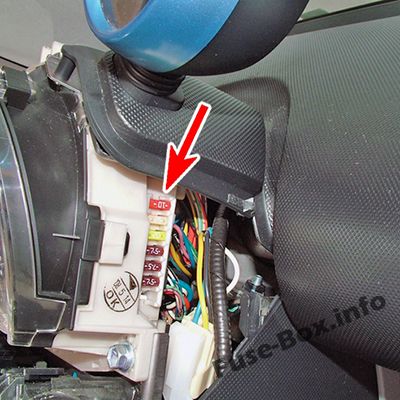

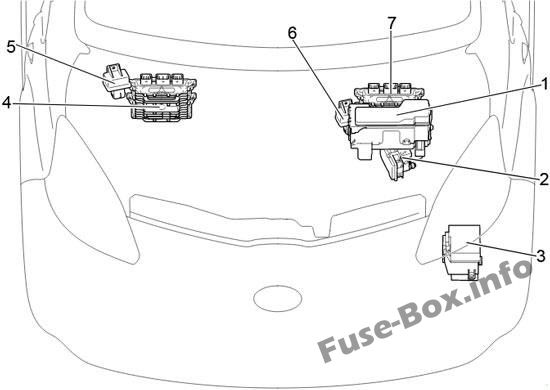

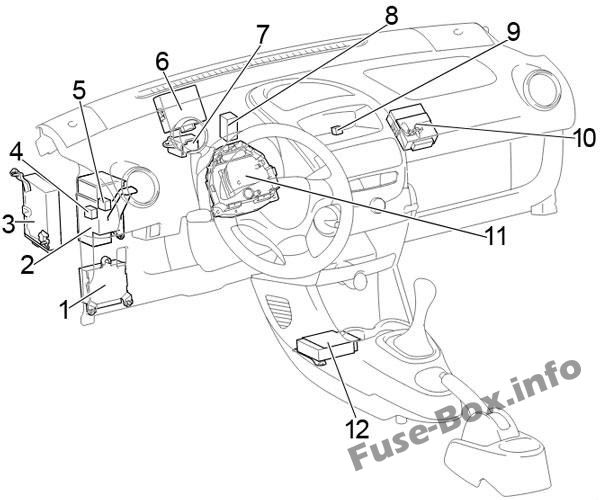

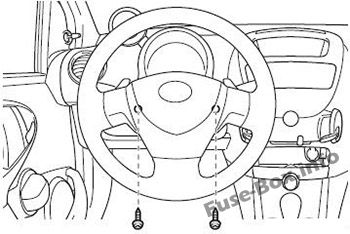

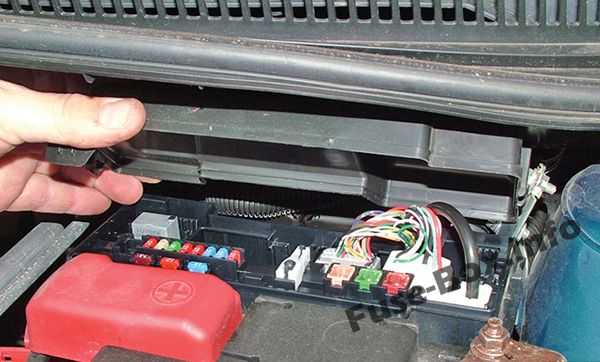

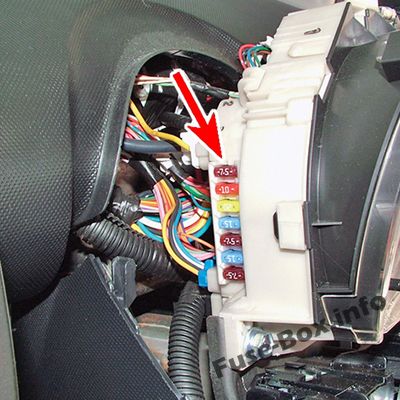

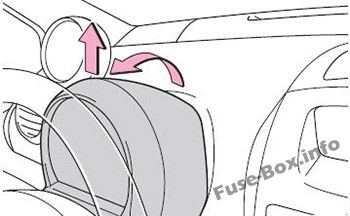

Fuse Panel Locations – Clear instructions on where the fuse boxes are situated inside the vehicle.
Fuse Assignments – A complete listing of what each fuse and relay is responsible for.
Whether you’re dealing with a malfunctioning accessory or simply checking for a blown fuse, this guide will help you keep your Toyota Aygo (2005–2014) in working order.

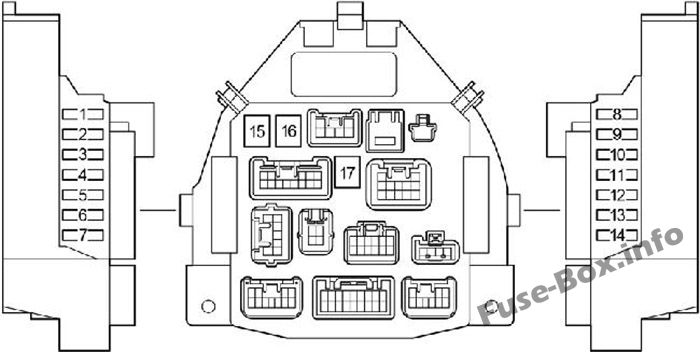

Power door lock system, wireless remote control system
3
DEF
20
Rear window defogger
4
TAIL
7.5
Daytime running light system, tail lights, license plate lights, position lights, headlight beam level control system, instrument panel lights
5
OBD
7.5
On-board diagnosis system
6
ECU-B
7.5
Multi-mode manual transmission, daytime running light system, vehicle stability control system, gauges and meters, rear fog light
7
–
–
–
8
ECU-IG
7.5
Anti-lock brake system, vehicle stability control system, electric power steering system, electric cooling fan
9
BACK UP
10
Back-up lights, power door lock system, wireless remote control system, power windows, rear window defogger, tachometer, air conditioning system, heater system
10
WIP
20
Windshield wiper and washer, rear window wiper and washer
11
ACC
15
Power outlet, audio system
12
IG1
7.5
Windshield wiper and washer, rear window wiper and washer, anti-lock brake system, electric power steering system, electric cooling fan, back-up lights, power door lock system, wireless remote control system, power windows, rear window defogger, tachometer, air conditioning system, heater system

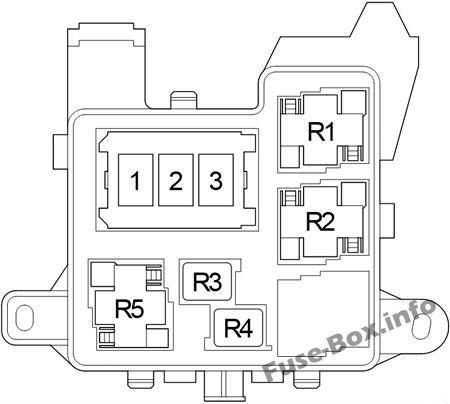

Before Feb. 2012: Headlight (H-LP) From Feb. 2012: Daytime running light (DRL)
R5
Dimmer (DIM)
FAQ
What fuse controls the cigar lighter (power outlet) in the Toyota Aygo?
The fuse is #11 “ACC” in the Instrument panel fuse box.
