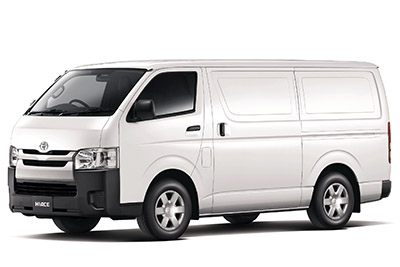

The fifth-generation Toyota HiAce—also marketed as the Toyota Commuter in Thailand, RegiusAce in Japan, Quantum in South Africa, and Ventury in Thailand—received a significant facelift in 2014, which continued until the end of its production run in 2019. Known by its model code H200, this generation of HiAce was favored globally for its versatility, durability, and practicality in both commercial and passenger configurations.
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
In this article, you will find fuse box diagrams for the Toyota HiAce covering model years 2014, 2015, 2016, 2017, 2018, and 2019. These diagrams are a vital reference for locating, identifying, and replacing fuses or relays related to electrical components such as lighting, climate control, infotainment, and more.
What’s Included:

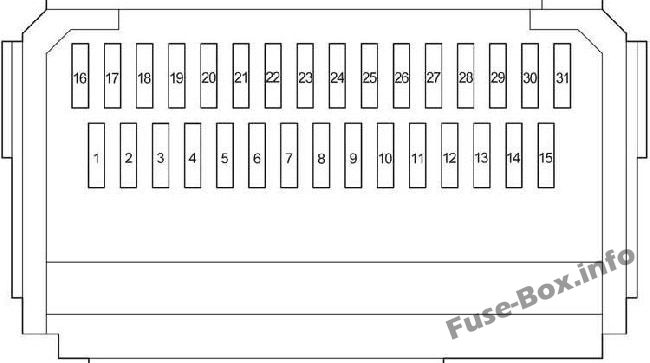

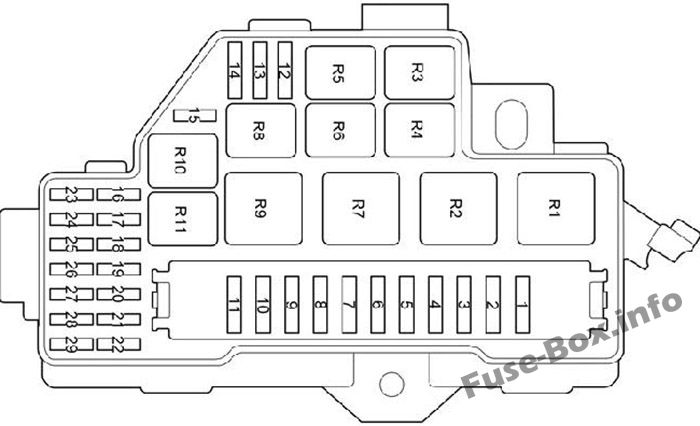

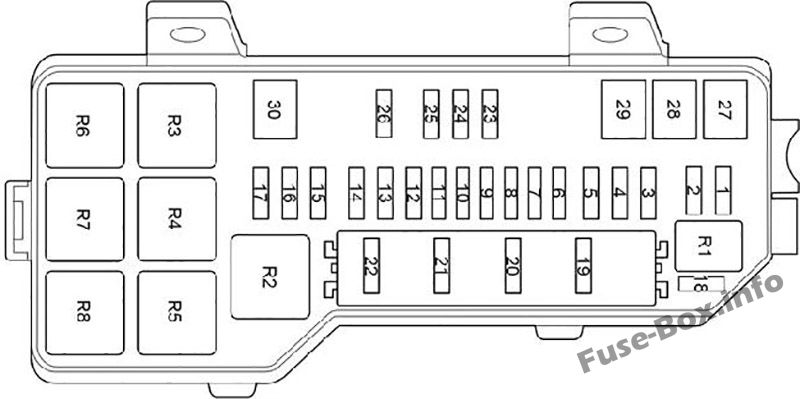

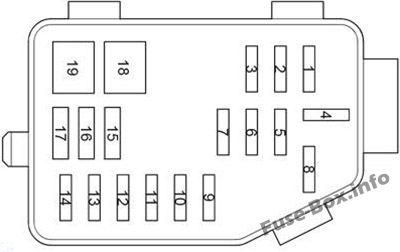

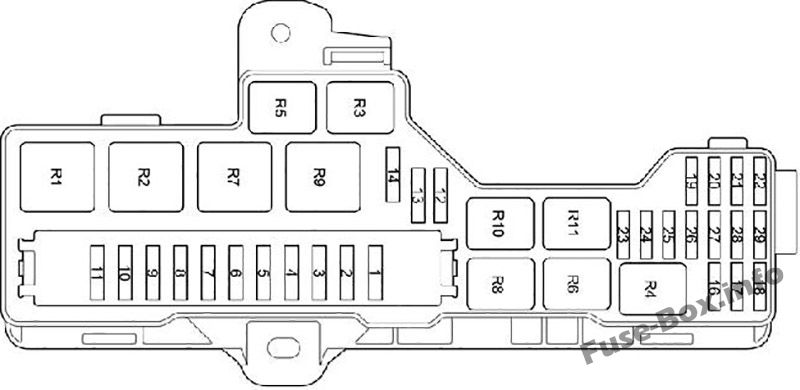

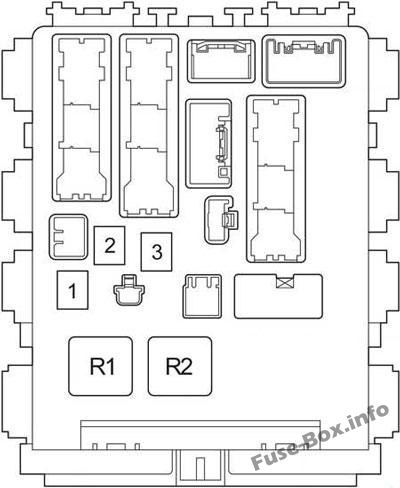

Fuse Box Diagrams – Clearly labeled illustrations showing the layout of fuses and relays.

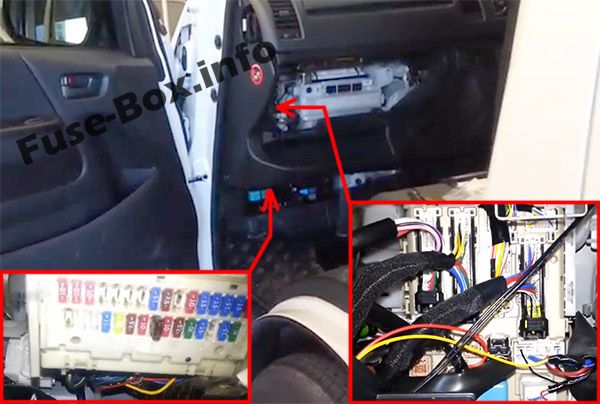

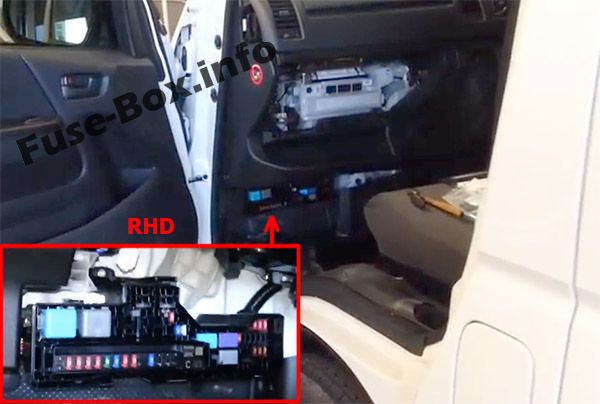

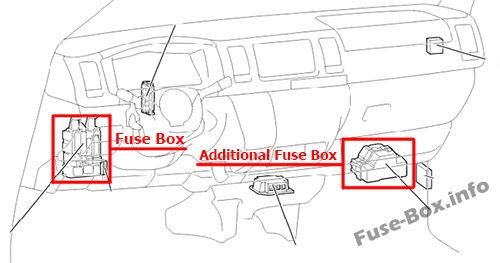

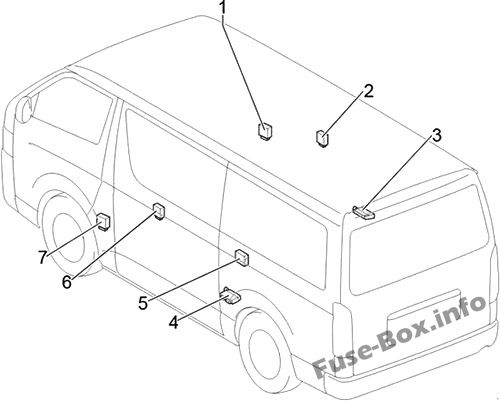

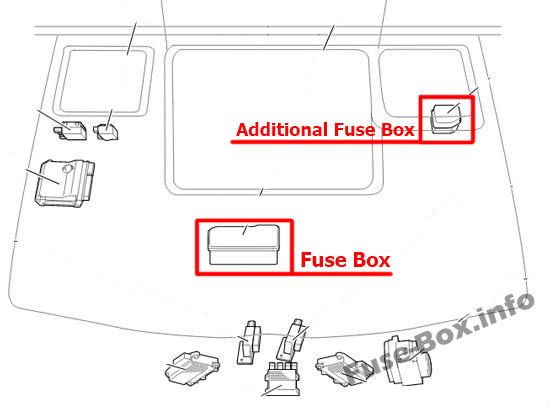

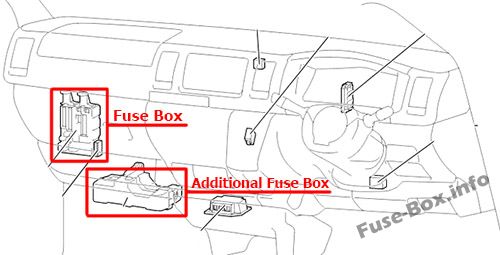

Fuse Panel Locations – Step-by-step details on where to find the fuse panels in the vehicle.
Fuse Assignments – A comprehensive chart explaining the function of each fuse and relay.
Whether you’re trying to fix a power window, resolve a lighting issue, or simply perform regular maintenance, this guide will help you confidently access and manage the fuse system in your Toyota HiAce H200 (2014–2019).
Door lock control, automatic light control, daytime running light, entry and start system, front fog light, headlight, headlight beam level control, illumination, interior light, key reminder, light reminder, power slide door, power window , rear fog light, taillight, wireless door lock control
12
HTR RR
15
Rear air conditioner
13
–
–
–
14
FR FOG
10
Front fog light
15
AM1
10
Starting system
16
TAIL
10
Taillight, front fog light, rear fog light, multiport fuel injection system/sequential multiport fuel injection system
ABS, back-up light, clock, combination meter, daytime running light, multiport fuel injection system/sequential multiport fuel injection system, entry and start system, escape hammer buzzer system, front air conditioner, headlight (LED), headlight beam level control (automatic), illumination, interior light, key reminder light reminder, power slide door, PTC heater (1KD-FTV, 2KD-FTV), seat belt warning, SRS, taillight, turn signal and hazard warning light, wireless door lock control
8
D/C CUT
30
“RADIO1, “DOME NO.1”, “DOME NO.2” fuses
9
AM2
7.5
Door closer (slide door),entry and start system, power slide door
10
TVSS
15
Power source
11
TRN&HAZ
15
Turn signal and hazard warning light, clock, combination meter
12
STRG LOCK
10
Entry and start system
13
PSD LH
25
Power slide door
14
ECU-B
10
Engine immobiliser system, entry and start system, front air conditioner, power slide door, PTC heater (1KD-FTV, 2KD-FTV), wireless door lock control
15
HEAD
40
Headlight (halogen), automatic light control, headlight beam level control (manual)
16
DOOR R/L
30
Door closer (slide door), power slide door
17
DOOR BK
30
Door closer (back door)
18
ABS MTR
40
ABS
19
AM2
30
Multiport fuel injection system/sequential multiport fuel injection system
FAQ
Which fuse controls the cigar lighter (power outlet) in the Toyota HiAce?
The fuse is #23 “CIG” in the Instrument panel fuse box.
