The seventh-generation Toyota Hilux (Model Codes: AN10/AN20/AN30), produced from 2004 to 2015, marked a significant evolution in the Hilux lineup. Built for durability and trusted in tough environments worldwide, this generation combined rugged off-road capabilities with improved interior comfort and performance. It became especially popular among professionals, adventurers, and utility fleets for its reliability and versatility.
In this article, you will find fuse box diagrams for the Toyota Hilux, covering model years 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, and 2015. These diagrams are invaluable for vehicle owners, mechanics, and technicians working on electrical diagnostics or routine maintenance.
What’s Included:
Fuse Box Diagrams – Detailed illustrations showing the layout and labeling of each fuse and relay.
Fuse Panel Locations – Instructions for locating the fuse panels within the interior cabin and engine bay.
Fuse Assignments – Descriptions of what each fuse and relay controls, supporting efficient troubleshooting and repair.
Whether you’re replacing a malfunctioning fuse, installing electrical accessories, or diagnosing system issues, this guide helps ensure that your Toyota Hilux (2004–2015) remains fully operational and dependable on any terrain.

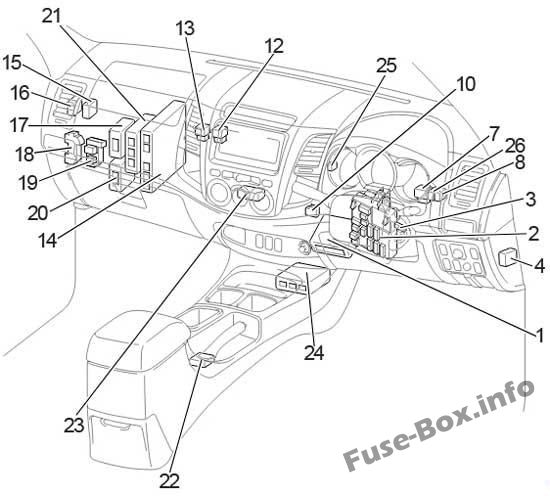

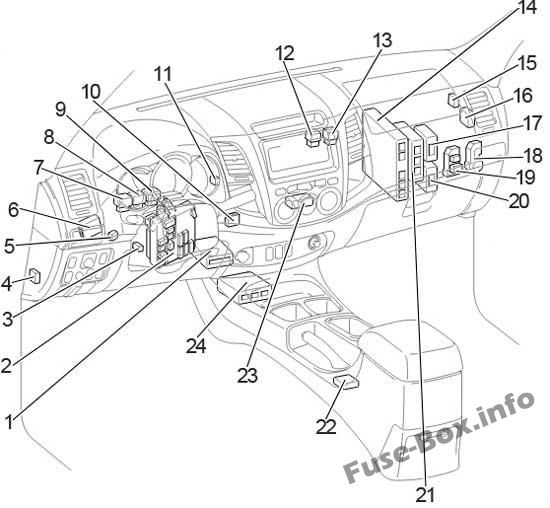

A/C Amplifier (with Air Conditioner) Viscous Heater Amplifier (without Air Conditioner)
Fuse Box / Integration Relay
Transponder Key Amplifier
4WD Control ECU (Rear Differential Lock)

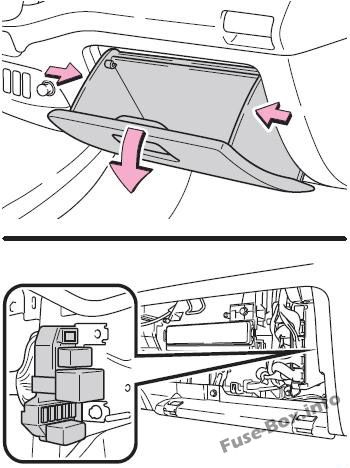

LHD:Tail Lamp Relay (Aug. 2006 – Jun. 2011)
LHD:Daytime Running Light Relay
Turn Signal Flasher
Magnet Clutch Relay
LHD:Tail Lamp Relay (Before Aug. 2006) LHD: Rear Fog Lamp Relay (From Aug. 2006)
Junction Connector
LHD:Tail Lamp Relay (From Jun. 2011)
PTC Heater Relay (No.2)
PTC Heater Relay (No.1)
Engine ECU
Door Control Receiver
Theft Warning ECU
4WD Control ECU

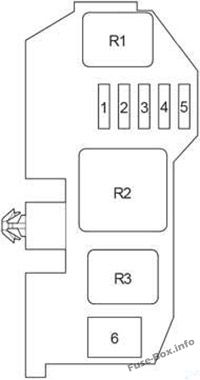

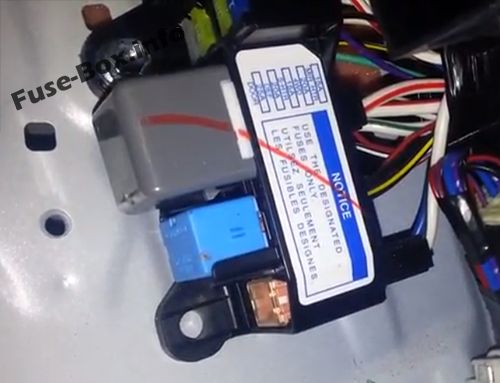

Relay Box (From Jun. 2011)

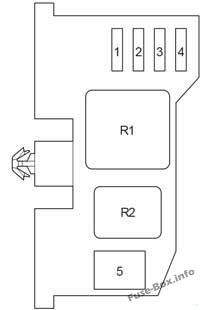

Relay Box (Before Jun. 2011)
Turbo Motor Driver
Transmission Control ECU
Shift Lock Control ECU
A/C Control Assembly
Airbag Sensor Assembly Center

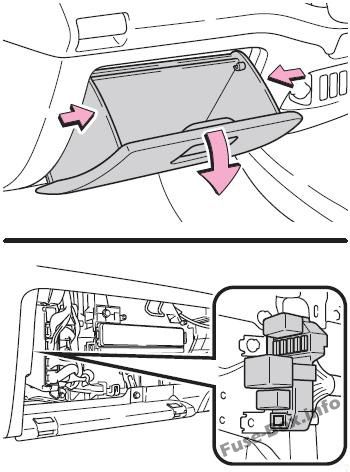

RHD:Tail Lamp Relay
RHD:Rear Fog Lamp Relay

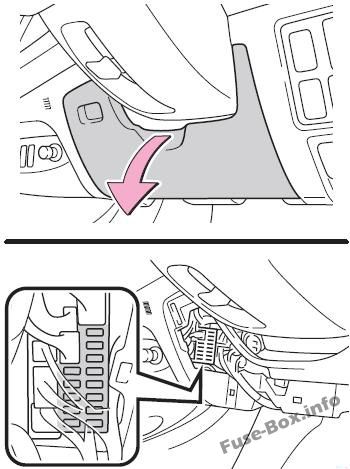

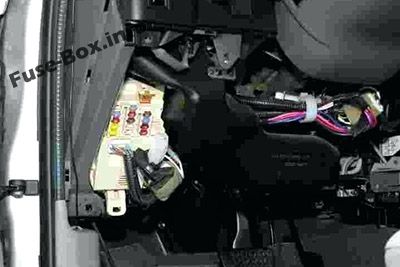

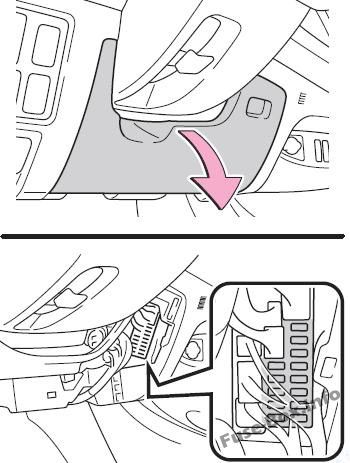

The fuse box is located under the steering wheel, behind the cover.
Left-hand drive vehicles
Right-hand drive vehicles

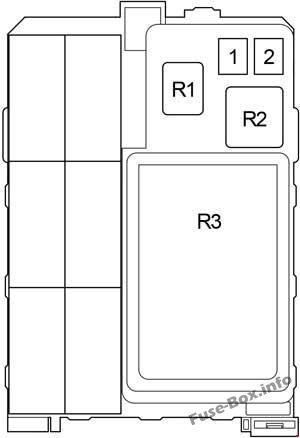

Fuse box diagram
Assignment of the fuses in the Passenger Compartment Fuse box
№
Name
Amp
Circuit
1
INJ
15
Multiport fuel injection system/sequential multiport fuel injection system
2
OBD
7.5
On-board diagnosis system
3
STOP
10
Stop lights, high mounted stoplight, multiport fuel injection system/sequential multiport fuel injection system, ABS, TRC, VSC and shift lock control system
4
TAIL
10
Instrument panel light, front fog lights, headlight beam level control system, front position lights, tail lights, license plate lights, multiport fuel injection system/sequential multiport fuel injection system, multi-information display, daytime running light system and automatic headlight system
5
PWR OUT
15
Power outlet
6
ST
7.5
Starting system, gauges and meters and multiport fuel injection system/sequential multiport fuel injection system
7
A/C
10
Air conditioning system
8
MET
7.5
Gauges and meters and DPF system
9
CIG
15
Cigarette lighter
10
ACC
7.5
Audio system, power outlet, clock, power rear view mirror control system, shift lock control system and multi-information display

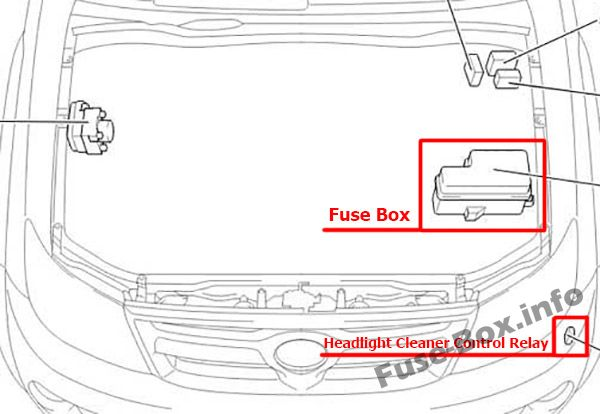

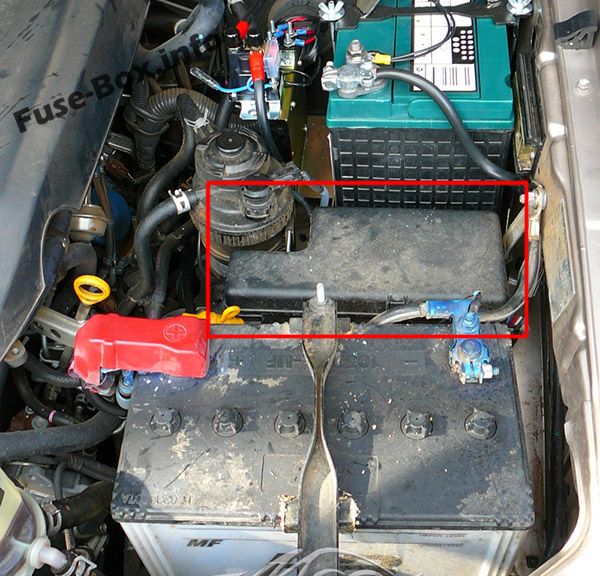

The fuse box is located in the engine compartment (left-side).

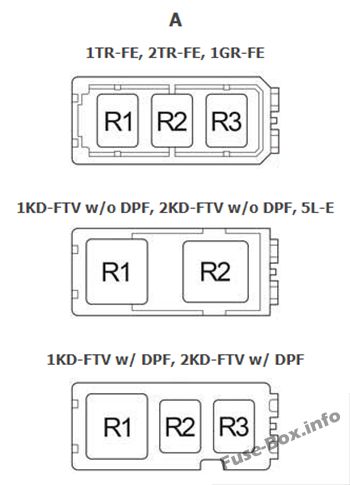

Fuse box diagram
Assignment of the fuses in the Engine Compartment
№
Name
Amp
Circuit
1
–
25
Spare fuse
2
–
15
Spare fuse
3
–
10
Spare fuse
4
FOG
7.5
Europe, Morocco: From Aug. 2012 – Aug. 2013: Front fog lights From Aug. 2013: Front fog lights
4
FOG
15
Before Aug. 2013: Front fog lights Except Europe, Morocco: From Aug. 2012 – Aug. 2013: Front fog lights
5
HORN
10
Horn
6
EFI
25
Multiport fuel injection system/sequential multiport fuel injection system
7
–
–
–
8
H-LP RL
20
Before Jun. 2011: Right-hand headlight (Low)
8
H-LP RL
15
From Jun. 2011: Right-hand headlight (Low)
9
H-LP LL
20
Before Jun. 2011: Left-hand headlight (Low)
9
H-LP LL
15
From Jun. 2011: Left-hand headlight (Low)
10
H-LP RH
20
Before Jun. 2011: Right-hand headlight (High) and right-hand headlight (Low)
10
H-LP RH
15
From Jun. 2011: Right-hand headlight (High) and right-hand headlight (Low)
11
H-LP LH
20
Before Jun. 2011: Left-hand headlight (High) and left-hand headlight (Low)
11
H-LP LH
15
From Jun. 2011: Left-hand headlight (High) and left-hand headlight (Low)
12
EFI NO.2
10
Multiport fuel injection system/sequential multiport fuel injection system
13
ECU-IG NO.2
10
Multiport fuel injection system/ sequential multiport fuel injection system
14
ECU-B
7.5
Before Aug. 2008: Door courtesy switches, power door lock system, wireless remote control system, steering sensor and headlights
14
ECU-B
10
From Aug. 2008: Door courtesy switches, power door lock system, wireless remote control system, steering sensor and headlights
15
RAD
15
Before Aug. 2013: Audio system
15
RAD
20
From Aug. 2013: Audio system
16
DOME
7.5
Interior lights, engine switch light, personal light, gauges and meters, clock, multi-information display, wireless remote control system, daytime running light system and fog light
17
A/F
20
Emission control system
18
ETCS
10
Multiport fuel injection system/ sequential multiport fuel injection system, electric throttle control system
19
ALT-S
7.5
Charging system
20
TURN-HAZ
15
Emergency flashers and turn signal lights
21
–
–
–
22
ECU-B NO.2
7.5
Air conditioning system
23
DCC
30
“ECU-B”, “DOME” and “RAD” fuses
24
PTC NO.1
50
Power heater
25
H-LP CLN
30
Before Jun. 2011: Headlight cleaners
25
PWR SEAT
30
Power seat
26
PTC NO.2
50
Europe: From Aug. 2010 – Jun. 2011 (without Automatic A/C): Power heater; From Jun. 2011: Power heater
26
PTC NO.2
30
Europe: Before Jun. 2011 (with Automatic A/C): Power heater; Before Aug. 2010 (without Automatic A/C): Power heater Australia: Power heater
27
ABS NO.1
40
Before Aug. 2008: ABS, TRC and VSC
27
H-LP CLN
40
From Jun. 2011: Headlight cleaners
28
FR HTR
40
Before Aug. 2009: Air conditioning system, “A/C” fuse
28
FR HTR
50
From Aug. 2009: Air conditioning system, “A/C” fuse
