The Toyota Land Cruiser 70 Series (Model Code: J70) is a no-nonsense, utilitarian off-roader that has earned global respect for its durability, mechanical simplicity, and all-terrain prowess. Produced in various configurations, this long-standing model remains a favorite among professionals operating in remote and rugged environments.
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
In this article, you will find fuse box diagrams for the Toyota Land Cruiser J70, covering model years 2009, 2010, 2011, 2012, 2013, and 2014. These diagrams provide essential information to help owners and technicians manage the vehicle’s electrical systems efficiently.
What’s Included:

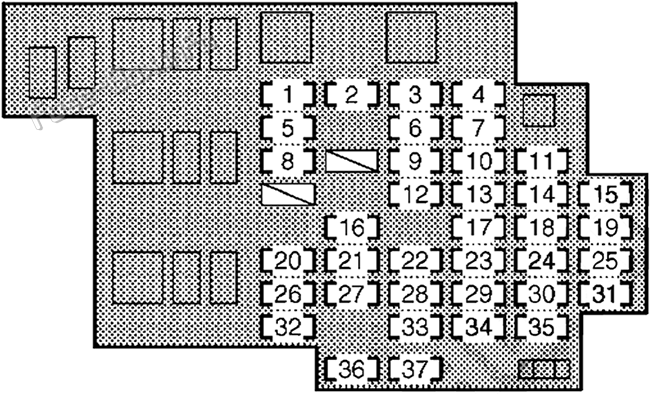

Fuse Box Diagrams – Clear illustrations displaying fuse and relay layout for quick identification.

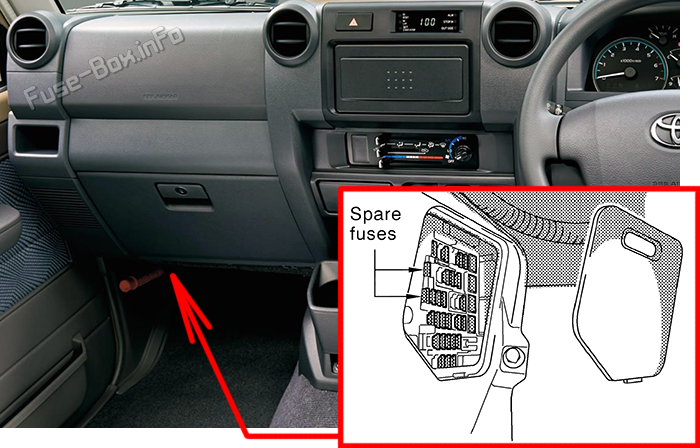

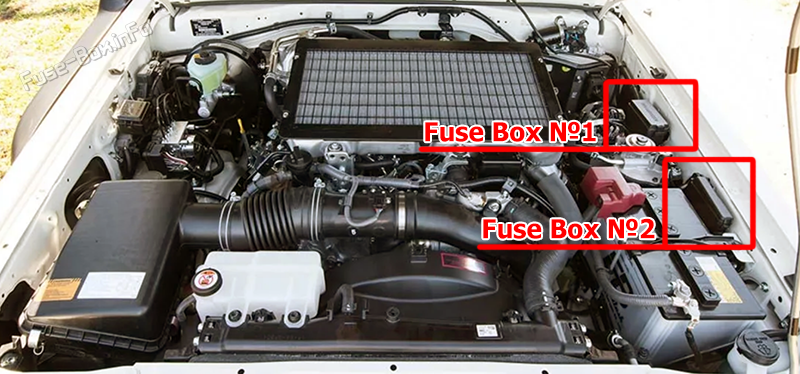

Fuse Panel Locations – Directions for locating the fuse boxes within the vehicle for easy access.
Fuse Assignments – Detailed breakdown of each fuse and relay’s function to support maintenance and troubleshooting.
Whether you’re fixing an electrical issue, replacing a blown fuse, or performing routine maintenance, this guide helps ensure your Toyota Land Cruiser 70 Series (2009–2014) stays operational and dependable in even the toughest conditions.
Clock, audio system, emergency flashers, instrument panel light control, door lock system, rear window defogger, power antenna, gauges and meters, air conditioning system
16
DOME №1
10A
2009-2012: Gauges and meters, interior light 2012-2014: Gauges and meters, interior light, wireless remote control system
17
H/LP HI RH
10A
Right-hand headlight (high beam), service reminder indicators and warning buzzers
All components in “GLOW1”, “GLOW2”, “HEAD”, “MAIN1 ”, “MAIN2”, “AM2”, “HORN”, “EFI MAIN”, “EFI MAIN2”, “TURN&HAZ”, “ALT-S”, “H/LP LO RH”, “H/LP LO LH”, “TRAILER”, “H/LP HI RH”, “TAIL”, “PANEL”, “FR FOG”, “DOME”, “ECU-B”, “RADIO” and “DOOR” fuses
3
GLOW1
80A
Engine glow system
4
GLOW2
80A
Engine glow system
5
AM1 №2
50A
2009-2012: All components in “ECU IG”, “GAUGE” and “WIP” fuses 2012-2014: All components in “ECU IG”, “GAUGE” and “WIP” fuses, front fog lights, rear fog lights
6
AM1
30A
Cigarette lighter, starting system, all components in “ST” and “ACC” fuses
7
AM1 №3
50A
Cigarette lighter, all components in “ACC” fuse
8
ALT MAIN
50A
Stop lights, air conditioning system, on-board diagnosis system, audio system

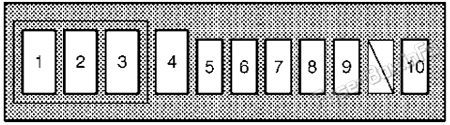

Fuse Box No.2 Diagram
Assignment of the fuses in the Fuse Box No.2
Fuse Data
Full access is available to registered users — log in or register.
2009-2012: Audio system, all components in “ECU-B”, “DOME №1”, “DOME №2” and “DOOR” fuses
ABS MTR
50A
2012-2014: ABS
3
MAIN1
50A
2009-2012: Tail lights, front fog lights, rear fog lights, all components in “PANEL” fuse 2012-2014: Tail lights, all components in “PANEL” fuse, trailer, audio system, all components in “ECU-B”, “DOME №1” and “DOOR” fuses
4
AM2
50A
All components in “MET”, “IGN” and “INJ” fuses
5
HORN
10A
Horns
6
EFI MAIN
15A
Electronically controlled fuel injection pump system
7
EFI MAIN2
15A
Electronically controlled fuel injection pump system
8
TURN&HAZ
15A
Turn signal lights, tail lights, service reminder indicators and warning buzzers, trailer lights (tail lights)
9
ABS SOL
30A
2012-2014: ABS
10
ALT-S
7.5A
Charging system
