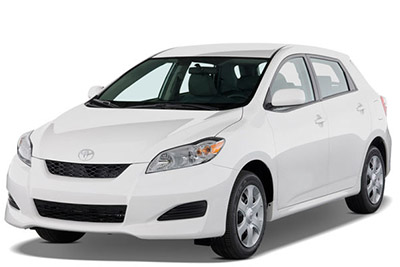

The second-generation Toyota Matrix (Model Code: E140) was produced from 2008 to 2014. Known for its practicality, sporty styling, and versatility, the Matrix offered hatchback utility with car-like handling, making it a popular choice for drivers seeking both performance and everyday usability.
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
In this article, you will find fuse box diagrams for the Toyota Matrix, covering model years 2008, 2009, 2010, 2011, 2012, 2013, and 2014. These diagrams provide crucial details for understanding your vehicle’s electrical system and identifying the location and function of each fuse and relay.
What’s Included:
Fuse Box Diagrams – Detailed visuals outlining each fuse and relay within the fuse panels.

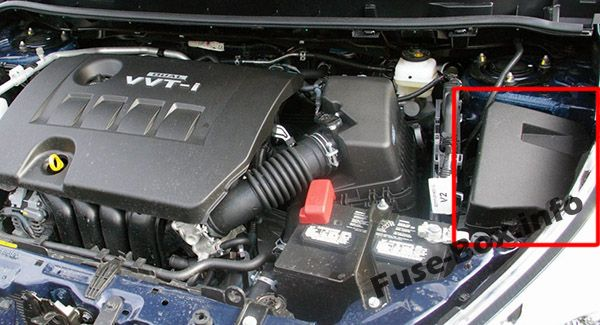

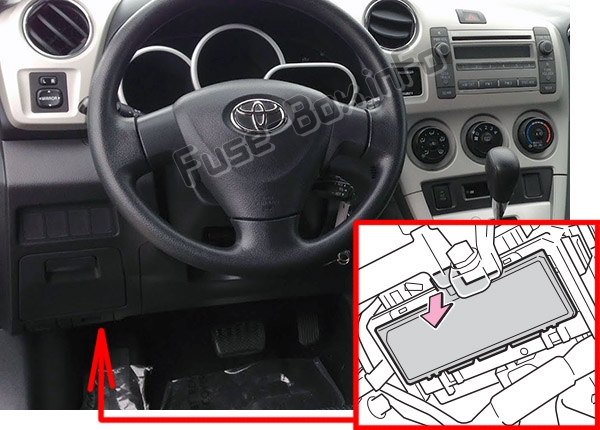

Fuse Panel Locations – Clear guidance on where the fuse boxes are situated in the vehicle (e.g., engine compartment, interior cabin).
Fuse Assignments – Explanations of each fuse’s role, helping with electrical diagnostics, component replacement, or maintenance.
Whether you’re troubleshooting a malfunction, replacing a fuse, or performing regular maintenance, this guide is an essential tool for keeping your Toyota Matrix (2008–2014) running smoothly and reliably.

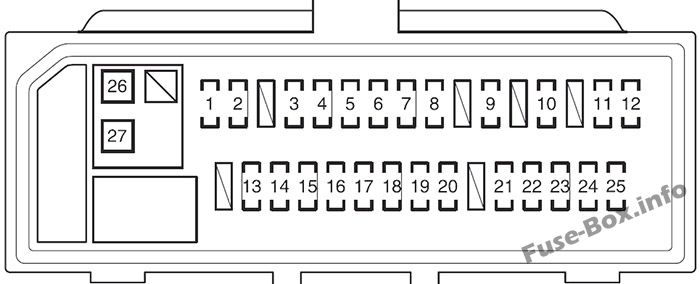

Outside rear view mirrors, audio system, main body ECU, clock, shift lock control system
9
I/P
7,5
No circuit
10
PWR OUTLET
15
No circuit
11
IGN
7,5
SRS airbag system, multiport fuel injection system/sequential multiport fuel injection system, front passenger occupant classification system
12
METER
7,5
Gauge and meters
13
HTR-IG
10
Air conditioning system, rear window defogger
14
WIPER
25
Windshield wipers
15
RR WIPER
15
Rear window wiper
16
WASHER
15
Windshield washer
17
ECU-IG NO. 1
10
Main body ECU, electric power steering, electric cooling fan(s), shift lock control system, anti-lock brake system, multiport fuel injection system/sequential multiport fuel injection system, tire pressure warning system, vehicle stability control system
Which fuses control the cigar lighter and power outlet in the Toyota Matrix?

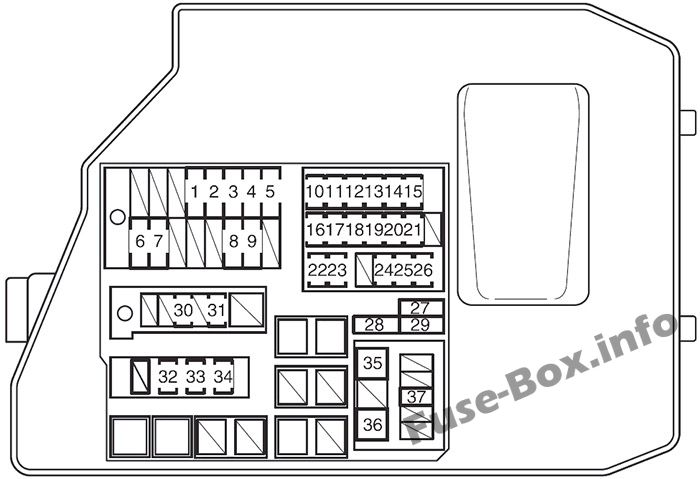

The fuses are #7 “CIG” and #22 “ACC-B” in the Instrument panel fuse box, and #37 “PWR OUTLET/INVERTER” in the Engine compartment fuse box.
